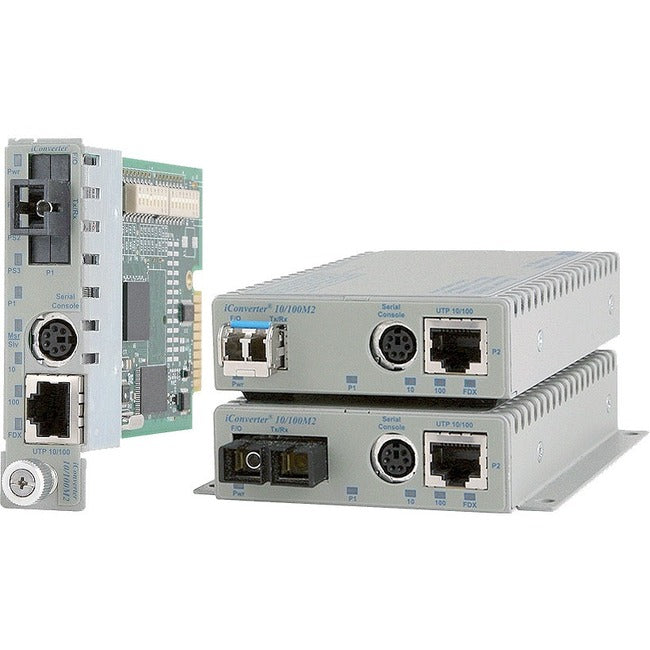

Omnitron Systems iConverter 10/100M2 89xxN-x-xx Transceiver/Media Converter
The iConverter 10/100M2 is a carrier-grade Network Interface Device (NID) that provides 10/100 copper to Fast Ethernet fiber media conversion with integrated management. For Service Providers, the 10/100M2 NID provides MEF 9, 14 and 21 certified demarcation of Carrier Ethernet E-Line services. The 10/100M2 is a cost-effective demarcation device for Service Providers to deliver best-effort Ethernet services. For Enterprise and Government and Utility networks, the 10/100M2 enables secure demarcation and management for mission-critical applications delivered over fiber infrastructure.
IEEE 802.3ah Operations, Administration and Maintenance
The 10/100M2 supports the IEEE 802.3ah Link OAM standard with Fault Detection, Performance Monitoring and Remote Loopback for Ethernet in the First Mile (EFM) access links.
Fault Detection
The 10/100M2 detects and indicates link faults, dying gasp and other critical events. Dying gasp is supported on all standalone models and plug-in models when installed in a 1-Module or 2-Module chassis with dying gasp support. The 10/100M2 also supports Unidirectional Link Fault Detection that indicates faults in either direction of the fiber link.
Performance Monitoring
802.3ah Performance Monitoring tools are used for the detection and notification of link performance (quality) faults. Ethernet data performance can deteriorate slowly over time, and the 10/100M2 allows the setting of error-per-second thresholds with event notification for early indication of issues that may be resolved prior to loss of service.
Remote Loopback
Remote Loopback is used for fault localization and link performance testing. When a 10/100M2 port is in loopback mode, all received link traffic is looped back and transmitted back unaltered. The statistics from the 10/100M2 port and the remote link partner can be compared for consistency.
VLAN with 802.1ad Q-in-Q and QoS for E-Line services
The iConverter 10/100M2 supports the IEEE 802.1Q tag Virtual Local Area Network (VLAN) packet tagging and untagging (including Q-in-Q tunneling and 802.1ad service provider tag) and the 802.1p Quality of Service priority standards.
VLAN 802.1ad tunneling technology enables service providers to offer their customers E-Line services via Ethernet Virtual Circuits (EVC). The 802.1p Quality of Service (QoS) prioritization standard enables delivery of high-priority, real-time applications such as voice and video over Ethernet.
Port Bandwidth Control and Port Access Control
The enhanced Bandwidth Control feature controls bandwidth between the fiber and RJ-45 ports in 64Kbps increments from 64K to Full Line Speed.
The 10/100M2 features Port Access Control which blocks user service while maintaining the network link. Port Access Control enables the service provider to control user access while maintaining port configuration for easy disabling or enabling of customer service. Port Access Control provides enterprise administrators the capability to improve network security by controlling port access when the port is not in use.
Port Statistics and Optical Performance Statistics
The 10/100M2 supports reporting of utilization, port and optical performance statistics. Port statistics are available for 38 different parameters for the RJ-45 and fiber ports. Additionally, full optical performance statistics are available on SFP fiber transceivers with a digital diagnostic interface.
Port and optical performance statistics reporting provides the ability to monitor customer bandwidth utilization, network performance and the link signal quality for each individual port.
- Attach multiple devices together or expand the number of devices connected to your existing network by using 3 transceiver/media converter
- Supports optical fiber cable to span longer distances and provides data transmission rates par excellence between networks and different devices
- With 100Base-FX technology get up to 100Mbps data transfer rate over twisted pair cable
- The unit is standalone and you can place it anywhere on a flat surface
Product Type: Transceiver/Media Converter
Environmentally Friendly: Yes
Environmental Certification: RoHS-6
Country Of Origin: United States
Product Series: 10/100M2
Brand Name: Omnitron Systems
Form Factor: Desktop
Manufacturer: Omnitron Systems
Product Model: 89xxN-x-xx
Product Name: iConverter 10/100M2 89xxN-x-xx Transceiver/Media Converter
Product Line: iConverter
Manufacturer Part Number: 8902N-0-EW
Manufacturer Website Address: http://www.omnitron-systems.com
Package Contents:
- iConverter 10/100M2 89xxN-x-xx Transceiver/Media Converter
- Integrated Mounting Brackets
- AC Power Supply
Limited Warranty: Lifetime
Weight (Approximate): 1 lb
