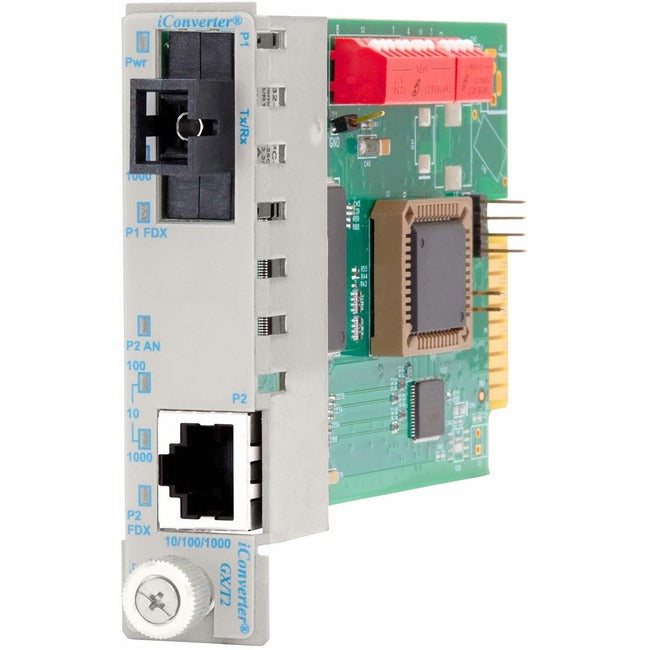

iConverter 10/100/1000 Gigabit Ethernet Single-Fiber Media Converter SC Single-Mode BiDi 20km Module
The GX/T2 is a 10/100/1000BASE-T Ethernet to 100BASE-FX or 1000BASE-X fiber media converter. The GX/T2 SFP models support both 100BASE-FX and 1000BASE-X Small Form Pluggable (SFP) transceivers. The GX/T2 fixed fiber models support 1000BASE-X over multimode and single-mode fiber with SC and ST connectors; and single-mode single-fiber with SC connectors.
The RJ-45 port supports 10/100/1000 and Half/Full-Duplex auto-negotiation with both hardware and software manual override controls.
iConverter GX/T2 media converters are available as compact, unmanaged standalone units, or chassis plug-in modules that can be managed with a management module installed in the chassis. The hot-swappable plug-in module can be mounted in a 19 or 5-Module chassis with any combination of redundant AC and DC power supplies. It can also be mounted in a 2-Module AC or DC powered chassis, or in a 1-Module chassis with AC or DC power input.
Advanced features for the plug-in module models include IEEE 802.1Q VLAN and 802.1p Quality of Service prioritization standards, and Port Access Control, which provides the ability to enable or disable individual ports to control delivery of services. The GX/T2 also supports port-level MIB statistics reporting real-time packet statistics to provide performance and operational monitoring.
- Meet the multiple network connectivity needs of today's network environment with this 2 transceiver/media converter
- Supports twisted pair cables for durability and improved signal transfer while ensuring smooth and seamless data transfer
- With 10Base-T technology get up to 10Mbps data transfer rate over twisted pair cable
Product Type: Transceiver/Media Converter
Environmentally Friendly: Yes
Environmental Certification: WEEE
Country Of Origin: United States
Product Series: GX/T2
Brand Name: Omnitron Systems
Manufacturer: Omnitron Systems
Product Model: 8531N-1-x
Product Name: iConverter GX/T2 SC Single-Mode Single-Fiber 15/13 20km Plug-In Module
Package Type: Retail
Product Line: iConverter
Manufacturer Part Number: 8531N-1
Manufacturer Website Address: http://www.omnitron-systems.com
Package Contents:
- iConverter GX/T2 SC Single-Mode Single-Fiber 15/13 20km Plug-In Module
- User Manual
Limited Warranty: Lifetime
Weight (Approximate): 8 oz
