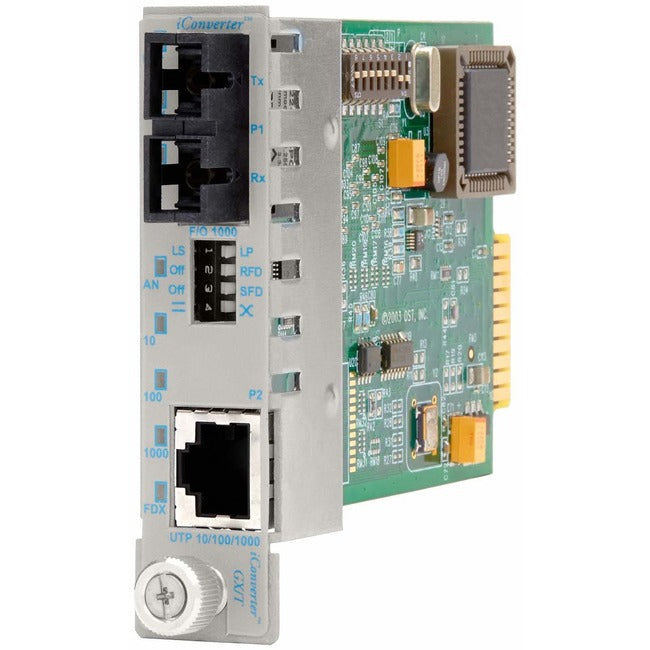

iConverter 10/100/1000 Gigabit Ethernet Fiber Media Converter SC Multimode 2km Module
The GX/T provides 10/100/1000 UTP copper to Gigabit Ethernet fiber conversion and can be used in a managed or unmanaged fashion.
The GX/T is ideal in network core or Central Office (CO) applications when conversion is required from a 10/100/1000 core switch to GigE fiber, and in edge applications when the GigE fiber is converted back into 10/100/1000 copper and delivered to a departmental or Customer Premise (CPE) switch.
The UTP port supports 10/100/1000 and Half/Full-Duplex auto-negotiation with both hardware and software manual override controls.
Advanced features include VLAN, which allows network managers control the traffic flow between the UTP, fiber and backplane ports to enhance security, and Port Access Control, which provides the ability to enable or disable individual ports to control delivery of services to customers. The GX/T also supports port level MIB statistics reporting a real-time packet statistics to provide performance and operational monitoring.
The GX/T features user-selectable Link Propagate, Link Segment, Remote Fault Detection and Symmetrical Fault Detection modes to facilitate quick fault detection, isolation and reporting.
iConverter GX/T modules are hot-swappable and can be mounted in a 19-Module (2U high) or 5-Module (1U high) rack-mountable chassis (19-inch or 23-inch) with any combination of redundant AC, 24VDC or 48VDC power supplies. They can also be mounted in a 2-Module AC or 18 to 60VDC powered chassis, or in a 1-Module AC/DC powered chassis.
- Conforms to 10BASE-T, 100BASE-TX, 1000BASE-T and 1000BASE-X specifications
- Supports VLANs, Port Access Control and MIB statistics
- UTP port supports 10/100/1000 and Half/Full-Duplex auto-negotiation
- User-selectable link fault detection modes facilitate quick fault detection, isolation and reporting
- Management is available with the addition of a management module to the chassis
- Modules are hot-swappable in 19-Module, 5-Module, 2-Module or 1-Module chassis
- Lifetime Warranty and free 24/7 Technical Support
- Attach multiple devices together or expand the number of devices connected to your existing network by using 2 transceiver/media converter
- With Twisted Pair cable, get the desired data transfer rate up to a required distance
- With 10Base-T technology get up to 100Mbps data transfer rate over twisted pair cable
- With Wall mounting feature, you can conveniently install the device while keeping the wires and cables organized
Product Type: Transceiver/Media Converter
Environmentally Friendly: Yes
Environmental Certification: WEEE
Country Of Origin: United States
Product Series: GX/T
Brand Name: Omnitron Systems
Form Factor: Internal
Manufacturer: Omnitron Systems
Product Model: 8522-6-x
Product Name: iConverter GX/T SC Extended Multimode 2km Plug-In Module
Package Type: Retail
Product Line: iConverter
Manufacturer Part Number: 8522-6
Manufacturer Website Address: http://www.omnitron-systems.com
Package Contents:
- iConverter GX/T SC Extended Multimode 2km Plug-In Module
- User Manual
Limited Warranty: Lifetime
Weight (Approximate): 8 oz
