Ibm N2115 Sas/Sata Hba Interface Cards/Adapter Internal Sas, Sata

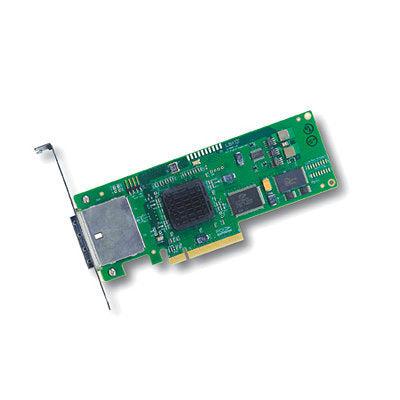

N2115 SAS/SATA HBA for IBM System x

IBM N2115 SAS/SATA HBA. Host interface: PCIe, Output interface: SAS,SATA, Connector(s): 8 x SAS+SATA, 2 x mini-SAS. Purpose: Server, Certification: UL cUL IEC60950 EMC FCC TUV CE VCCI BSMI C-tick KC. Chipset: LSI SAS2308, Data transfer rate (max): 6 Gbit/s. Width: 152.4 mm, Depth: 17.5 mm, Height: 64.5 mm. Package width: 143 mm, Package depth: 50.8 mm, Package height: 238.3 mm

The N2115 SAS/SATA HBA for IBM System x is an ideal solution for System x servers requiring high-speed internal storage connectivity. This 8-port host bus adapter supports direct attach to SAS and SATA internal hard disk drives and solid-state drives (SSDs).

The N2125 SAS/SATA HBA for IBM System x is a low-cost, high-performance 8-port host bus adapter perfect for high-performance connectivity between System x servers and external storage JBOD, Tape, and RAIDed units.

With low-profile form factor designs, the N2115 SAS/SATA HBA for IBM System x and the N2125 SAS/SATA HBA for IBM System x offer two (x4) internal mini-SAS connectors and two (x4) external mini-SAS connectors, respectively. They are based on LSI 2308 6 Gbps SAS IO controller; both provide eight lanes of 6 Gbps SAS and eight lanes of PCIe 3.0 to eliminate data bottlenecks and provide high data transfer rates for medium-to-large capacity server storage applications.
