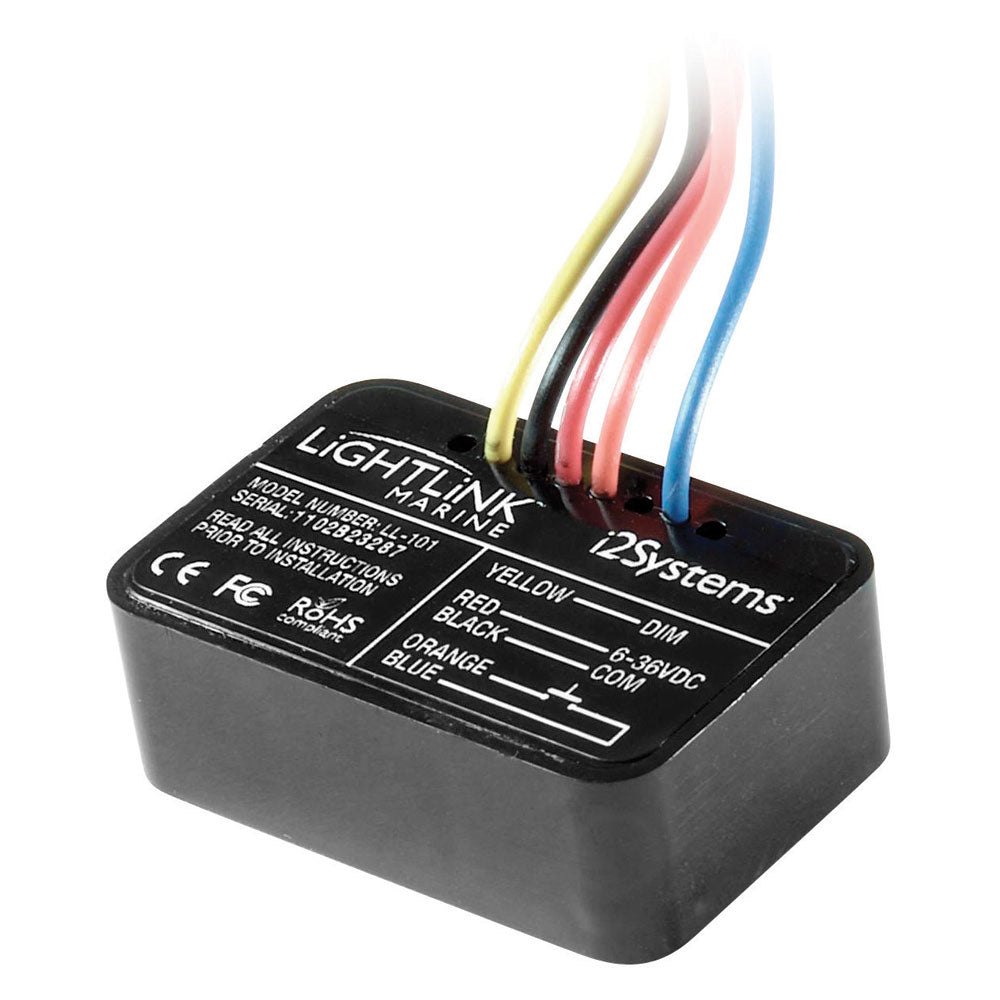

LightLink LL-101 Marine Dimming ModulePart #: LL-101
Operation is simple! Press and hold the momentary switch to initiate dimming cycle. Dimming cycle continues to dim as long as switch is engaged, ranging from 100% to approximately 5% intensity holding 2 seconds at each position before dimming the opposite direction. Briefly press and release momentary switch for on/off operation.
Specifications:
- Input Voltage: 6-36 Volt DC
- Dimensions: Width: 1.5" x Height: 0.5" x Depth: 1.0"
Features:
- Compatible with i2Systems Apeiron, Ember and Profile lights
- Dimming control via a momentary switch or contact
- Small size, encapsulated, fits into most switch boxes
The LL-101 means that no matter what level you have the lights at when you turn them off, they will resume at full brightness when turned back on.
The LightLink LL-101 is capable of dimming and controlling up to
(20) i2Systems Fixtures, including:
- Apeiron A1110
- Apeiron A2162
- Ember E1150
- Profile P1100
