HPE Smart Array P800 Controller - Storage controller (RAID) - SATA 1.5Gb/s / SAS - RAID RAID 0, 1, 5, 6, ADG, 0+1 - PCIe x8 - for ProLiant DL360 G7, DL380 G6; StorageWorks Network Storage Gateway X3400 G2, X3800 G2
- 16 total ports of 3G Serial Attached SCSI (SAS)
- Online Drive Flash
- Supports SAS and SATA disk drives
- Standard RAID 0,1, 1+0, 5, 6

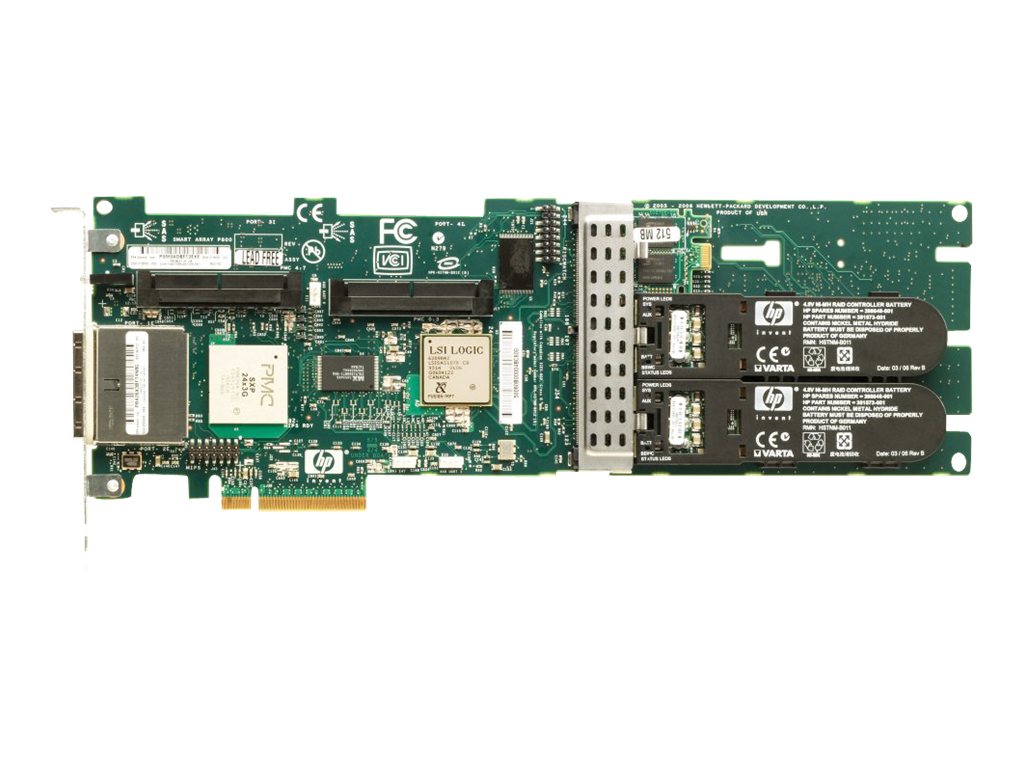

The HP Smart Array P800 is HP's first 16 port serial attached SCSI (SAS) RAID controller PCI-Express (PCIe). It is the highest performing controller in the SAS portfolio and provides new levels of reliability for HP servers, through its support of the latest SCSI technology and advanced RAID capabilities. This controller ships standard with RAID 6 (ADG) and supports over 100 hard drives. The P800 is shipping with Windows support at initial launch and will support Linux by January 2007.
-
Performance
16 total ports of 3G Serial Attached SCSI (SAS).
2 x4 external connections, 2 x4 internal connections.
x8 2.5G PCI-Express host interface.
Native Command Queuing (NCQ) for increased performance on SATA drives.
-
Management
Online Drive Flash.
Remote monitoring and configuration.
-
Options
Supports SAS and SATA disk drives.
SAS expander support.
-
Reliable
Standard RAID 0,1, 1+0, 5, 6.
Two batteries for four days of support.
Recovery ROM.
What's in the box:
- Product warranty statement
- Quick install card
- Smart Array P800 controller
