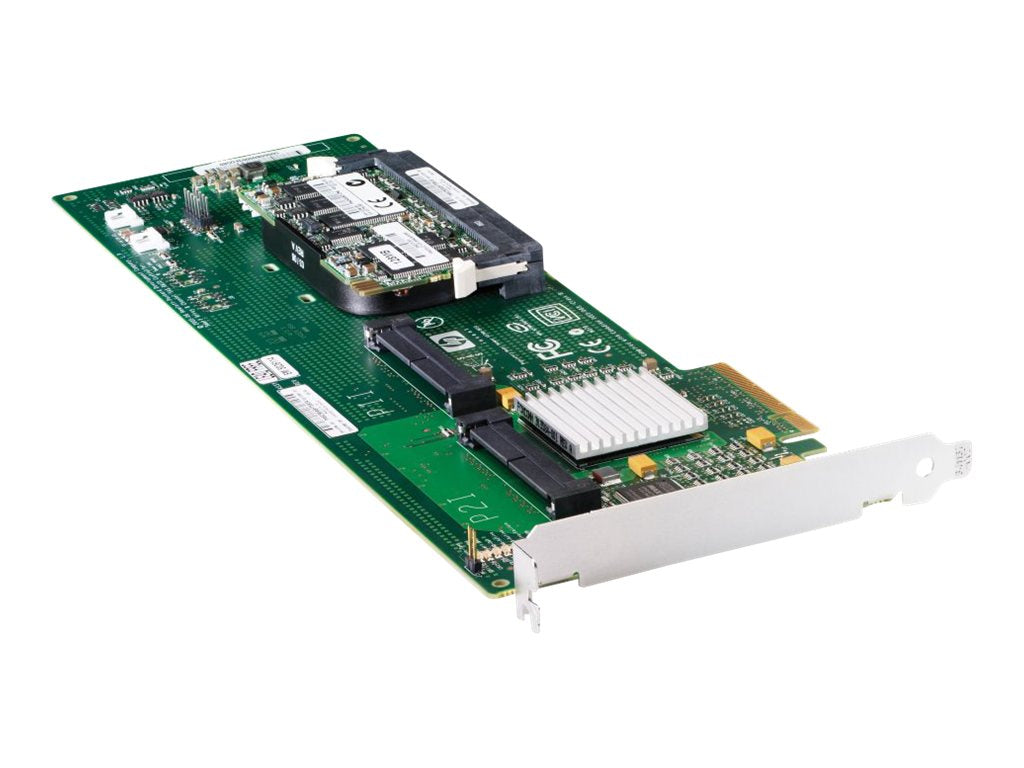

HPE Smart Array E200/128 BBWC Controller - Storage controller (RAID) - SATA 1.5Gb/s / SAS - RAID RAID 0, 1, 5, 10, 0+1 - PCIe x4 - for ProLiant DL165 G5, DL180 G5, DL185 G5, DL320 G5p, DL385 G5, DL385 G5p, ML115 G5, ML150 G5
- 8 internal ports of 3Gb Serial Attached SCSI (SAS)
- Standard RAID 0,1, 1+0
- Supports SAS and SATA disk drives
- Online Drive Flash
The HP Smart Array E200 is HP's first entry level PCI Express (PCIe) Serial Attached SCSI (SAS) RAID controller. The full size card has 8 ports and utilizes DDR1-266 memory. The E200 is ideal for RAID 0/1 and can be upgraded with the 128MB battery-backed write cache (BBWC) module for RAID 5.
-
Entry Level Performance
8 internal ports of 3Gb Serial Attached SCSI (SAS).
x4 PCI-Express I/O connector.
DDR-1/266 memory.
128MB Battery-Backed Write Cache (BBWC) upgrade option.
-
Reliable
Standard RAID 0,1, 1+0.
RAID 5 support with BBWC.
-
Flexible
Supports SAS and SATA disk drives.
-
Manageable
Online Drive Flash.
Remote monitoring and configuration.
Mirror Splitting and recombining.
