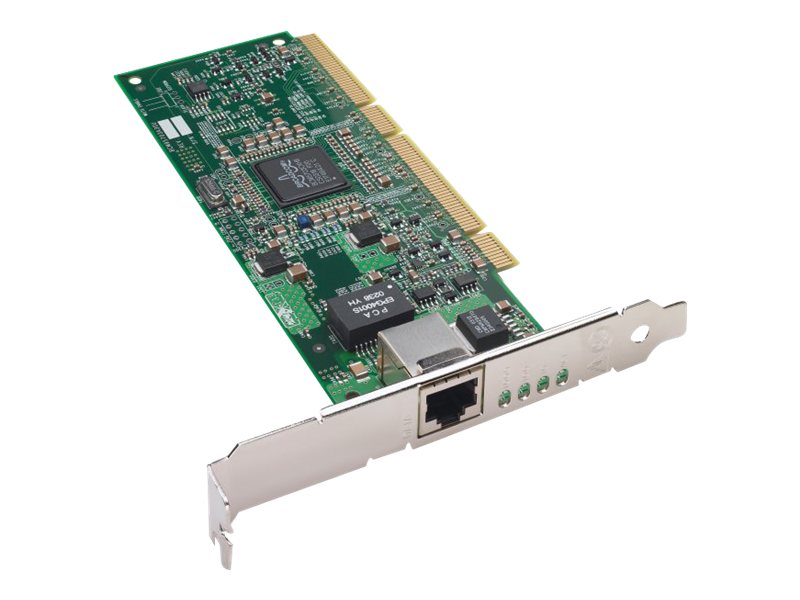

HPE NC7771 - Network adapter - PCI-X - Gigabit Ethernet - for ProLiant DL140 G3, DL360 G5, DL365, DL380 G5, DL385 G2, ML350 G5, ML370 G3, ML370 G5
- Broadcom 5703 10/100/1000 Gigabit controller
The HPE NC7771 PCI-X Gigabit Server Adapter is the highest performing network solution for ProLiant customers demanding the utmost in bandwidth and features. The HPE NC7771 PCI-X Gigabit Server Adapter combines Gigabit Ethernet speed with PCI-X bus technology. The HPE NC7771 is a single-port copper Gigabit server adapter that runs over Category 5 (or better) twisted-pair cabling. Along with the standard adapter advanced features that ProLiant customers have come to expect, the HPE NC7771 includes support for cold boot Wake on LAN (WOL), Dual Address Cycles (DAC), Pre-Execution environment (PXE), and multiple VLAN tagging. The convergence of 1000Mbps speed and 64-bit/133MHz data path make the NC7771 HPE's best-of-breed, single-port copper Gigabit networking solution. Its 64-bit/133MHz data path has a theoretical bandwidth maximum of 1066Mbps (megabits per second), thereby making the HPE NC7771 the server adapter suitable for the most demanding network environments. -High performance PCI-X copper Gigabit server adapter, supporting a 64-bit/133MHz data path, compatible with conventional PCI slots (32-bit and 33/66/100MHz) -Cost-effective migration from Fast Ethernet to Gigabit Ethernet, as well as from PCI to PCI-X -Maximizes reliability with support of advanced server features such as teaming for failover and load balancing, jumbo frames, Dual Address Cycles (DAC), Pre-Boot Execution Environment (PXE), PCI hot plug, large send offload capability, cold boot WOL, and multiple VLAN tagging.
