HPE NC1020 - Network adapter - PCI - Gigabit Ethernet - for ProLiant DL360 G5, DL380 G5, ML150 G3, ML310 G3, ML350 G4p,

HPE NC1020 - Network adapter - PCI - Gigabit Ethernet - for ProLiant DL360 G5, DL380 G5, ML150 G3, ML310 G3, ML350 G4p, ML350 G5, ML370 G3, ML370 G5

• Gigabit Ethernet throughput
• Load Balancing
• Tri-Speed support
• Traditional PCI slot
• Network Fault Tolerance (NFT)
• PCI Hot Plug

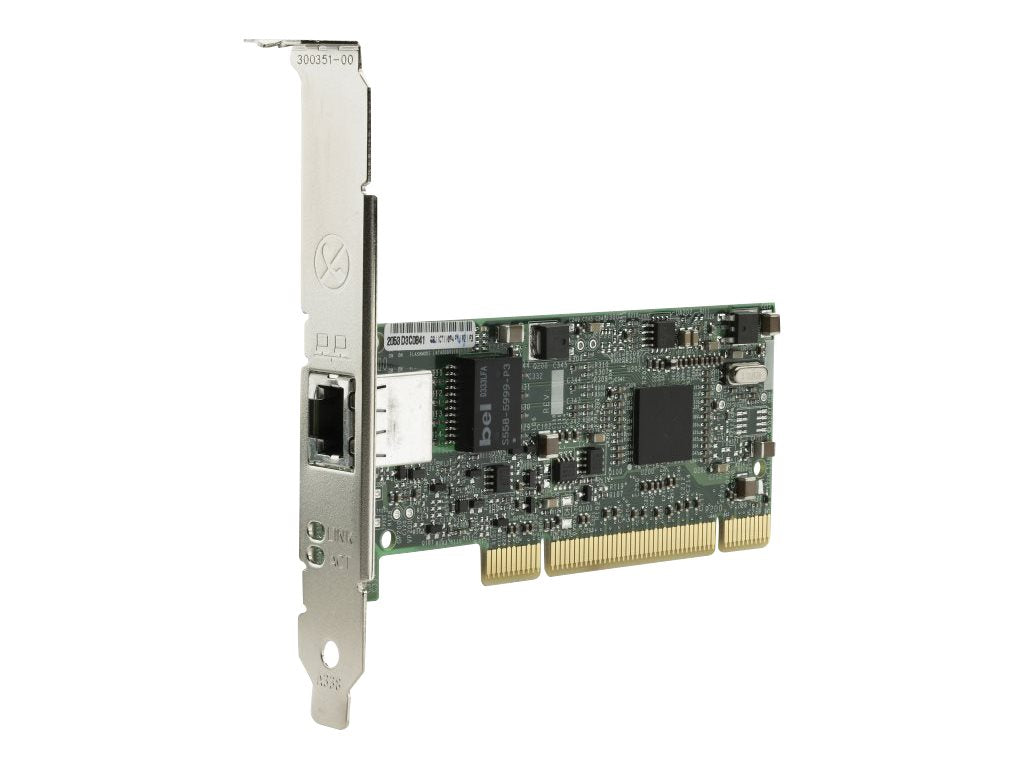

The HPE NC1020 Gigabit Server Adapter is a 32-bit, 33/66 MHz, single port, Ethernet adapter that delivers up to 1000 Mb/s Ethernet over twisted-pair (copper) Category 5 or better cabling. The NC1020 Gigabit Server Adapter has a fully integrated controller capable of auto-negotiating a link at 10, 100, or 1000 Mb/s. The network connection is made through an RJ-45 connector. LED indicators show the link and activity.

• Gigabit Ethernet throughput
  Up to 1000Mbps Ethernet transfer rate delivers outstanding network performance that improves response time and removes bottlenecks across the entire network.
• Load Balancing
  Transmit Load Balancing (TLB) and Switch-Assisted Load Balancing (SLB) are two advanced features used to build a bigger pipe for improved networking bandwidth. These port bonding techniques enable users to install up to eight NC1020 adapters in a HP ProLiant server and aggregate their throughput up to a theoretical maximum of 16 Gigabits per second full-duplex transmission. The NC1020 can be configured to work with other NC-series Ethernet server adapter teams supported on HP ProLiant servers, when running under Microsoft Windows, Linux, or NetWare operating systems.
• Tri-Speed support
  Because the NC1020 supports 10Mbps Ethernet and 100Mbps Fast Ethernet in addition to Gigabit Ethernet, users are guaranteed end-to-end protocol support across their enterprise. Like all HP server adapters, the NC1020 adheres to open industry standards, insuring that it will work seamlessly with any network devices that also support IEEE standards.
• Traditional PCI slot
  The NC1020 is specified to run in either 33 or 66MHz PCI slots. If customers want to place it into 64-bit, 66/100/133MHz slots, they can do so with the potential for performance degradation.
• Network Fault Tolerance (NFT)
  Network Fault Tolerance, sometimes called "failover" or "NIC redundancy", allows for the installation of multiple NC1020 server adapters or other network adapters so that the active device can be backed up by a redundant adapter to improve availability. HP's teaming utility also allows users to specify that when a failed adapter is fixed and replaced, the original adapter resumes its function as the primary network connection.
• PCI Hot Plug
  The NC1020 ships with PCI Hot Plug support, which enables it to be replaced or added to a PCI Hot Plug compatible server without powering down the system. This feature provides increased system availability and non-stop serviceability in business-critical computing environments.
