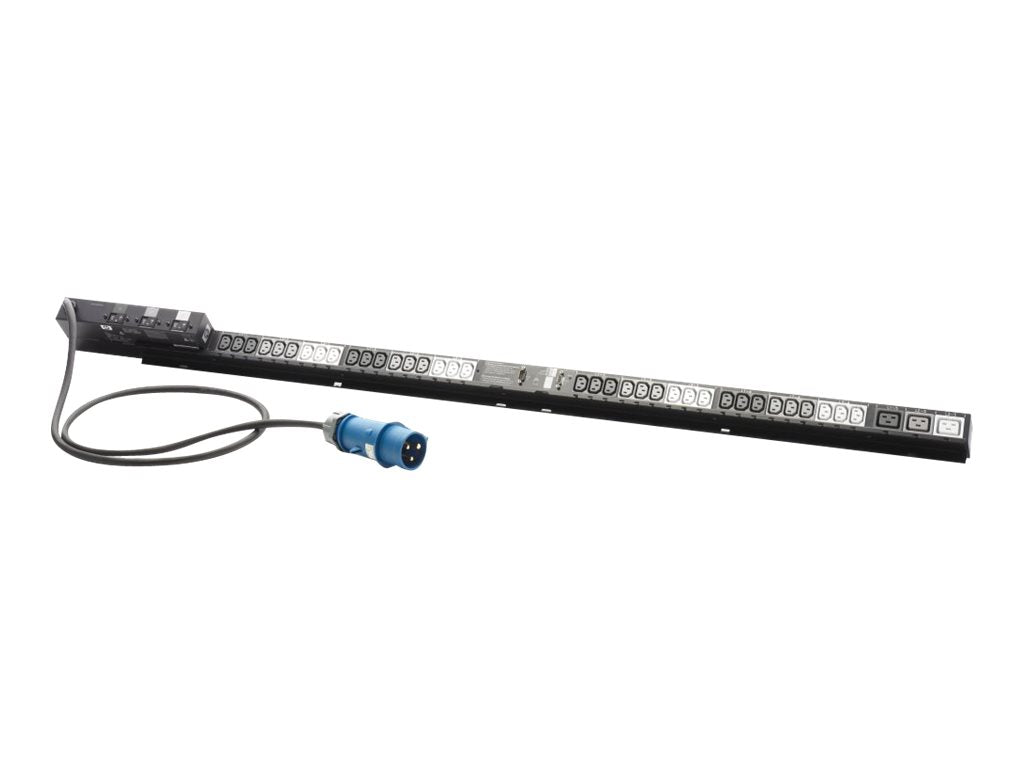

HPE Monitored Power Distribution Unit Full Rack Version S1132 - Power distribution strip (rack-mountable) - input: IEC 60309 - output connectors: 39 (power IEC 60320 C13, IEC 60320 C19) - for ProLiant DL360p Gen8, DL380 G6, ML310e Gen8, ML350e Gen8; Rack; UPS R12000, R7000, R8000
- The HPE Monitored Power Distribution Unit available products include vertical rack-mount taking 0U of rack space as well as single or dual models for increased power redundancy. The PDU is provides easy access to all power outlets.
- HPE Metered Power Distribution Units include easy to use CLI and web interfaces.
- HPE Metered Power Distribution Units are available in four form factors for a variety of rack configurations and environments.
Do your administrators want flexibility in deployment of power monitoring for your data center racks? The HPE Monitored Power Distribution Unit permits your administrators to monitor current draw at the rack and per PDU. The monitored vertical rack mount power distribution units, provide both single and three-phase monitored power for increased power redundancy, as well as full-rack power utility ranging from 4.9 kVA up to 22 kVA. Each PDU includes full rack models with 39 receptacles or with 78 receptacles, and half rack versions, 3 phase models with 12 C19 receptacles, and single phase models with 24 C13 and 3 C19 receptacles. HPE Monitored Power Distribution Unit provides local power display. An optional PDU management module provides remote monitoring capabilities of the PDU across the network.
-
Single and Dual Input Models
The HPE Monitored Power Distribution Unit available products include vertical rack-mount taking 0U of rack space as well as single or dual models for increased power redundancy. The PDU is provides easy access to all power outlets.
The HPE Monitored Power Distribution Unit offers single-phase or three-phased models for monitored power. Both models deliver single-phase power to related equipment.
A LCD screen on the HPE Metered PDU provides local monitoring and local alert indications. Remote monitoring and management is available via Telnet or a standard web browser.
An optional environmental sensor attached the PDU to measure air temperature and humidity. Sends alerts over the network based on user defined thresholds.
-
Flexible software
HPE Metered Power Distribution Units include easy to use CLI and web interfaces.
Remotely access and configure each Metered PDU through secure Web, SNMP, CLI, or Telnet Interfaces.
Daisy-chain up to four units to share the same network connection and IP address.
IPv4 and IPv6 compatible, SNMPv1 and SNMPv3 compatible.
Includes email alert notifications, event logs, and user settable alert thresholds.
-
Flexible Installation
HPE Metered Power Distribution Units are available in four form factors for a variety of rack configurations and environments.
Can be mounted to stay completely out of the critical rear maintenance path needed to service IT equipment in the rack.
Vertical models use industry standard button and keyhole mounting for simple drop in installation.
What's in the box:
- (1) PDU
- Cable retention bracket
- Cable retention ties
- Mounting brackets and hardware
