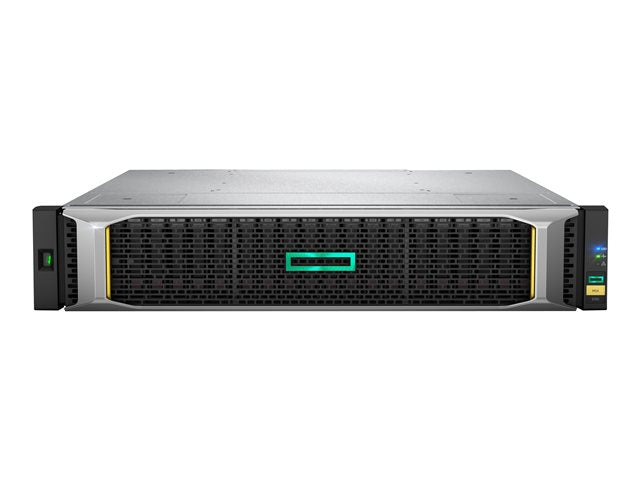

HPE Modular Smart Array 2050 SAN Dual Controller LFF Storage
The HPE MSA 2050 is a high-performance SAN dual controller hard drive array engineered for enterprise data centers requiring scalable, reliable storage infrastructure. This 2U rack-mountable storage solution delivers up to 120 TB capacity with dual RAID controllers, making it ideal for organizations running virtualized environments, database servers, and mission-critical applications across Windows, Linux, VMware ESXi, and HP-UX platforms. Built for SAN environments, the MSA 2050 combines redundancy, performance, and energy efficiency to support growing storage demands without compromising reliability.
Key Features
- Dual RAID controllers with SAS 6 Gb/s connectivity for high-speed data access
- Supports up to 12 large form factor (LFF) SAS drives for maximum capacity
- Up to 120 TB maximum supported capacity for scalable storage expansion
- Multiple RAID levels (1, 5, 6, 10) for flexible data protection strategies
- 2U rack-mountable design optimizes data center space utilization
- Power redundancy ensures continuous operation and eliminates single points of failure
- ENERGY STAR qualified for reduced power consumption and operational costs
- Multi-OS support: Windows, Linux, HP-UX, VMware ESXi, and additional operating systems
Technical Specifications
| Specification |
Details |
| Manufacturer |
Hewlett Packard Enterprise (HPE) |
| Part Number |
Q1J00AR |
| Product Name |
Modular Smart Array 2050 SAN Dual Controller LFF Storage |
| Form Factor |
2U Rack-Mountable |
| Drive Bays |
12 Large Form Factor (LFF) SAS Drives |
| Maximum Capacity |
120 TB |
| Controller Configuration |
Dual RAID Controllers |
| Connectivity |
SAS 6 Gb/s |
| RAID Support |
RAID 1, 5, 6, 10 |
| Power Redundancy |
Yes |
| Energy Certification |
ENERGY STAR Qualified |
| Supported Operating Systems |
Windows, Linux, HP-UX, VMware ESXi, and others |
Frequently Asked Questions
What is a SAN dual controller storage array and why do I need one?
A SAN dual controller hard drive array like the HPE MSA 2050 provides redundant controllers for uninterrupted data access in enterprise environments. Dual controllers eliminate single points of failure, ensure high availability, and distribute I/O workloads for improved performance in mission-critical SAN deployments.
How much storage capacity does the HPE MSA 2050 support?
The HPE Modular Smart Array 2050 supports up to 120 TB maximum capacity with 12 large form factor SAS drives. This scalable design allows organizations to expand storage as business needs grow without replacing the entire system.
What RAID levels does the MSA 2050 support?
The HPE MSA 2050 supports RAID levels 1, 5, 6, and 10, providing flexible data protection options. RAID 5 and 6 offer excellent balance between performance and redundancy, while RAID 10 delivers maximum performance for I/O-intensive workloads.
Is the HPE MSA 2050 energy efficient?
Yes, the HPE MSA 2050 is ENERGY STAR qualified, reducing power consumption and operational costs while maintaining enterprise-grade performance and reliability in data center environments.
