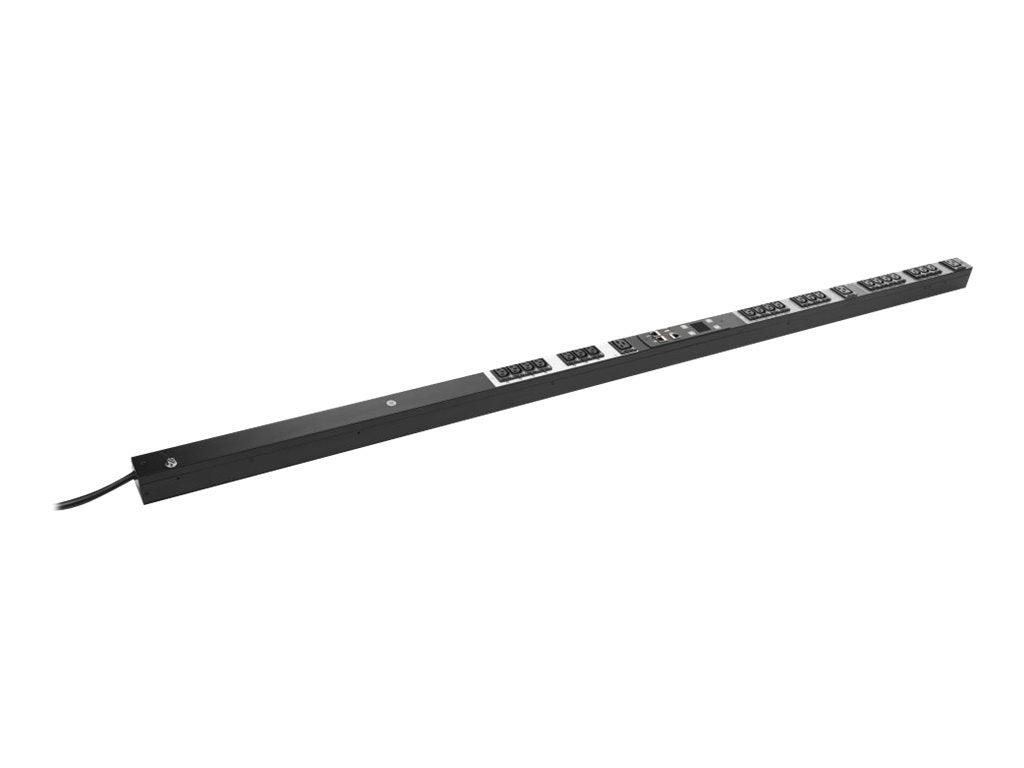

HPE Managed Full Height - Power distribution unit (rack-mountable) - AC 230 V - 11040 VA - 3-phase WYE (star) - Ethernet - input: IEC 60309 16A - output connectors: 24 - for ProLiant DL120 Gen9, DL160 Gen9, DL180 Gen9, DL20 Gen9, DL360p Gen8, DL380 Gen9, DL80 Gen9
- An advanced LCD screen on HPE Metered and Switched Power Distribution Units (PDU) provides local monitoring and alert indications.
- The HPE Metered and Switched Power Distribution Units feature a low-profile, single-piece design supporting multiple mounting options and ease of access to rear devices for maintenance.
- HPE Metered and Switched Power Distribution Units are designed to provide complete compatibility with Advanced and Enterprise Series racks.
Looking for a flexible and accurate power distribution solution that supports both local and remote power management? The HPE Metered and Switched Power Distribution Unit (PDU) provides both local and remote power management for your IT racks. An LCD screen provides local monitoring and alert indications, while remote access and configuration are available through secure Web, SNMP, CLI, or Telnet interfaces. Remote outlet monitoring offers ±1% billing grade accuracy while remote switching capabilities support power on/off functionality to remotely reboot equipment or restrict outlet usage. The PDU features a low-profile, single-piece design that provides multiple mounting options with ease of access to rear devices for maintenance. It is compatible with all Advanced and Enterprise Series racks, as well as with many non-HPE racks using standard button and keyhole mounting. Multiple options are available supporting vertical/0U configurations with both single and 3-phase models.
-
Local And Remote Power Distribution Management With Billing Grade Accuracy
An advanced LCD screen on HPE Metered and Switched Power Distribution Units (PDU) provides local monitoring and alert indications.
Remotely access and configure each PDU through secure Web, SNMP, CLI, or Telnet Interfaces with the ability to daisy-chain up to four units to share the same network connection and IP address.
Remote outlet monitoring within ±1% billing grade accuracy.
Remote outlet switching provides power on/off capabilities to remotely reboot equipment or restrict outlet usage.
Supports both Local and LDAP security with multiple access levels to provide enhanced security.
-
Flexible, Simple Installation and Maintenance
The HPE Metered and Switched Power Distribution Units feature a low-profile, single-piece design supporting multiple mounting options and ease of access to rear devices for maintenance.
Each PDU can be installed on either side of the rack with outlets facing the back of the rack for easy access and improved clearance.
Install PDU units side by side on both sides of the rack with the outlets facing in towards the center of the rack for high density configurations.
Support for integrated power cord retention on all IEC receptacles that work with standard power cords.
Add an optional environmental sensor which can measure air temperature and humidity in the front or rear of the rack, sending alerts over the network based on user-defined thresholds.
-
Compatible With a Wide Range of HPE and Non-HPE Rack Solutions
HPE Metered and Switched Power Distribution Units are designed to provide complete compatibility with Advanced and Enterprise Series racks.
The PDU is also compatible with a wide range of non-HPE racks using standard button and keyhole mounting.
Designed for vertical/0U rack configurations offering both half and full-height form factors.
Support for a wide range of load capacities, from 2.8kVA to 17.3kVA, with both single and three-phase models.
What's in the box:
- Communication cables
- Ethernet splitter
- Mounting hardware
- Readme card with link to online documentation
