Description
8-ch, BNC, AHD, CVBS, RCA, HDMI, VGA, G.711u, 2x SATA, 12 VDC, 380 x 320 x 48, 2 kg

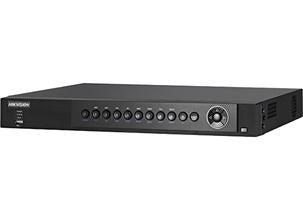

Hikvision Digital Technology DS-7208HUHI-F2/N. Product colour: Black, Video compression formats: H.264, Video capturing speed: 30 fps. Video input channels: 8 channels. Ethernet interface type: Gigabit Ethernet, Supported network protocols: TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnPTM, HTTPS, ONVIF. HDD interface: Serial ATA, HDD capacity: 4000 GB. Power consumption (typical): 20 W
Features and Functions
Video Input and Compression
- Connectable to HD-TVI, AHD, network and analog cameras; - Supports HIKVISION-C protocol for connecting camera over coax; - H.264+/H.264 video compression, and H.264+ ensures high video quality with lower bitrates; - Supports channel-zero encoding;
Video Output and Extranet Access
- Simultaneous HDMI, VGA and CVBS outputs. VGA output at up to 1920 × 1080/60Hz resolution. HDMI output at up to 4K - (3840 × 2160) resolution for DS-7208HUHI-F2/N and DS-7216HUHI-F2/N; - Up to 5MP encoding resolution; - Manual video quality diagnostics; - Supports access by Hik-connect Cloud P2P; - Supports Hikvision DDNS (Dynamic Domain Name System);
Video Recording and Storage
- One-key recording configurable; - Main stream and sub-stream parameters configurable for simultaneous recording; - Supports locking and unlocking of video files; - HDD quota and group management; different capacity can be assigned to different cameras under quota mode; - Two SATA interfaces provided; - Supports Cloud storage ( One Drive, Google Drive or Drop Box );
Video Playback
- Instant playback for assigned camera during multi-channel live view mode; - Up to 4/8/16-ch synchronous playback at 5MP resolution; - Playback at up to 256X speed; - Main stream and sub-stream selectable for local/remote playback; - Playback by smart search and VCA search; - Customization of tags, searching and playing back by tags;
Alarm
- Alarm for video loss, motion detection, video tampering, etc.; - Supports 2-ch VCA (line crossing detection, intrusion detection or audio exception detection);
Physical Interfaces
- One RJ45 10M/100Mbps self-adaptive network interface for DS-7204HUHI-F2/N and one RJ45 10M/100M/1000M self-adaptive Ethernet interface for DS-7208HUHI-F2/N and DS-7216HUHI-F2/N.
