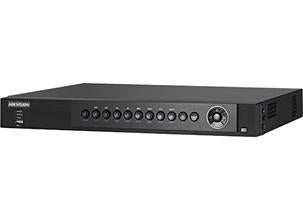

Hikvision Digital Technology Ds-7204Huhi-F1/N Black

4-ch, BNC, AHD, CVBS, RCA, HDMI, VGA, G.711u, 2x SATA, 12 VDC, 380 x 320 x 48, 2 kg

Hikvision Digital Technology DS-7204HUHI-F1/N. Product colour: Black, Video compression formats: H.264, Video capturing speed: 30 fps. Video input channels: 4 channels. Ethernet interface type: Gigabit Ethernet, Supported network protocols: TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnPTM, HTTPS, ONVIF. HDD interface: Serial ATA, HDD capacity: 4000 GB. Power consumption (typical): 20 W

Features and Functions

Video Input and Compression

- Connectable to HD-TVI, AHD, network and analog cameras;
- Supports HIKVISION-C protocol for connecting camera over coax;
- H.264+/H.264 video compression, and H.264+ ensures high video quality with lower bitrates;
- Supports channel-zero encoding;

Video Output and Extranet Access

- Simultaneous HDMI, VGA and CVBS outputs. VGA output at up to 1920 × 1080/60Hz resolution. HDMI output at up to 4K
- (3840 × 2160) resolution for DS-7208HUHI-F2/N and DS-7216HUHI-F2/N;
- Up to 5MP encoding resolution;
- Manual video quality diagnostics;
- Supports access by Hik-connect Cloud P2P;
- Supports Hikvision DDNS (Dynamic Domain Name System);

Video Recording and Storage

- One-key recording configurable;
- Main stream and sub-stream parameters configurable for simultaneous recording;
- Supports locking and unlocking of video files;
- HDD quota and group management; different capacity can be assigned to different cameras under quota mode;
- Two SATA interfaces provided;
- Supports Cloud storage ( One Drive, Google Drive or Drop Box );

Video Playback

- Instant playback for assigned camera during multi-channel live view mode;
- Up to 4/8/16-ch synchronous playback at 5MP resolution;
- Playback at up to 256X speed;
- Main stream and sub-stream selectable for local/remote playback;
- Playback by smart search and VCA search;
- Customization of tags, searching and playing back by tags;

Alarm

- Alarm for video loss, motion detection, video tampering, etc.;
- Supports 2-ch VCA (line crossing detection, intrusion detection or audio exception detection);

Physical Interfaces

- One RJ45 10M/100Mbps self-adaptive network interface for DS-7204HUHI-F2/N and one RJ45 10M/100M/1000M self-adaptive Ethernet interface for DS-7208HUHI-F2/N and DS-7216HUHI-F2/N.
