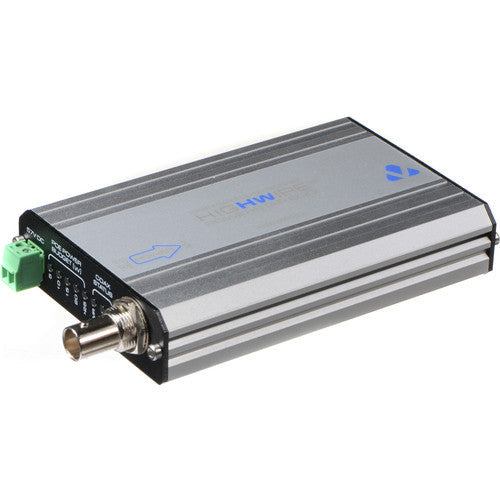

Veracity HIGHWIRE Powerstar Duo Unit
Connect 2 IP cameras with HIGHWIRE Powerstar Duo over an existing coax cable
HIGHWIRE Powerstar Duo makes the most of your legacy cabling and multiplies its capability by connecting two IP cameras or other network devices
Ethernet over Coax
HIGHWIRE Powerstar Duo's unique ultra low-power design and efficient power delivery enables long range Ethernet over coax. It works even over the lowest grade cable, such as the high-resistance, copper-clad steel (CCS) types found in many legacy installations. This means that legacy coax upgrades can be planned with confidence, while a quick check of the Safeview™ power level display reaffirms that the device connections will continue to be reliable, whatever the cable used.
For predictable network operation with no restrictions, HIGHWIRE technology delivers a full 200Mbit/s of bandwidth at 300m (1000 ft) of RG-59 or 500m (1600 ft) of RG-11 coax. For full information on POE-over-Coax™ distances achievable, please refer to the Range Table in the HIGHWIRE Powerstar datasheet. For POE power budget and power supply options, see the POE Power Budget Table opposite.
HIGHWIRE Powerstar DUO
The DUO variant of HIGHWIRE is designed for the camera end of the coax and, with an integrated two-port POE switch, enables connection of two IP cameras over a single coax. With no need to configure IP addresses, set DIP switches, or make awkward measurements and calculations, installing HIGHWIRE Powerstar Duo is simple. The Base end of the coax is driven by single-channel, 4-channel or 8-channel HIGHWIRE Powerstar Base unit. The DUO unit can be powered either by POE over coax, delivering a maximum total POE power budget of 25 watts, or by one of the optional local PSUs, delivering 40 or 78 watts.
HIGHWIRE Powerstar Duo features
Veracity's unique Safeview™ display, to provide IP camera installers with an instant and very easy-to-understand confirmation of correct operation from either end of the cable.
POE over Coax or Local Power
In the simplest implementation the BASE unit receives power from a standard POE switch or Veracity's 57V DC PSU and transmits POE over the coax. This is shown in the diagram below. The DUO unit receives this power and delivers up to 25 watts shared between two IP cameras. No external power cabling is required, and all detection and setup occurs automatically. For higher POE power budgets, an optional Veracity 57V DC PSU may be used to power the DUO locally at the camera end delivering 40 watts or 78 watts depending on PSU model. See POE budget table for details.
- 100BaseTX performance over 300m of RG59 (500m on RG11)
- Completely automatic connection, no configuration required
- Instantly check connection and power level with SafeView™
- Compatible with all HIGHWIRE Powerstar Base units (1, 4 & 8ch)
- Eliminates separate power cabling with POE-over-Coax™
- Integrated 2-port POE switch (POE Plus with local power option)
- Re-uses existing coax cable for 2 IP cameras or devices
Product Type: Network Extender
Environmentally Friendly: Yes
Environmental Certification: REACH
Certifications & Standards:
Brand Name: Veracity
Length: 6.8"
Manufacturer: Veracity USA, Inc
Product Name: HIGHWIRE Powerstar Duo Unit
Product Line: HIGHWIRE Powerstar Duo
Manufacturer Part Number: VHW-HWPS-C2
Manufacturer Website Address: http://www.veracityusa.com
Additional Information:
- Weight : 572 g
- Connectors: RJ45 Ethernet with PoE, BNC coax with PoE, DC in
- Unit Power: 20 Watt
- Camera Power : 25 Watt
