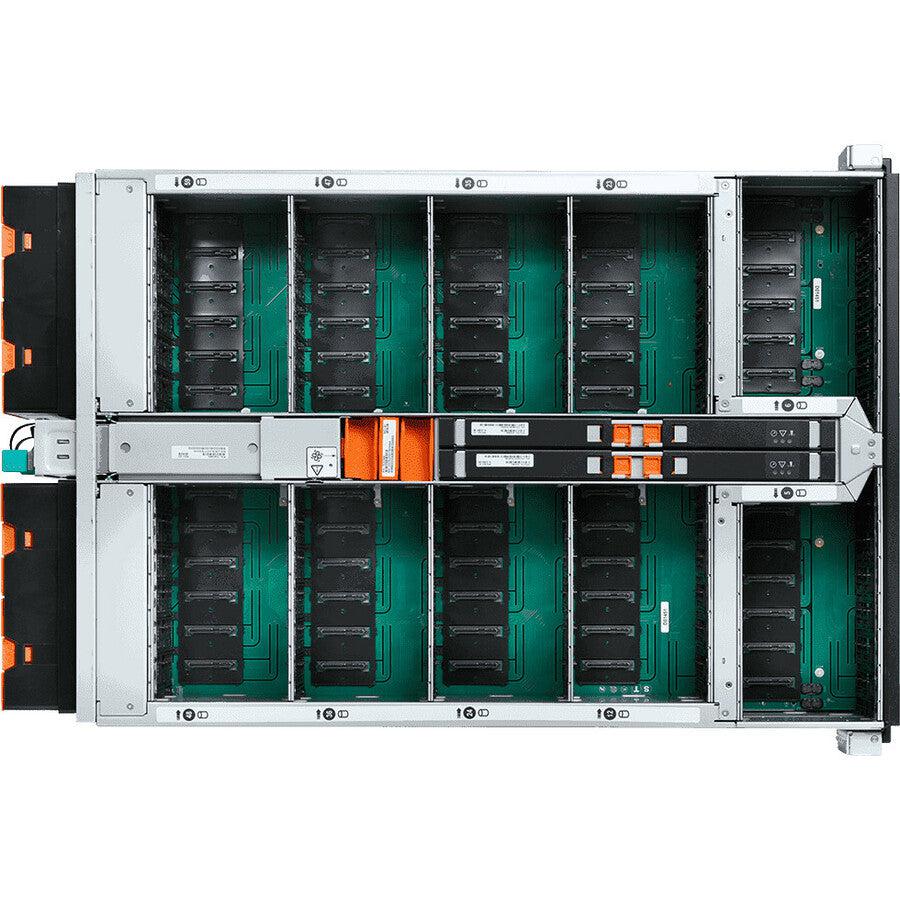

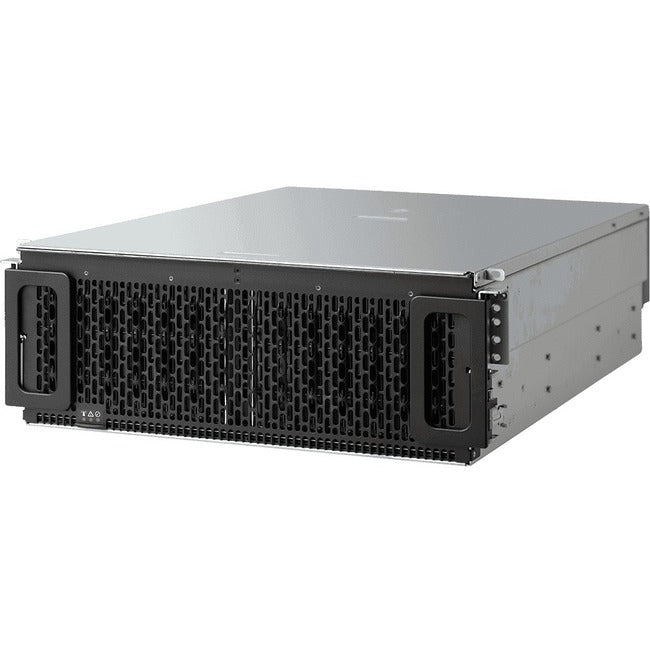

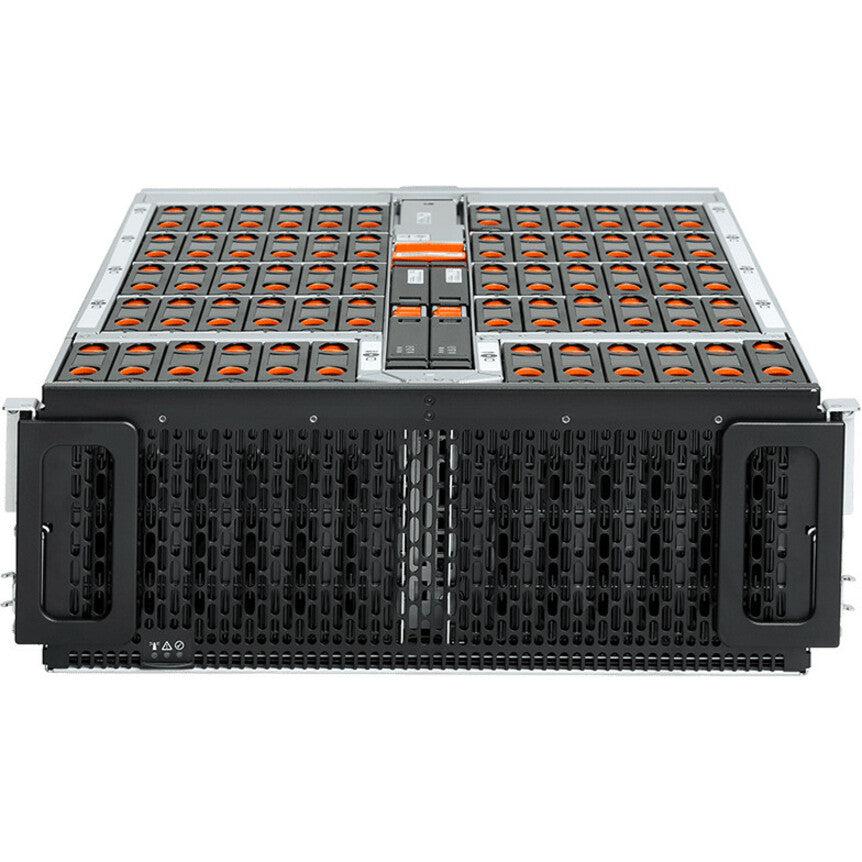

HGST Ultrastar Data60 SE4U60-24 Drive Enclosure - 12Gb/s SAS Host Interface - 4U Rack-mountable
Designed for High Density and Flexibility
The Ultrastar Data60 is a key element of next-generation disaggregated storage and software-defined storage (SDS) systems, delivering high density and the flexibility to balance performance with cost. The Ultrastar Data60 provides up to 720TB1 of raw storage in a compact and efficient form factor. HGST HelioSeal® drives ensure cool running, quiet operation and high reliability. A high performance data tier can be set up for demanding applications by using SSDs in up to 24 of the drive slots, enabling the ability to serve both fast data and big data from a single platform.
Building on 50+ Years of Storage Design Experience
Conventional dense disk shelves frequently suffer from performance degradation due to induced vibration from adjacent drives. Traditional platforms also have cooling challenges as the cooling air passes over successive rows of drives, losing effectiveness as it gets heated up along the airflow path. Developing storage devices and platforms side-by-side, we address these challenges through vertical innovation, a set of technologies developed based on a holistic view of devices, platform, and their interactions. The first two of these patented technologies are IsoVibe™ and ArcticFlow™. IsoVibe reduces vibration-induced performance degradation, while ArcticFlow overcomes the cooling issues by introducing cool air into the middle of the platform. Both these technologies contribute to long-term reliability, enabling our five-year limited warranty on the entire platform.
Designed for the Enterprise and the Cloud
This new platform addresses the demanding storage needs of large enterprise customers, storage OEMs, cloud service providers and resellers/integrators that require dense, shared HDD or hybrid storage. The Ultrastar Data60 provides the flexibility to specify the HDD and SSD combinations to balance capacity, performance and cost.

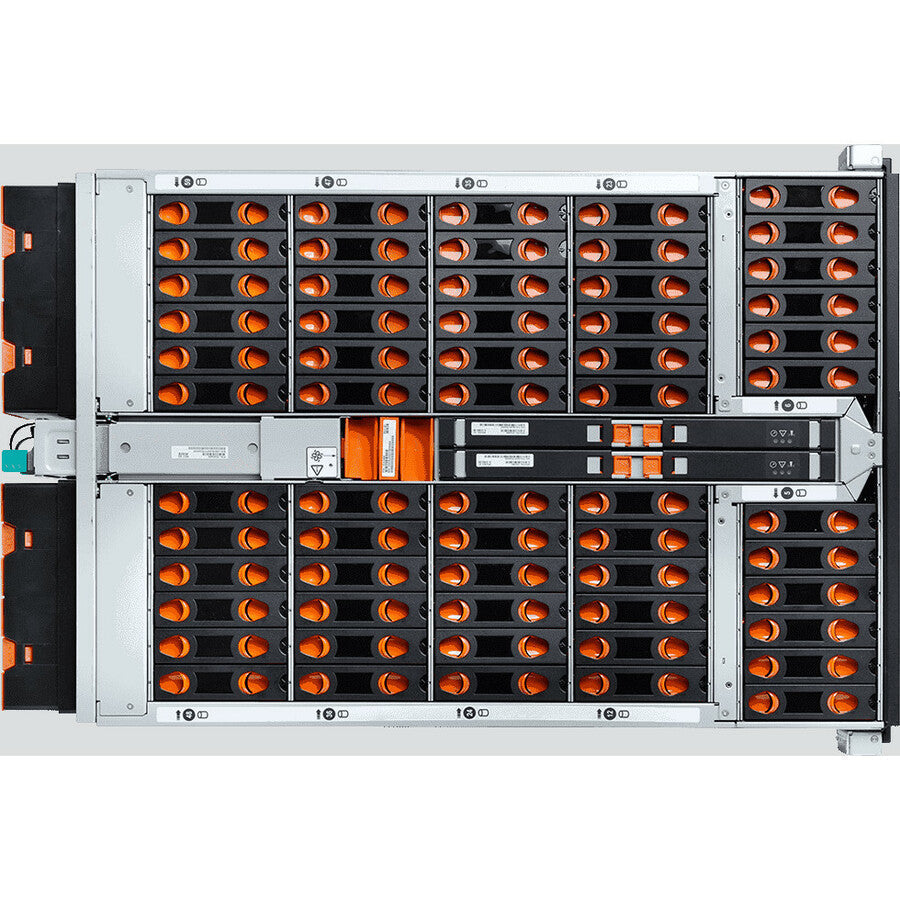

- Up to 60 Ultrastar® He12 HDDs(SAS or SATA)
- Hybrid support for up to 24 SSDs(SAS or SATA) to create a dataacceleration tier
- Up to 720TB of raw storage in 4U
- Dual-port SAS for high availability orsingle-port SATA for low cost

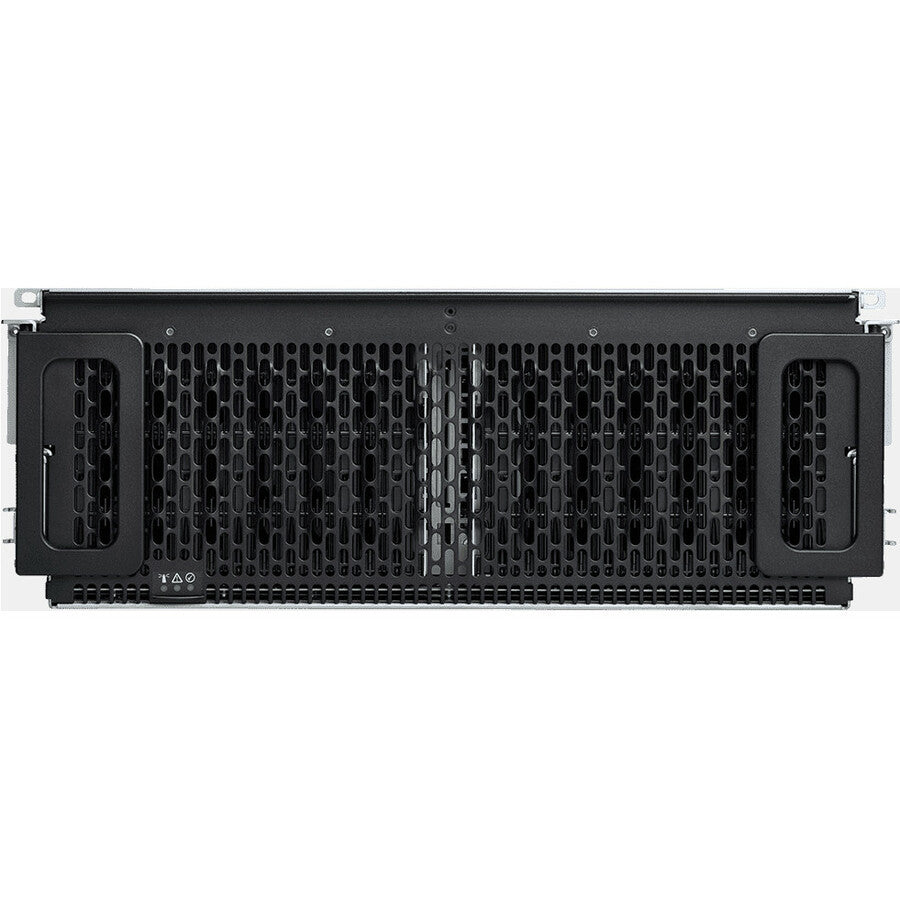

- 4 rack units height, 712mm depth
- Up to 12 x 12Gb/s SAS3 host connections
- Patented IsoVibe technology ensuresmaximum performance even in heavyworkloads

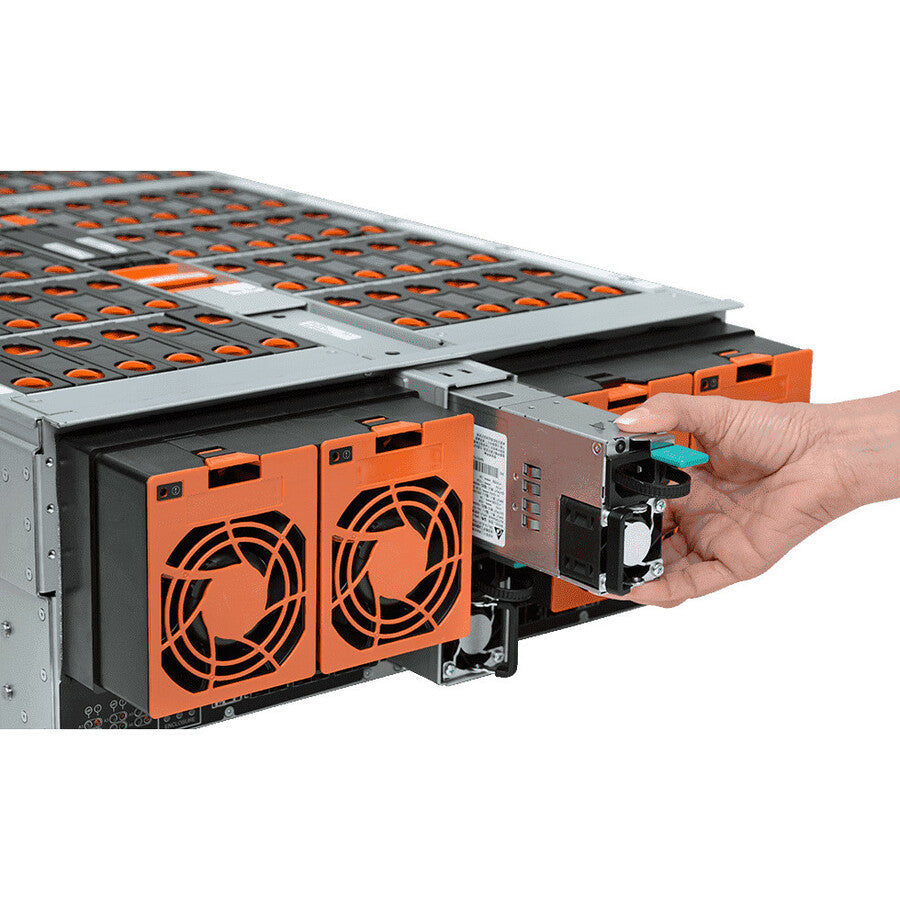

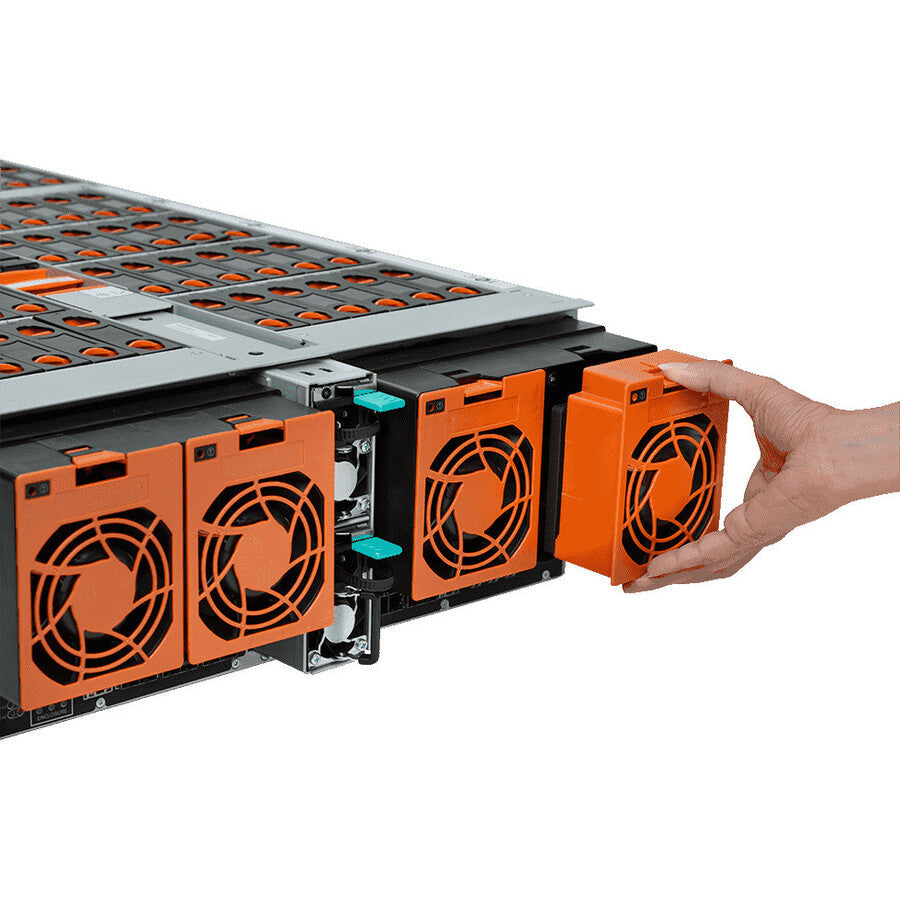

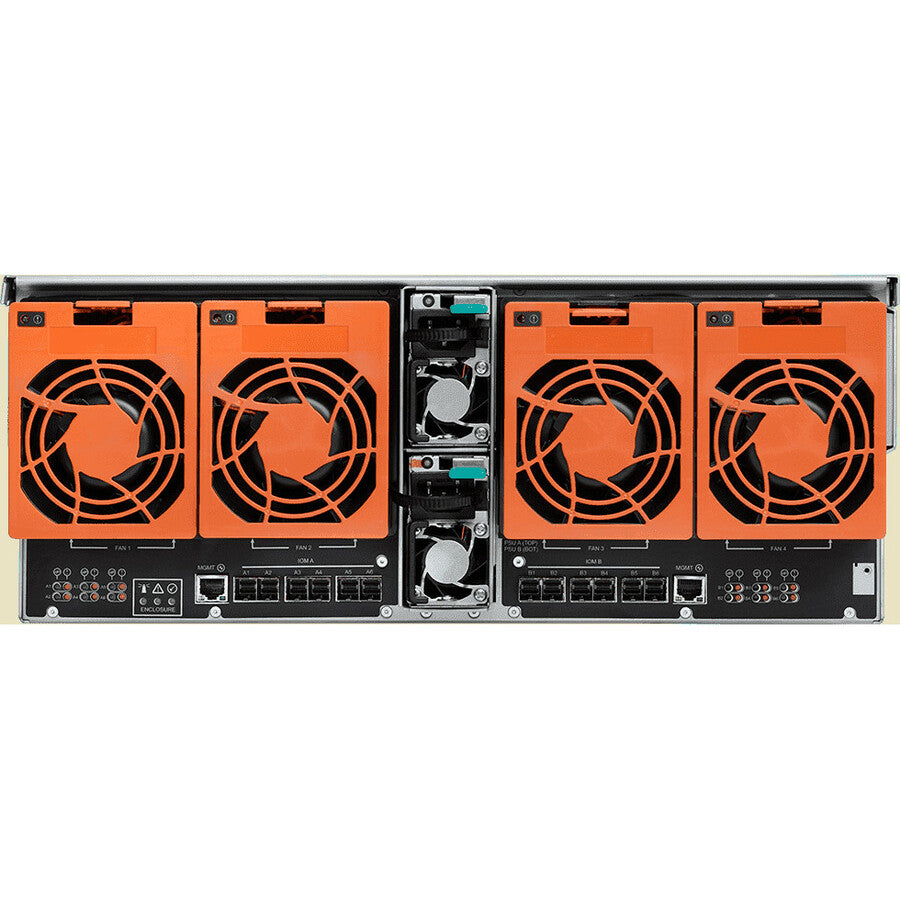

- Enterprise-grade redundant andhot-swappable PSUs, IO Modulesand fans
- Improved cooling from innovative,patented ArcticFlow technology

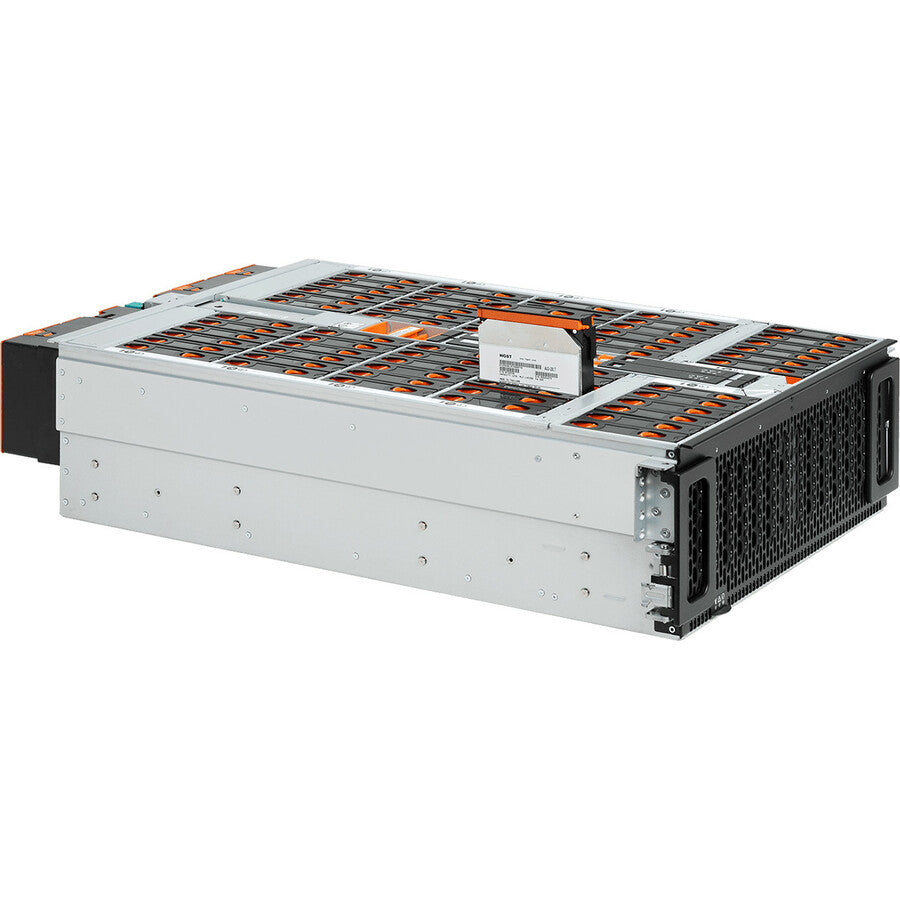

- Rack-mounted top cover for quick andeasy service
Product Type: Drive Enclosure
Cooling Fan: Yes
Rack Height: 4U
Brand Name: HGST
Form Factor: Rack-mountable
Manufacturer: Western Digital Corporation
Product Model: SE4U60-24
Product Name: 60-Bay Hybrid Storage Platform
Product Line: Ultrastar Data60
Manufacturer Part Number: 1ES1469
Manufacturer Website Address: http://www.wdc.com
Packaged Quantity: 1
Limited Warranty: 5 Year
