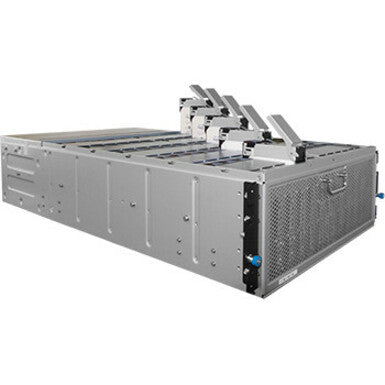

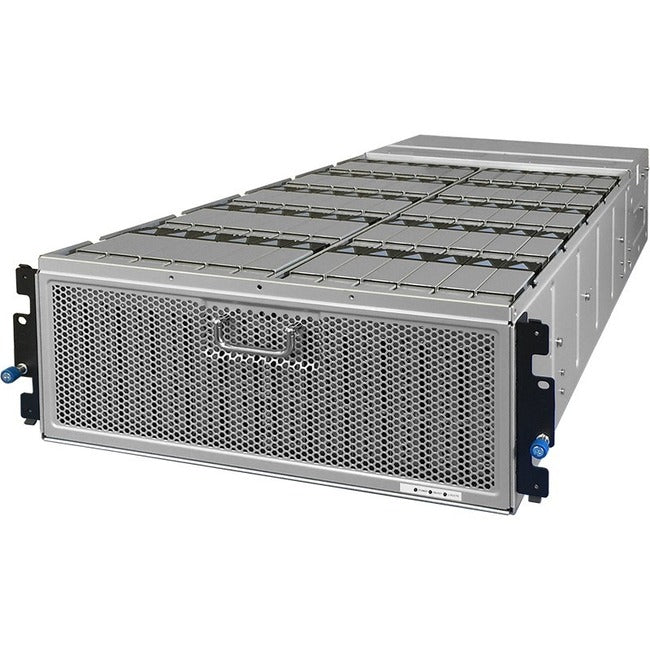

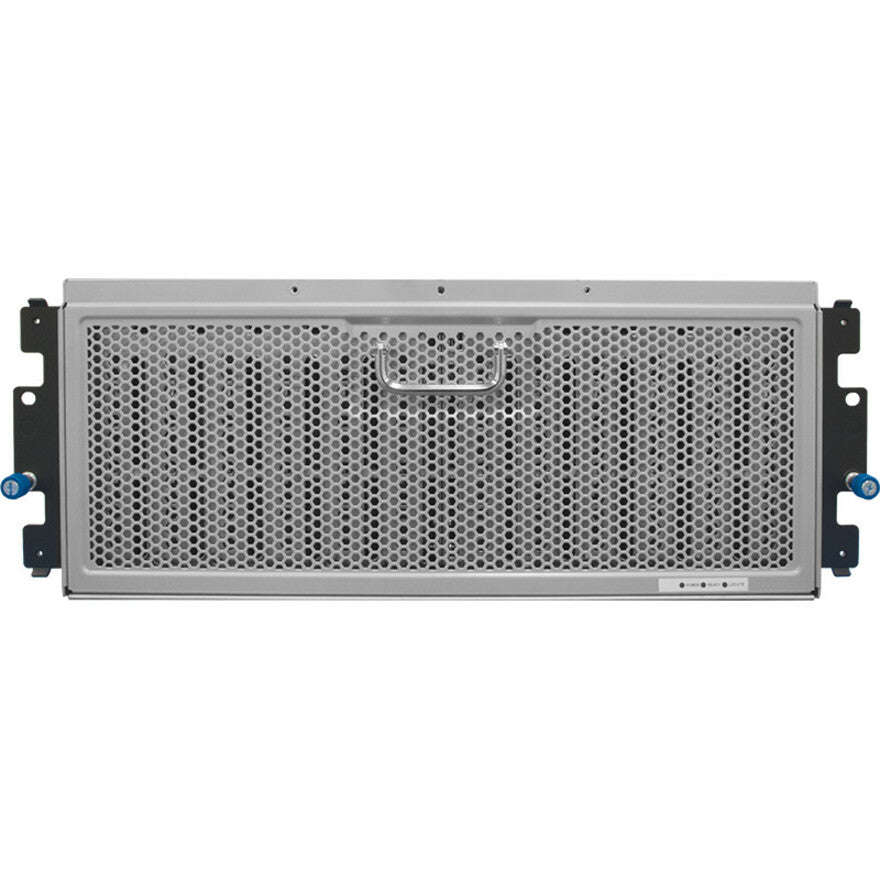

HGST 4U60G2 Drive Enclosure - 12Gb/s SAS Host Interface - 4U Rack-mountable

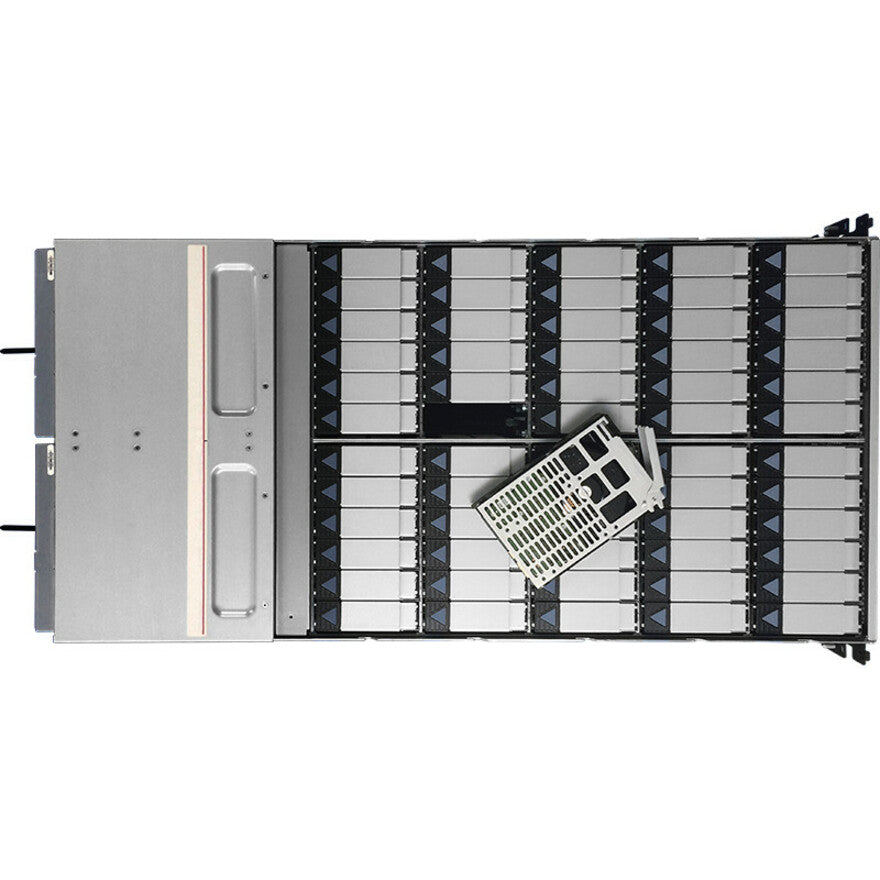

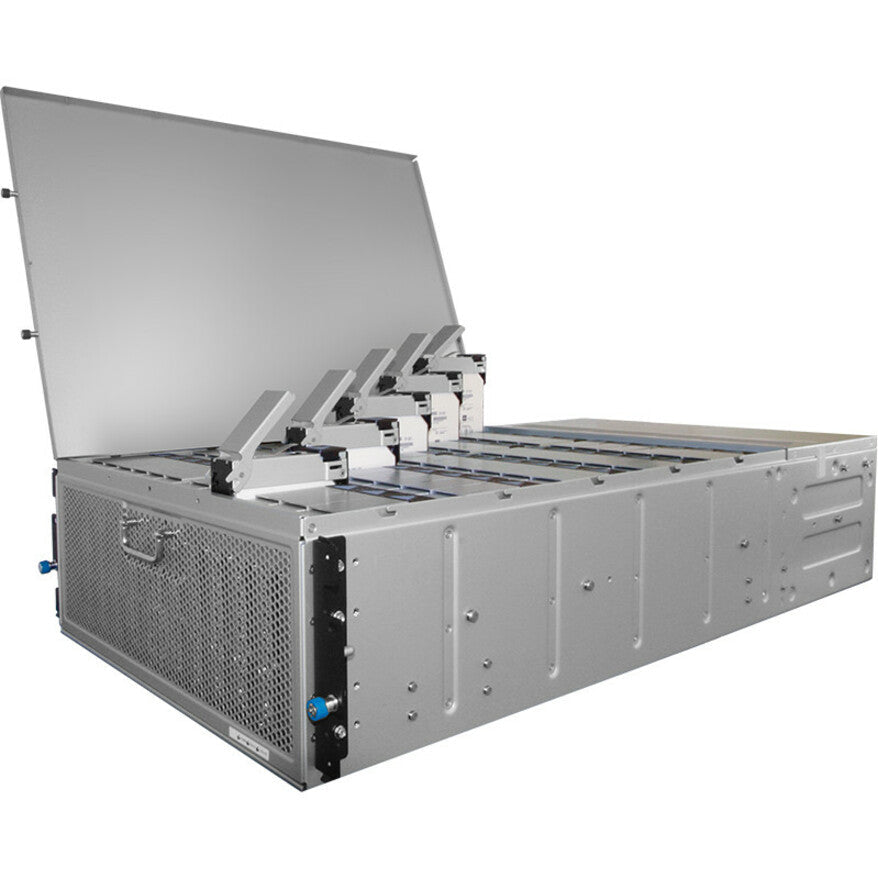

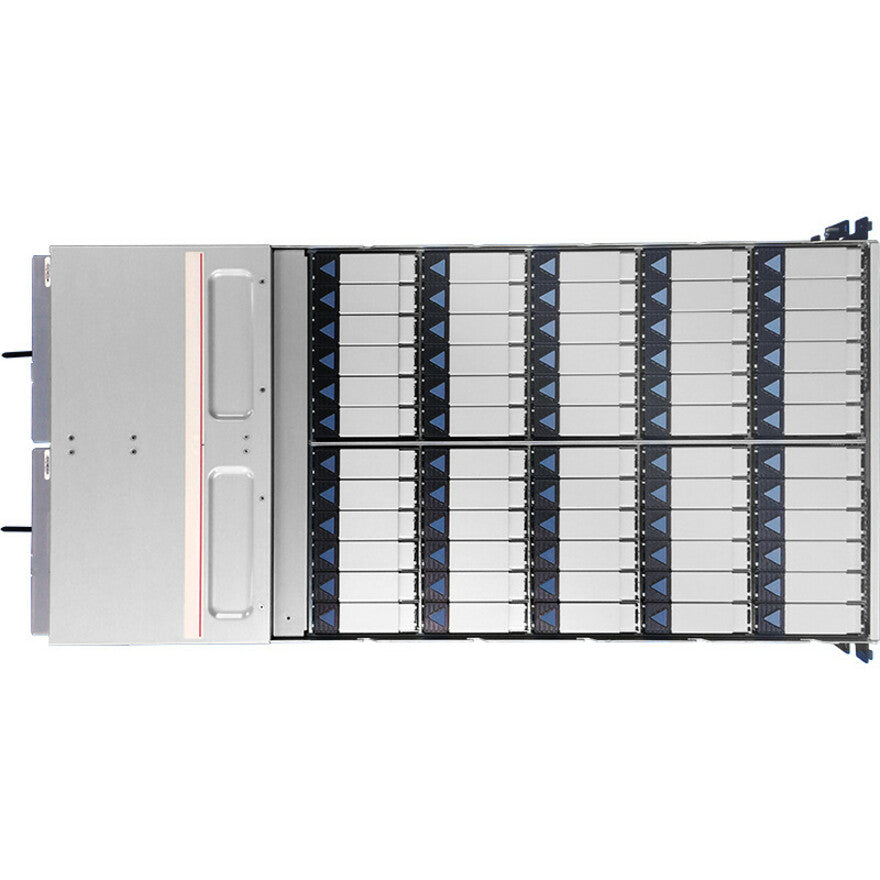

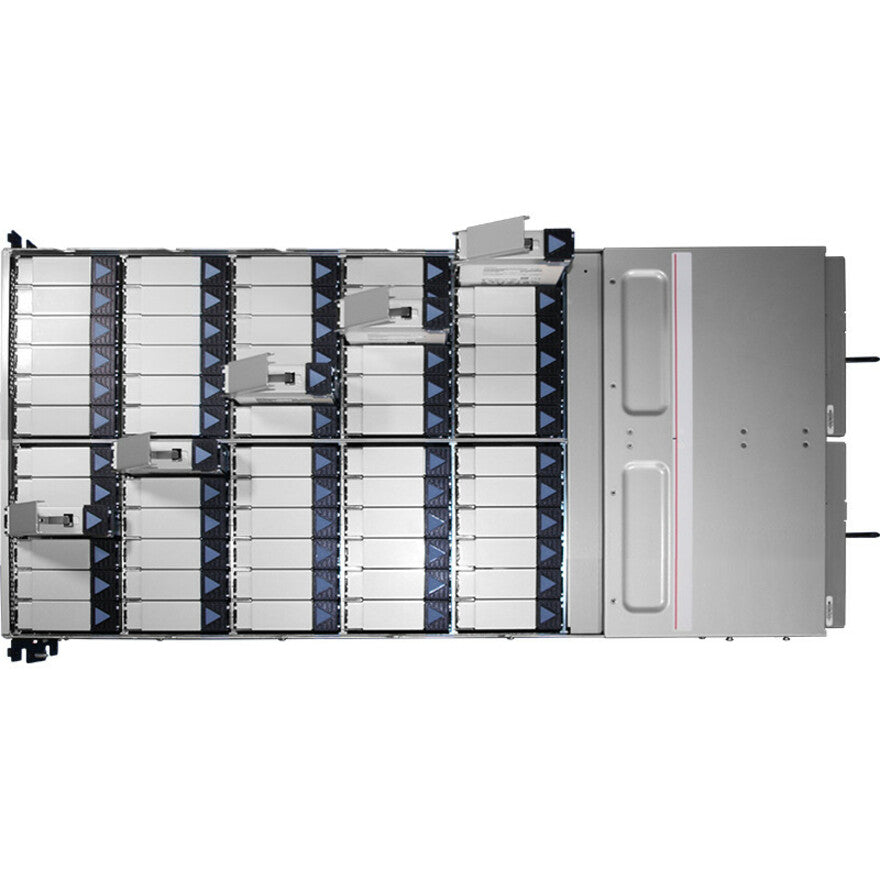

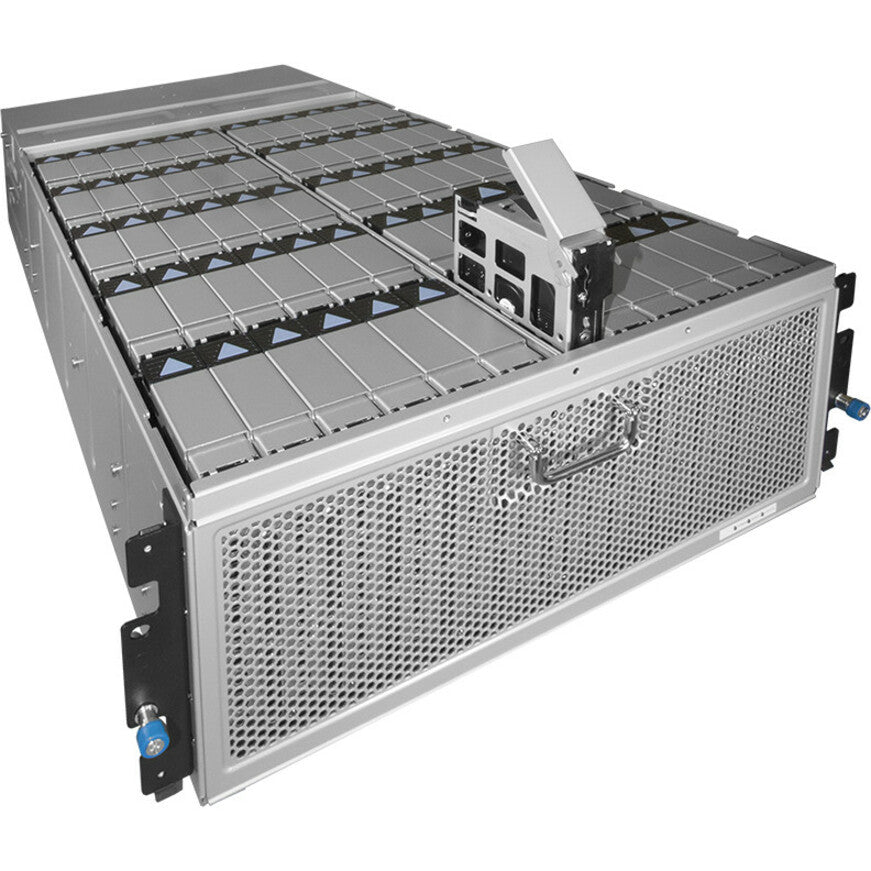

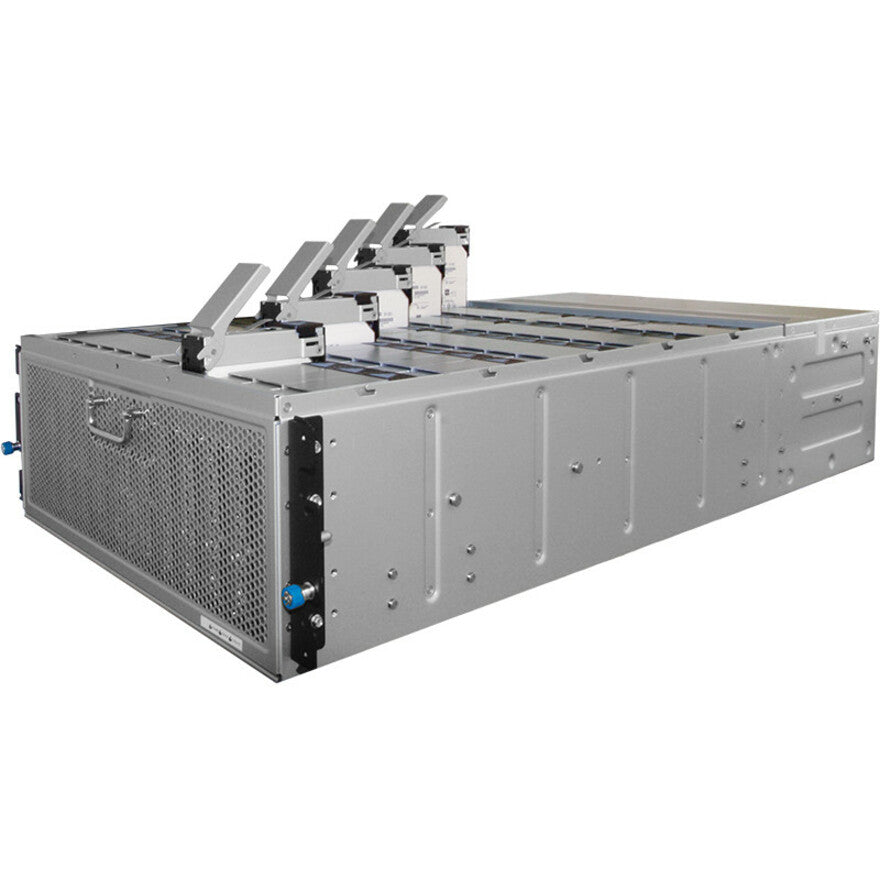

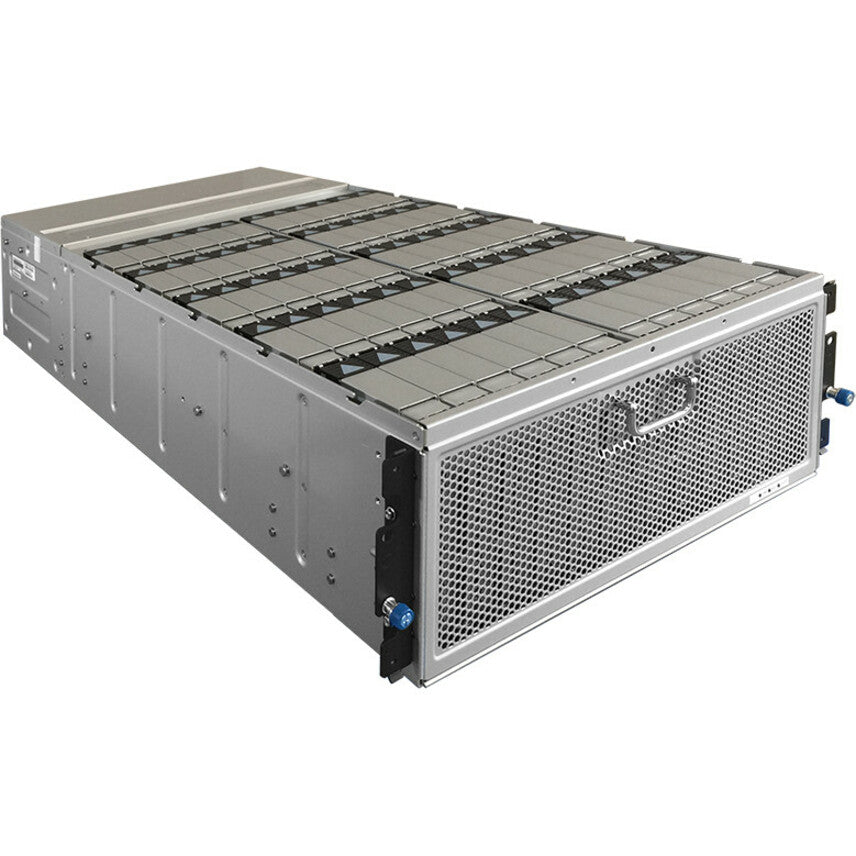

When data centers need storage expansion that delivers low power and high capacity with high-availability, they rely on the HGST 4U60G2 Storage Platform. This high density, scalable, and cost-effective design includes up to 60 Ultrastar® 3.5-inch drive modules in a 4U enclosure, supports up to 8 hosts with SAS 12Gb/s performance, and delivers enterprise-class serviceability with hot-swappable components.
This integrated platform is qualified, tested and certified to support a broad range of HGST HDDs. It's available with SAS drives for high-availability (HA) applications, with SATA drives for cost-optimized applications, and can be configured with up to twelve (12) 800GB SSDs to create separate performance tiers within the platform.
- Up to 60 integrated Ultrastar® drive modules
- 4U60G2: available capacities include 12TB, 10TB, 8TB, and 6TB
- Hybrid capability: can be configured with SSDs to create separate performance tiers within the platform
- Available with SAS drives for HA application or with SATA drives for cost-optimized applications
- Available with 512e or 4Kn sector size (by part number)
- Supports up to 4 storage enclosures for daisy-chaining*
- Host connectivity: 4U60G2: 4 x HD Mini-SAS ports per IO Module
- Fully compliant with 12Gb/s SAS 3 interconnect

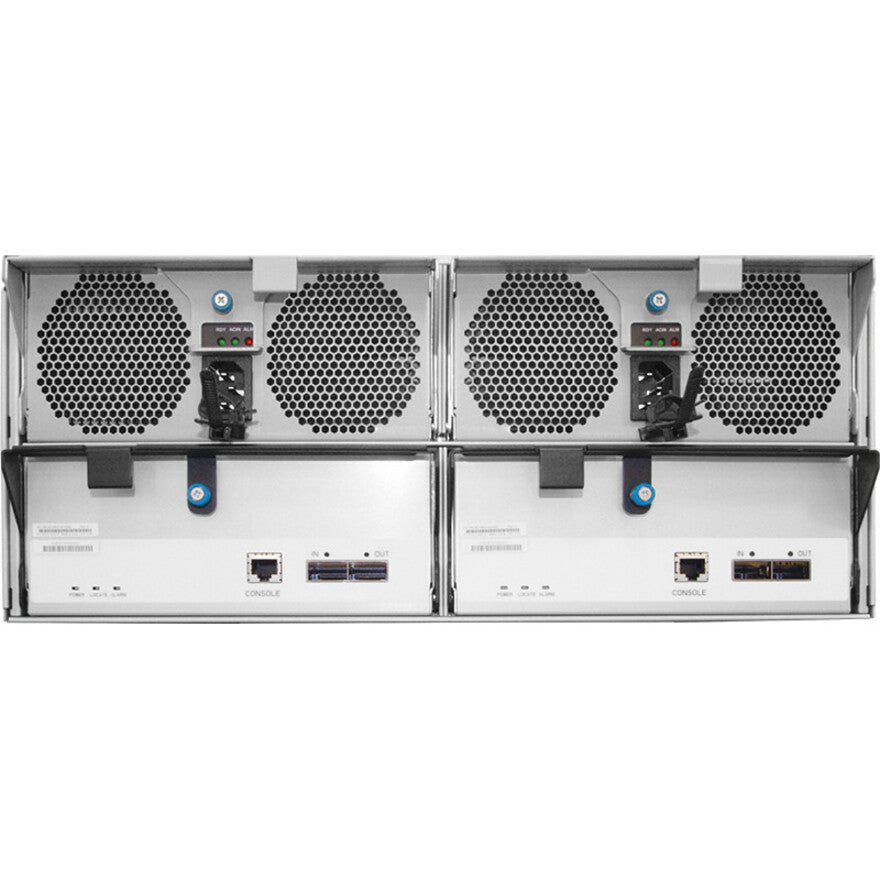

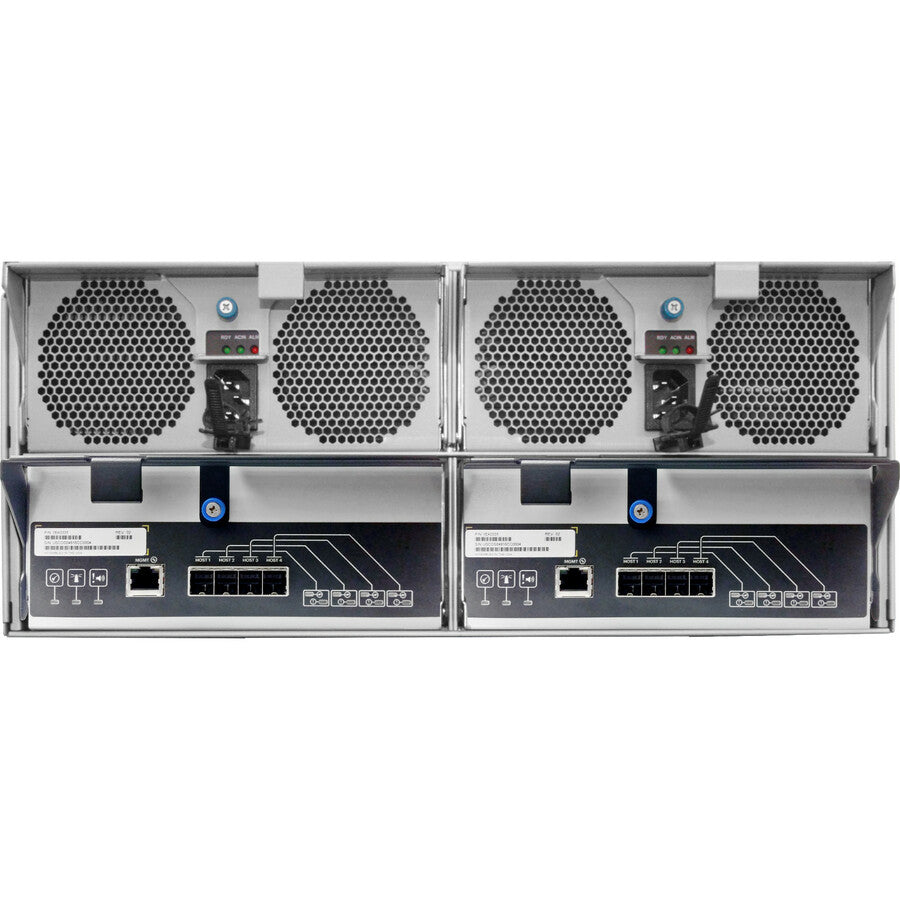

- Hot-swappable components: two power supplies with integrated fans, drive modules, and IO Modules
- Cable Management Arm (CMA) eliminates tangled cables during servicing of hot-swappable CRUs
Product Type: Drive Enclosure
Cooling Fan: Yes
Rack Height: 4U
Brand Name: HGST
Form Factor: Rack-mountable
Manufacturer: Western Digital Corporation
Product Model: 4U60G2
Product Name: 4U60G2 Storage Platform
Manufacturer Part Number: 1ES0199
Manufacturer Website Address: http://www.wdc.com
Limited Warranty: 5 Year
