Hewlett Packard Enterprise BladeSystem c-Class. Maximum data transfer rate: 40000 Mbit/s, Interface type: QSFP+, Fiber optic connector: MPO. Compatible products: BladeSystem c-Class. Width: 131.8 mm, Depth: 18.4 mm, Height: 13.7 mm. Number of products included: 1 pc(s)
Do you need high-performance QSFP+ transceivers for your BladeSystem? The HP BladeSystem c-Class QSFP+ Transceivers deliver a full-duplex optical module with four independent transmit and receive channels supporting data rates up to 4x10 Gb/s for high-density applications and improving performance.
Supports 4 lanes x 10.3 Gb/s.
Supports link distances up to 100m on OM3 MMF and 150m on OM4 MMF for SR4 and up to 10 km on SMF for LR4.
Less than 1.5 W maximum power dissipation for SR4/CSR4 and less than 3.5 W for LR4.
Can be used either for 40GbE or for aggregating 4x 10GbE links.
MPO connector (SR4) or LC connector (LR4).
General Information
Manufacturer
Hewlett Packard Enterprise
Manufacturer Part Number
720187-B21
Manufacturer Website Address
http://www.hpe.com
Brand Name
HPE
Product Name

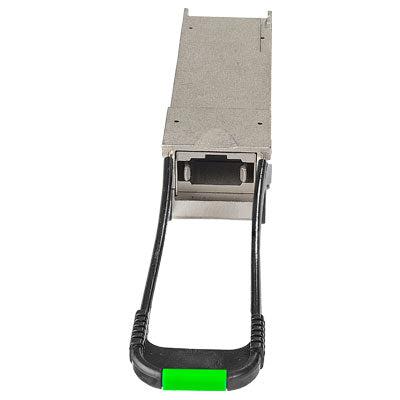

BladeSystem c-Class 40Gb QSFP+ MPO SR4 100m Transceiver
