The Aruba CX 6300 Switch Series is a modern, flexible, and intelligent family of AOS-CX stackable switches ideal for enterprise access and aggregation. With a cloud-centric design that combines a fully programmable OS with the Aruba Network Analytics Engine, the Aruba CX 6300 extends industry-leading monitoring and troubleshooting capabilities to the access layer. Support of Aruba NetEdit and the Aruba CX Mobile App verify that configurations are flawless and easy to deploy. A powerful Aruba Gen7 ASIC architecture delivers fast, non-blocking performance, meaning your network is ready for tomorrow’s unpredictable demands. Aruba Virtual Stacking Framework (VSF) allows for stacking of up to 10 switches, providing scale and simplified management. This flexible series has built-in wirespeed 1/10/25/50GbE uplinks and supports high density IEEE 802.3bt high power PoE with HPE Smart Rate multi-gigabit Ethernet for high speed APs and IoT devices using existing cabling.
What's new - Stackable Layer 3 switches with BGP, EVPN, VXLAN, VRF, and OSPF with robust security and QoS. - High performance 880 Gbps system switching capacity, 660 MPPS of system throughput and up to 200 Gbps stacking bandwidth. - Compact 1U switches with full density HPE Smart Rate (1/2.5/5GbE) multi-gigabit, 60W PoE, and SFP+ models. - Built-in high speed 10GbE/25GbE/50GbE uplinks with intelligent monitoring and visibility via Aruba Network Analytics Engine. - Aruba NetEdit support for automation, configuration and verification, and one touch deployment with the Aruba CX Mobile App. - Aruba Dynamic Segmentation enables enhanced security and simple access for users and IoT.
Features
Automation and Analytics - The Aruba CX 6300 Switch Series delivers unparalleled visibility with built-in analytics for real-time monitoring and troubleshooting to help fix problems faster. The Aruba Network Analytics Engine (NAE) automatically interrogates and analyzes events that can impact network health. - Advanced telemetry and automation provide the ability to easily identify and troubleshoot network, system, application and security related issues easily, through the use of Python agents and REST APIs. - The Time Series Database (TSDB) stores configuration and operational state data, making it available to quickly resolve network issues.
Performance and Power - The Aruba CX 6300 Switch Series uses a fully distributed architecture with Aruba Gen7 ASICs that deliver very low latency, increased packet buffering, and adaptive power consumption. All switching and routing are wire-speed to meet the demands of bandwidth-intensive applications. - Aruba Virtual Switching Framework (VSF) allows you to quickly grow your network using high performance front plane stacking. Four built-in QSFP28 ports support speeds of 1GbE, 10GbE, 25GbE, and 50GbE for a total of up to 200 Gbps of stacking throughput per switch. - Deploy wireless access points and IoT devices with Aruba CX 6300 models that offer high density HPE Smart Rate multi-gigabit Ethernet with 60W PoE on every port for a total of 2880W of PoE.
Smarter Segmentation - The Aruba CX 6300 Switch Series supports Aruba Dynamic Segmentation that automatically applies and enforces user, device, and application-aware policies on Aruba wired and wireless infrastructures. - Automated device profiling, role-based access control, and Layer 7 firewall features deliver enhanced visibility and performance for a better overall experience for both IT and end-users alike. - Switch-to-switch tunnels enable scalable multi-tenancy support with VXLAN to VRF mapping, while allowing policy application via user roles.
General Information
Manufacturer
Hewlett Packard Enterprise
Manufacturer Part Number
JL665A#ABA
Manufacturer Website Address
http://www.hpe.com
Brand Name
Aruba
Product Series
CX 6300
Product Model
6300F
Product Name

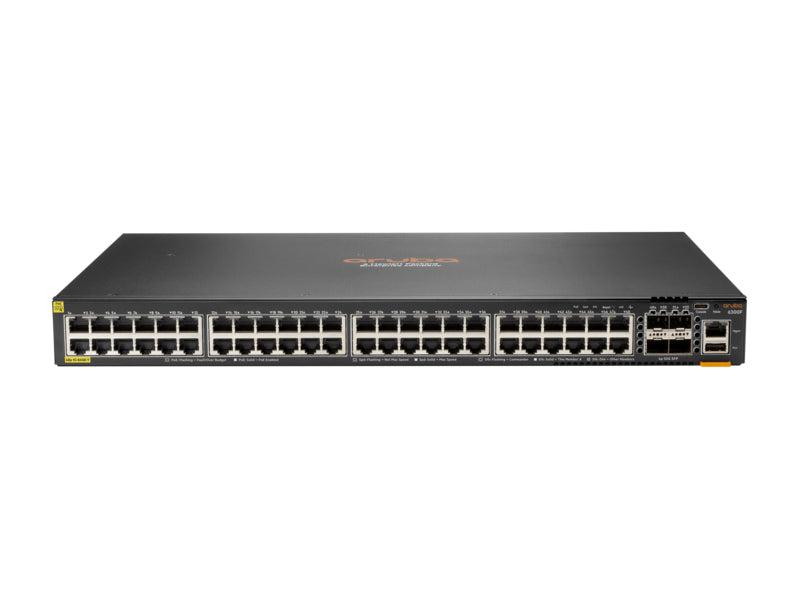

6300F 48-port 1GbE Class 4 PoE and 4-port SFP56 Switch
Product Type
Ethernet Switch
UPC
190017340296
Ethernet Technology
50 Gigabit Ethernet
Height
1.7"
Width
17.4"
Depth
15.2"
Weight (Approximate)
11.24 lb
Miscellaneous
Package Contents
6300F 48-port 1GbE Class 4 PoE and 4-port SFP56 Switch
