OREI 1080P HDMI Extender With POC Up To 130 Feet & EQ Switch with Adjustable Distance
Key Features:
HDMI 1.4 & HDCP 1.4 compliant
Video resolutions up to 1080p@60Hz
Extends HDMI media signal up to 130 feet over a single CAT6/7 cable

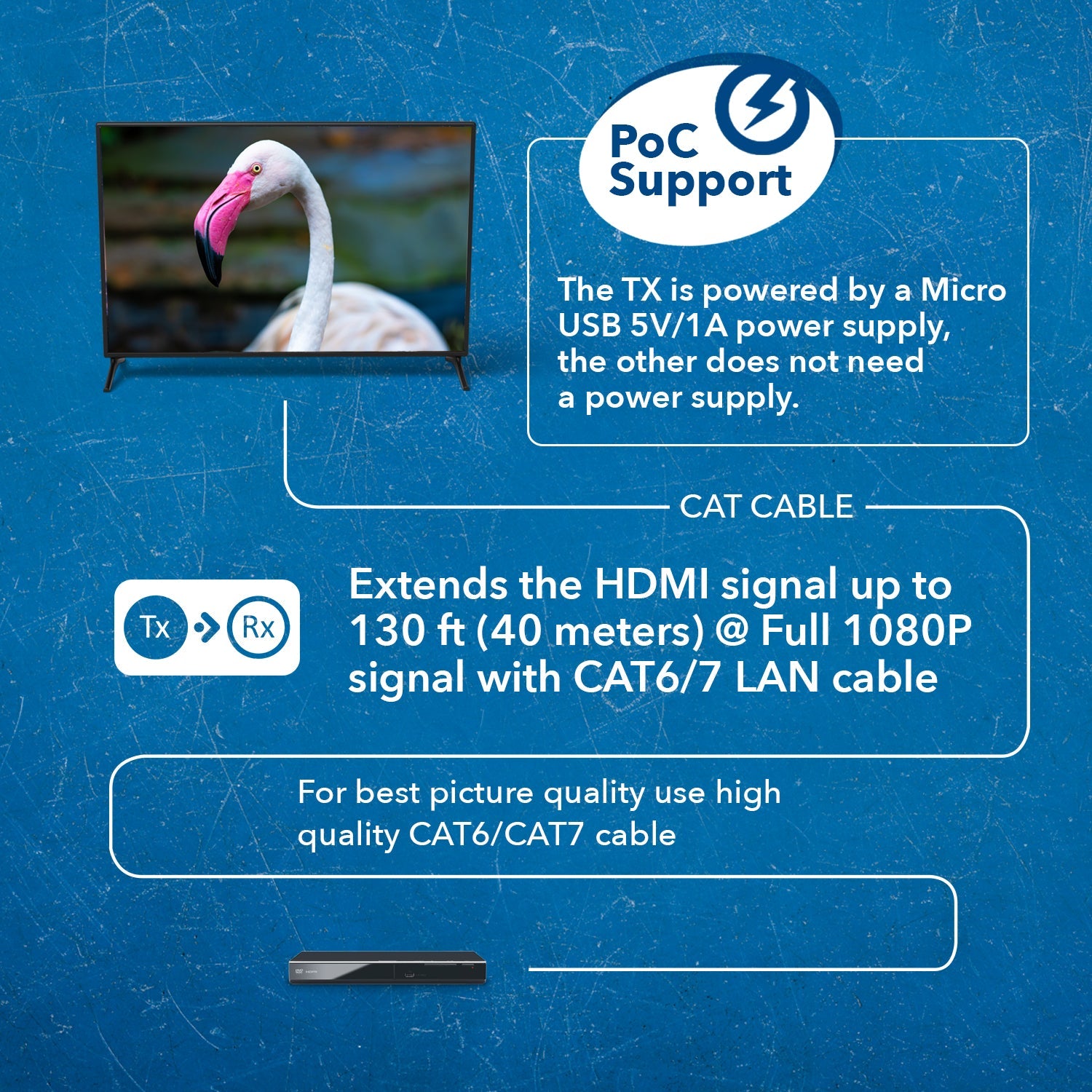

Power over Cable (PoC): Requires only one power adapter (at the transmitter end) for both units.
Dolby True HD, DTS-HD Master Audio 7.1CH digital audio support
Features an EQ switch for adjusting distance capabilities
When the dial is switched to the left, the distance can be between 65ft/20m and 131ft/40m, and when switched to the right, the distance can be between 1.64ft/0.5m and 65ft/20m
Compact Design. Plug and Play setup

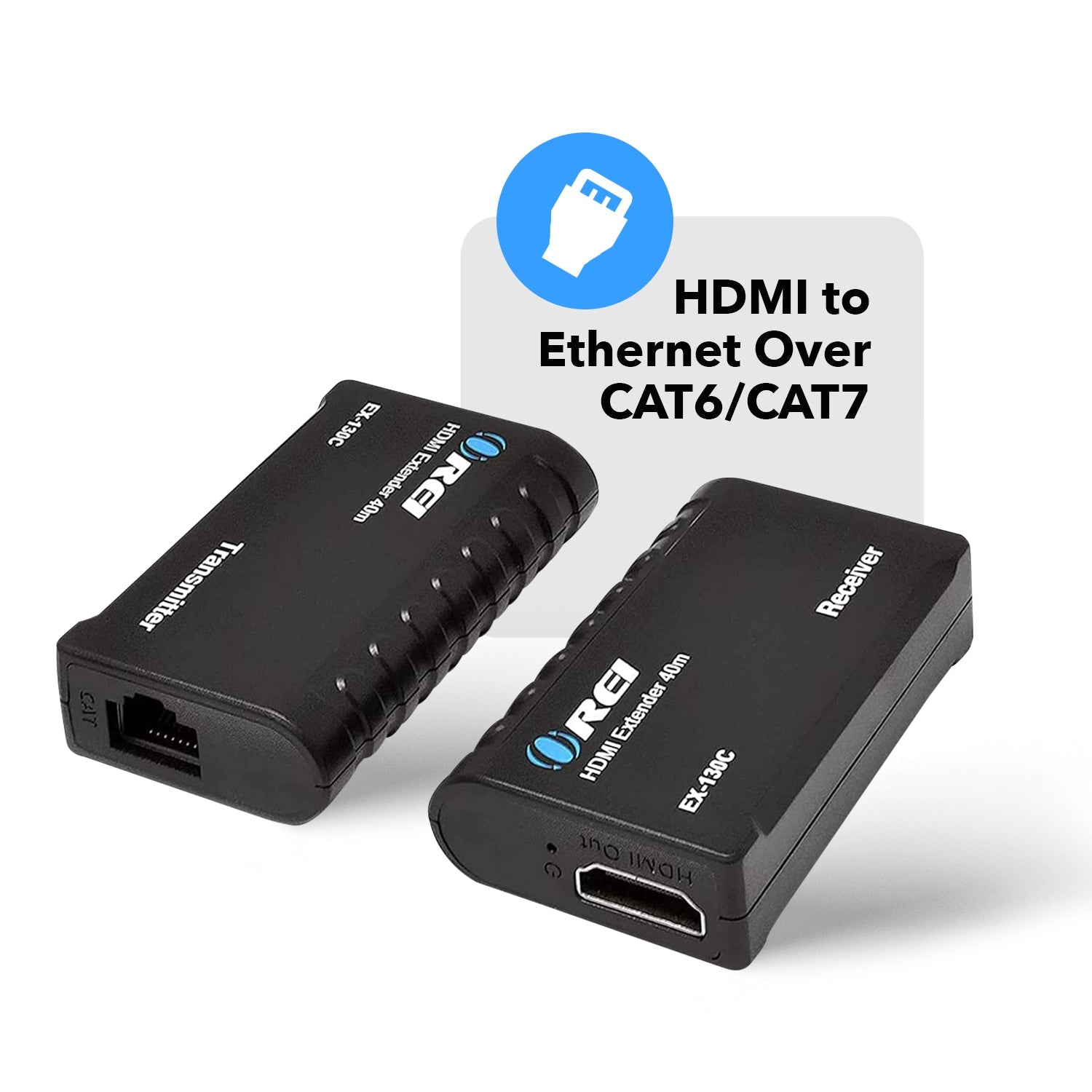

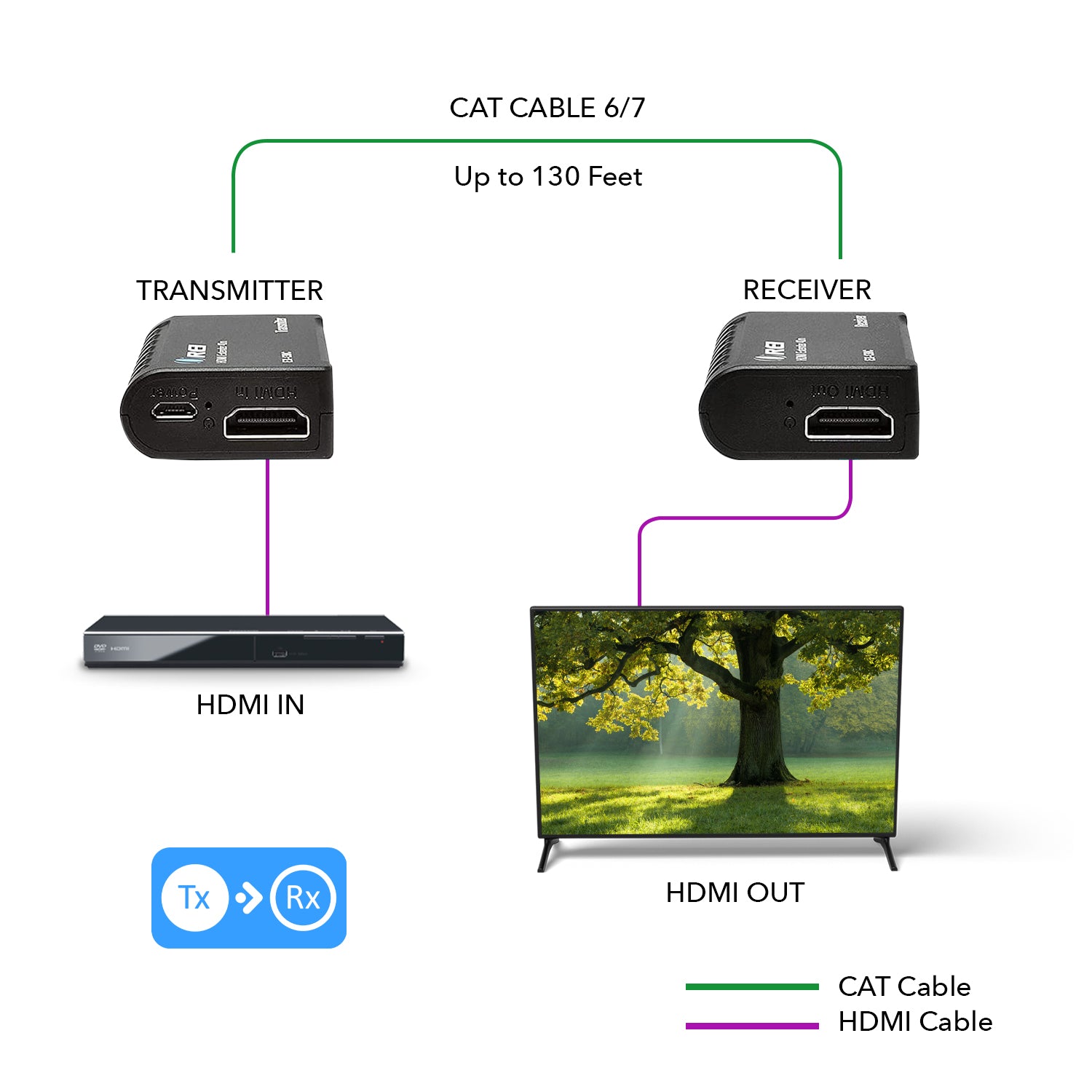

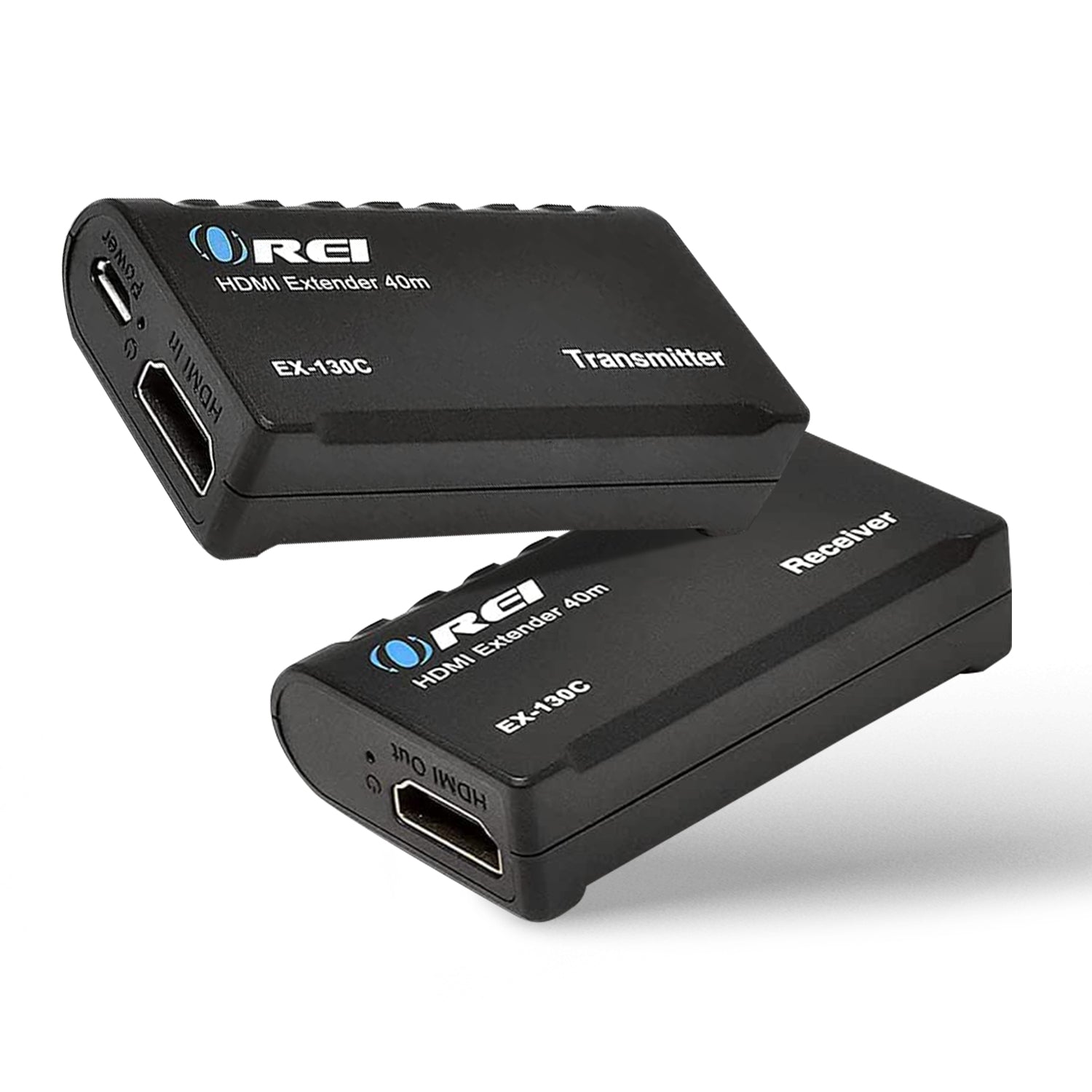

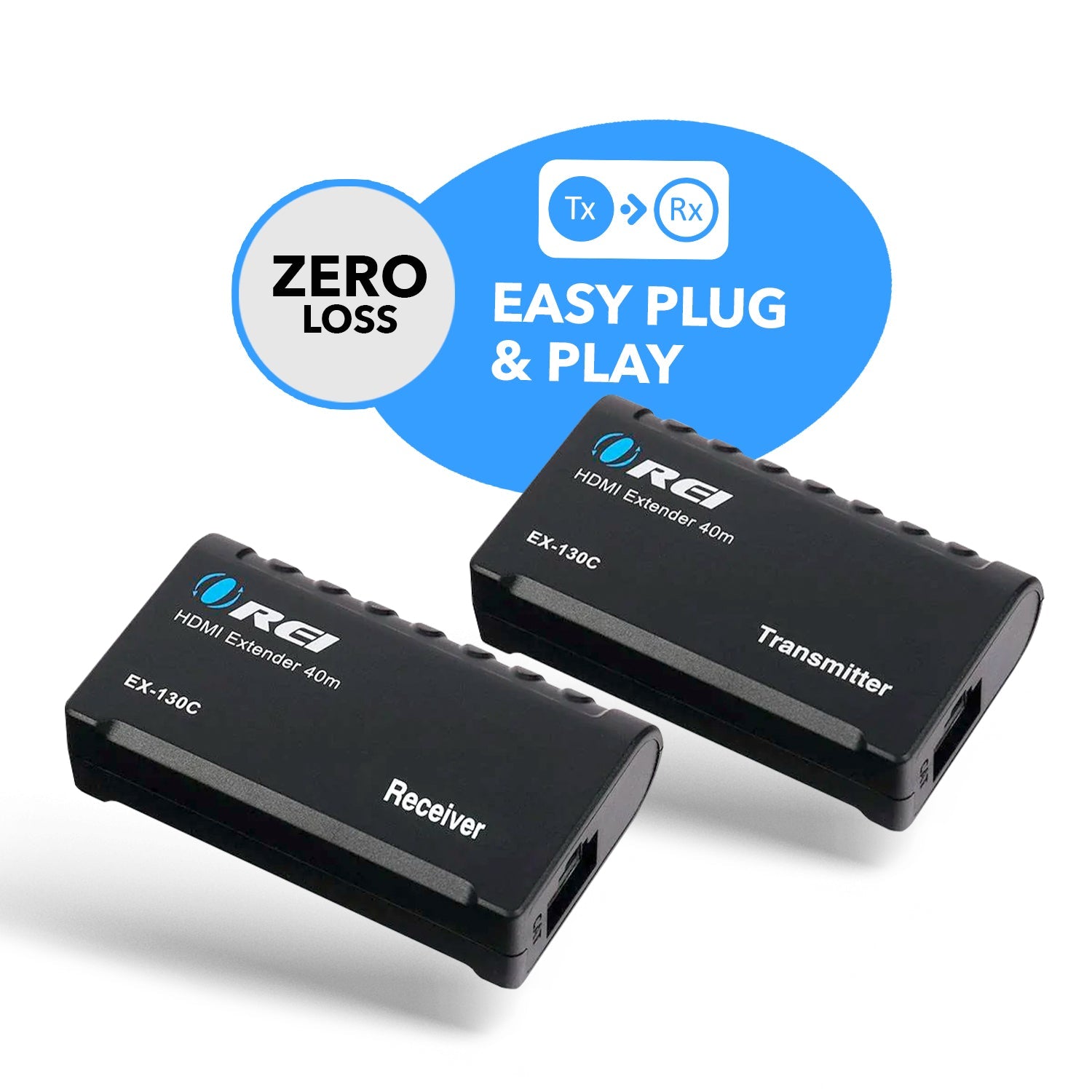

The EX-130A HDMI Extender can extend an HDMI media signal up to 130 feet over a single CAT6/7 cable. This device accepts input from a media source device, such as
a DVD Player or set-top box, and effortlessly transmits the media content to a display located up to 130 feet (40m) away. With Power over Cable (PoC) support, only one power adapter, located at the transmitter end, is needed to power both units. It can transmit video resolutions up to 1080p@60Hz with Dolby True HD, DTS-HD Master Audio 7.1CH digital audio support. Compliant with HDMI 1.4 and HDCP 1.4 standards, the device also includes an EQ switch for adjusting distance capabilities. Overall, the EX-130A is the perfect device for a neat home theater setup where your media source is placed far away from the display.
[summary]
Full HD HDMI extender over ethernet up to 130 feet.
Video resolutions up to 1080P@60Hz
One way Power over Cable funtionality with EQ switch for adjusting the distances
[/summary]
[tab]
CONNECTIVITY
Transmitter:
INPUT:
1 × HDMI [Type A, 19-pin female]
OUTPUT:
1 × CAT [RJ45, 8-pin female]
Receiver:
INPUT:
1 × CAT [RJ45, 8-pin female]
OUTPUT:
1 × HDMI [Type A, 19-pin female]
PACKAGE CONTENTS
1x Transmitter
1x Receiver
1x USB cable
1x Power Adapter
User Manual
SUPPORTED CAT CABLES
CAT5e, CAT6, CAT7:
We recommend you use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance
EXTENDING DISTANCE
1080P@60Hz:
130 Feet
VIDEO OUTPUT
Video Bandwidth:
1.65Gbps
Video Resolutions:
Up to 1080p@60Hz
ADDITIONAL FEATURES
CEC:
No
ARC:
No
USB KVM:
No
PoC/PoE:
Yes
IR Control:
No
Downmix:
No
Downscale:
No
Over IP:
No
HDBaseT:
No
RS-232:
No
LOOP-OUT/LOCAL PORT
Has loop out port:
No
Number of Loop out ports:
0
AUDIO SUPPORT
HDMI Audio Formats:
DolbyTrue HD DTS-HD MasterAudio 7.1CH
COMPLIANCES
HDMI Compliance
HDMI 1.4
HDCP Compliance
HDCP 1.4
POWER
Power Consumption:
1.6W (Max)
Power Supply:
Input: AC 100-240V 50/60Hz
Output: DC 5V/1A

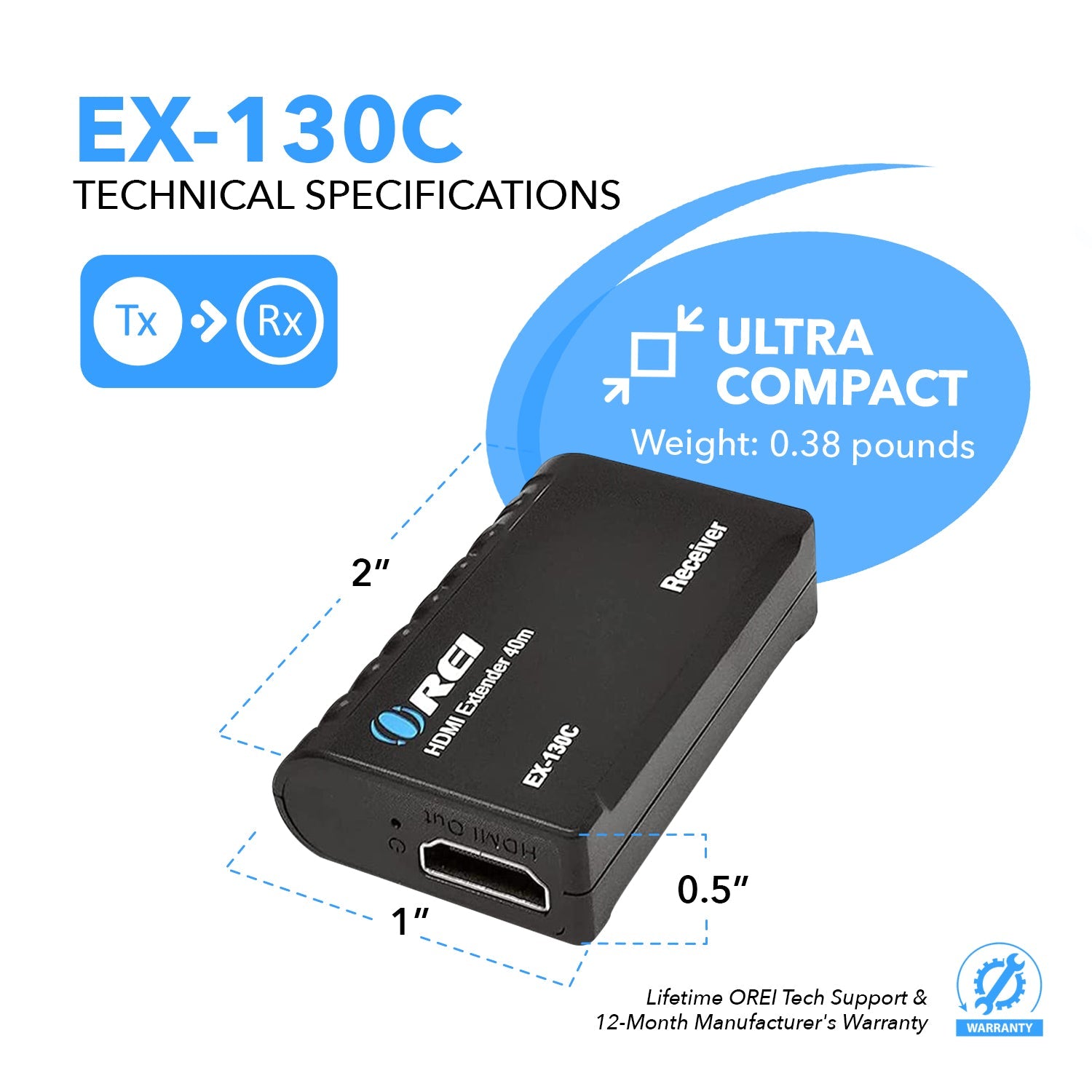

DIMENSIONS & WEIGHT
Transmitter:
Length:
65mm / 2.56in
Width:
37.5mm / 1.48in
Height:
16.5mm / 0.65in
Weight:
22.5g / 0.79oz
Receiver:
Length:
65mm / 2.56in
Width:
37.5mm / 1.48in
Height:
16.5mm / 0.65in
Weight:
22.3g / 0.79oz
PROPERTIES
Color:
Black
Housing:
Plastic Enclosure
WARRANTY
1-Year Manufacturer's Warranty
[/tab]
[tab1]
FAQs
Yes, you can purchase these things directly from us. Please contact us & we will assist you further.
No, this product doesn not extend multiple screens. It will duplicate the input sources to multple outputs.
Yes, you will be able to get a signal beyond the mentioned distance but the quality of the video decreases with increase in the distance and that too when using with shielded CAT6 cable.
Yes, you can implement the daisy chain method.
Both the ends of the CAT cable should be termed as EIA-568B & the cable should be straight & not crossed.
We recommend you to use High-Quality HDMI cables & shielded CAT6 cables.
Yes, you can purchase the additional transmitter from us. Please contact us & we will let you know the price.
Yes, you can purchase the additional receiver from us. Please contact us & we will let you know the price.
No, this product doesn't upscale/downscale the video resolutions.
You can extend the display devices up to 400 Feet when using with a shielded CAT6 cable.
The issue might be with the CAT cable. This might be due to the external interference of the signals & CAT5e has low bandwidth as compared to the CAT6. We recommend you using shielded CAT6 cable.
If the power and link led lights does not illuminate on the RJ45 port of the transmitter and the receiver, then the transmitter & receiver might be dead.
Please contact us so that we can troubleshoot the issue.
You can upgrade the firmware by connecting the PC & this device via RS-232 cable.
Please note that this product only supports the CEC function between HDMI input & HDMI output 1.
No, optical output doesn't supports CEC due to its limitations. CEC will work only with HDMI devices.
HDBaseT is the technology used for long distance transmission of lossless signals, resulting extremely low latency & giving the best picture quality.
In normal extenders, if you extend your signals up to some extend, the quality of the signals will degrade & you may find some latency issues. HDBaseT is the lastest standard which provides extending your signals to the longer distance without degrading the quality of the signals & with 0 latency.
We recommend you using a shielded CAT6 cables for optimum performance.
Our all the extenders supports IR Frequency & the devices using RF frequency will not be compatible with our products.
The IR Blaster/Emitter should be connected to the IR out port on the Transmitter and the IR Receiver should be connected to the IR in on the Receiver.
