ATEN HDMI HDBaseT-Lite Extender with POH (4K@40m) (HDBaseT Class B)-TAA Compliant

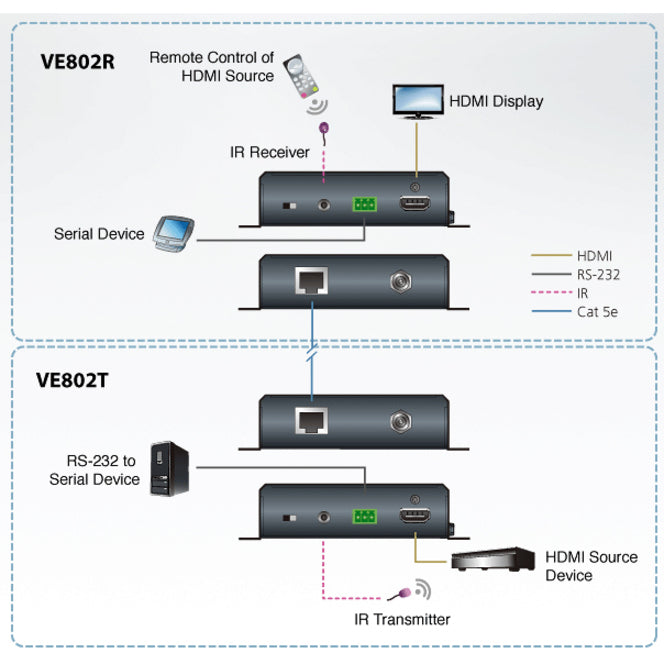

The VE802 HDMI HDBaseT-Lite Extender extends an HDBaseT signal up to 70m from the HDBaseT source using one Cat 5e/6/6a cable. VE802 supports RS-232 and IR signaling passthrough, allowing you to control the HDMI source device from the remote unit (VE802R) while also granting access to the HDMI display device from the local unit (VE802T). IR signals can also be extended in both directions. The VE802 features Power over HDBaseT (POH) which can send power over Cat 5e/6/6a cable without an additional power supply. The VE802 is HDMI (3D, Deep Color,4k) and HDCP compatible. The VE802 is perfect for a digital entertainment center or any installation that requires superior video quality.
More from the Manufacturer
- Rack- Mountable
- Bi-directional IR channel - IR transmission is processed one direction at a time
- Bi-directional RS-232 channel - allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
- POH (Power over HDBaseT) - supplies power from Transmitter to Receiver over a long distance via one Cat 5e/6/6a cable
- HDBaseT Anti-jamming - resists signal interference during high-quality video transmission using HDBaseT technology
- Superior video quality - up to 4K@35m (Cat 5e/6) / 40m (Cat 6a or ATEN 2L-2910 Cat 6 cable)
- HDBaseT Connectivity - extends an HDMI connection over a long distance via one Cat 5e/6/6a cable
Product Type: Video Extender Transmitter/Receiver
Environmentally Friendly: Yes
Environmental Certification: WEEE
Transmitter Height: 1.18"
Transmitter Width: 5.53"
Transmitter Depth: 4.84"
Receiver Height: 1.18"
Receiver Width: 5.53"
Receiver Depth: 4.84"
Transmitter Weight (Approximate): 15.52 oz
Receiver Weight (Approximate): 1.01 lb
Country Of Origin: Taiwan
Brand Name: ATEN
Form Factor: Rack-mountable
Manufacturer: ATEN Technology Inc
Product Model: VE802
Product Name: HDMI HDBaseT-Lite Extender with POH (4K@40m) (HDBaseT Class B)
Product Line: VanCryst
Manufacturer Part Number: VE802
Manufacturer Website Address: http://www.aten.com/us/en/
Package Contents:
- 1 x Transmitter
- 1 x Receiver
- 1 x Power Adapter (VE802T)
- 1 x IR Transmitter
- 1 x IR Receiver
- 2 x Terminal Blocks
- 1 x User Instructions
