OREI 4K KVM Extender over Ethernet up to 394 feet - With HDBaseT & Bi-directional Power over Cable
Key Features:
HDMI 2.0b & HDCP 2.2 Compliant
Video bandwidth of 18Gbps
4K@60Hz transmission up to 120m / 394ft & 1080p@60Hz transmission up to 150m / 492ft.
KVM functionality with USB 2.0 Protocol
HDR10+, HLG, and Dolby Vision pass-through
Bi-directional power over cable functionality; only requires one power adapter to power up both units.
Bi-directional IR functionality
Advanced EDID Management
Compact build with easy installation.
Perfect for both personal and commercial uses.

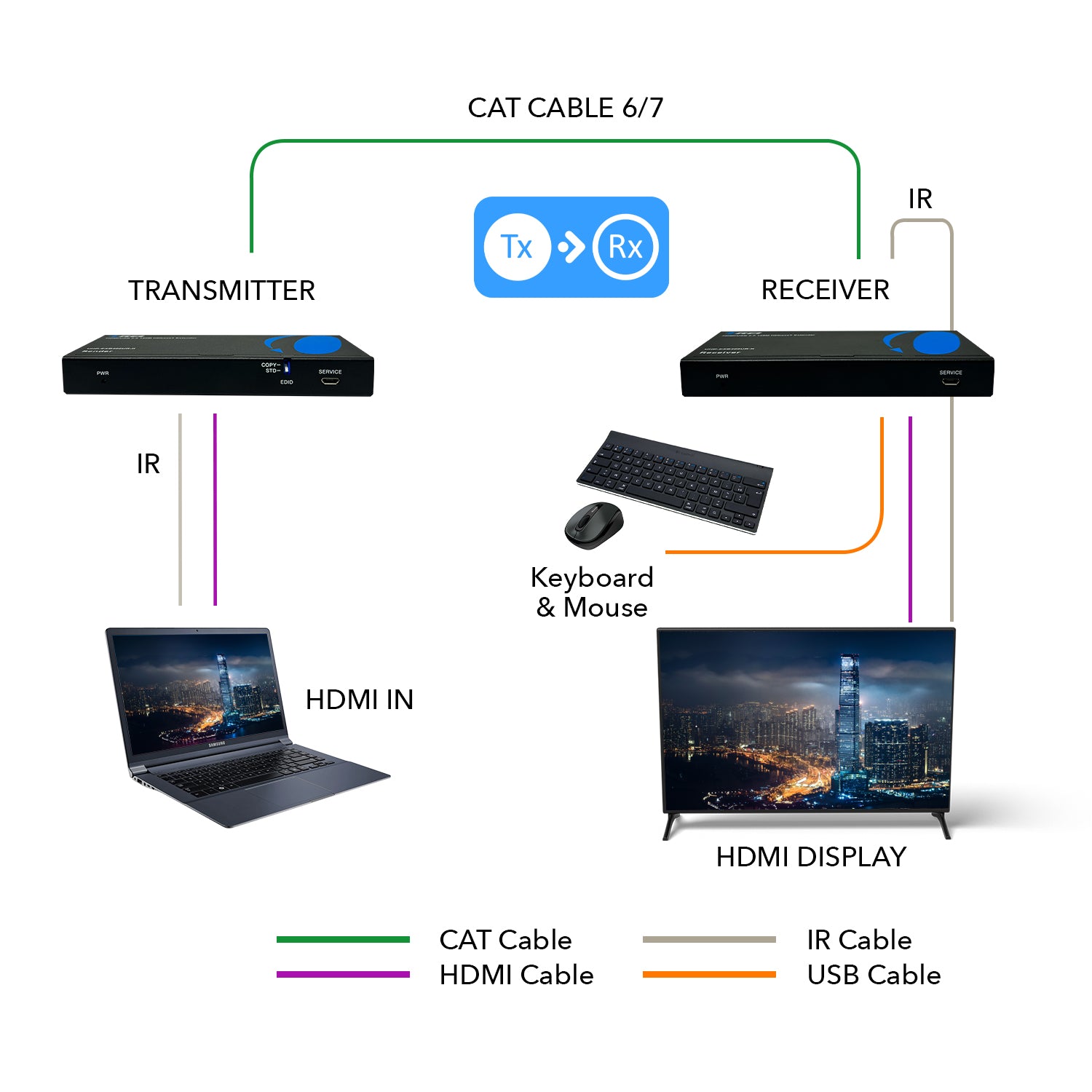

The UHD-EXB400UR-K is an HDBaseT KVM extender, that can extend HDMI & KVM signals up to 150 meters / 492 feet at a resolution of 1080p@60Hz and up to 120 meters / 394 feet at the resolution of up to 4K@60Hz 4:4:4. It is compliant with HDMI 2.0, HDCP 2.2 and USB 2.0 standards. HDR10+, HLG & Dolby Vision pass-through. This device features bi-directional IR, enhancing control options. Its bi-directional power over cable technology requires only one power adapter to power up both units. Advanced EDID management. Compact design and easy plug-and-play installation.
[shortdes]
HDMI KVM extender over ethernet up to 492 feet
Video resolutions up to 4K@60Hz 4:4:4
USB-2.0, EDID management, Bi-directional Power over cable & IR
[/shortdes]
[tab]

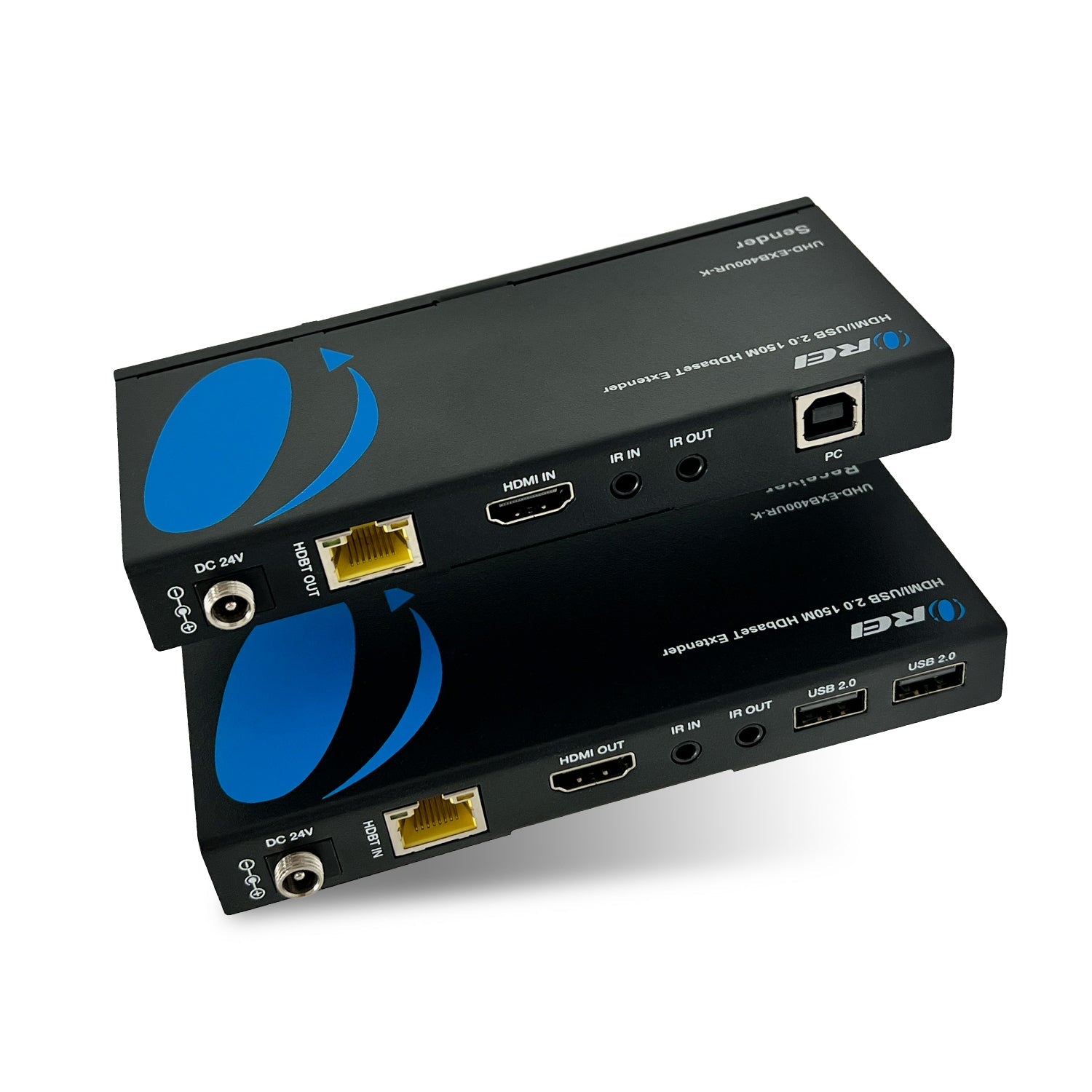

CONNECTIVITY
Transmitter:
INPUT:
1 × HDMI [Type A, 19-pin female]
OUTPUT:
1 × HDBaseT [RJ45, 8-pin female]
1 × SERVICE [Micro USB, Update port]
CONTROL:
1 x USB - B port [Host device]
1 × I/R IN [3.5mm Stereo Mini-jack]
1 × I/R OUT [3.5mm Stereo Mini-jack]

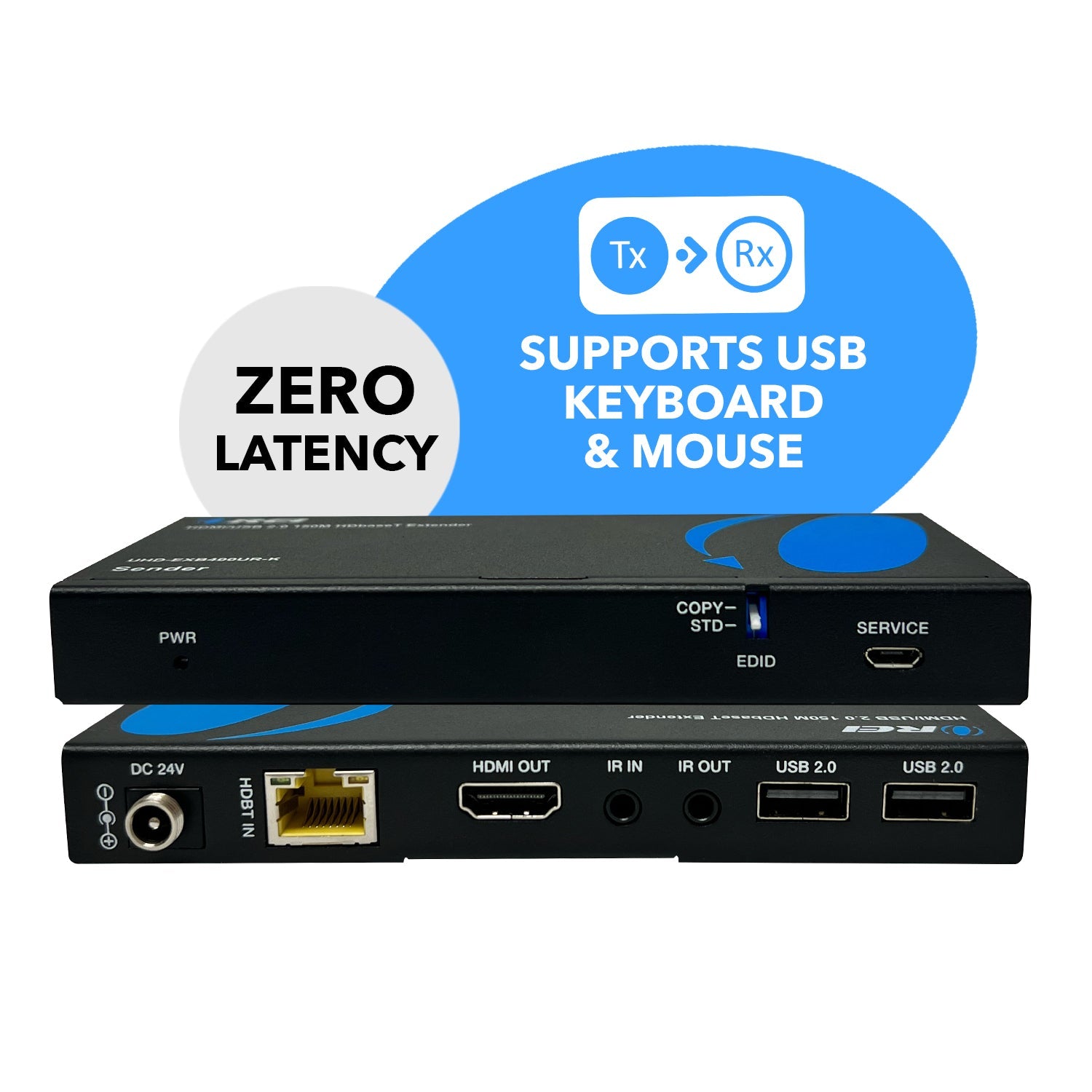

Receiver:
INPUT:
1 × HDBaseT [RJ45, 8-pin female]
OUTPUT:
1 × HDMI [Type A, 19-pin female]
2×USB [USB Type A]
CONTROL:
1 × I/R IN [3.5mm Stereo Mini-jack]
1 × I/R OUT [3.5mm Stereo Mini-jack]
1 × SERVICE [Micro USB, Update port]
1 × SERVICE [Micro USB, Update port]
PACKAGE CONTENTS
1x Transmitter
1x Receiver
1x IR Blaster cable
1x IR Receiver cable
4x Mounting ears
8x Screws
1x Power Adapter
User Manual
SUPPORTED CAT CABLES
CAT5e, CAT6, CAT7:
We recommend you use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance
EXTENDING DISTANCE
1080P@60Hz:
492 Feet
4K@60Hz:
394 Feet
VIDEO OUTPUT
Video Bandwidth:
18Gbps
Video Resolutions:
Up to 4K@60Hz 4:4:4
ADDITIONAL FEATURES
CEC:
No
ARC:
No
USB KVM:
Yes
PoC/PoE:
Yes
IR Control:
Yes
Downmix:
No
Downscale:
No
Over IP:
No
HDBaseT:
Yes
RS-232:
No
LOOP-OUT/LOCAL PORT
Has loop out port:
No
Number of Loop out ports:
0
AUDIO SUPPORT
HDMI Audio Formats:
LPCM 7.1CH, Dolby True HD, and DTS-HD Master
COMPLIANCES
HDMI Compliance
HDMI 2.0b
HDCP Compliance
HDCP 2.2
POWER
Power Consumption:
13.2W (Max)
Power Supply:
Input: AC 100-240V 50/60Hz
Output: DC 24V/1A

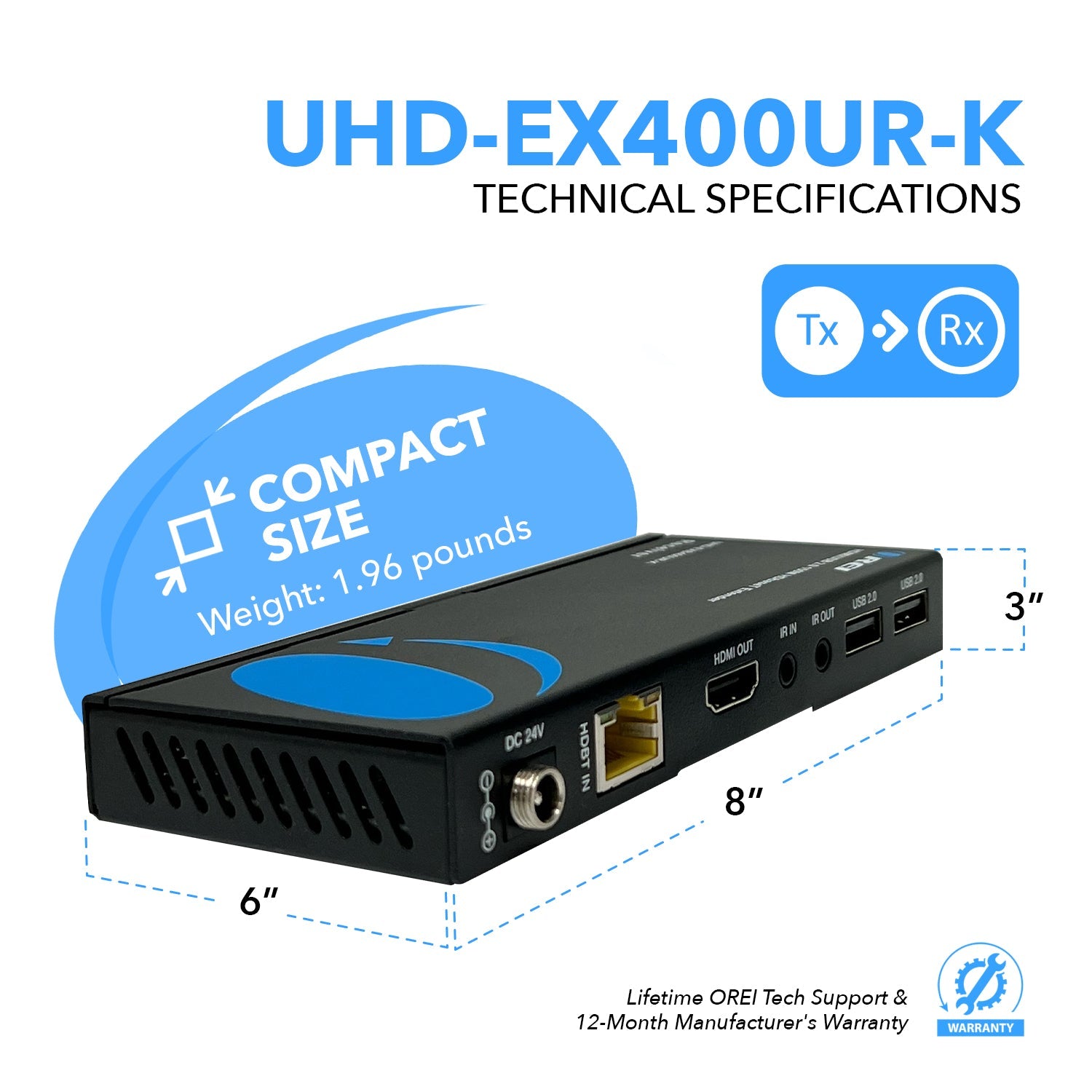

DIMENSIONS & WEIGHT
Transmitter:
Length:
140mm / 5.51in
Width:
65mm / 2.56in
Height:
18mm / 0.71in
Weight:
245g / 8.64oz
Receiver:
Length:
140mm / 5.51in
Width:
65mm / 2.56in
Height:
18mm / 0.71in
Weight:
249g / 8.87oz
PROPERTIES
Color:
Black
Housing:
Metal Enclosure
WARRANTY
1-Year Manufacturer's Warranty
[/tab]
[tab1]
FAQs
Yes, you can purchase these things directly from us. Please contact us & we will assist you further.
No, this product does not extend multiple screens. It will duplicate the input sources to multple outputs.
Yes, you will be able to get a signal beyond the mentioned distance but the quality of the video decreases with increase in the distance and that too when using with shielded CAT6 cable.
Yes, you can implement the daisy chain method.
Both the ends of the CAT cable should be termed as EIA-568B & the cable should be straight & not crossed.
We recommend you to use High-Quality HDMI cables & shielded CAT6 cables.
Yes, you can purchase the additional transmitter from us. Please contact us & we will let you know the price.
Yes, you can purchase the additional receiver from us. Please contact us & we will let you know the price.
You can extend the display devices up to 230 Feet when using with a shielded CAT6 cable.
The issue might be with the CAT cable. This might be due to the external interference of the signals & CAT5e has low bandwidth as compared to the CAT6. We recommend you using shielded CAT6 cable.
If the power and link led lights does not illuminate on the RJ45 port of the transmitter and the receiver, then the transmitter & receiver might be dead.
Please contact us so that we can troubleshoot the issue.
