Audio and video are transmitted digitally over the 75Ohm RG-6U Coaxial cable with zero signal loss
Single Link Range: 1080p/60, 12-bit color depth
Compliant with HDMI 1.3, HDCP 1.1 standards
Supports digital video formats in Deep Color Mode at up to 12bits/color
Supports PCM 48KHz audio
Supports Cascade function in Transmitter and Receiver
Easy to build a network system by installer
Lip-Sync Pass Through
Supports Bi-directional IR

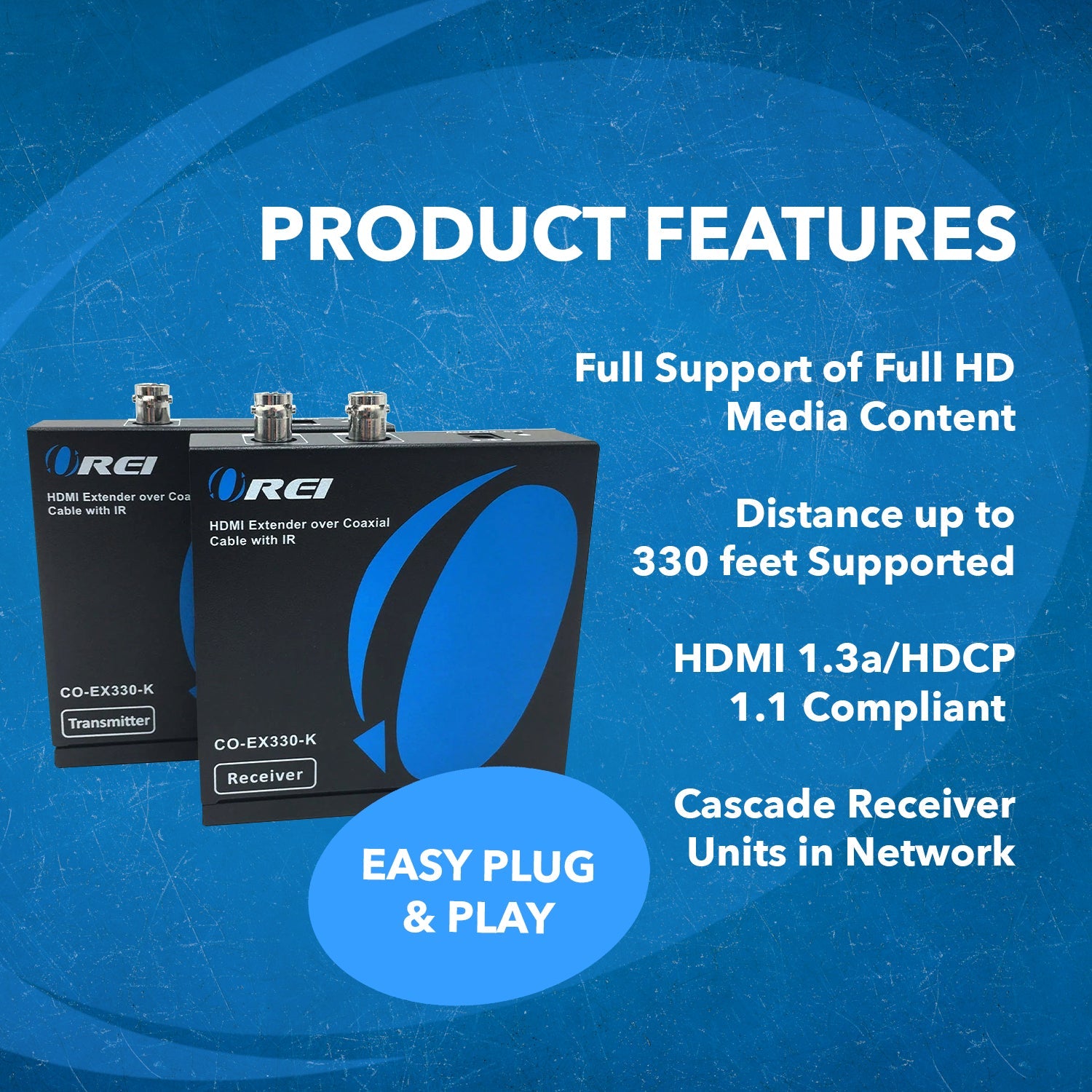

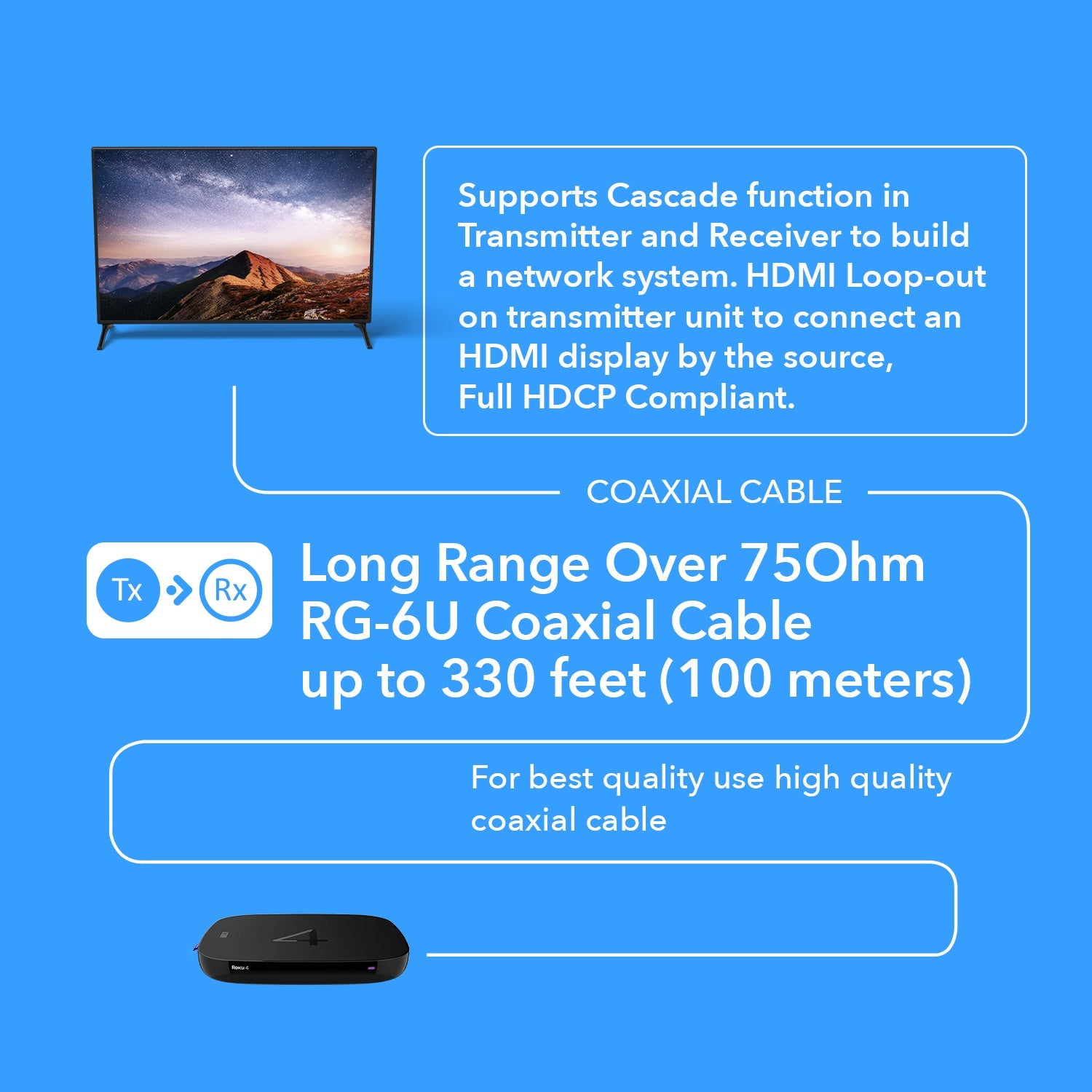

The HDMI Over Single Coaxial cable extender sends HDMI signals over just one 75Ohm Coaxial cable up to 330 feet. This HDMI Over Single Coax Extender supports HDMI 1.3 and HDCP 1.1 with features such as Deep Color and 1080p. By using standard and widely available 75Ohm RG-6U cables, the HDMI Over Single Coax Extender makes HDMI signal extensions to be easier than heavy and expensive copper cable and more robust than optical fiber.

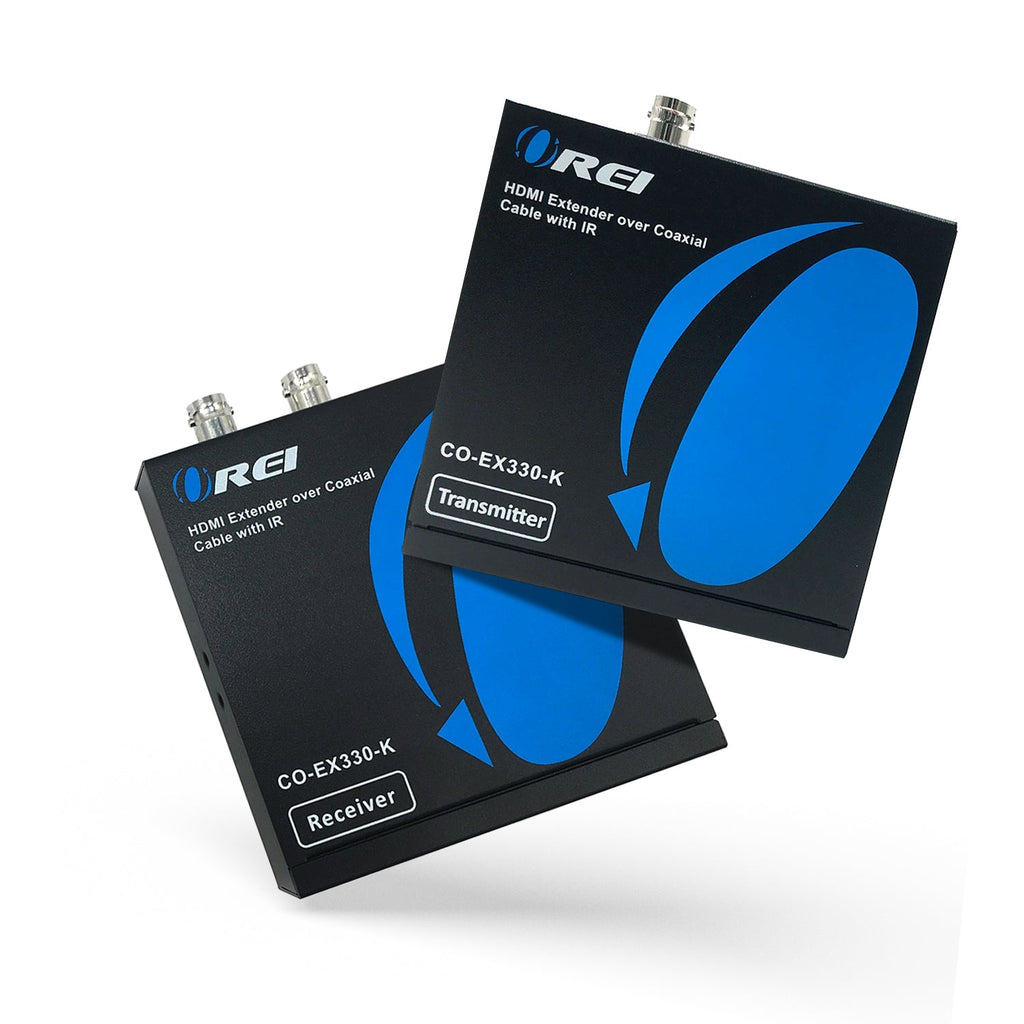

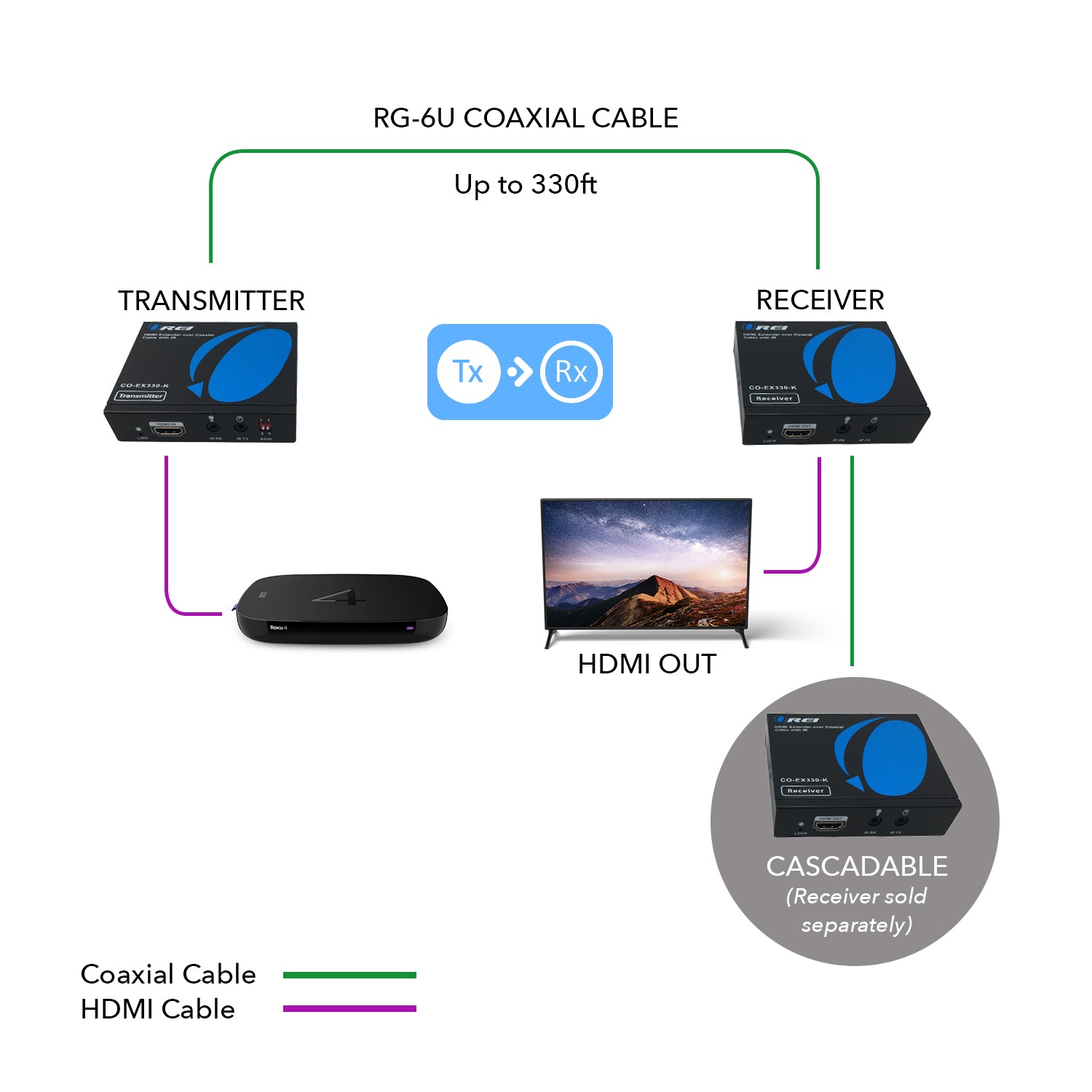

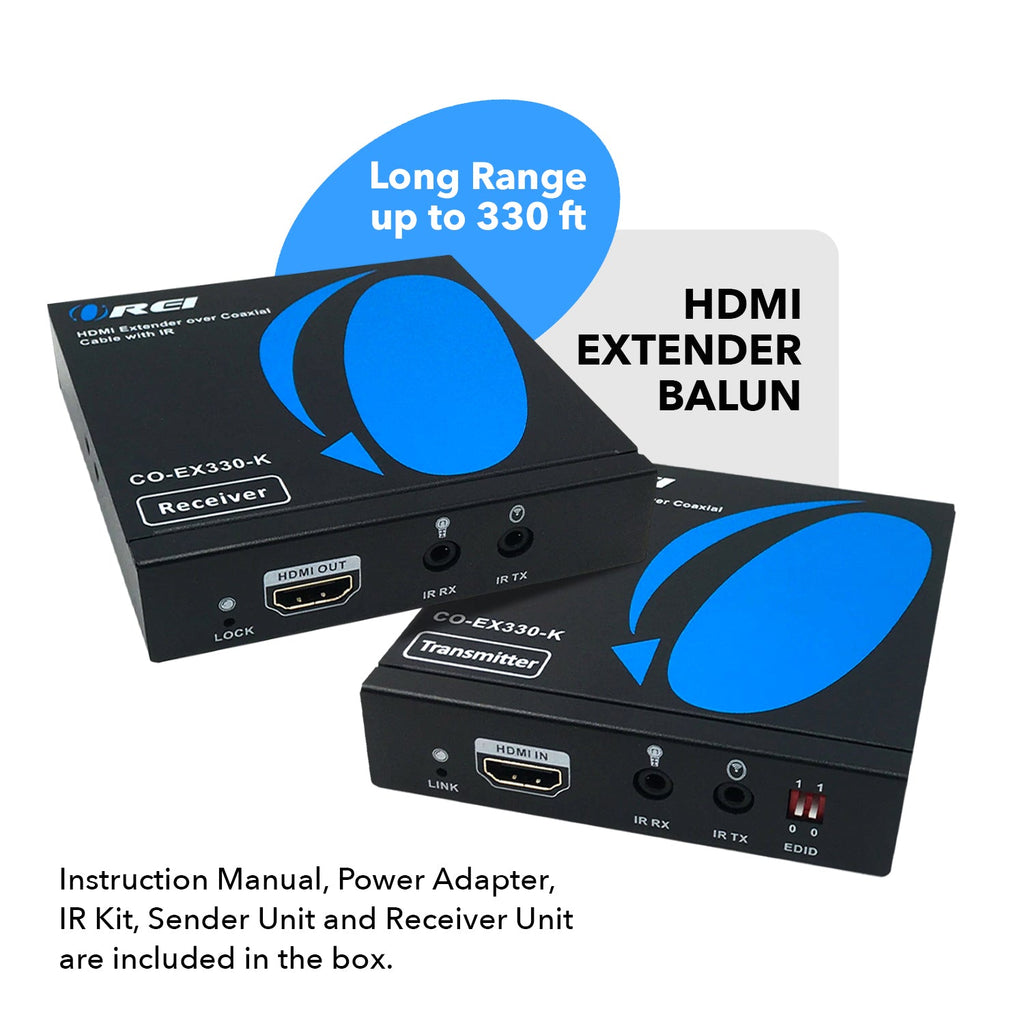

The Extender includes two units: transmitter and receiver. The transmitting unit is used to capture the HDMI input with IR signals and carries the signals via one coaxial cable. The receiving unit is responsible for equalizing the transmitted HDMI signal and reconstructing IR and serial control signals. This Extender offers the most convenient solution for HDMI extension over a single coaxial cable with long distance capability, and is the perfect solution for any application.
[shortdes]

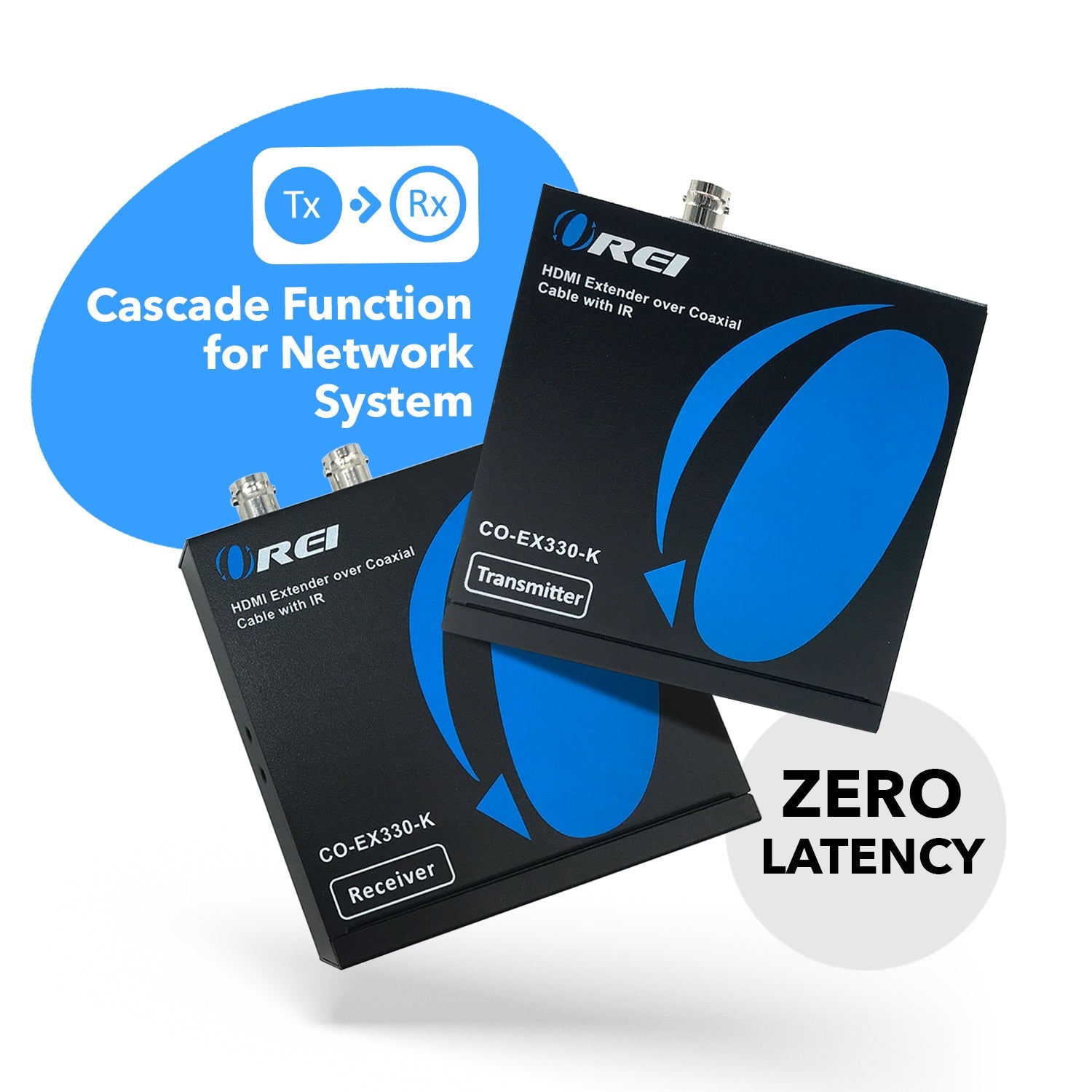

Supports Cascade function
Single Link Range: 1080p/60, 12-bit color depth
Supports Bi-directional IR
[/shortdes]
[tab1]
FAQs
Yes, you can purchase these things directly from us. Please contact us & we will assist you further.
No, this product does not extend multiple screens. It will duplicate the input sources to multple outputs.
Yes, you can implement the daisy chain method.
Yes, you can purchase the additional transmitter from us. Please contact us & we will let you know the price.
Yes, you can purchase the additional receiver from us. Please contact us & we will let you know the price.
[/tab1]
[tab]

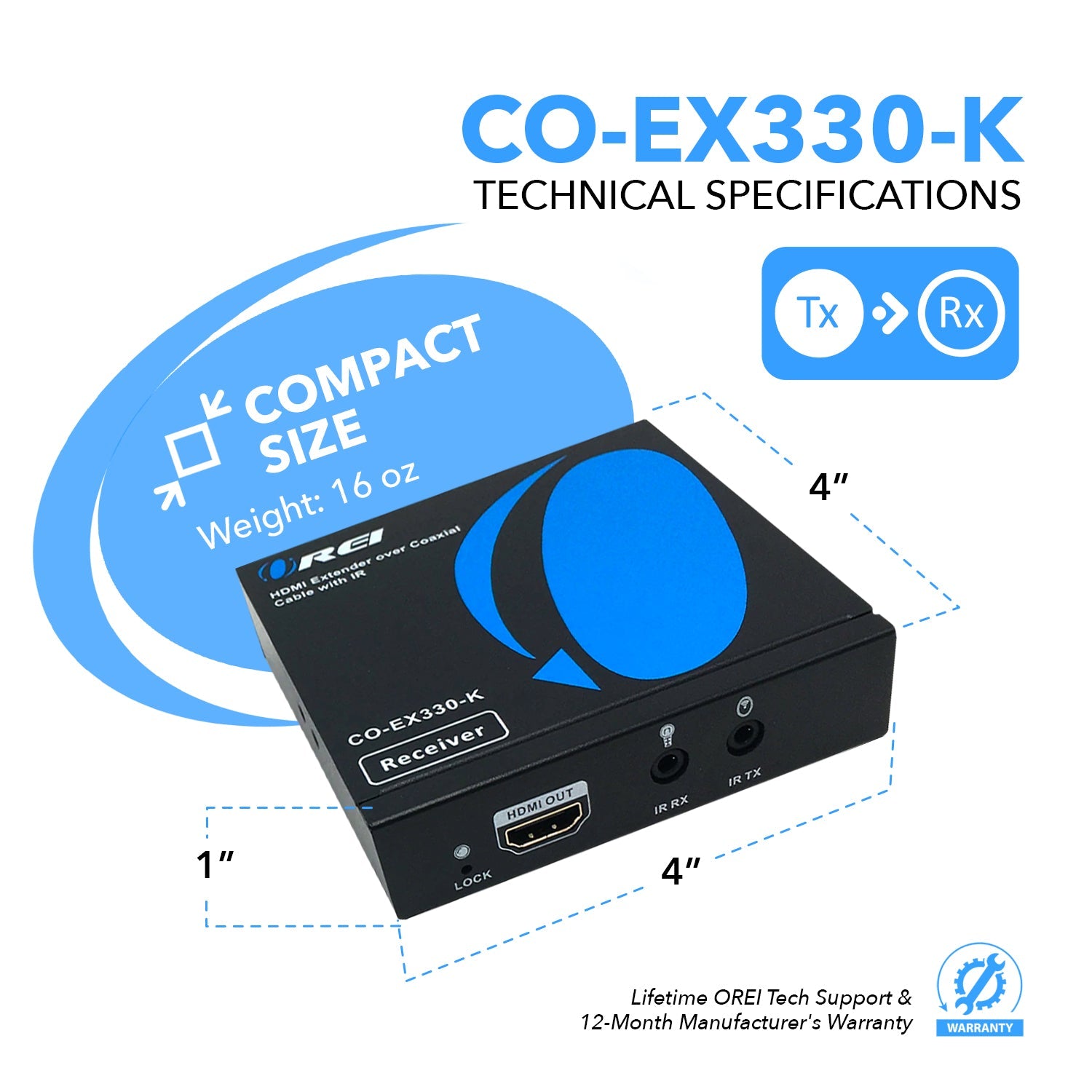

AUDIO AND VIDEO
Transmitter:
INPUT PORTS:
1 × HDMI IN
OUTPUT PORTS:
1 x Coax Out
Receiver:
INPUT PORTS:
1 x Coax Input
OUTPUT PORTS:
1 x HDMI OUT
1 x Coax Loop-Out
Supported Coax Cables
Coax Cable version:
75Ohm RG-6U
COMPLIANCES
HDMI Compliance
HDMI 1.3
HDCP Compliance
HDCP 1.1
SUPPORTED CAT CABLES
CAT5e, CAT6, CAT7:
We recommend you to use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance
EXTENDING DISTANCE
1080p@60Hz:
Full HD up to 100M (RG-6U cables), HD up to 200M (RG-6U cables), SD up to 300M (RG-6U cables )
VIDEO OUTPUT
Video Bandwidth:
225MHz/link (HDMI 1.3)
Video Resolutions:
1080p@23.98/24/25/29.97/30/50/59.94/60
Color Space:
RGB,YCbCr 4:2:2,4:4:4
Color Depth:
12 bit
CEC, EARC, POC/POE, IR, DOWNSCALER, KVM, OVER IP, HDBASET, RS-232 SUPPORT
