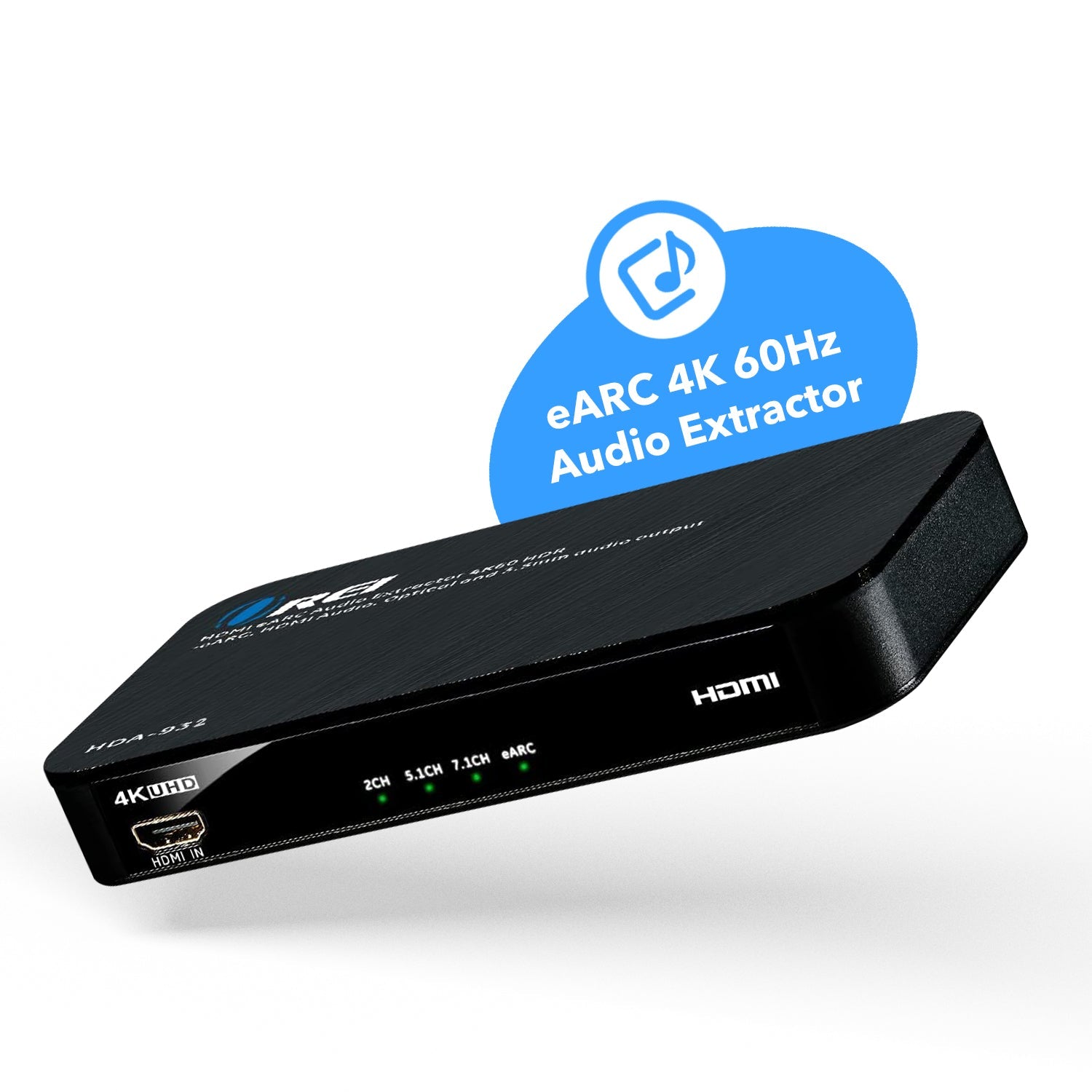

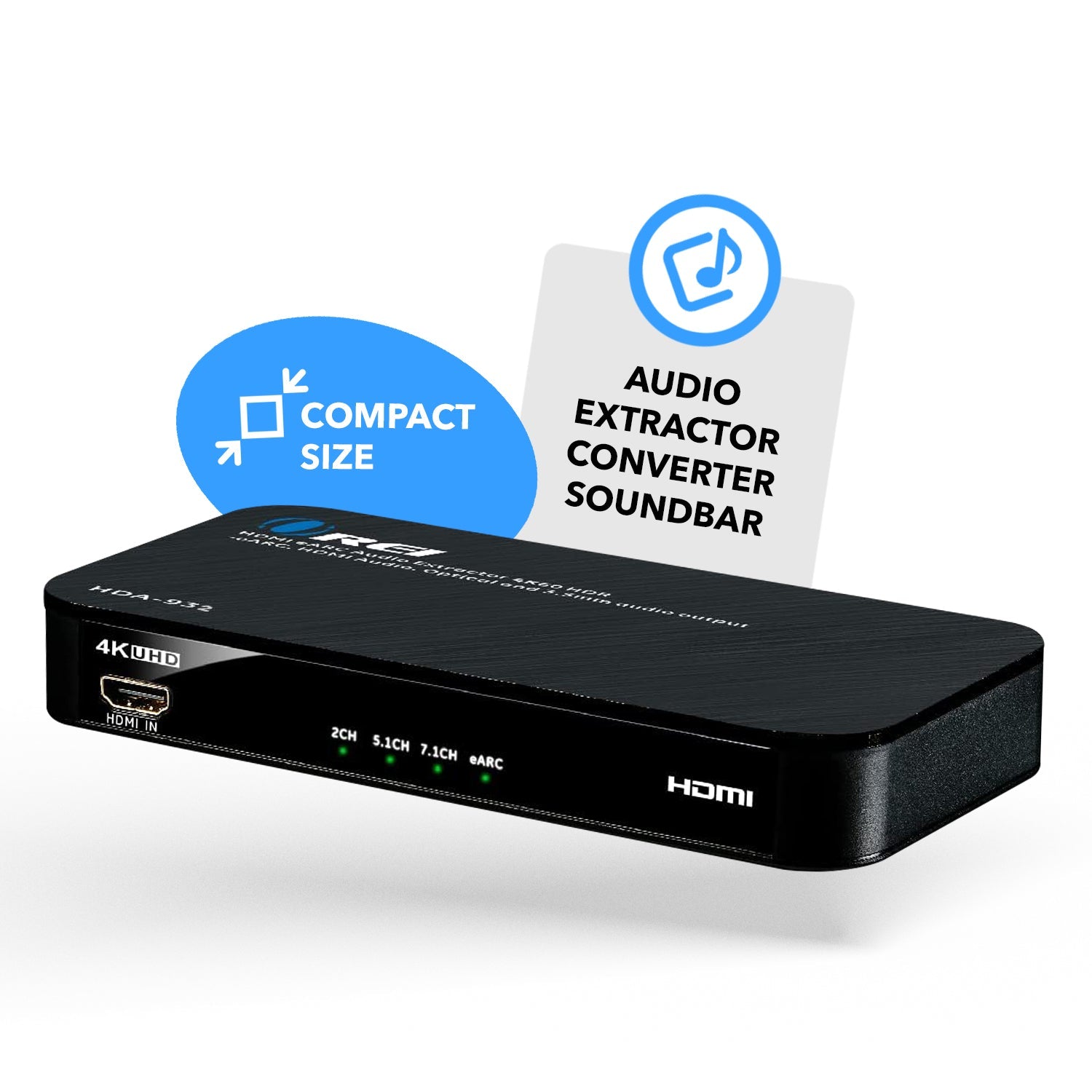

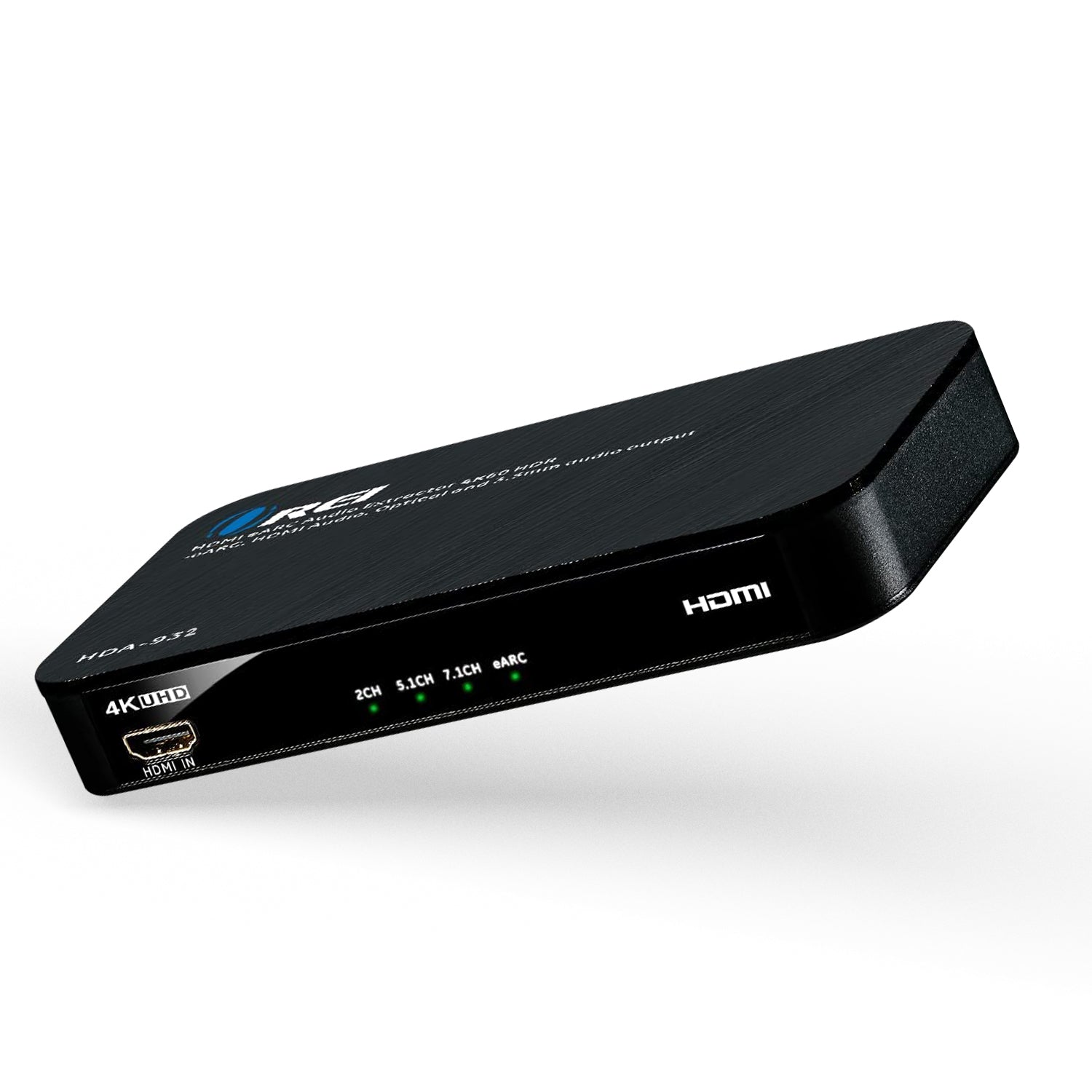

OREI HDA-932: HDMI eARC Audio Extractor
- Supports Video and audio separation
- Auto eARC Detection when using the TV's app or external devices
- Supports dual HDMI audio interface (HDMI eARC and HDMI Audio)
- Supports 4K@60 & HDR
- Compatible with Dolby Atmos (via HDMI)
- Supports Pixel clock rate up to 600 MHz
- Supports S/PDIF, Stereo 3.5mm audio output
- Supports DTS HD, Dolby TrueHD (via HDMI)
- Supports HDMI 2.0 / 2.1(eARC)
- HDCP 2.3 compliant

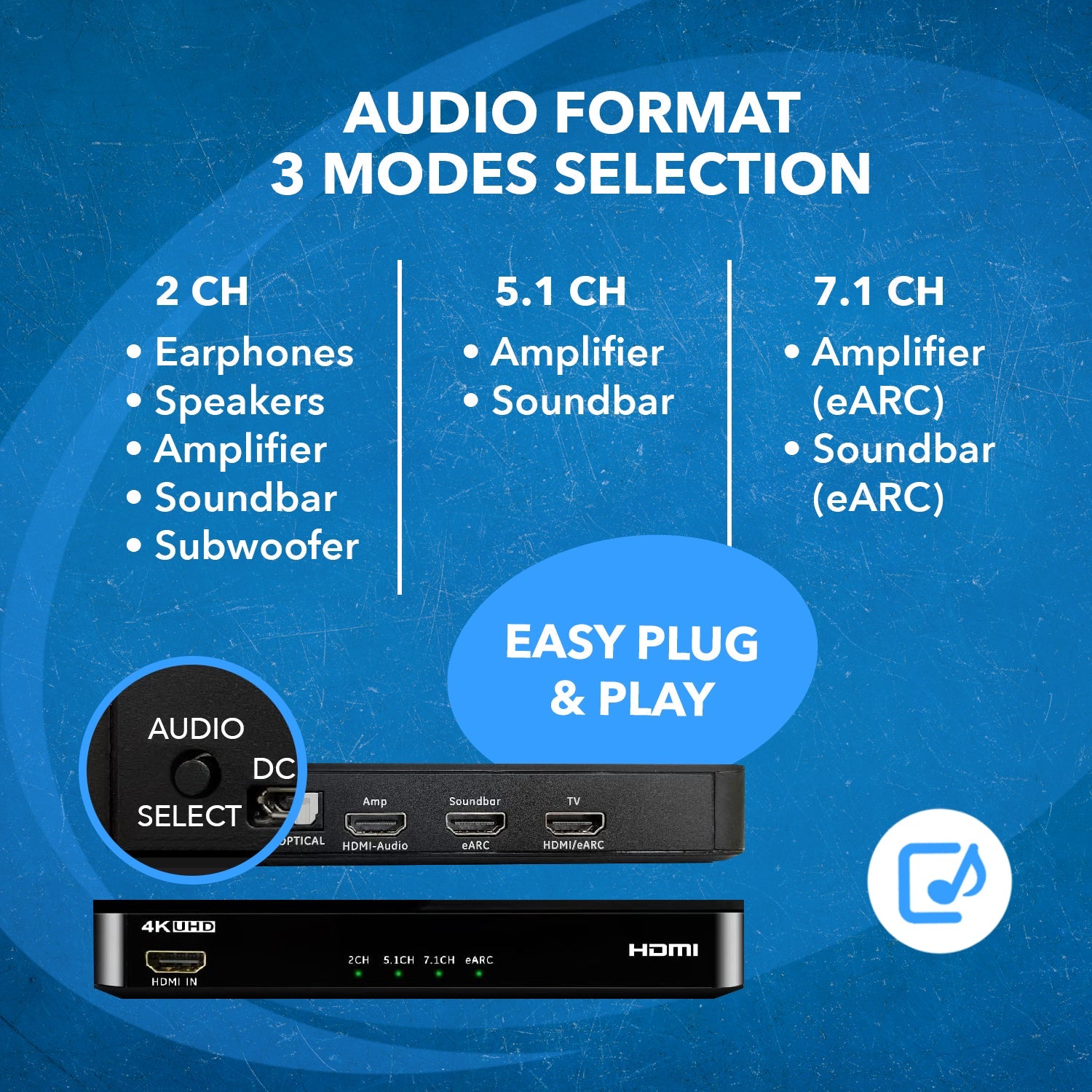

- Three modes selection for audio format setting (2Ch/ 5.1Ch/ 7.1Ch)
- Support CEC (Use the TV RC to adjust the Soundbar sound and CEC connecting device to power ON/OFF)

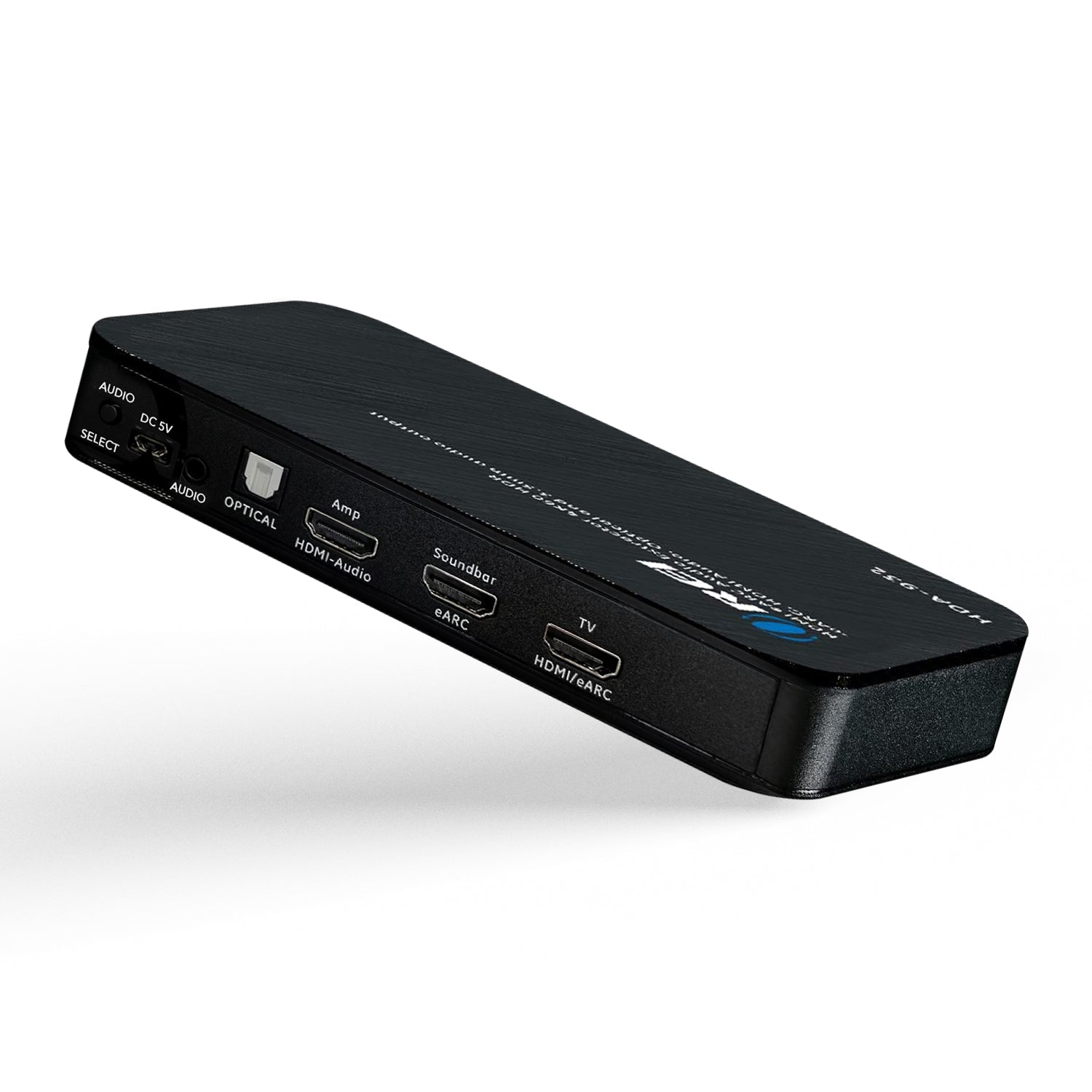

This audio extractor has three HDMI outputs, one for TV 4K@60Hz/HDR video and audio signals, one for eARC Soundbar, one for Amplifier HDMI audio. It also has S/PDIF(Optical) and analog 3.5mm stereo interface outputs.

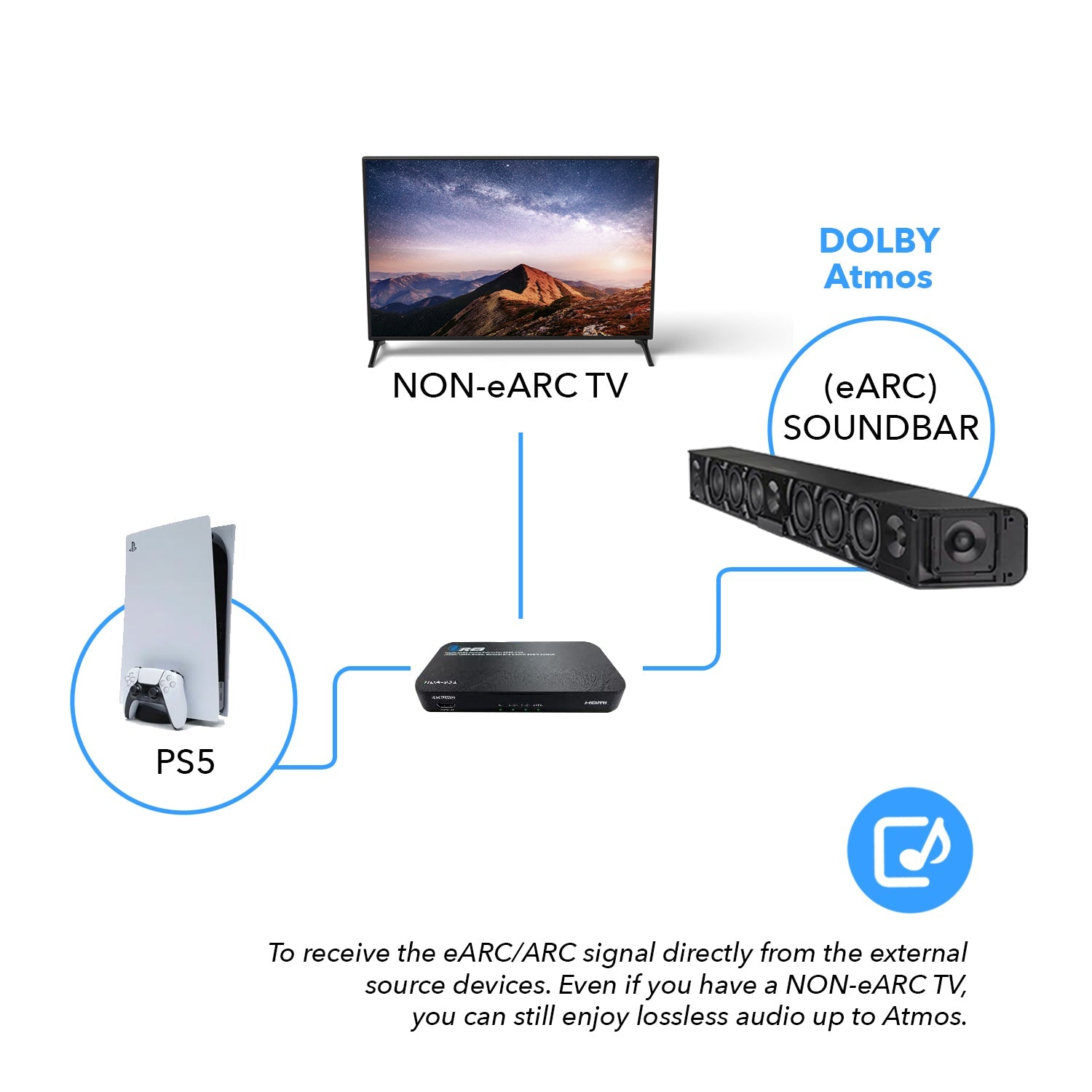

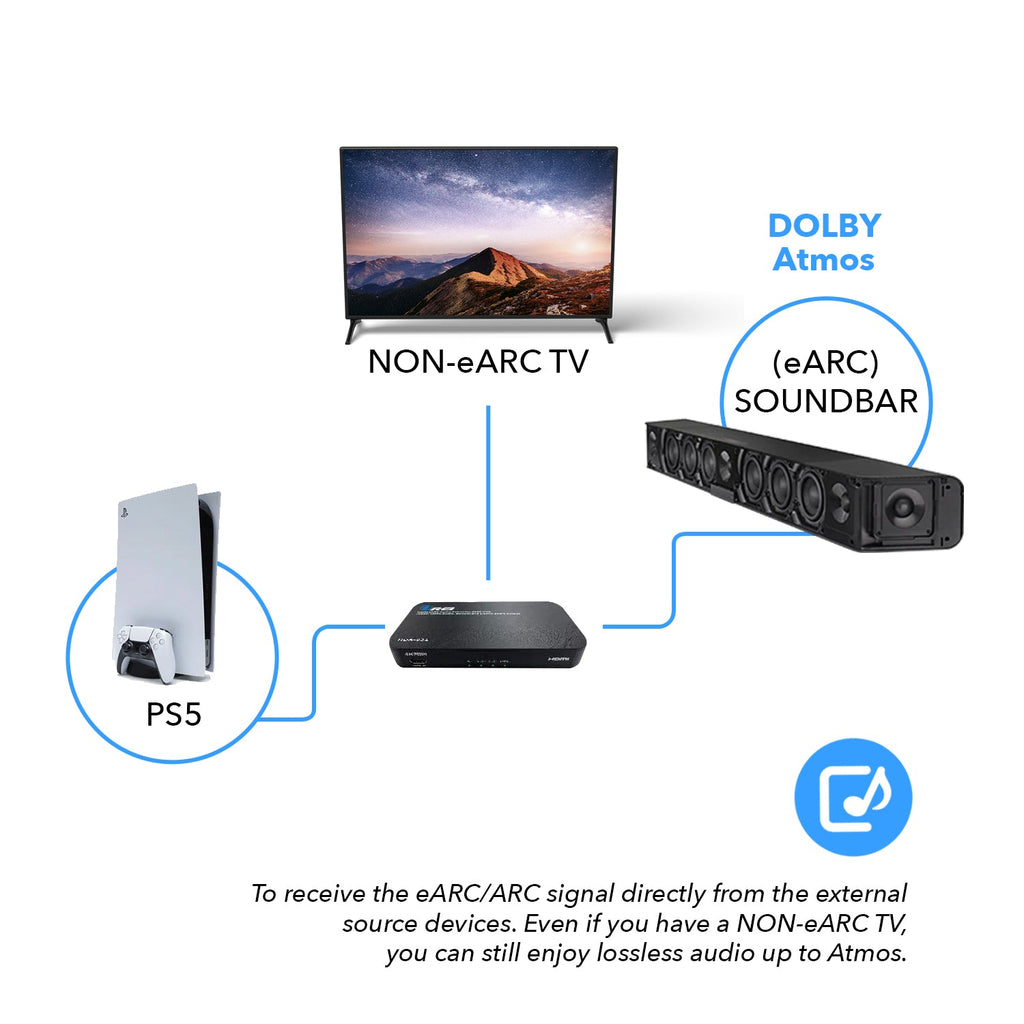

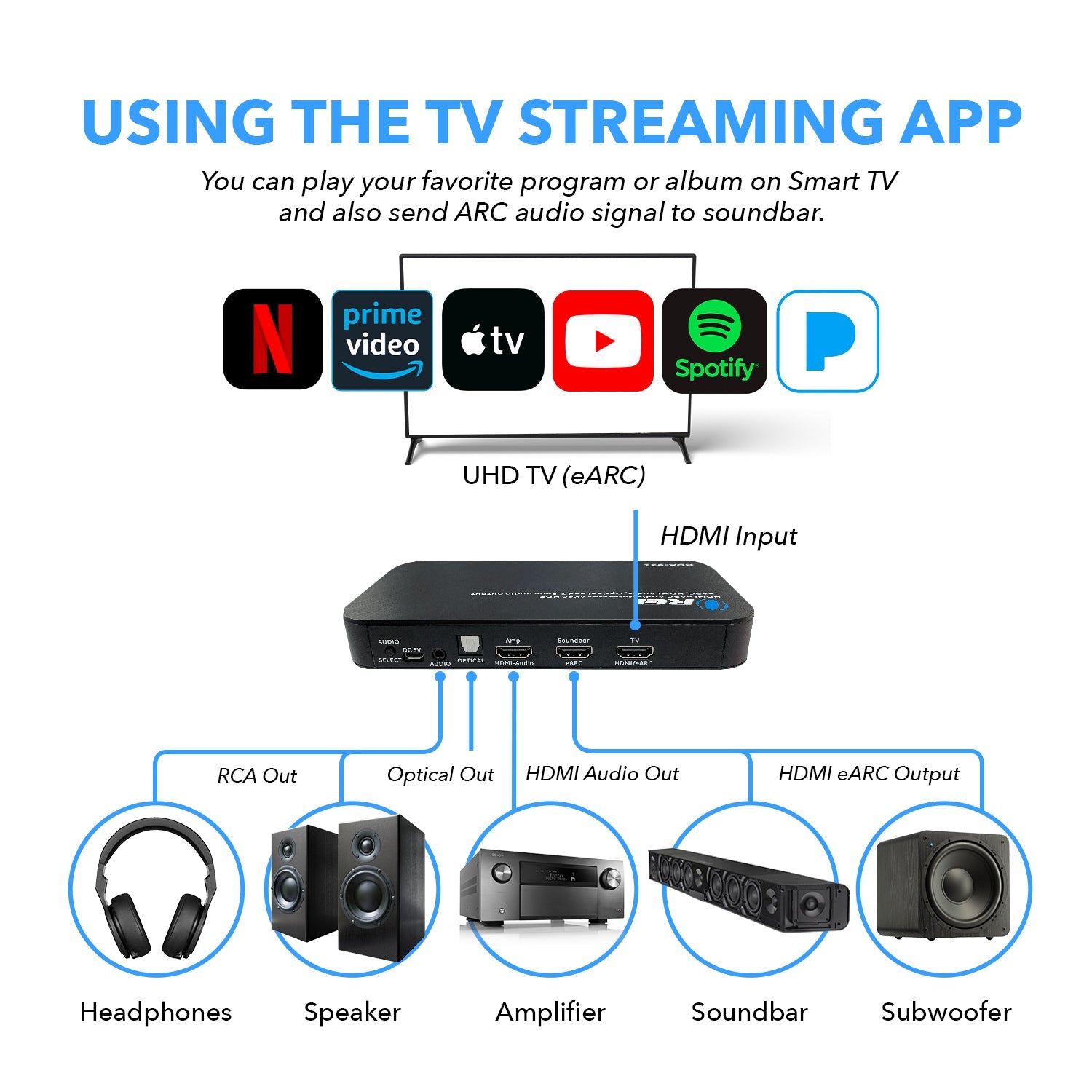

The TV signal can be transmitted back to Soundbar via eARC (enhanced Audio Return Channel) to play high-quality surround sound. Even Non-eARC TV can enjoy the high-quality of eARC audio return for lossless audio up to Atmos.
Build-in eARC automatically detect the source of the signal (TV or external signal).[shortdes]
- 3 HDMI Outputs (1 for Video, 1 for soundbar (having eARC/ARC port), 1 for Amp (no eARC/ARC port)
- Supports S/PDIF, Stereo 3.5mm audio output
- Supports CEC function
AUDIO AND VIDEO
| INPUT PORTS: | 1x HDMI Type A [19-pin female] | |||
| OUTPUT PORTS: | 3x HDMI Type A [19-pin female] | |||
| 1x S/PDIF (Optical) | ||||
| 1x 3.5mm audio jack |
COMPLIANCES
| HDMI Compliance | HDMI 2.1 |
| HDCP Compliance | HDCP 2.3 |
VIDEO OUTPUT
| Video Bandwidth: | 18 Gbps |
| Video Resolutions: | Up to 4k@60Hz |
| Color Space: |
RGB YUV 4:4:4 YUV 4:2:2 YUV 4:2:0 |
| Color Depth: | 12 bit |
CEC & EARC SUPPORT
| CEC: | Use the TV RC to adjust the Soundbar sound and CEC connecting device to power ON/OFF |
| eARC/ARC: | Yes |
SWITCHES
| EDID: | Build-in eARC automatically detects the source of the signal (TV or external signal), no need to switch on or off |

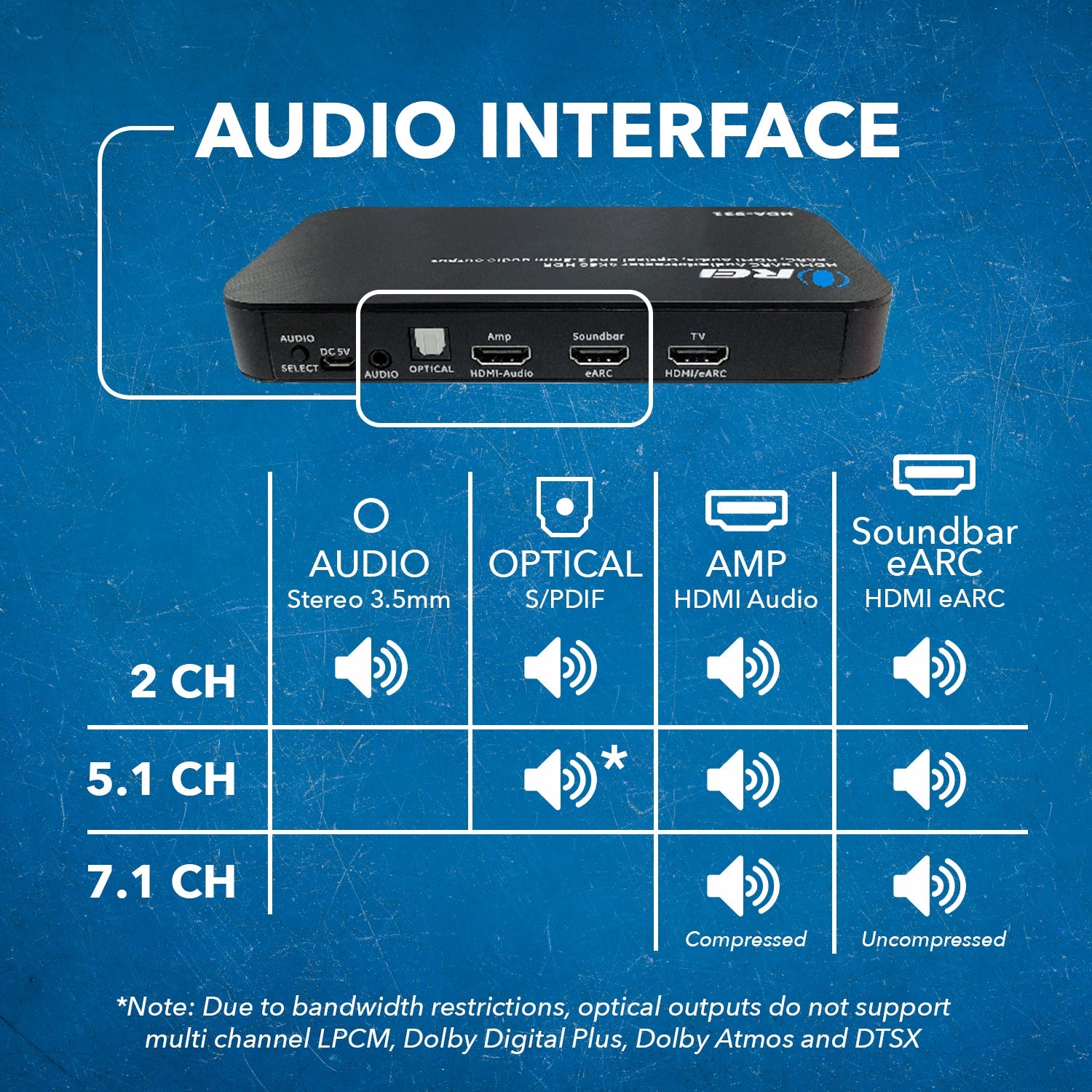

| Audio Select: | Select the audio formats from 2Ch, 5.1Ch, 7.1Ch |
AUDIO OUTPUT

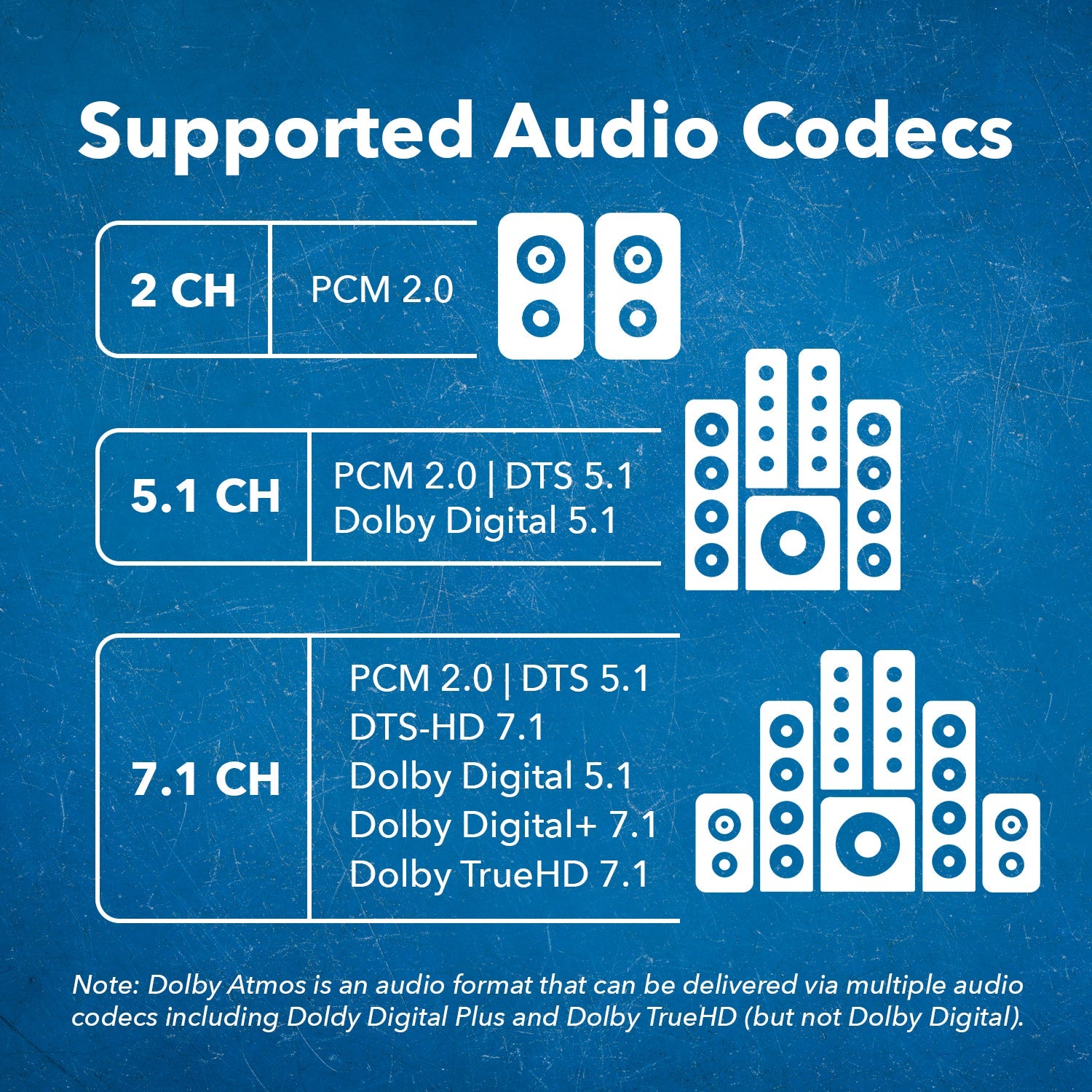

| HDMI Audio Formats: | PCM 2.0, LPCM 5.1 / 7.1, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS:X |
DIMENSIONS & WEIGHT

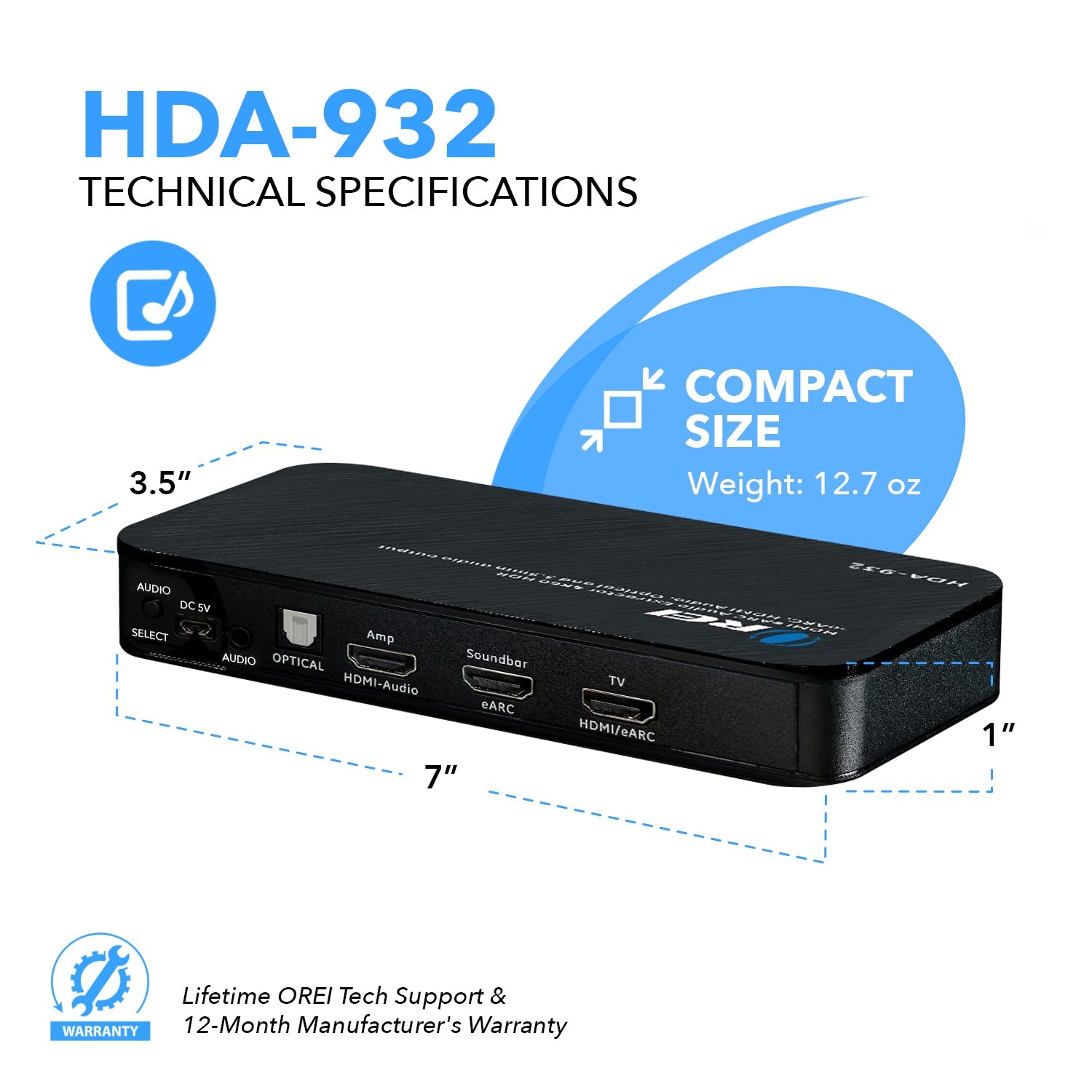

| Height: | 26.3mm |
| Width: | 175mm |
| Depth: | 86.6mm |
| Weight: | 158g |
PROTECTION
| Operation Temperature: | 0°C to 40°C (32°F to 104°F) |
| Storage temperature: | -20°C to 60°C (-4°F to 140°F) |
| Relative Humidity: | 10~90 % RH |
| ESD Protection: | Contact discharge 4KV Air discharge 8KV |
POWER
| Power Consumption (Max): | 5W(max) | ||||
| Power Supply | 5V/1A |
PHYSICAL PROPERTIES
| Color: | Black |
| Housing: | MABS+ABS |
PACKAGE CONTENTS
| 1x HDMI Audio Extractor |
| 1x DC 5V/1A power adaptor |
| 1x 3.5mm to RL cable |
| 1x User Manual |
WARRANTY
| 1-Year Manufacturer's Warranty |
[tab1]
FAQs
Yes, either HDMI input port or HDMI ARC port is required to extract the sound with this product.
No, this product doesn't support the feature of downscaling or upscaling the audio signals. Whatever the audio signals that you're inputting, you will get that audio signal as an output.
- Due to CEC and ARC compatibility among different brands and models, there might be some abnormal issues when using HDMI connection, ex: audio might not work or might work intermittently, all the devices can’t be turn off at the same time, etc.
- If you have the above problem,
- Please visit the device’s website for further CEC-related information
- Turn the devices’ CEC off to reduce CEC link issues
- Make sure your audio system is on and select the correct signal source on it
- Make sure that all the cables are connected properly
- Make sure the HDA-931 audio format can be decoded by the sound system
- Please refer to your Soundbar’s set up instructions
- Depending on the type of device, you should choose the correct audio format on TV: PCM, Dolby, or auto. If you want to output audio via Analog 3.5mm interface, please set your TV audio format to PCM
- Samsung TV:
- Settings → Sound → Digital Audio Out → PCM
- https://www.samsung.com/us/support/answer/ANS00085244/
- SONY TV:
- Settings → Sound → Digital Audio Out → PCM
- https://helpguide.sony.net/gbmig/C5331001/v1/eng/c_extsnd_digaout.html
- Steps may differ between different TV manufacturers. Please refer to your TV’s user manual for more information
- This beeping sound may randomly happen because the HDA-931 is continuously sending audio signals to Soundbar, but the source singal could be from TV or external devices
- When switching between different source signals , a certain amount of time is required for TV or its’ apps, HDA-931 or source devices to process and convert the audio data. It could last 1-2 secs or more
- While processing data, HDA-931 will send blank signal to Soundbar, which results in the beeping sound. It is neither abnormal nor a defect of HDA-931. We cannot avoid this condition as it is data processing time take by all the connected devices. The time may vary for different TVs or source devices . Normally the beeping sound disappears soon, it won’t affect Soundbar to play the audio
- If audio cuts in and out on your Soundbar, it might be EDID problems between the devices. Try power cycling all the devices (displays, external sources and audio system)
- For some audio systems, you must follow the installation procedure mentioned in the manual to function properly
*Note: To play videos on streaming box or TV app, make sure that your wifi speed meets the minimum standard on the platform. If you’re watching 4K video with the minimum internet speed, please avoid having multiple users to get on the internet at the same time, which might lead to screen-corruption.
- Here’s what you need to make Dolby Atmos work:
- A TV which is capable of transmitting eARC signals
- In order to transmit eARC audio, please use HDMI 2.1 certified UHS cable
- The selection on the main unit matches the audio device
- For some audio systems, you must follow the installation procedure mentioned in the manual to function properly
- To play videos on streaming box or TV app, make sure that your wifi speed meets the minimum standard on the platform
- Please check that eARC indication LED remains on:
- Light on: eARC audio signal from TV
- Light off: eARC audio signal from external source (Default)
- HDA-931: HDMI_eARC Audio supports uncompressed 7.1CH
- HDA-931: HDMI_Audio supports compressed 7.1CH
- Please switch Audio format to 5.1 or 7.1CH on HDA-931

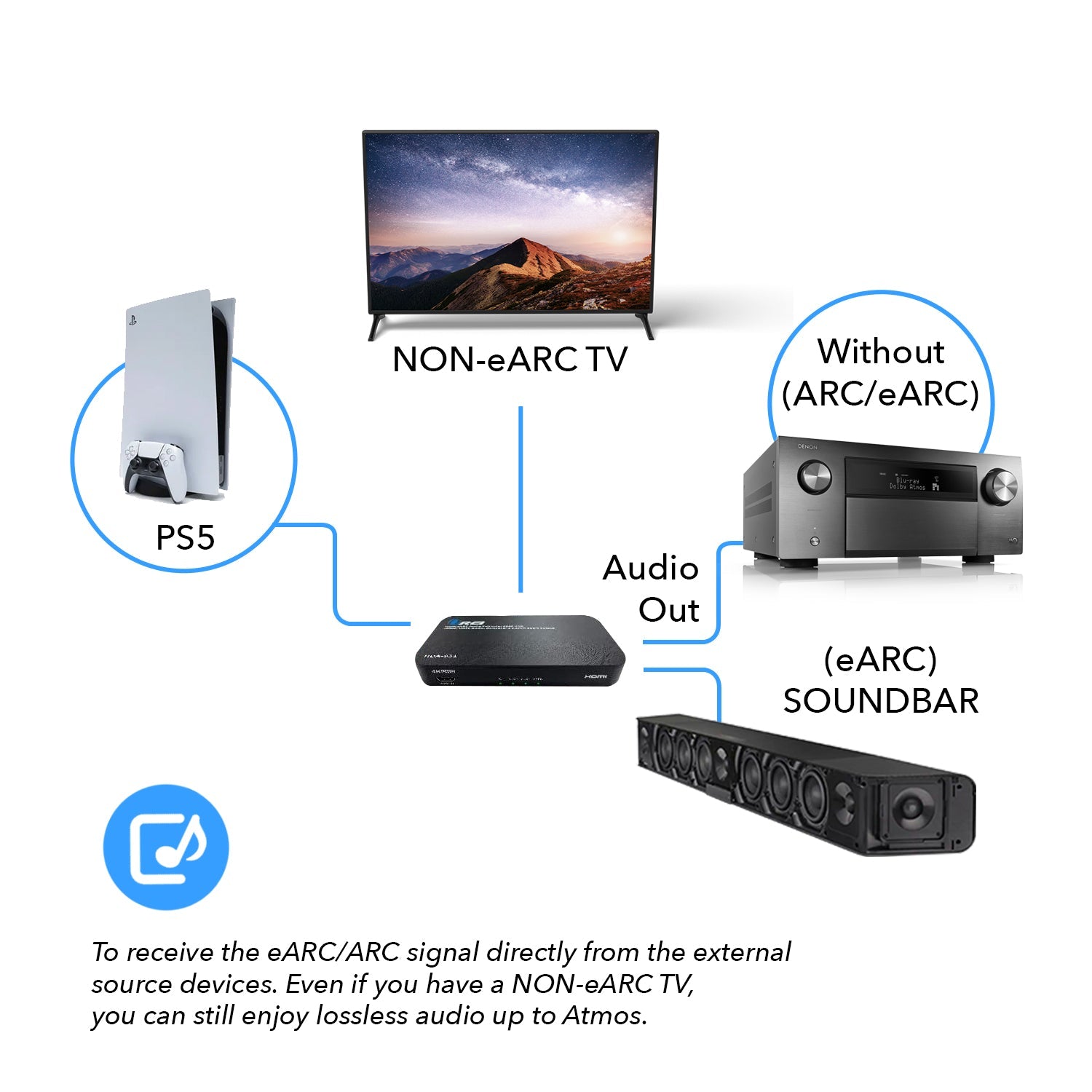

- If your TV only has ARC input, the HDA-931 cannot upgrade it to eARC. However, you can extract audio from video with the HDA-931 and transmit ARC/eARC signals to Atmos-enabled audio system. Please refer to the following methods:
- When you are watching Dolby Atmos content over a streaming box or any external HDMI source device, you can still transmit Atmos audio to eARC Soundbar or AVR via HDA-931
- You can try the below
- External source → HDA-931 (HDMI_IN)
- HDA-931 (TV_eARC) → TV (HDMI_eARC input)
- HDA-931 (HDMI_eARC) → Soundbar/AVR (HDMI_ARC/eARC)
- HDA-931 (HDMI_Audio) → AVR (HDMI_IN)
- Please follow the Sonos connection sequence; you'll need to connect and turn on other devices first (source device/TV) then turn on the soundbar as the last step
- Once you get Dolby Atmos, we suggest keeping the Sonos soundbar always ON. Only turn ON/OFF the TV or HDA-935 unit when done with watching the programs
- If audio cuts in and out on your Soundbar, it might be EDID problems between devices. Firstly, try cycling between different audio audio formats on HDA-931 main unit by pressing the Audio Select button on the back
- Try power cycling all the devices (display, external sources and audio system)
- For some audio systems, you must follow the installation procedure mentioned in the manual to function properly
Note: To play videos on streaming box or TV app, make sure that your wifi speed meets the minimum standard on the platform. If you’re watching 4K video with the minimum internet speed, please avoid having multiple users to get on the internet at the same time, which might lead to screen-corruption
- PLAY STATION 5:
- - Settings → Sound → Audio Output → HDMI Device Type >>> change to Sound Bar
- - Settings → Sound → Audio Output → Audio Format (Priority) >>> change to Dolby, if your speaker is connected directly to PS5
- - Press "Options" button on PS5 controller → 3-dots menu → Settings → Audio Format >>> change to Bitstream
- BLU-RAY DISC (while playing):
- - Enable Dolby Atmos in the disc audio menu/settings
- There are handshake problems on some streaming boxes (video with no sound), so we recommend you the following solutions:
- Press
on NVIDIA remote control to go to Menu Page - Press V+
or V-
on Remote Control - Then go back to the App (Youtube or Netflix), the audio should output normally
- Power cycle all the devices (perform the EDID communication process again) to resume the transmission
- Firestick will be in hibernate mode in about 20 mins, please turn the HDMI CEC device control on
- To turn on HDMI CEC on amazon Firestick:
- Settings → Display and Audio → Select HDMI CEC controls and turn it ON
General Information
| UPC | 850031132535 |
|---|
