OREI DA41 HDMI (ARC/eARC) To Digital Audio Converter
Key Features:

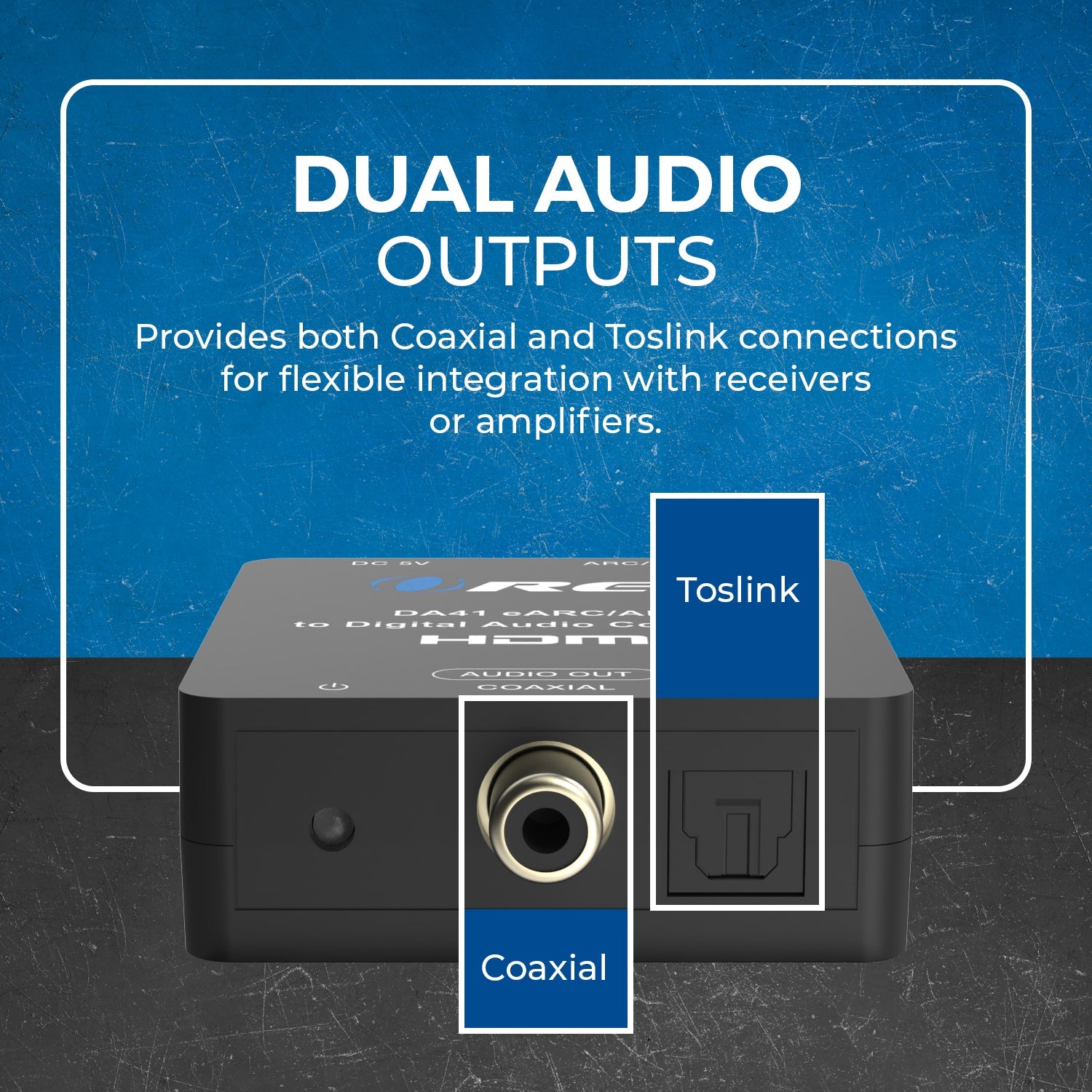

- Convert the ARC/eARC signal from your TV into digital audio and output through Toslink (Optical) and Coaxial simultaneously.
- Supports PCM 5.1 / LPCM 2.0.
- Dolby@5.1 and DTS@5.1 audio support.

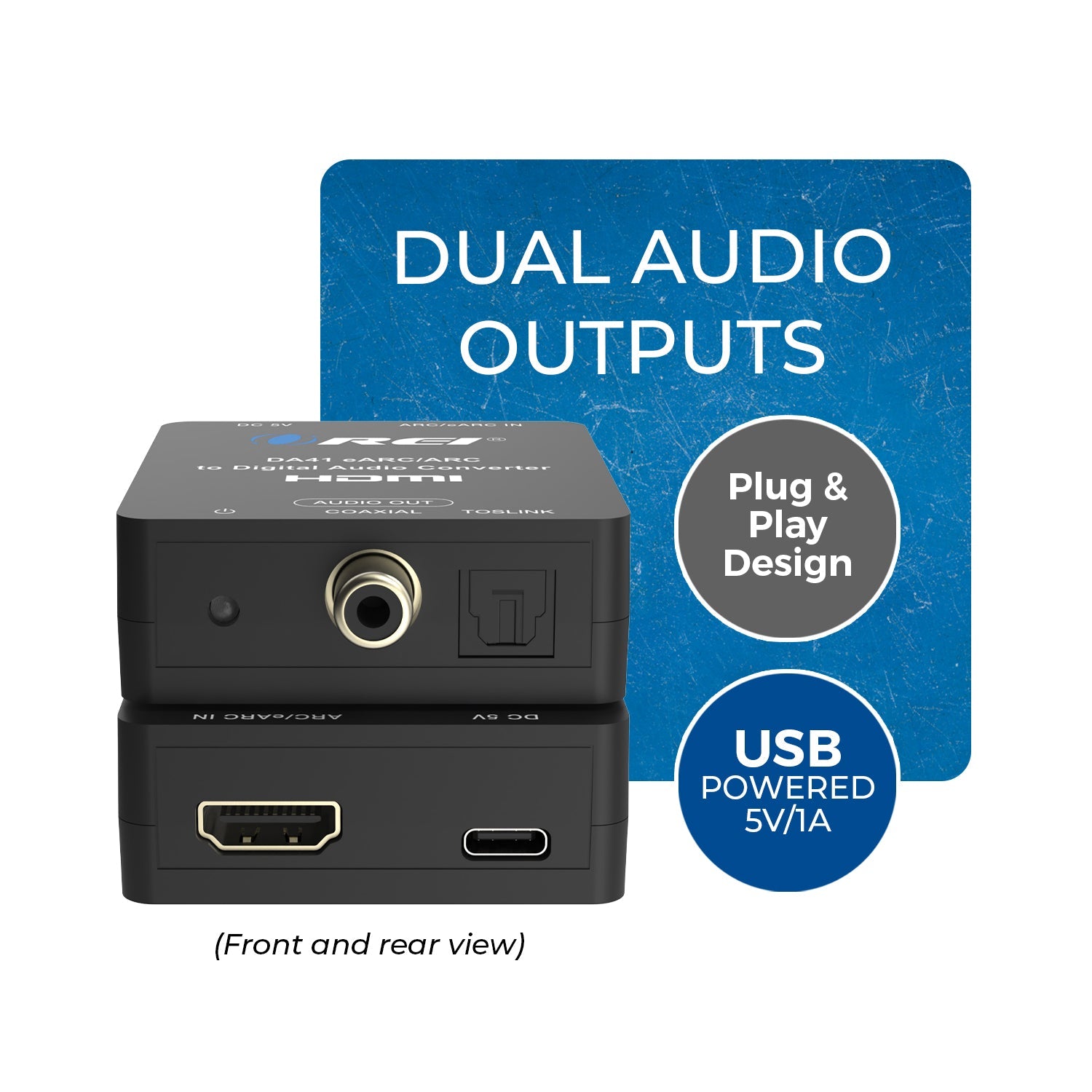

- Input: HDMI ARC/eARC, Output: Toslink/SPDIF and Coaxial
- Easy to install and simple to operate.
- Power on/off switch, and LED indicator.
- Use HDMI 2.1 cable for eARC support.
- Doesn’t Support CEC: The volume of the audio devices connected to the outputs can not be controlled by the TV Remote.

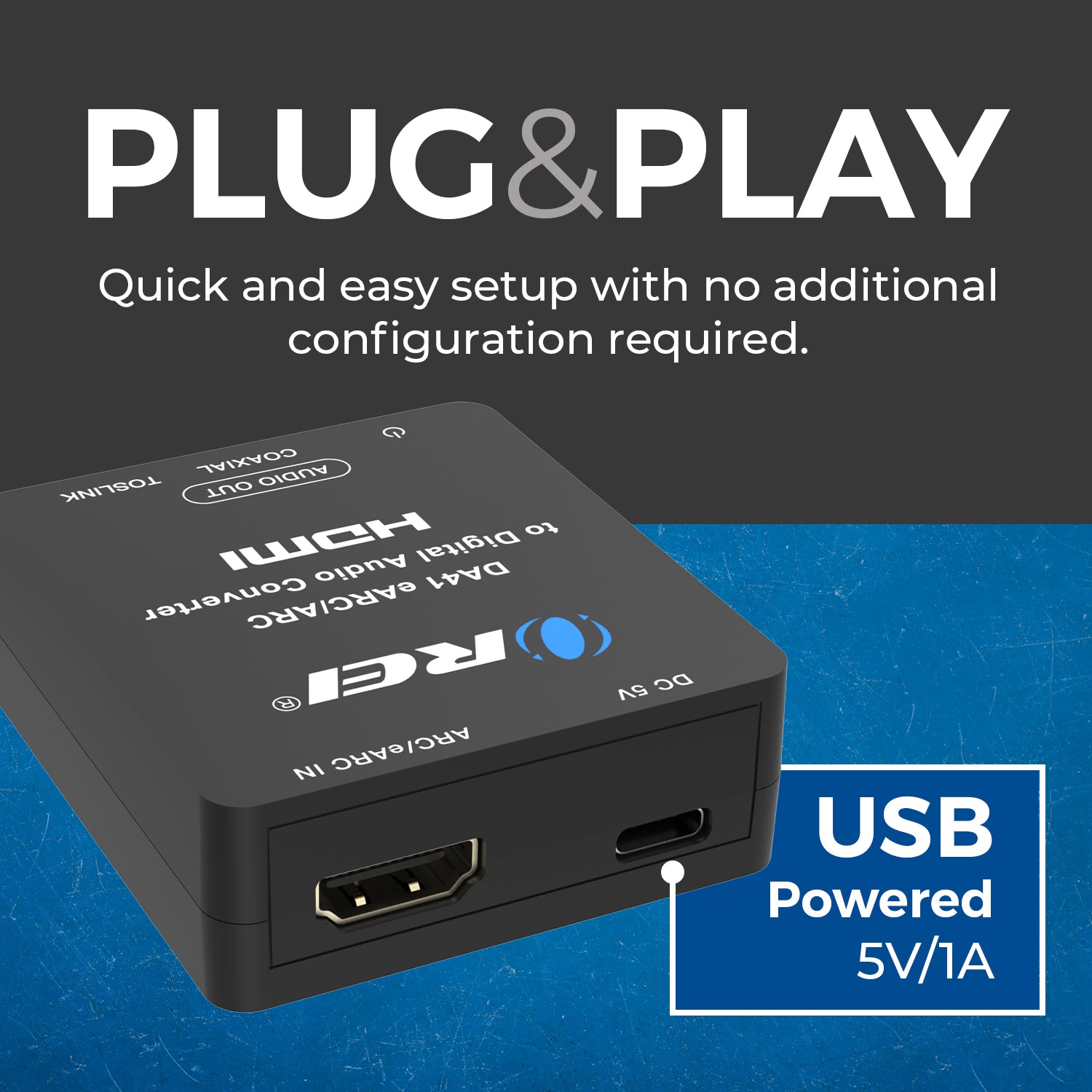

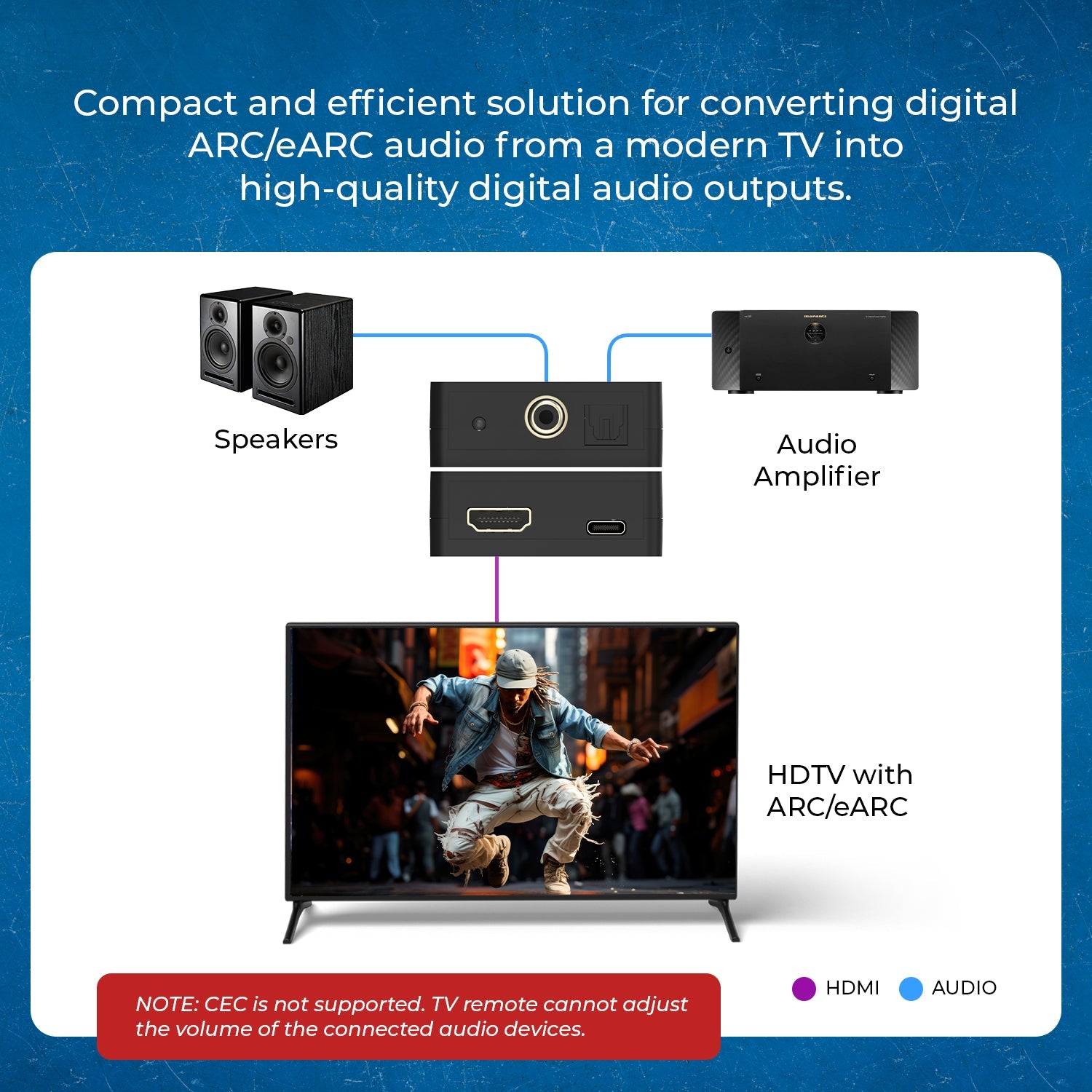

The DA41 audio converter allows you to convert audio signals from your TV’s ARC/eARC port to Digital Optical or Coaxial ports. The converter is the perfect solution if you have a brand new TV but have older audio gear that does not support HDMI ARC/eARC. You can connect the DA41 between your ARC/eARC TV and home theater system and enjoy audio from the content playing on the TV. The device supports stereo LPCM 2.0, Dolby®5.1, and DTS®5.1 audio formats. Please note that you would need to activate ARC/eARC from the TV settings and set the audio format to Dolby Digital or PCM based on the one your audio device supports. The device can be powered through the included DC5V power adapter or through a Micro-USB cable.
[shortdes]
- Convert ARC audio to Optical or Coaxial audio
- Supports PCM 5.1 / LPCM 2.0
- Doesn’t Support CEC: The volume of the audio devices connected to the outputs can not be controlled by the TV Remote
[/shortdes]
[tab]

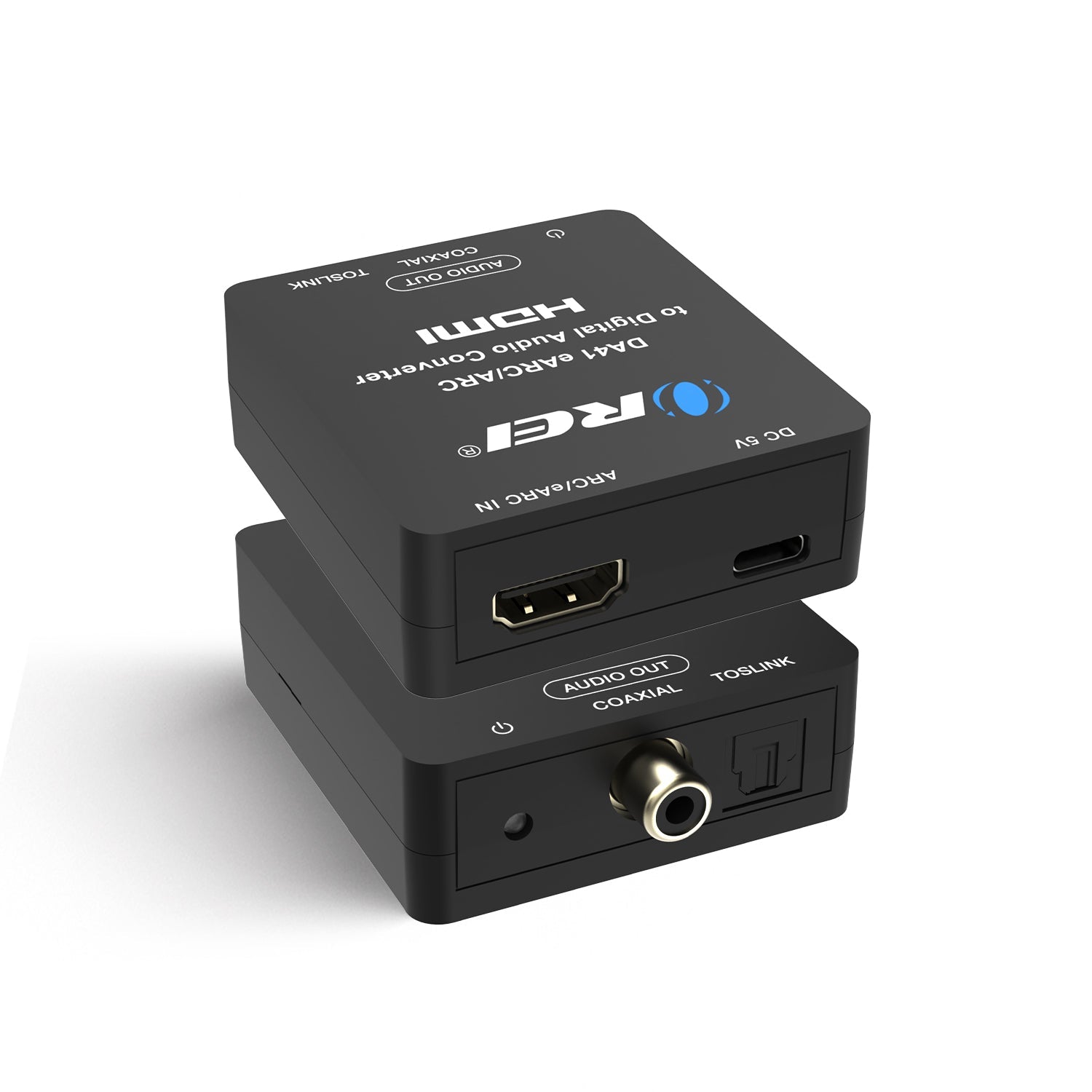

CONNECTIVITY
|
INPUT: |
1 × HDMI [Type A, 19-pin female] |
|
OUTPUT: |
1 × S/PDIF [Optical] |
|
|
1 × Coaxial [RCA] |

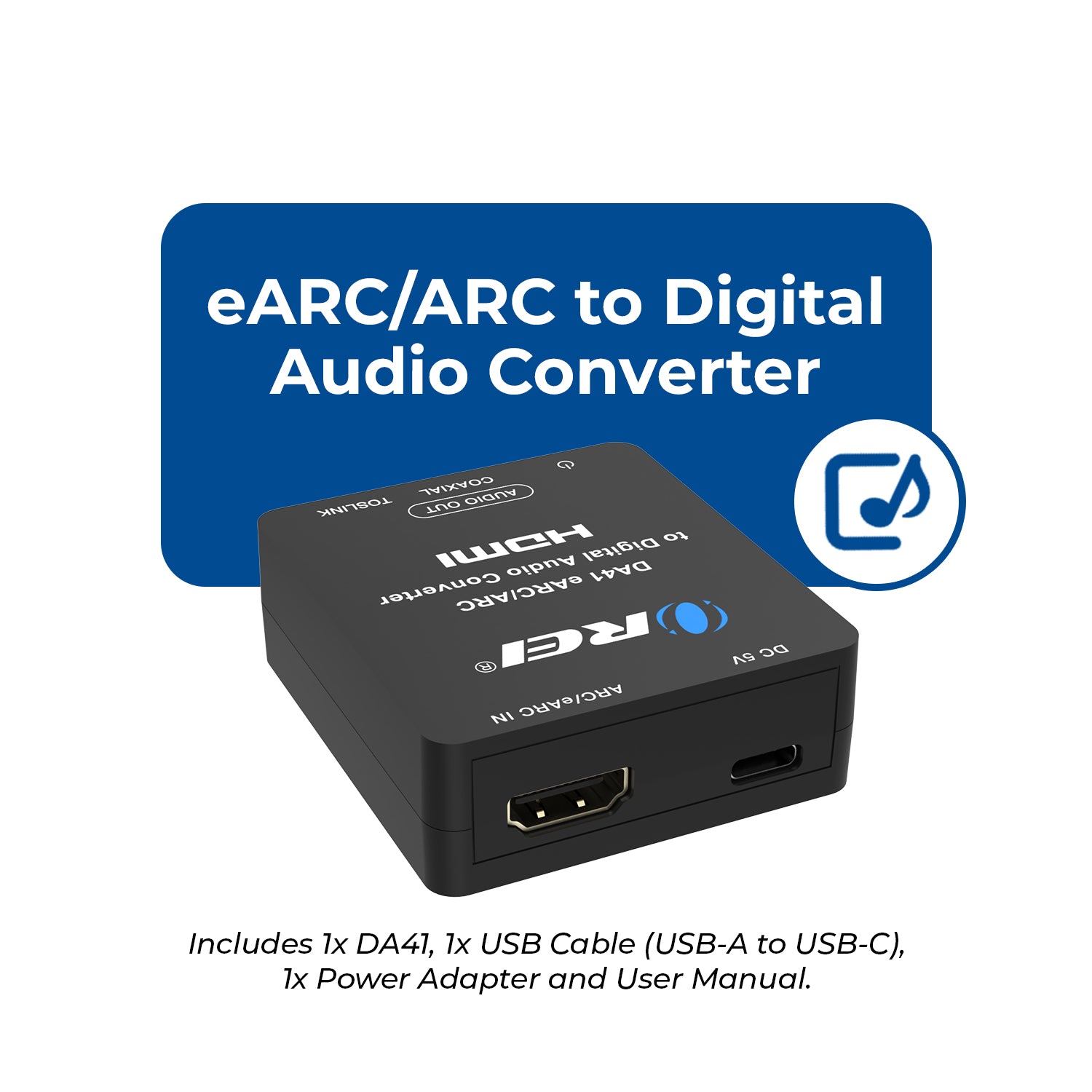

PACKAGE CONTENTS
| 1x DA41 ARC audio converter |
| 1x Power Adapter |
| User Manual |
SUPPORTED HDMI CABLES
| HDMI 2.0/2.1: |
We recommend using high-quality HDMI 2.0/2.1 cables under 30 feet for optimum performance |
ADDITIONAL FEATURES
| CEC: |
No |
| ARC: |
Yes |
| USB KVM: |
No |
| PoC/PoE: |
No |
| IR Control: |
No |
| Downmix: |
No |
| Downscale: |
No |
| Over IP: |
No |
| HDBaseT: |
No |
| RS-232: |
No |
AUDIO SUPPORT
| HDMI Audio Formats: |
LPCM 2.0, PCM 5.1, Dolby 5.1, DTS 5.1 |
COMPLIANCES
| HDMI Compliance |
HDMI 2.0 |
| HDCP Compliance |
HDCP 2.2 |
POWER
| Power Consumption: |
0.5W (Max) |
|
| Power Supply: |
Input: AC 100-240V 50/60Hz |
|
|
Output: DC 5V/0.6A |
|
DIMENSIONS & WEIGHT
|
Length: |
25mm / 0.98in |
|
Width: |
52mm / 2.04in |
|
Height: |
52mm / 2.04in |
|
Weight: |
34g / 1.1oz |
PROPERTIES
| Color: |
Black |
| Housing: |
Plastic + Metal Enclosure |
WARRANTY
| 1-Year Manufacturer's Warranty |
