Power-off memory function to recall the last setup

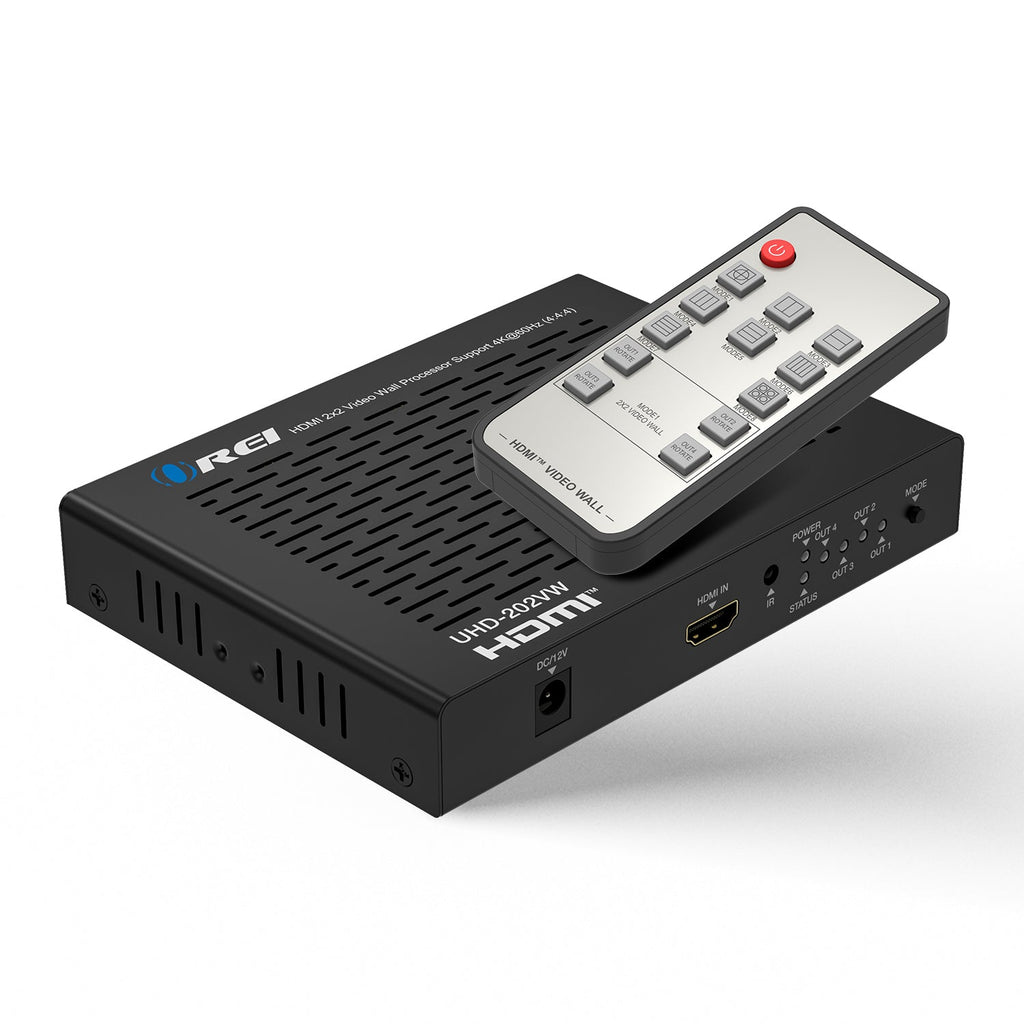

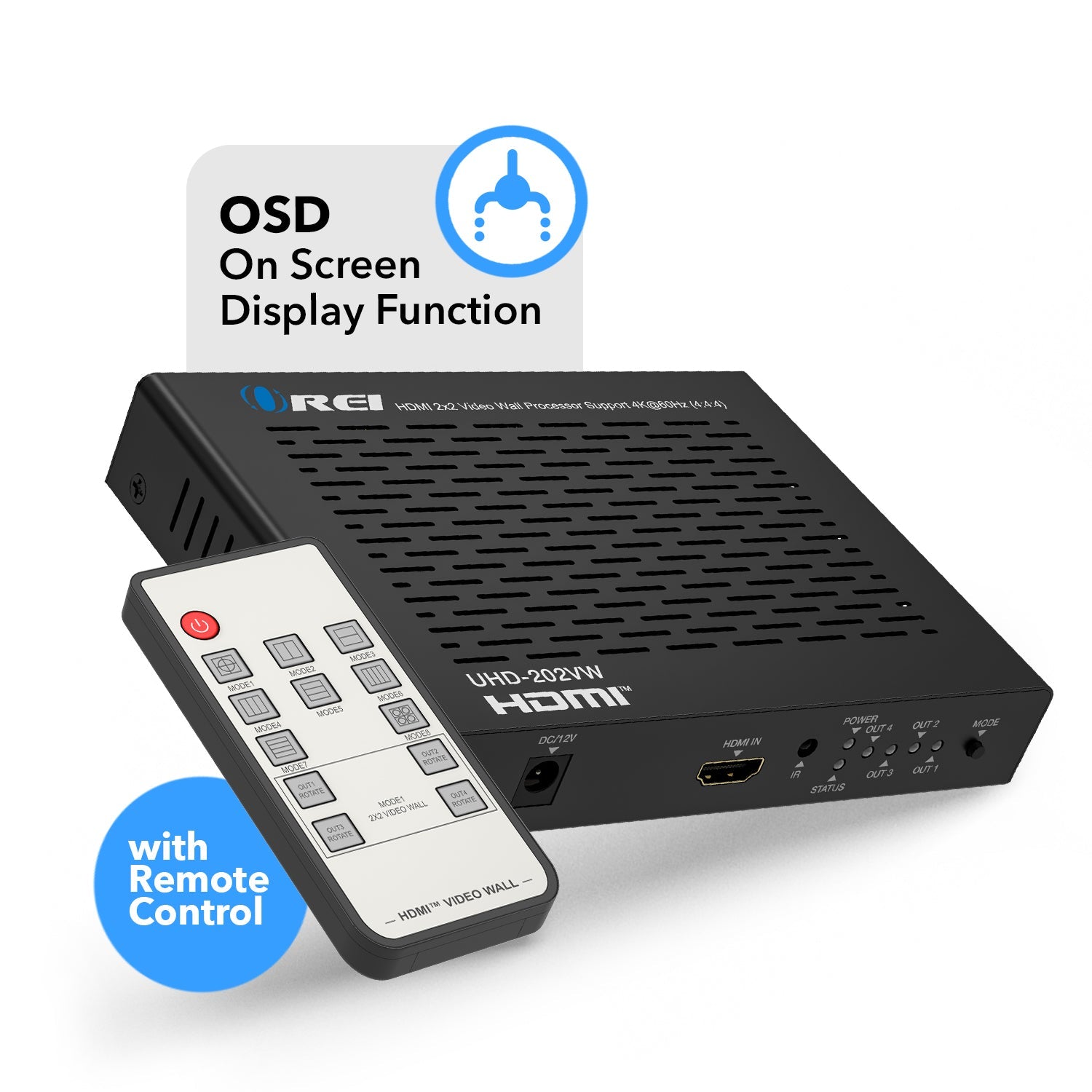

Control via the included remote or mode button

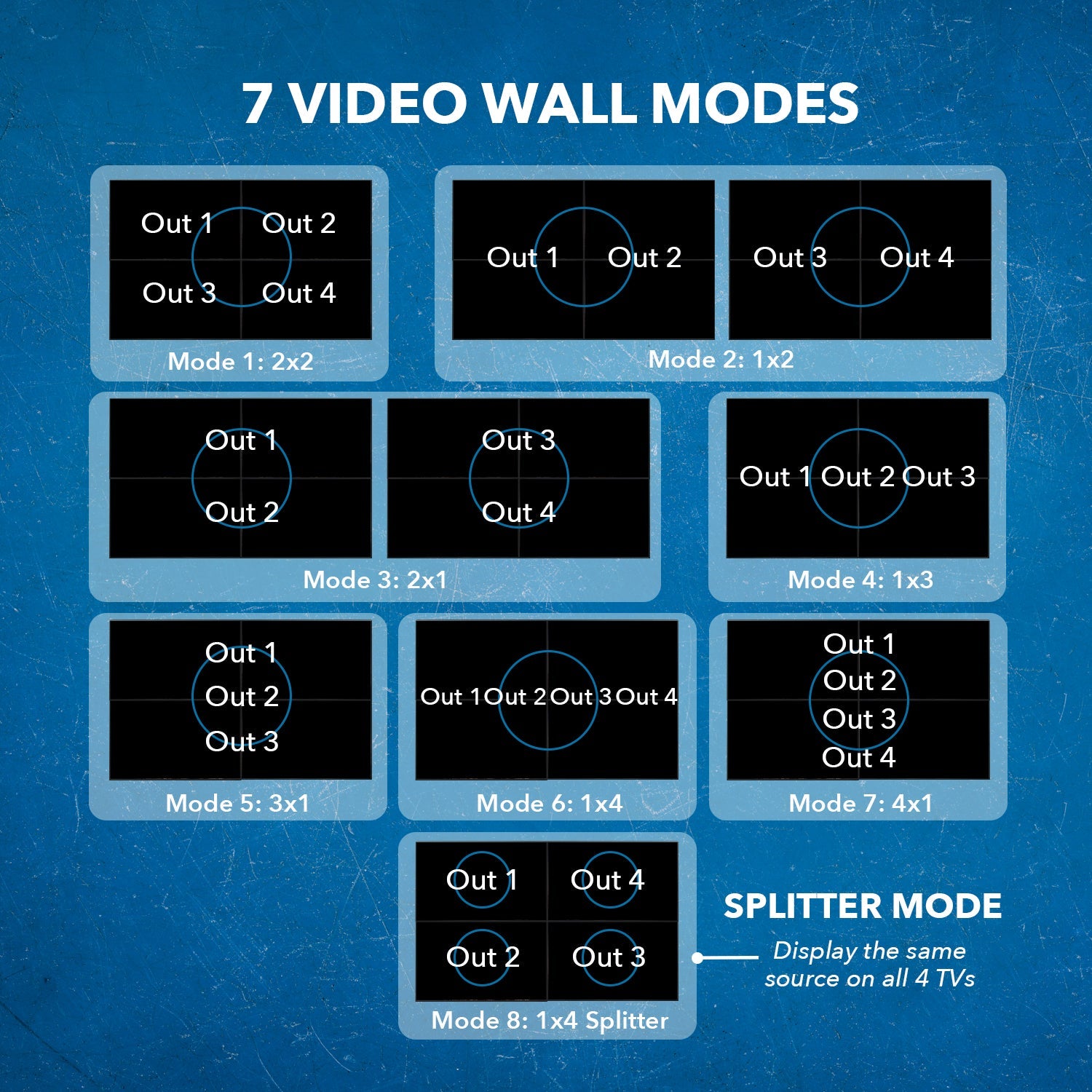

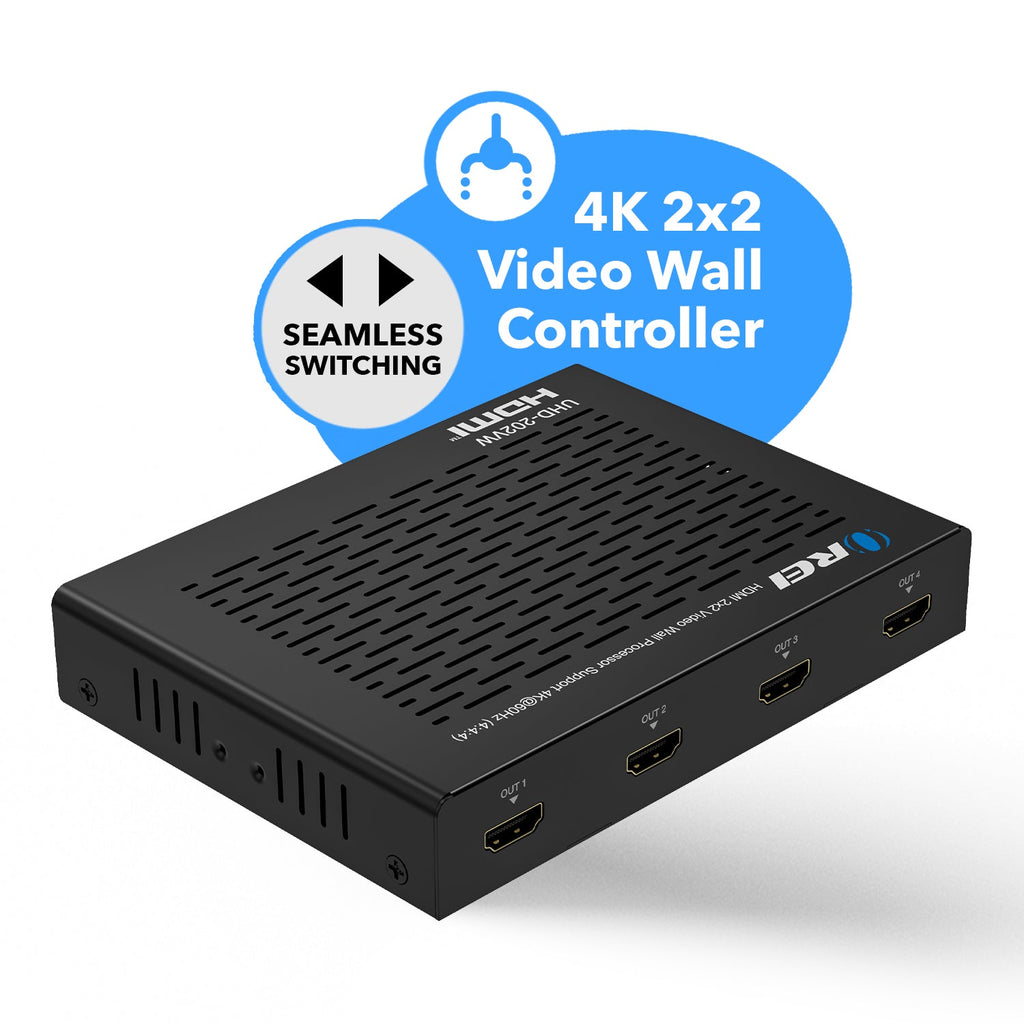

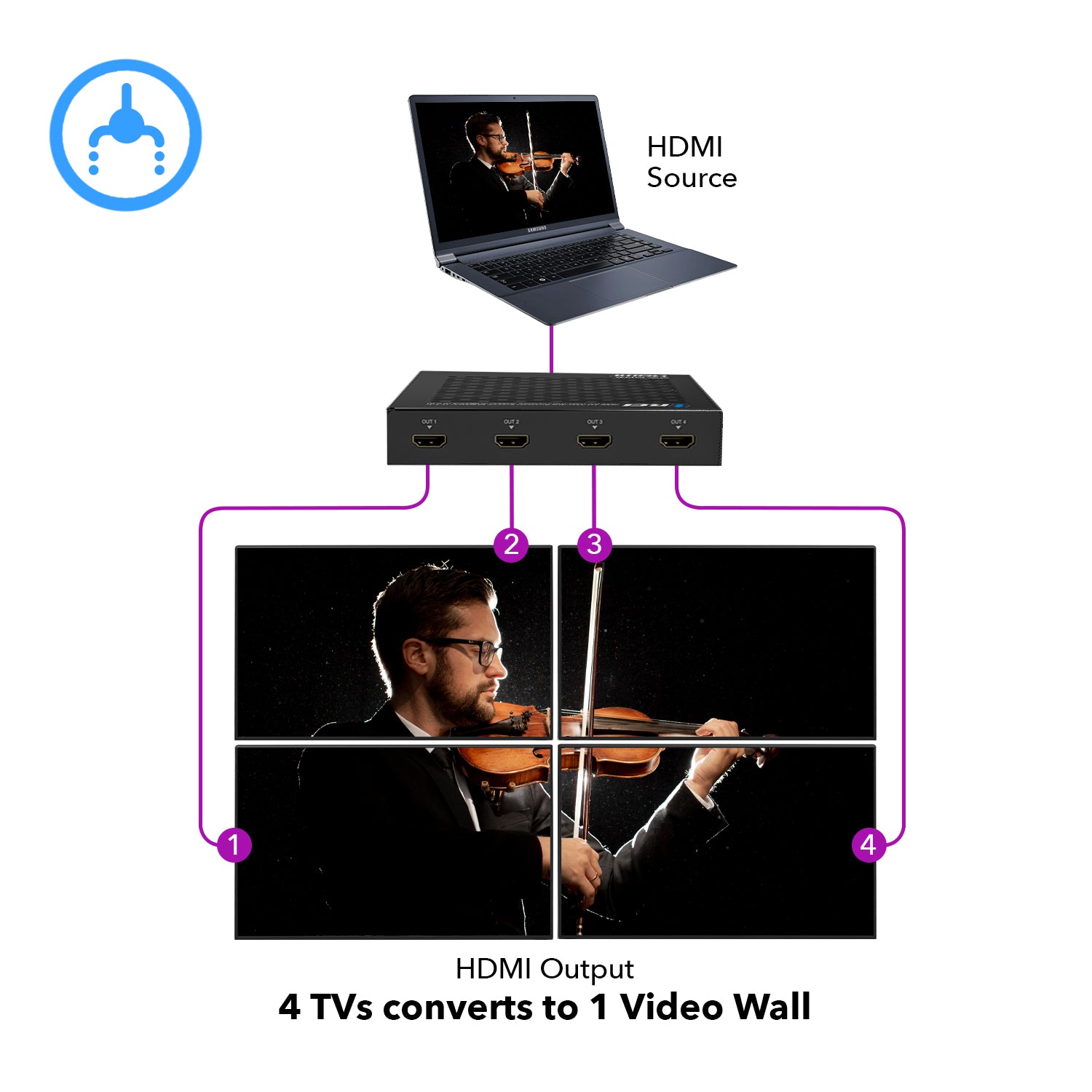

The UHD-202VW video wall controller is an awesome solution featuring 1 inputs, and 4 outputs. It adheres to HDMI 2.0 and HDCP 2.2 standards, accommodating resolutions of up to 4K@60Hz for input and 1080p@60Hz for output. Offering diverse video wall modes, including the 2x2 mode, it allows for seamless bezel adjustment and provides a unique 180-degree rotation feature for the top two displays in 2x2 video wall mode. It can be controlled through the remote or the Mode button.
[shortdes]
HDMI Video wall controller
Video resolutions up to 4K@60Hz
Features 180-degree rotation, bezel management
[/shortdes]
[tab]
CONNECTIVITY
INPUT:
1 × HDMI [Type A, 19-pin female]
OUTPUT:
4 × HDMI [Type A, 19-pin female]
PACKAGE CONTENTS
1x UHD-202VW
1x Remote control
1x Power Adapter
User Manual
SUPPORTED HDMI CABLES
HDMI 2.0/ 2.1
We recommend using high-quality HDMI 2.0/2.1 cables under 30 feet for optimum performance
EXTENDING DISTANCE
1080P@60Hz:
<30 Feet
VIDEO OUTPUT
Video Bandwidth:
18 Gbps
Video Resolutions:
Up to 1080P@60Hz
ADDITIONAL FEATURES
CEC:
No
ARC:
No
USB KVM:
No
PoC/PoE:
No
IR Control:
Yes
Downmix:
No
Downscale:
No
Over IP:
No
HDBaseT:
No
RS-232:
No
LOOP-OUT / LOCAL PORTS
Has loop out port:
No
Number of Loop out ports:
0
AUDIO SUPPORT
HDMI Audio Formats:
PCM 2.0
COMPLIANCES
HDMI Compliance
HDMI 2.0
HDCP Compliance
HDCP 2.2
POWER
Power Consumption:
12W (Max)
Power Supply:
Input: AC 100-240V 50/60Hz
Output: DC 12V/2A
DIMENSIONS & WEIGHT
Length:
151mm / 5.95in
Width:
111mm / 4.37in
Height:
26.5mm / 1.04in
Weight:
395g / 13.93Oz
PROPERTIES
Color:
Black
Housing:
Metal Enclosure
WARRANTY
1-Year Manufacturer's Warranty
[/tab]
General Information
UPC
850008956935
