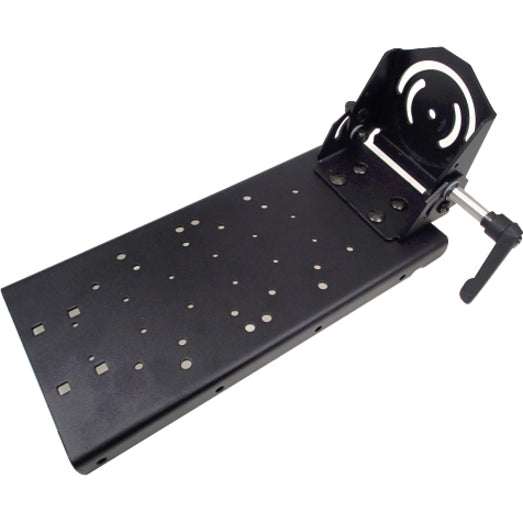

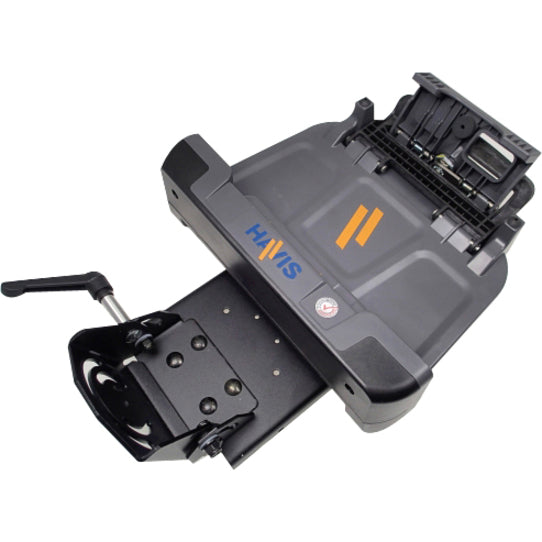

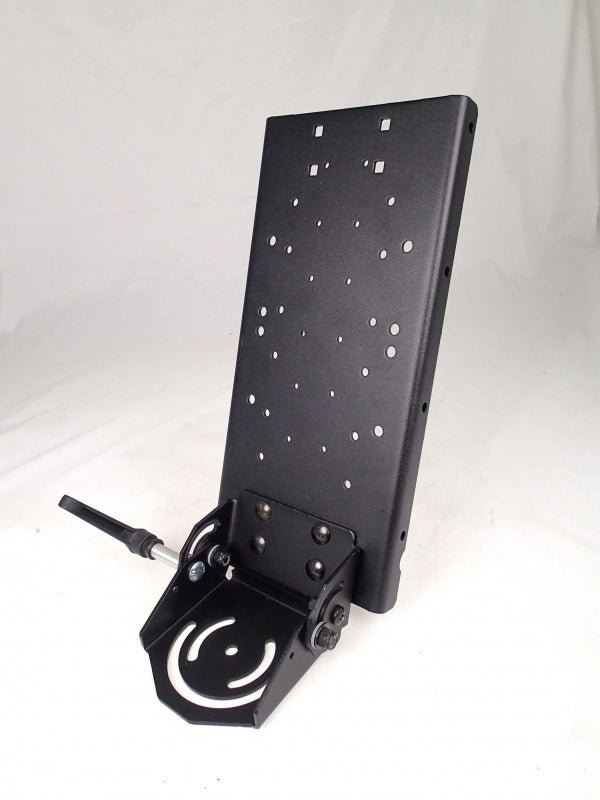

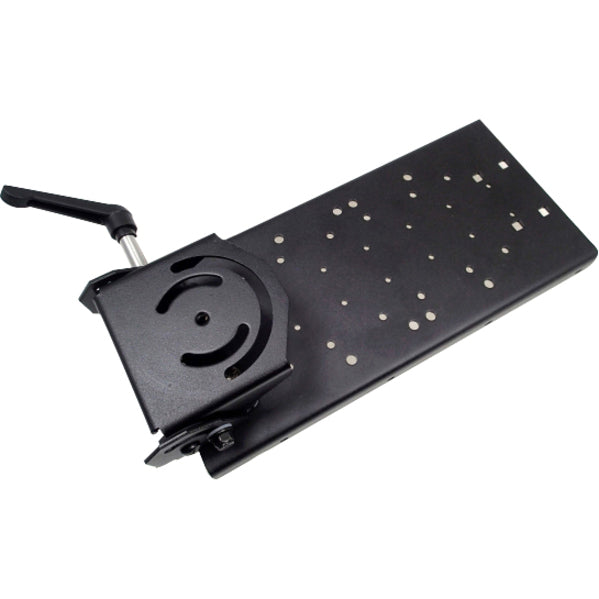

Havis C-Md-206 Mounting Kit

Tilt Swivel Motion Device

Havis C-MD-206. Angle of rotation: 180°, Tilt angle range: 0 - 115°. Height: 343 mm. Package weight: 2.72 kg

- Tilt swivel motion device for large or special tablet applications
- Primarily used for overhead fork lift mount applications (see PKG-FLM-101 and PKG-FLM-102)
- Used to mount Havis, inc. tablet mounts or other products with VESA 75 hole pattern

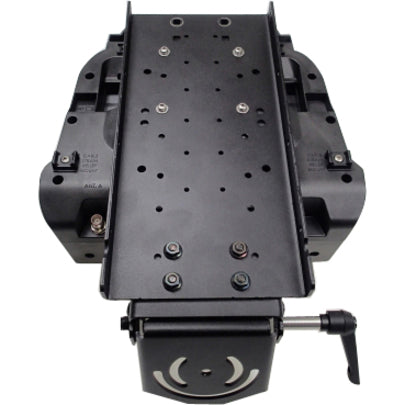

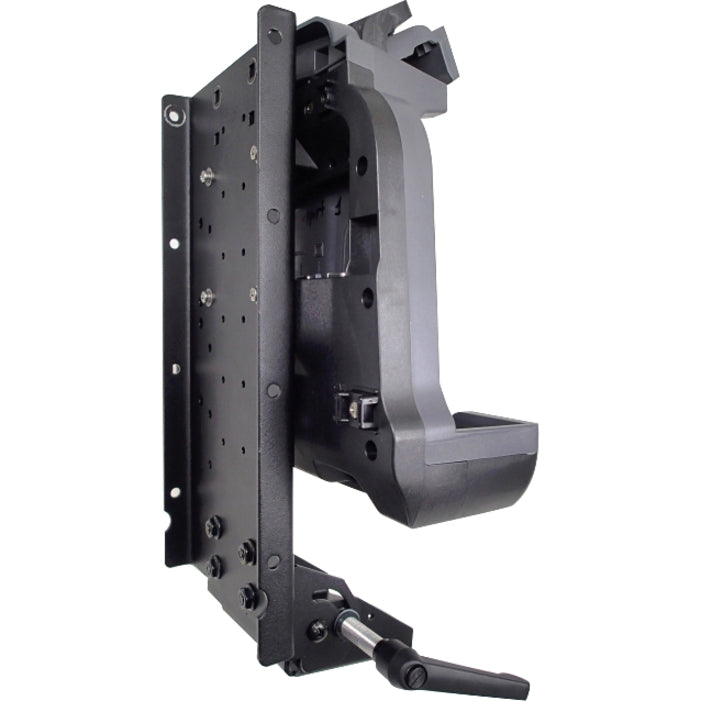

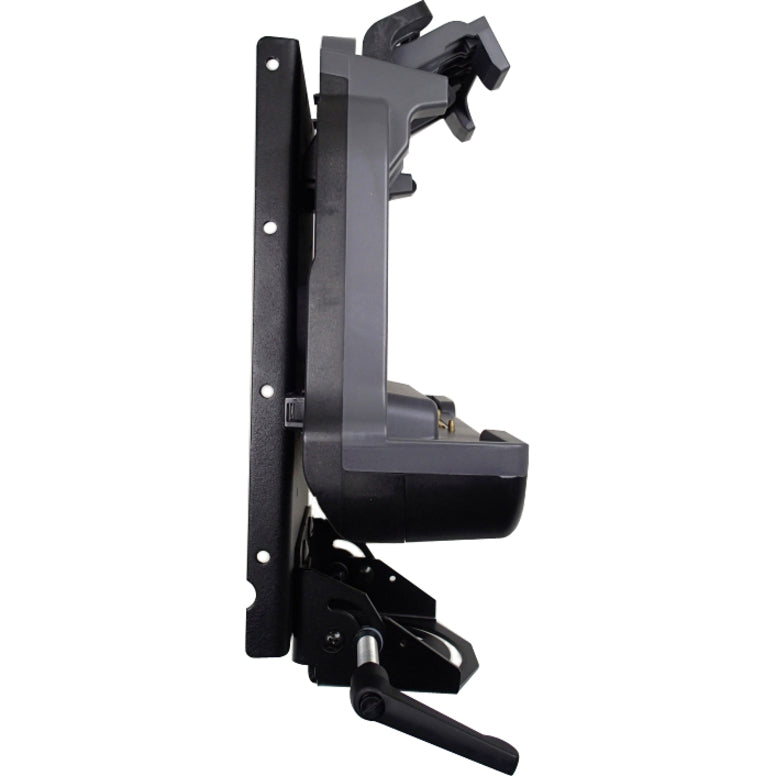

- Includes hole pattern for mounting ds-pan 200 Series docks
- Tablet adaptor plate with flanges can be flipped around for additional positioning options
- Mounts to C-FLM-101 (see PKG-FLM-101 and PKG-FLM-102)
- Accepts optional C-FLM-102 keyboard adaptor
- Mounts to C-HDM-300 Series, C-SM-SA, C-3083-1 and other products with Havis motion device hole pattern
- Overall size of adaptor plate may not work in some applications
- 13.50" overall height in open position (at 90°)
- 115° maximum vertical tilt movement
- 90° and 180° horizontal rotation ( limited 180° applications)
- Includes short locking handle
- Material: heavy-gauge steel for rugged durability with black powder coat for anti-glare and rust prevention
