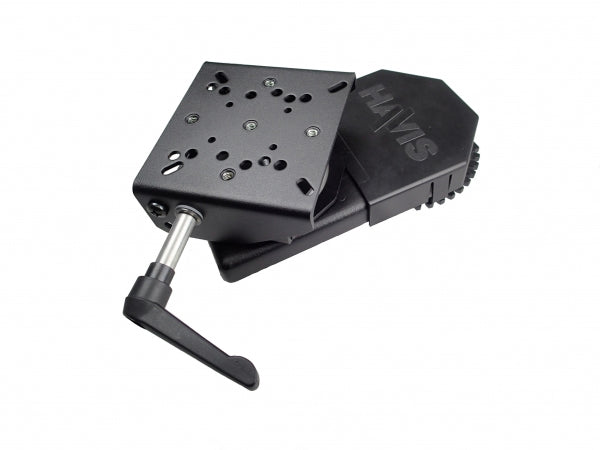

Havis C-Md-132 Mounting Kit

Swing Arm With Motion Device Adapter

Havis C-MD-132. Angle of rotation: 360°, Tilt angle range: -45 - 45°. Width: 127 mm, Depth: 209 mm, Height: 85 mm. Package weight: 2.72 kg

- Swing arm with C-MD-202 motion device adapter
- Front control lever for easy one hand operation of rotation locking mechanism
- 360 degrees of smooth rotation to allow for computing device viewing and usage from both the driver and front passenger seats
- Swing arm has locking points every 10 degrees throughout 300 degrees of travel
- Rotation force can be easily adjusted with hand tools, no disassembly required
- Compact design maximizes interior space especially when used for close to dash top of console mounting
- Does not slide out
- Measurements = 8.25" long x 3.375" high x 5" wide (Plus 3" for lever handle)
- 4 hole 2.125" square mounting pattern attaches to Havis HDM poles and consoles with forward mounting platform
- Included C-MD-202 motion adapter can provide up to 180 degrees of rotation and 90 degrees of tilt for laptops, tablets, and keyboards
