Havis C-Hdm-401 Mounting Kit

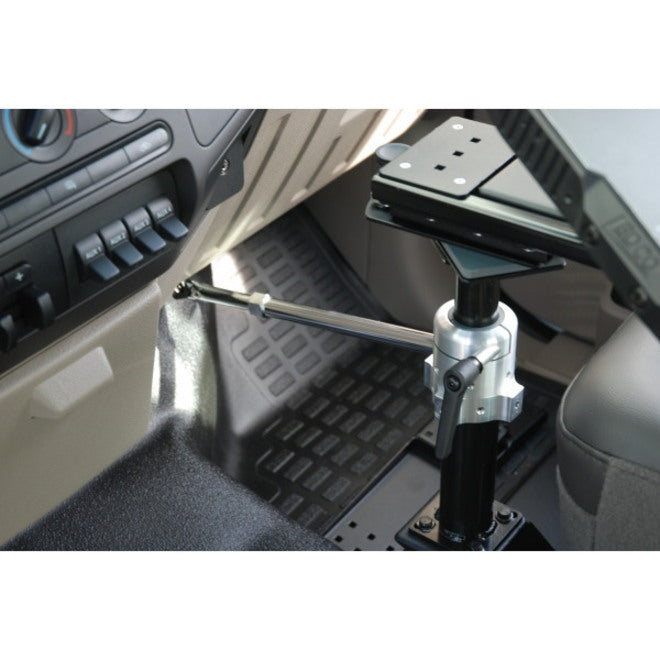

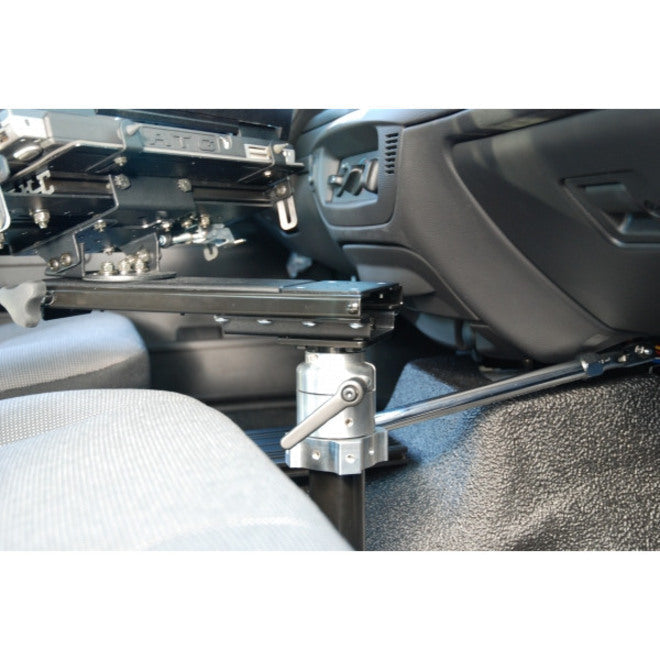

Heavy Duty Stability Side Support Arm, Mounts To OEM Frame Under Passenger Glove Box Door

Havis C-HDM-401. Weight: 1.36 kg

- See the "heavy duty mount configurator" under the resources tab above for more information on how to order your solution

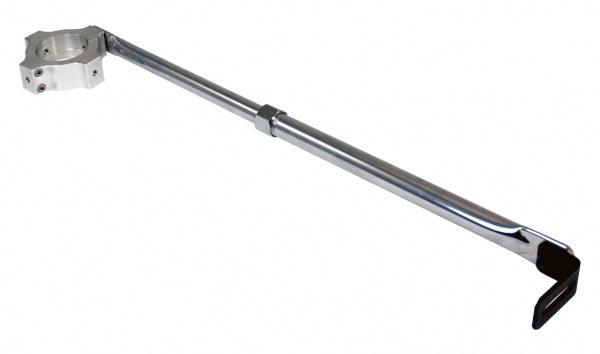

- Heavy duty stability side support arm
- Adds upper support for premium top level stability
- Highly recommended for all applications
- Mounts to OEM frame under passenger glove box door
- Simple "slide and tighten" length adjustment
- Overall closed length of support arm assembly from center of pole 13.25"
- Overall extended length of support arm assembly from center of pole 22.75"
- Optional adapter bushing allows mounting to inner pole CM003406 (sold separately)
- CM005171 adaptor bracket to be used with a C-HDM-401 (sold separately)
- Adaptor bracket allows the C-HDM-401 to be attached to the passenger side / outboard seat bolt (without drilling holes)
- Provides additional console support (if desired) when using a side mounted C-HDM-204 or C-HDM-214 computer mount
