Hall HD-AUD-IO HDMI 2.0 Audio Inserter, Extractor, EDID Manager and Equalizer - 1 Input Device - 1 Output Device - 65.62 ft Range - 1 x USB - 1 x HDMI In - 1 x HDMI Out - WUXGA - 1920 x 1200

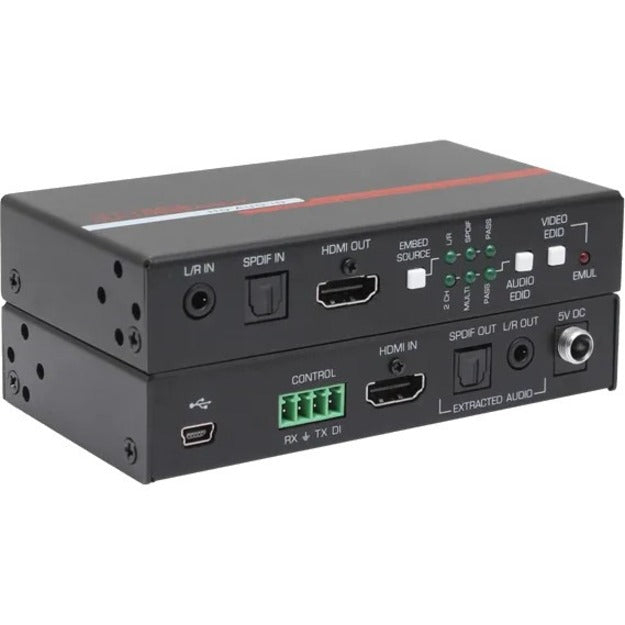

The Hall Research HD-AUD-IO is an award winning HDMI audio extractor (de-embedder) and inserter (embedder).
The product also provides many benefits such as:
- EDID management with learn and upload EDID functions
- HDMI cable equalization (supports cable lengths to 20 meters)
- Re-clocks video and negotiates HDCP overcoming incompatibility issues
- RS-232 and contact closure to mute HDMI audio (or video)
- Generates HDMI signal with audio only with no HDMI input
- Simultaneously extracts Audio and allowing embedding of external audio
The product provides one HDMI input with a corresponding HDMI output. The HDMI input audio signal simultaneously extracts to both 2-channel L/R analog and Digital SPDIF (TOSLINK).
The product provides two audio inputs (analog and digital). Users can select which audio to embed in the HDMI output. It can be the same as the original HDMI audio (pass-thru), SPDIF digital, or 3.5mm L/R analog.
Advanced E
