Taoglas Pantheon MA710 3in1 Permanent Mount GPS/GLONASS/GALILEO, 4G/3G/2G 2xMIMO

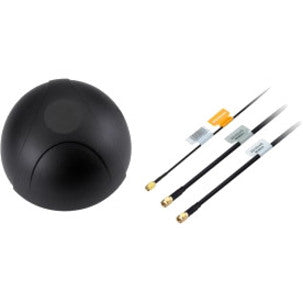

The MA710 Pantheon antenna is an omnidirectional heavy-duty, fully IP67 waterproof external M2M antenna for use in telematics, transportation and remote monitoring applications. It includes two LTE MIMO antennas and one GPS/GLONASS/GALILEO antenna, in the highest efficiency and peak gain possible. This antenna particularly finds its application in mobile video, vehicle communications, location and fleet management, safety & security, remote industrial equipment monitoring. The antenna consists of two LTE MIMO elements 698-960MHz, 1710-2170MHz, 2300~2700MHz, 2900-3500MHz. The antennas are designed to work equally well on LTE to deliver maximum data rates, or on legacy 3G and 2G frequencies where LTE is not available.
The GNSS antenna is a wide-band GPS/GLONASS/GALILEO element tuned to have optimum gain at 1575.42 MHz GPS/GALILEO and 1602MHz GLONASS frequencies.
Mechanically, we have packed 3 high efficiency and gain antennas in an extremely robust IP67 direct mount antenna package with excellent isolation (20dB+). The strengthened domed housing is designed to deflect tree branches and wires that tend to catch and break shark fin or rigid whip antennas. The Pantheon has its own internal ground-plane and can radiate on any mounting environment such as metal or plastic without affecting performance. The internal components are individually screwed down onto a robust plate, preventing damage from regular vehicle vibrations. A completely waterproof mounting seal prevents water from leaking under the housing.
The connectors and cable length are customizable. It is also available in White (MA710W).
- 2 x Cellular 2G/3G/4G Antennas (MIMO)
- LTE / HSPA / GSM / GPRS / CDMA / UMTS
- 698~960MHz / 1710~2170MHz / 2300~2700MHz /2900-3500MHz
- 1 x GPS/GLONASS/GALILEO 1575.42/1602MHz Active Antenna
- IP67 Waterproof
- High Efficiency / Peak Gain Outdoor Antenna
- RoHS Compliant
Product Type: Antenna
Environmentally Friendly: Yes
Environmental Certification: RoHS
Product Color: Black
Diameter: 5.73"
Country Of Origin: Taiwan
Product Series: MA710
Brand Name: Taoglas
Form Factor: Screw Mount
Manufacturer: Taoglas
Product Name: Pantheon MA710 3in1 Permanent Mount GPS/GLONASS/GALILEO, 4G/3G/2G 2xMIMO
Package Type: Bulk
Product Line: Pantheon
Application/Usage: GLONASS
Manufacturer Part Number: MA710.A.ABI.001
Manufacturer Website Address: http://www.taoglas.com
Packaged Quantity: 1
Weight (Approximate): 2.88 lb
