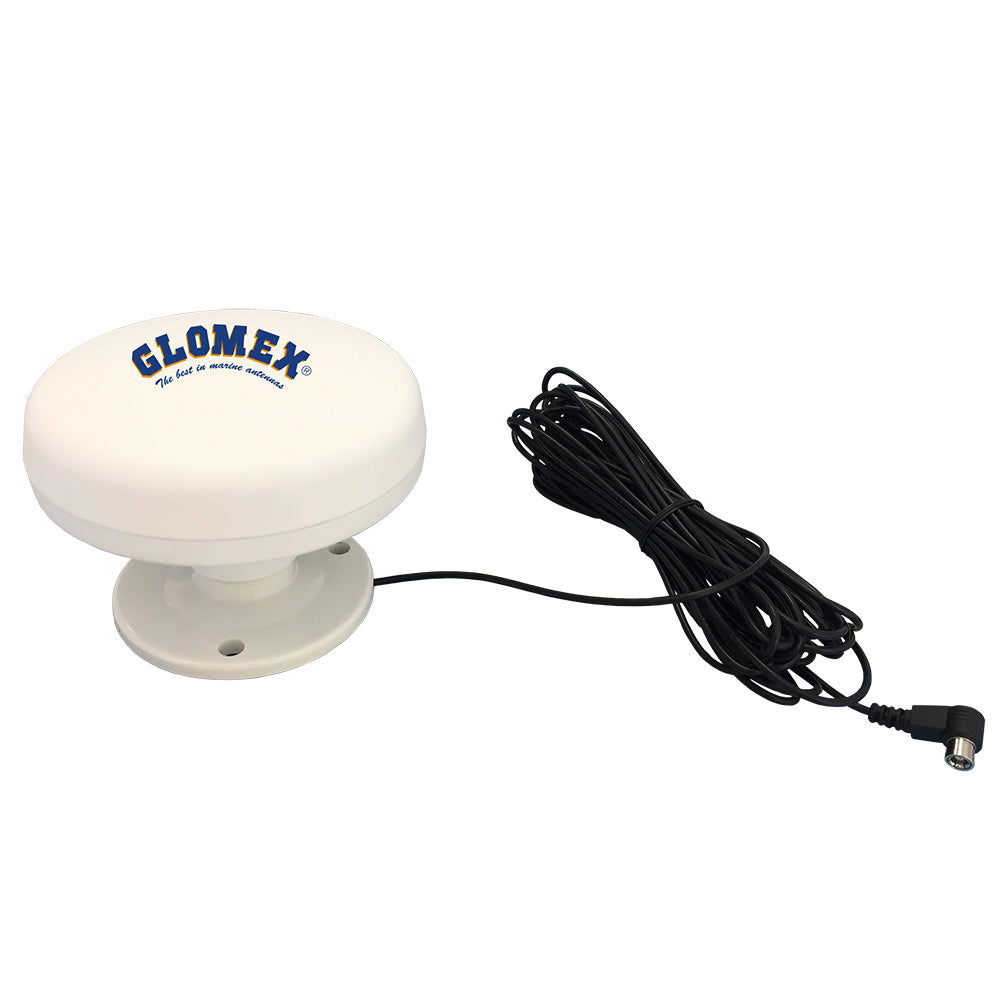

Satellite Radio Antenna with Mounting Kit
RS100 is a very high performance marine satellite radio antenna, rugged, small and very easy to install thanks to the integrated magnetic mount and the supplied 7M (23’)coax cable with SMB termination. Using the latest Satellite Radio technology, exceeds the most recent specifications. RS100 is a low-profile antenna is designed for satellite radios.
Features:
- High performance antenna
- Designed for satellite radios
- Extended range
- Low-profile design
- Supplied with 7M (23’) coax cable & mounting kit
- Anti-yellowing materials
- Corrosion resistant antenna
Specifications:
- Frequency Range: 2320 - 2345 MHz [2.3 GHz]
- Gain Average: 24 dB
- Impedance: 50 ohm
- Polarization: LHCP [Left Hand Circular Polarization]
- SWR: ≤ 2.0:1
- Max Input Power: 5V / 150 mA
- DC Ground: No
- Antenna Length: 2” (50mm)
- Antenna Diameter: 3,7” (95mm)
- Antenna Weight: 7oz (200 gr)
- Termination: SMB, 23’ (7M) cable
Supplied Accessories:
- 23’ (7M) coax cable with SMB connector
- Reinforced nylon mount
.
