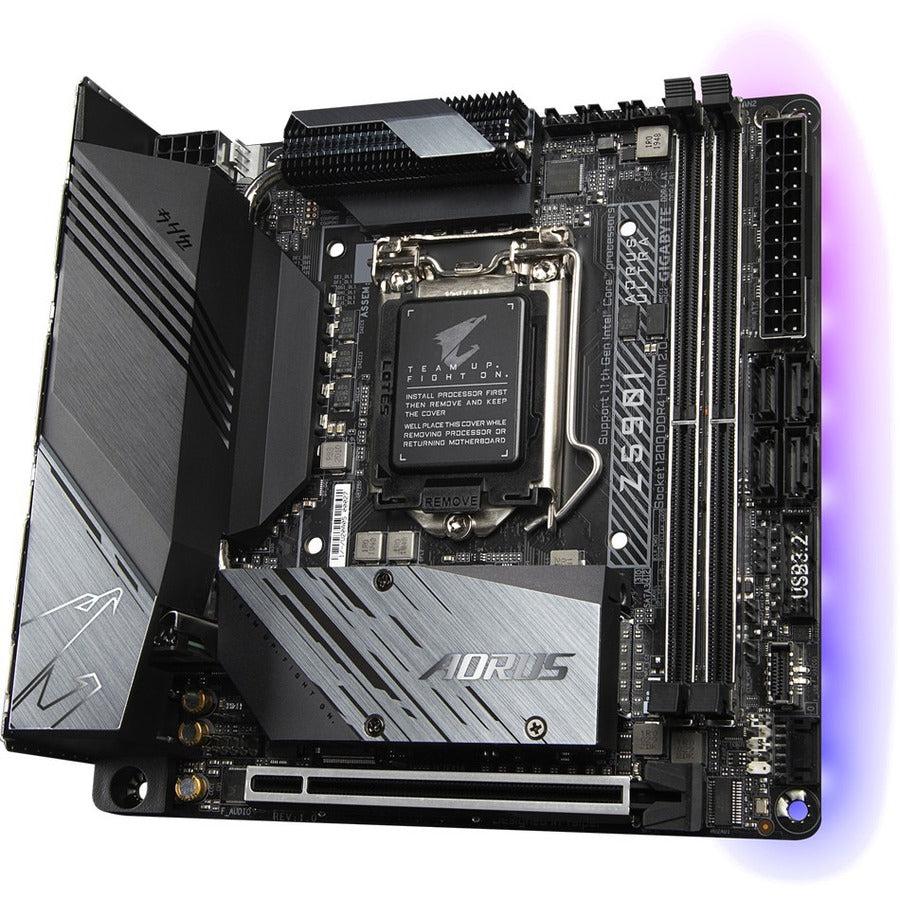

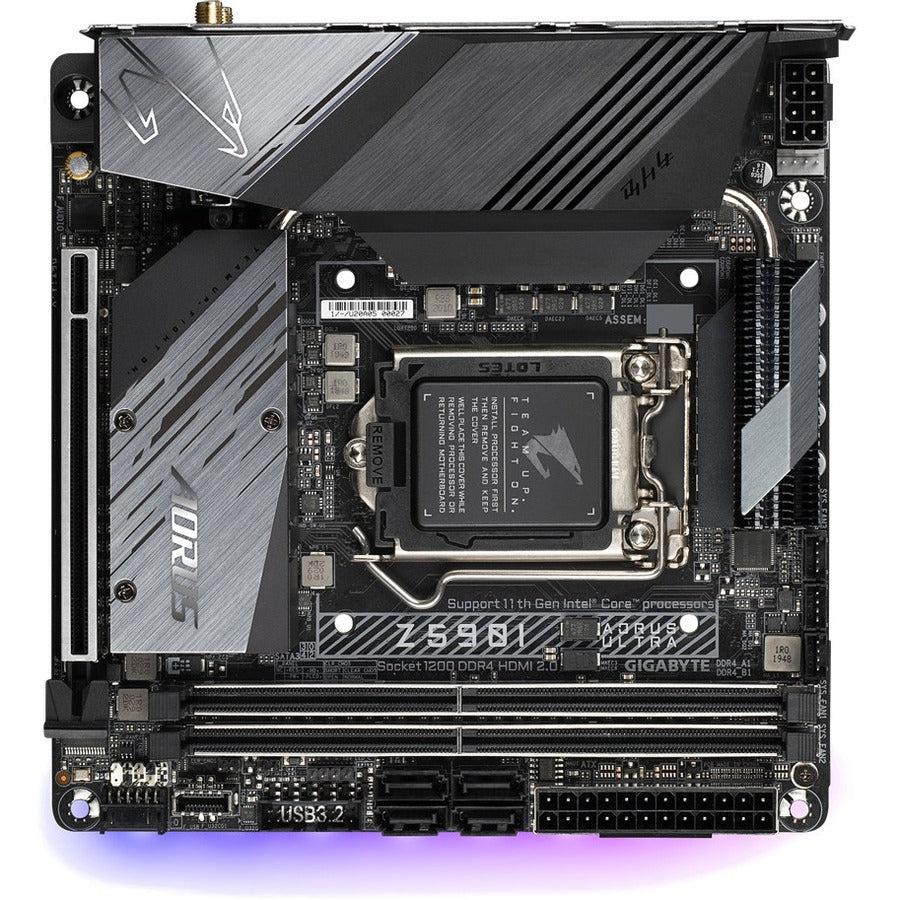

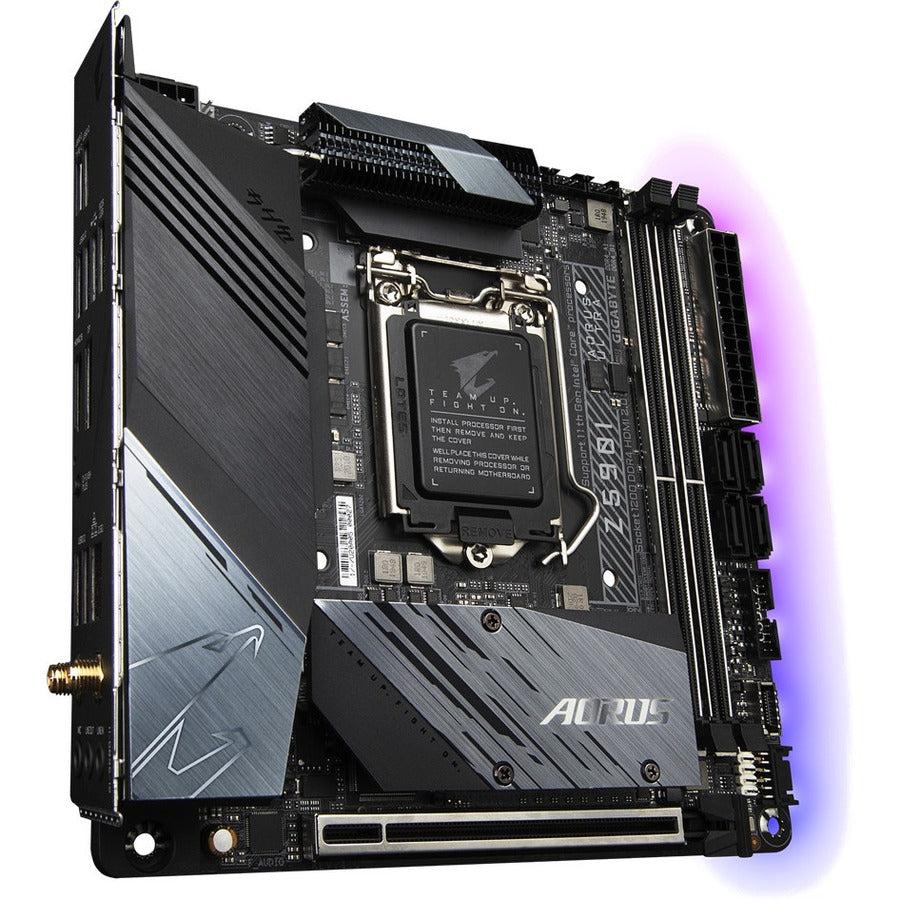

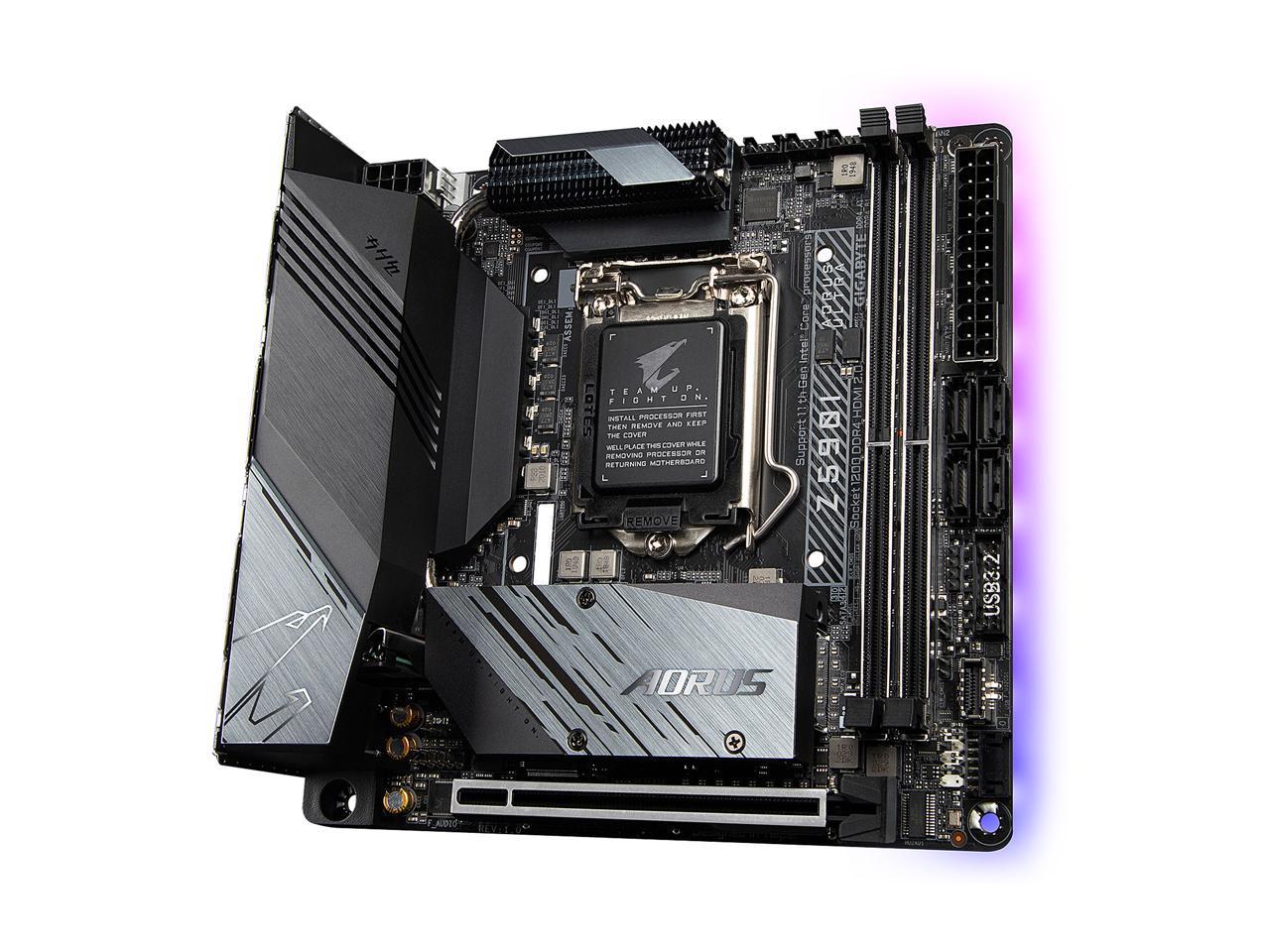

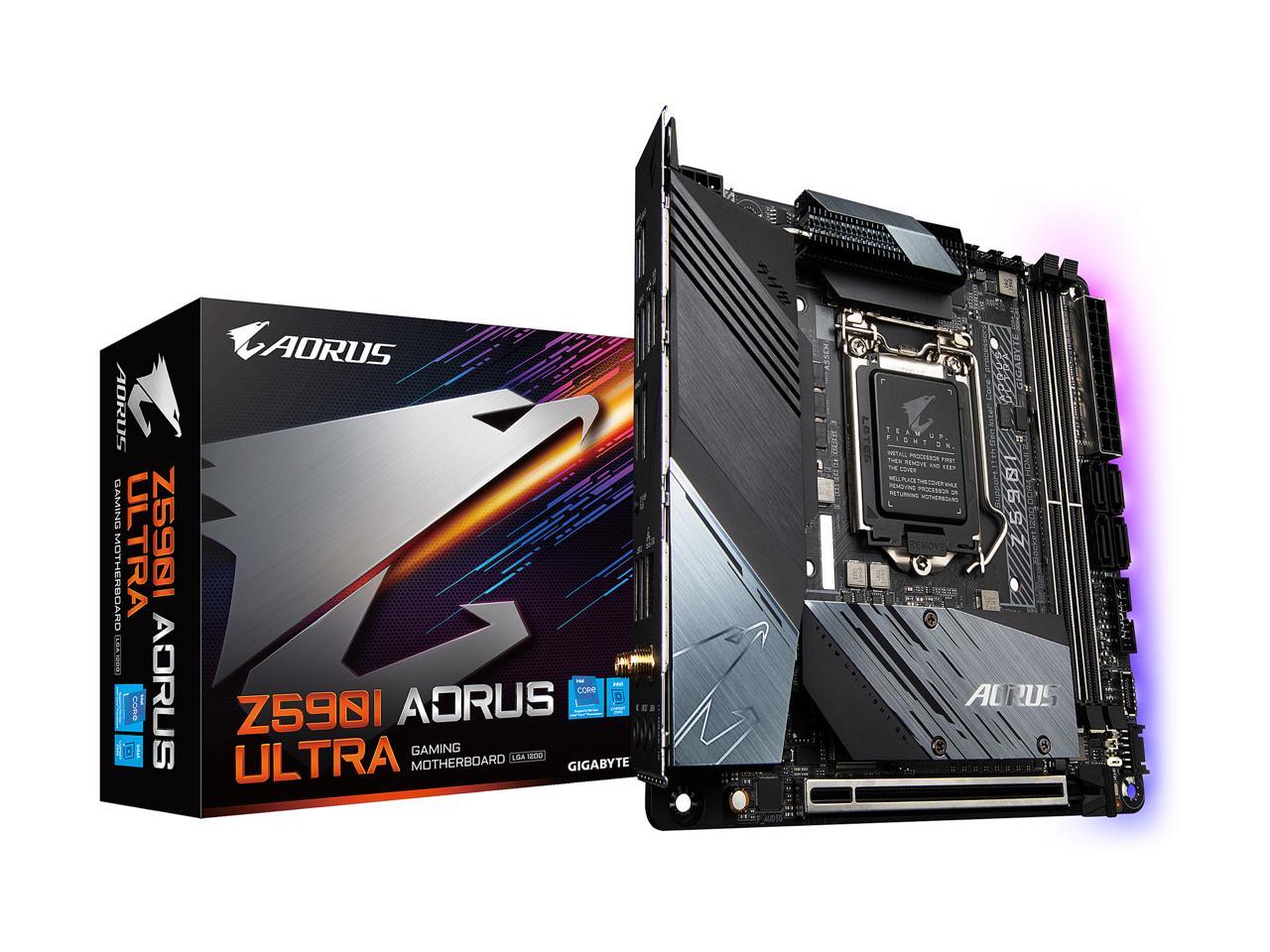

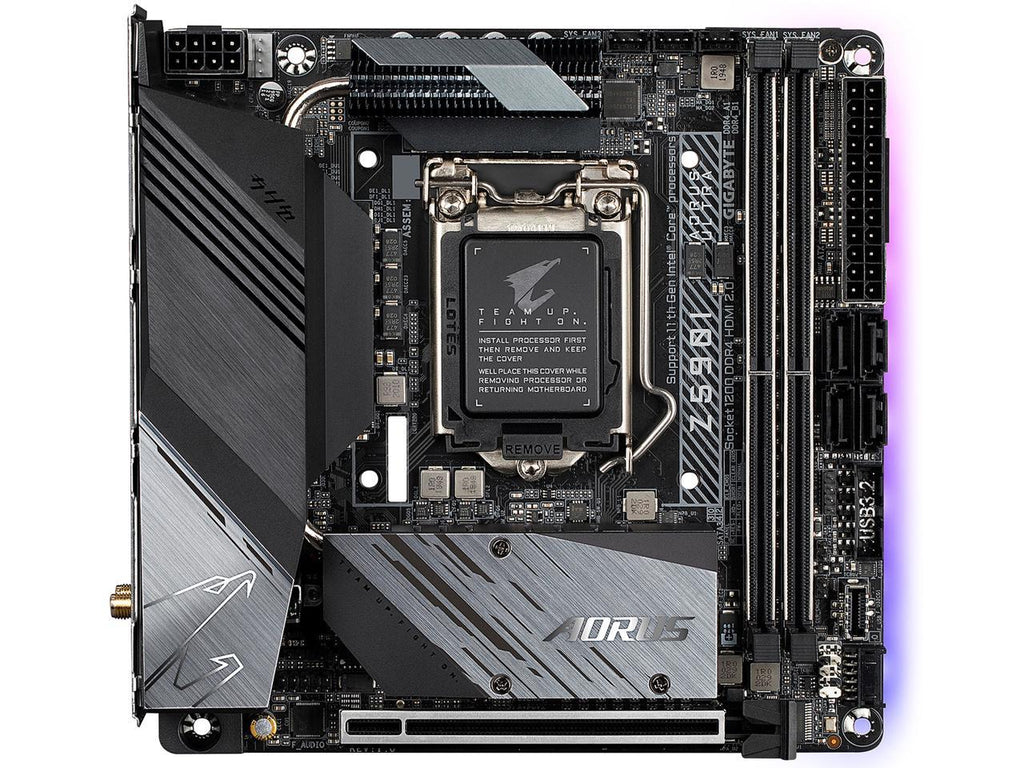

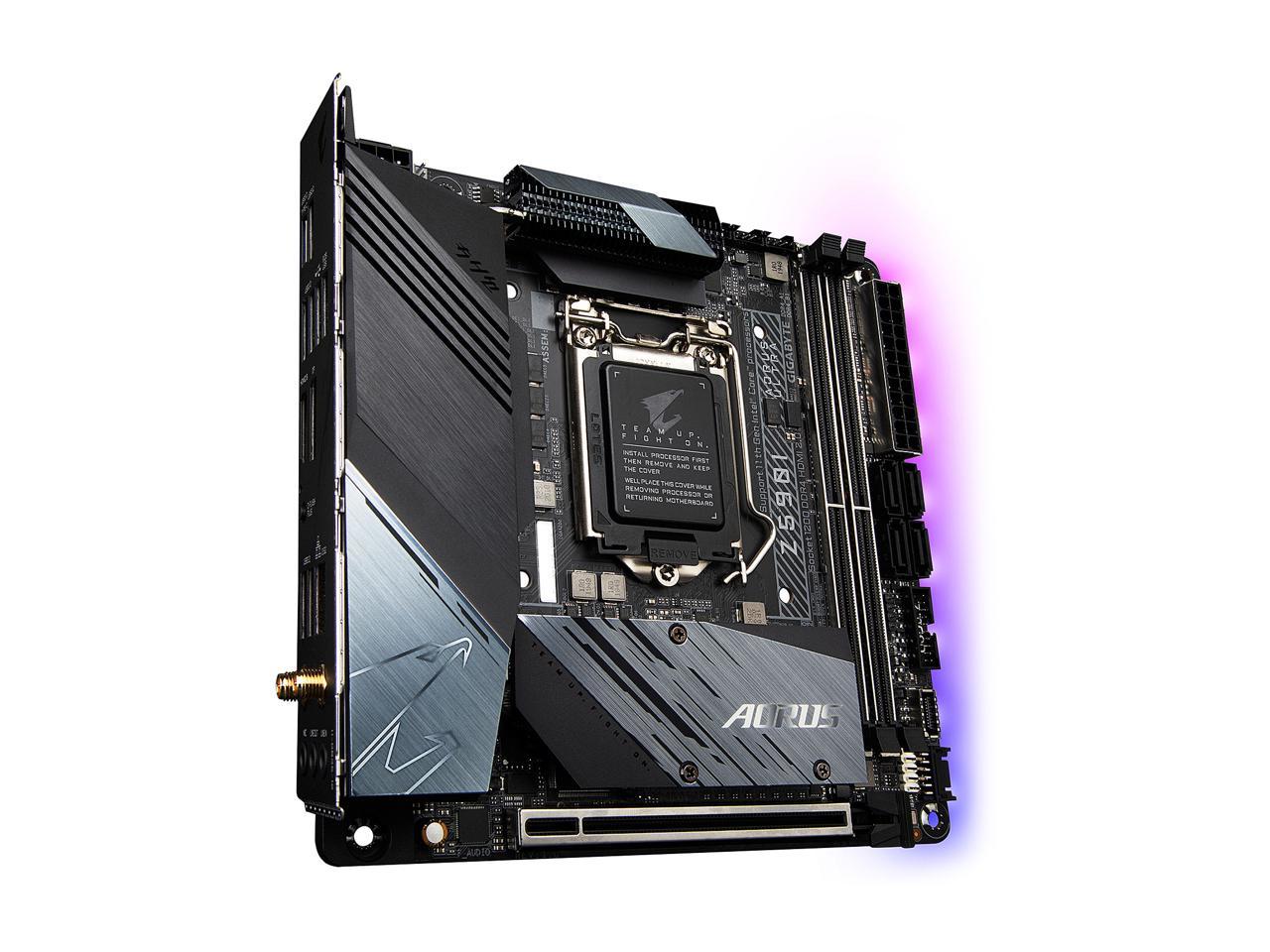

Name: Gigabyte Z590I Aorus Ultra Lga 1200 Intel Z590 Mini-Itx Motherboard With Dual M.2, Pcie 4.0
Brand: GIGABYTE
SKU: Z590I AORUS ULTRA
Price: 622.00 CAD
Availability: InStock

Gigabyte Z590I Aorus Ultra Lga 1200 Intel Z590 Mini-Itx Motherboard With Dual M.2, Pcie 4.0

Roll over image to zoom in Click on image to zoom

✅⚠️DO NOT ORDER WITHOUT CONFIRMING STOCK. This item has limited availability. Contact us via chat or sales@tecisoft.com to verify before purchasing. Unconfirmed orders may be canceled.

Supports 11th and 10th Gen Intel Core Series Processors
Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
Intel Optane Memory Ready

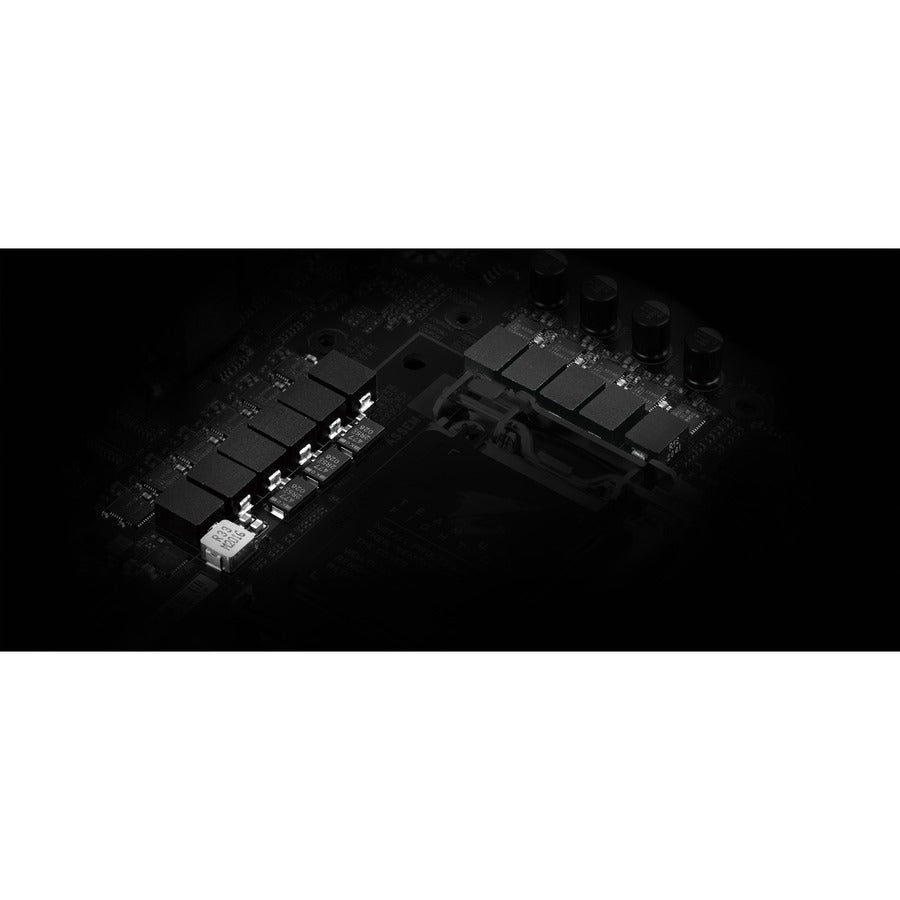

Direct 10+1 Phases Digital VRM Solution with 90A Smart Power Stage

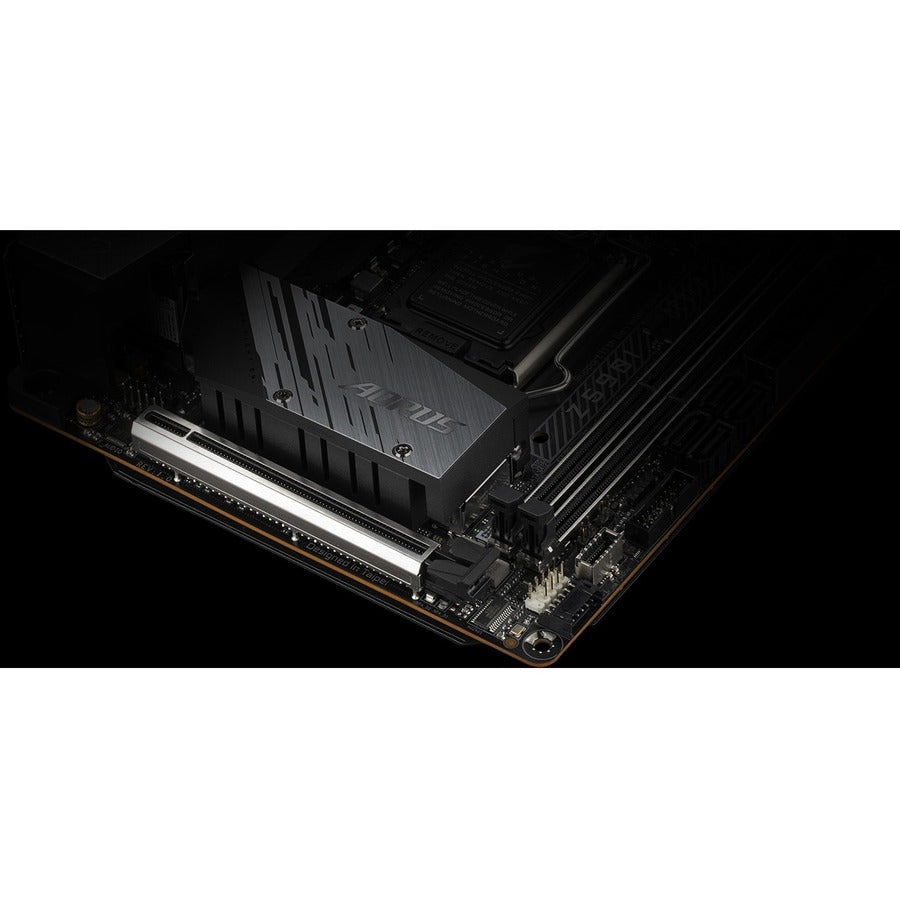

Fins-Array II and Multi-Layered PCH / M.2 Heatsink with Two Heatpipes
Blazing Fast Intel 2.5GbE LAN with cFosSpeed
Intel WiFi 6 802.11ax 2T2R & BT5 with AORUS Antenna
AMP-UP Audio with ALC1220 for Rear 120dB SNR
HDMI 2.0 supports Premium 4K
Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guard
RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design
Support Addressable LED & RGB LED Strips
Smart Fan 6 Features Multiple Temperature Sensors
Hybrid Fan Headers with FAN STOP and Noise Detection
Q-Flash Plus Update BIOS without Installing the CPU, Memory and GPU

**Model**
Brand	GIGABYTE
Model	Z590I AORUS ULTRA

**Supported CPU**
CPU Socket Type	LGA 1200
CPU Type	Supports 11th / 10th Gen Intel Core processors Supports Intel Pentium / Celeron processors* * Limited to with 4MB Intel Smart Cache, Intel Celeron G5xx5 family.

**Chipsets**
Chipset	Intel Z590

**Onboard Video**
Onboard Video Chipset	Supported only by CPU with integrated graphic

**Memory**
Number of Memory Slots	2x288pin (DDR4)
Memory Standard	DDR4 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MHz memory modules (11th Gen Intel Core i9 / i7 / i5 processors) DDR4 2933 / 2666 / 2400 / 2133 MHz memory modules (10th Gen Intel Core i9 / i7 processors) DDR4 2666 / 2400 / 2133 MHz memory modules (10th Gen Intel Core i5 / i3 / Pentium / Celeron processors)
Maximum Memory Supported	64GB
Channel Supported	Dual Channel

**Expansion Slots**
PCI Express 4.0 x16	1 x PCI Express 4.0 x16 * Actual support may vary by CPU.

**Storage Devices**
SATA 6Gb/s	4 x SATA 6Gb/s
M.2	CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)* Chipset: 1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) (M2P_SB) * Supported by 11th Generation processors only.
Intel Optane Ready	Yes
SATA RAID	0/1/5/10

**Onboard Audio**
Audio Chipset	Realtek ALC1220-VB * The back panel line out jack supports DSD audio.
Audio Channels	7.1 Channels

**Onboard LAN**
LAN Chipset	Intel 2.5GbE LAN chip
Max LAN Speed	10/100/1000/2500Mbps
Wireless LAN	Intel Wi-Fi 6 AX200
Bluetooth	Bluetooth 5.1

**Rear Panel Ports**

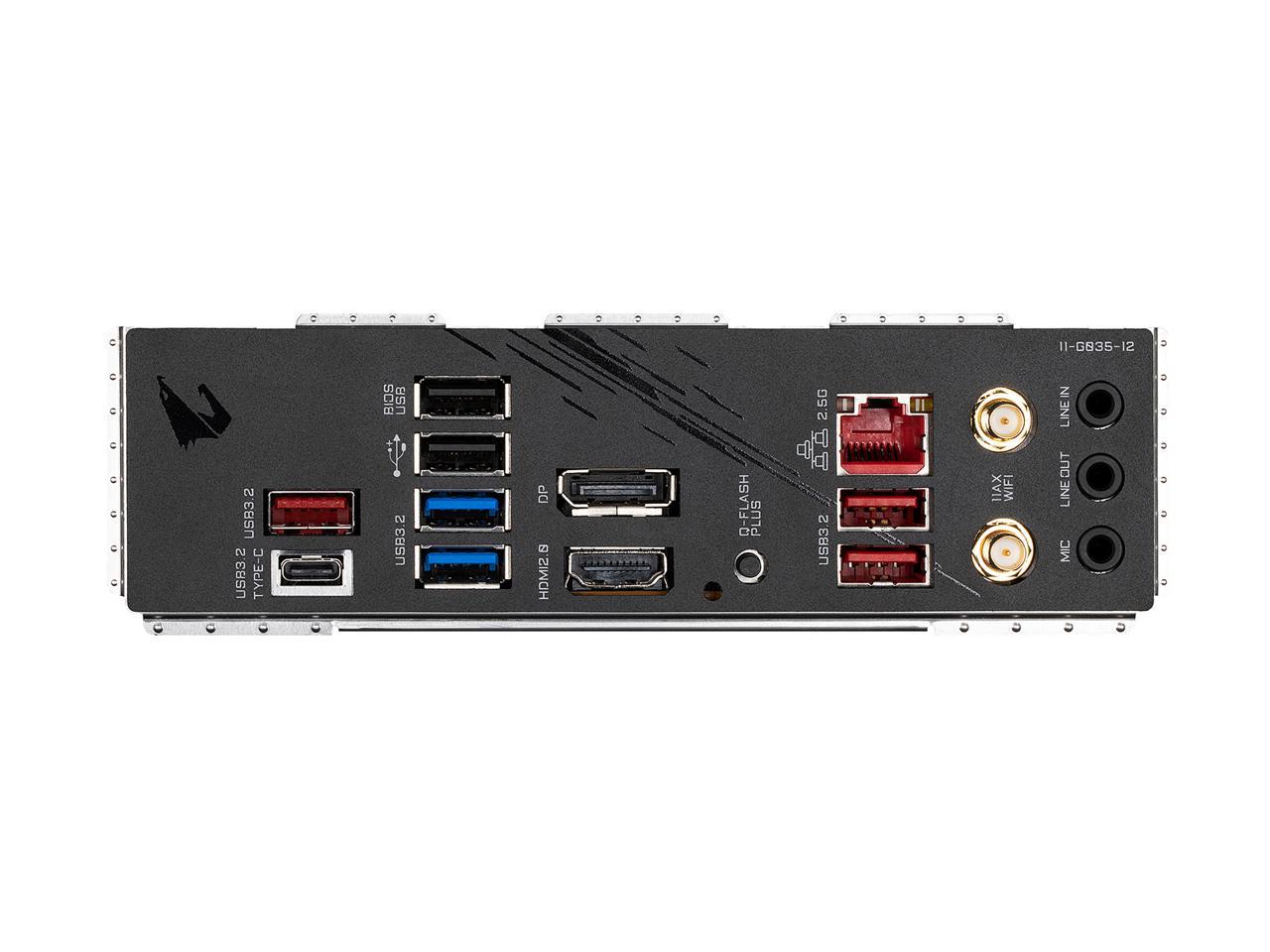

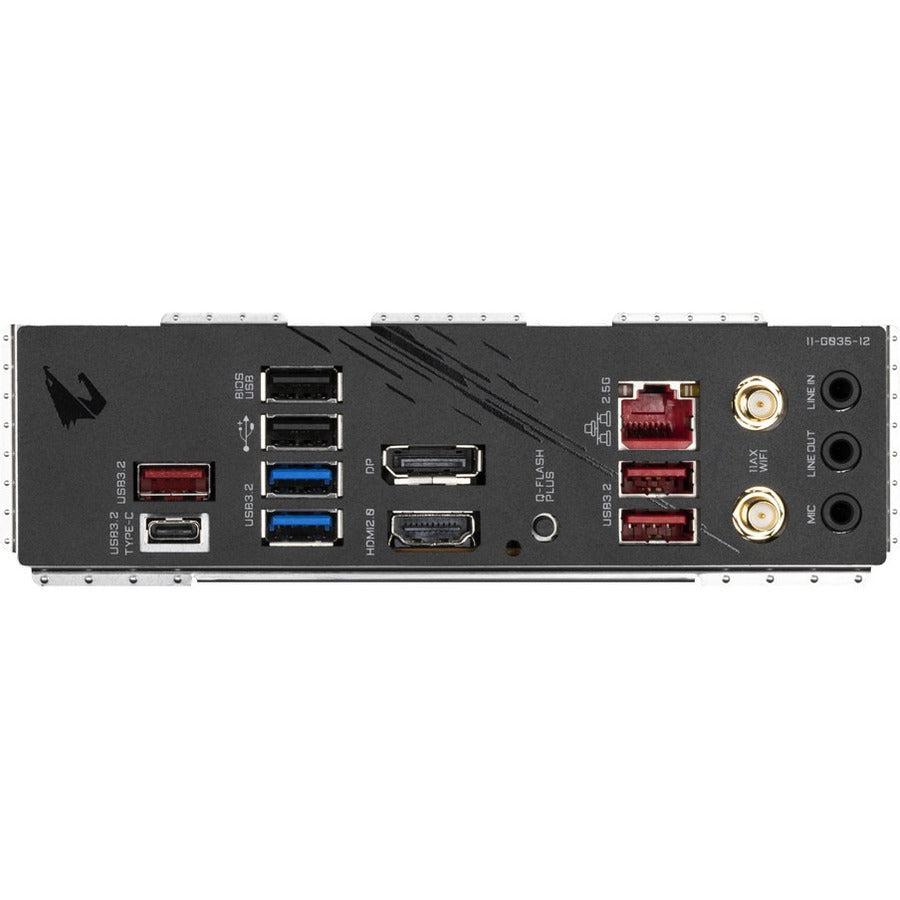

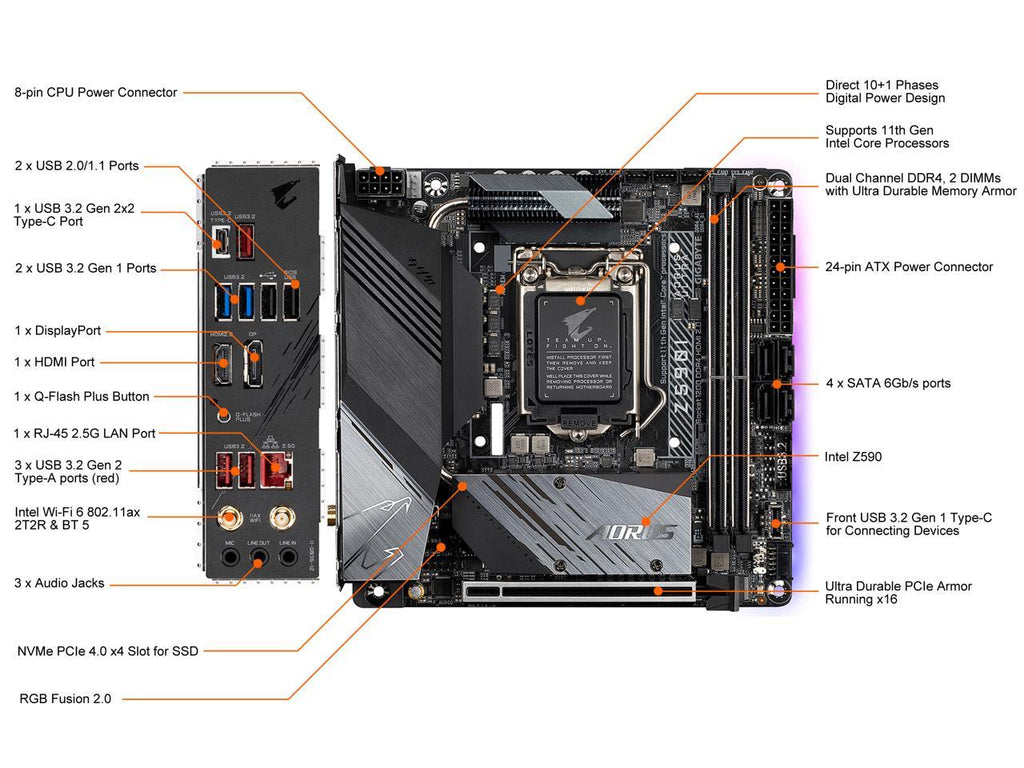

Back I/O Ports	1 x DisplayPort 1 x HDMI port 1 x USB Type-C port, with USB 3.2 Gen 2x2 support 3 x USB 3.2 Gen 2 Type-A ports (red) 2 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x Q-Flash Plus button 1 x RJ-45 port 2 x SMA antenna connectors (2T2R) 3 x audio jacks

**Internal I/O Connectors**
Onboard USB	1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header
Other Connectors	1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 1 x front panel header 1 x front panel audio header 1 x speaker header 1 x Clear CMOS jumper 1 x chassis intrusion header

**Physical Spec**
Form Factor	Mini ITX
LED Lighting	RGB
Dimensions (W x L)	170.18 mm x 170.18 mm
Power Pin	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector

Windows Compatibility
Windows 11	Supported

**Features**
Features	I/O Controller: iTE I/O Controller Chip H/W Monitoring: Voltage detection Temperature detection Fan speed detection Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. BIOS: 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features: Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install Bundled Software: Norton Internet Security (OEM version) cFosSpeed Operating System: Support for Windows 10 64-bit

General Information

Manufacturer	GIGABYTE Technology, Inc
Manufacturer Part Number	Z590I AORUS ULTRA
Manufacturer Website Address	http://www.gigabyte.us
Brand Name	Aorus
Product Line	Ultra Durable
Product Model	Z590I AORUS ULTRA
Product Name	Ultra Druable Z590I AORUS ULTRA (rev. 1.0) Desktop Motherboard
Product Type	Desktop Motherboard
UPC	889523026328

Chipset

Chipset Manufacturer	Intel

Network & Communication

Wireless LAN Standard	IEEE 802.11 a/b/g/n/ac/ax
Bluetooth	Yes

Interfaces/Ports

HDMI	Yes
Total Number of USB Ports	8
Number of USB 3.2 Gen 1 Ports	2

Width	6.7"
Depth	6.7"
