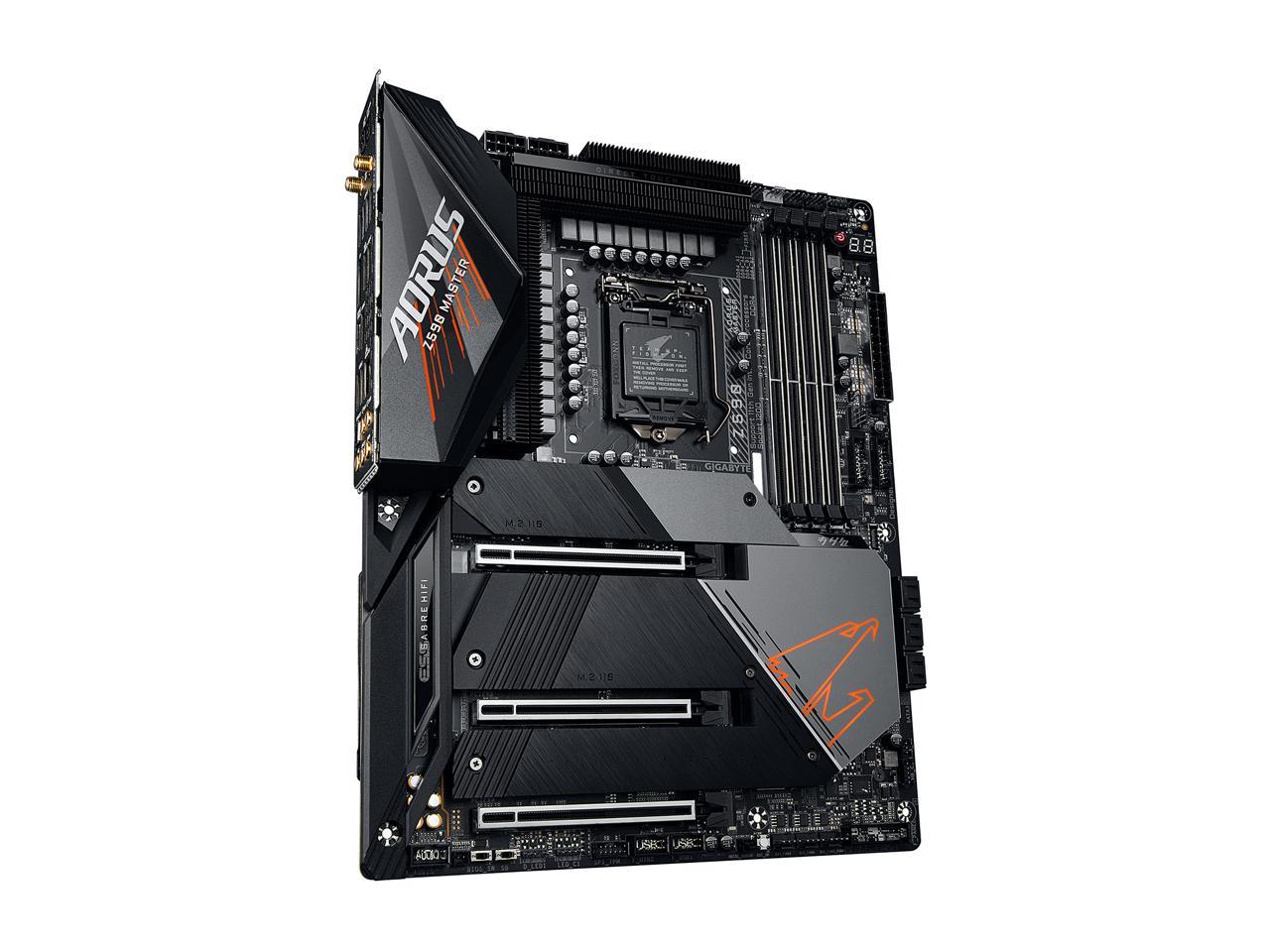

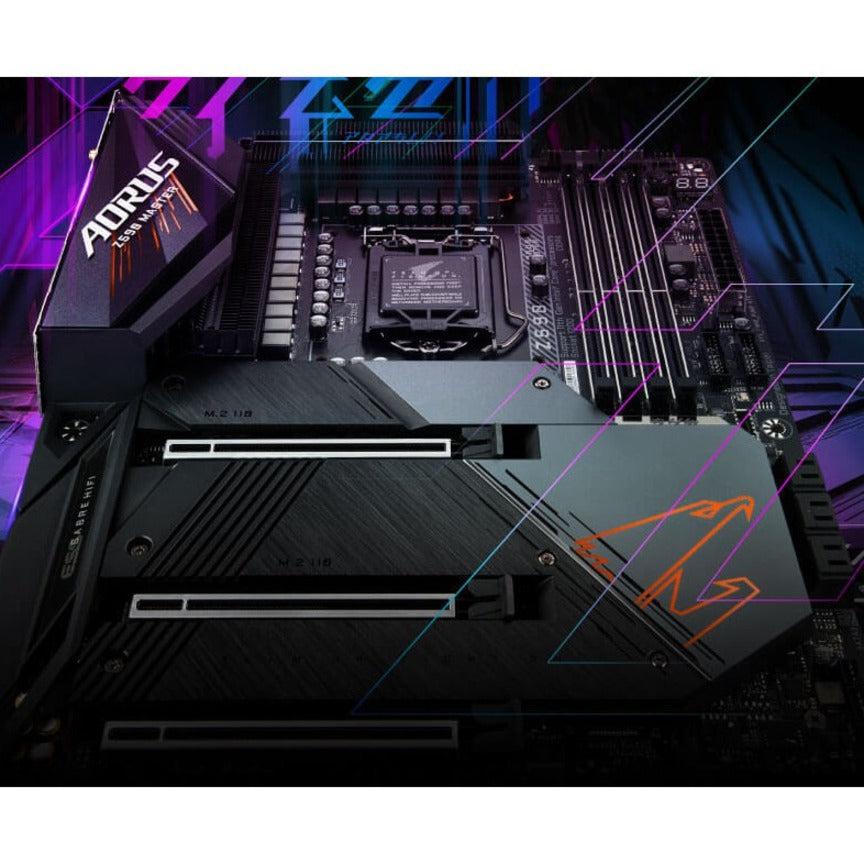

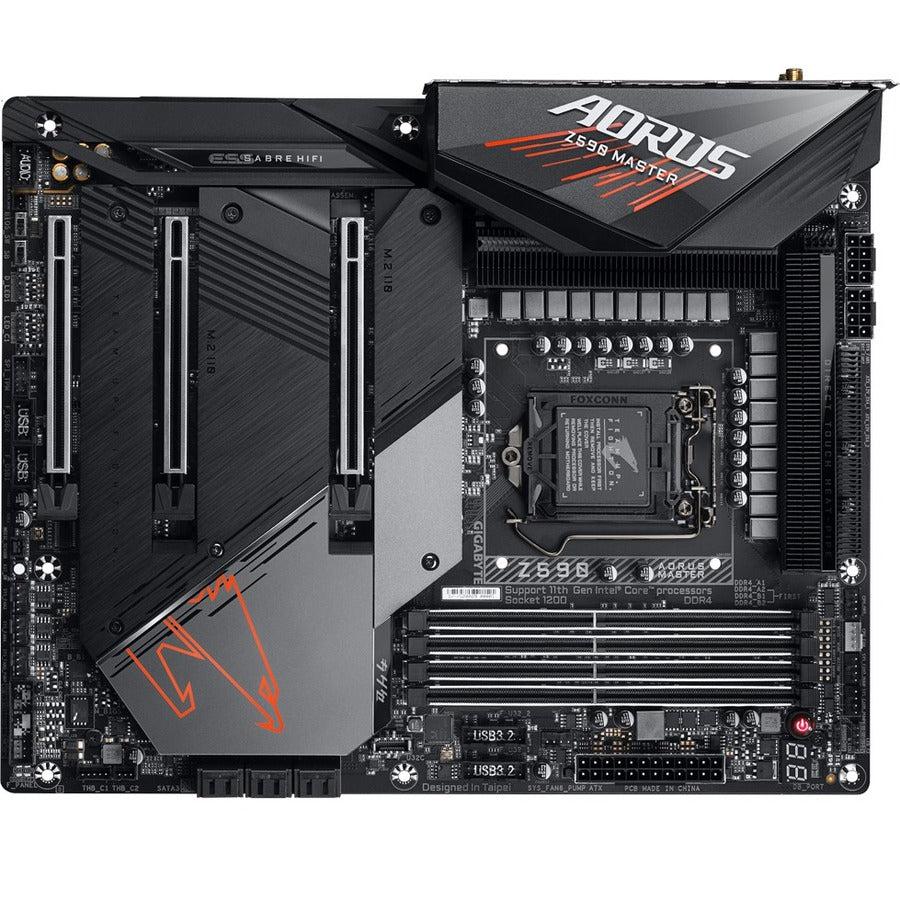

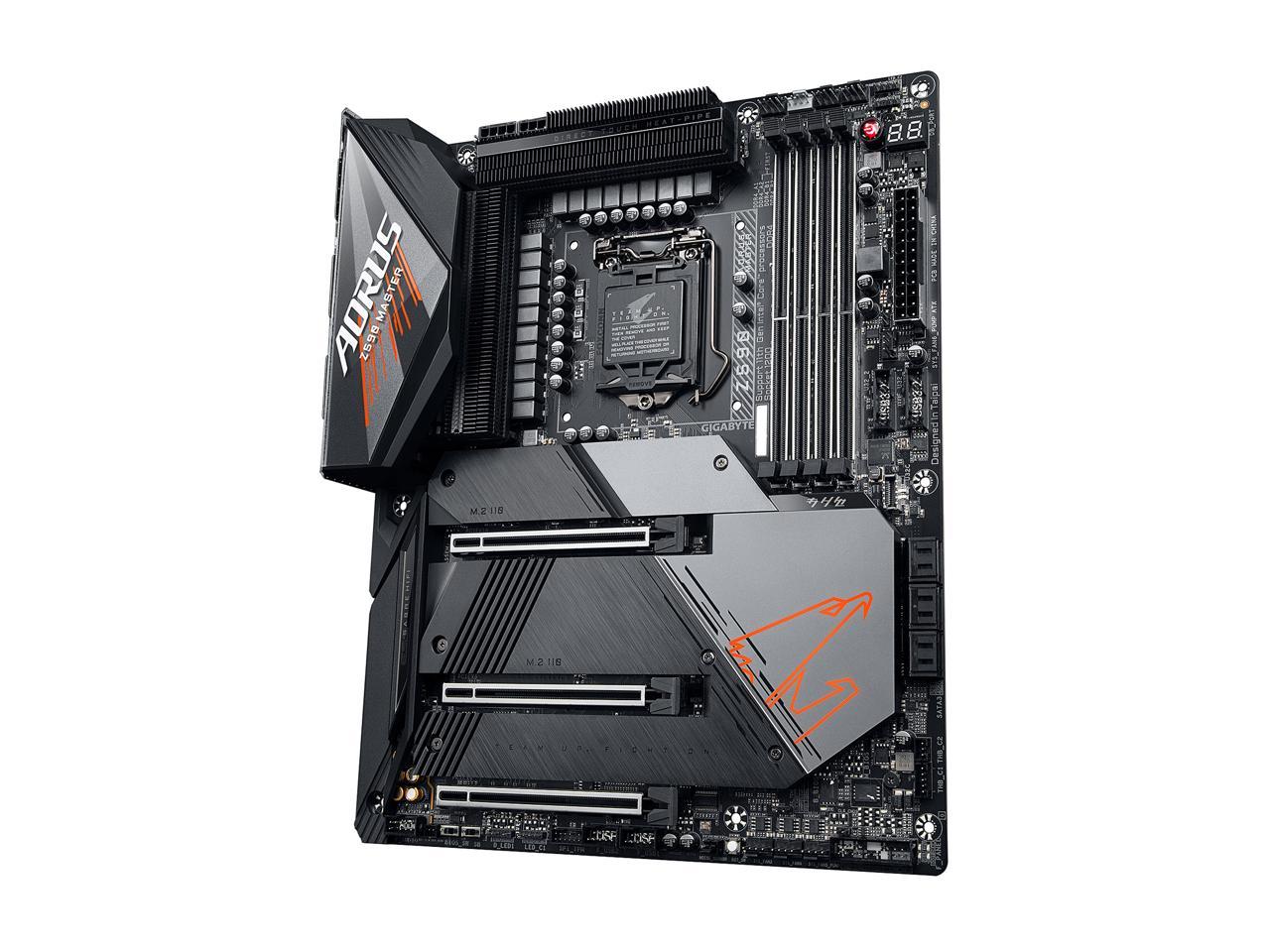

Name: Gigabyte Z590 Aorus Master Lga 1200 Intel Z590 Atx Motherboard With Triple M.2, Pcie 4.0, Usb 3.2 Gen2X2 Type-C, Intel Wifi 6E, Aquantia 10Gbe Lan
Brand: GIGABYTE
SKU: Z590 AORUS MASTER
Price: 839.00 CAD
Availability: OutOfStock

Gigabyte Z590 Aorus Master Lga 1200 Intel Z590 Atx Motherboard With Triple M.2, Pcie 4.0, Usb 3.2 Gen2X2 Type-C, Intel Wifi 6E, Aquantia 10Gbe Lan

Roll over image to zoom in Click on image to zoom

✅⚠️DO NOT ORDER WITHOUT CONFIRMING STOCK. This item has limited availability. Contact us via chat or sales@tecisoft.com to verify before purchasing. Unconfirmed orders may be canceled.

Supports 11th and 10th Gen Intel Core Series Processors
Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
Intel Optane Memory Ready

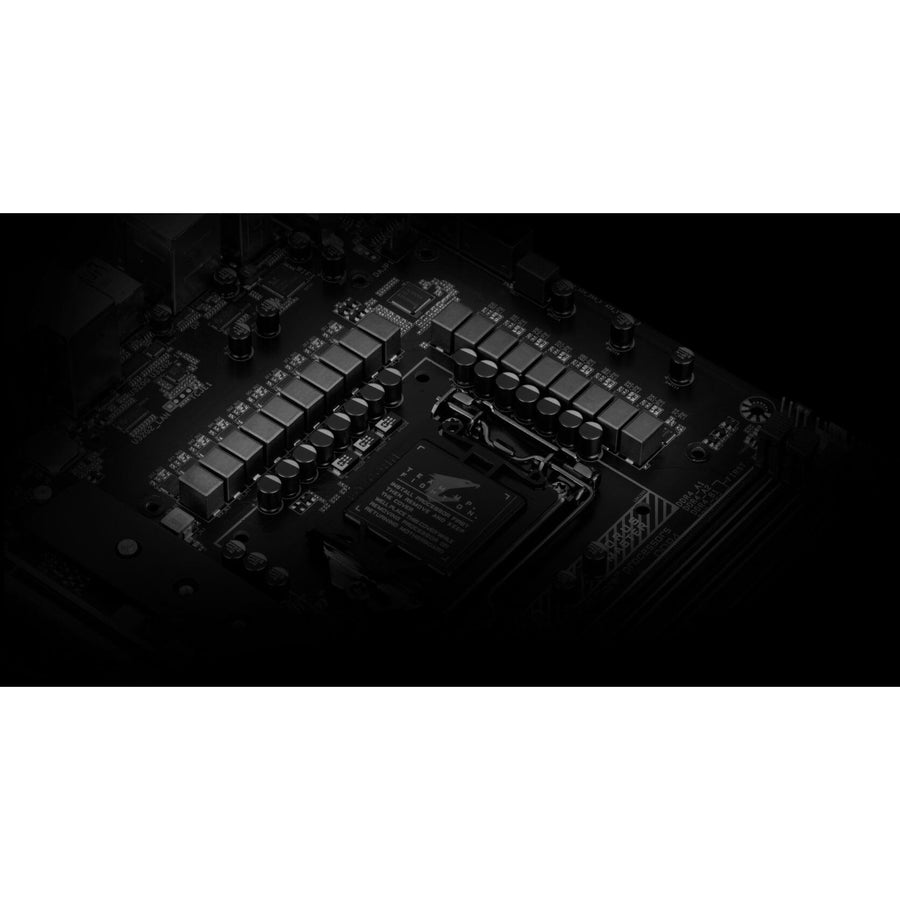

18+1 Phases Digital VRM Solution with 90A Smart Power Stage
Tantalum Polymer Capacitors Array
Shielded Memory Routing to Avoid Interference
Advanced Thermal Solution with Fins-Array II
Direct Touch Heatpipe II and NanoCarbon Baseplate
Onboard Intel WiFi 6E 802.11ax 2T2R & BT 5 with AORUS Antenna

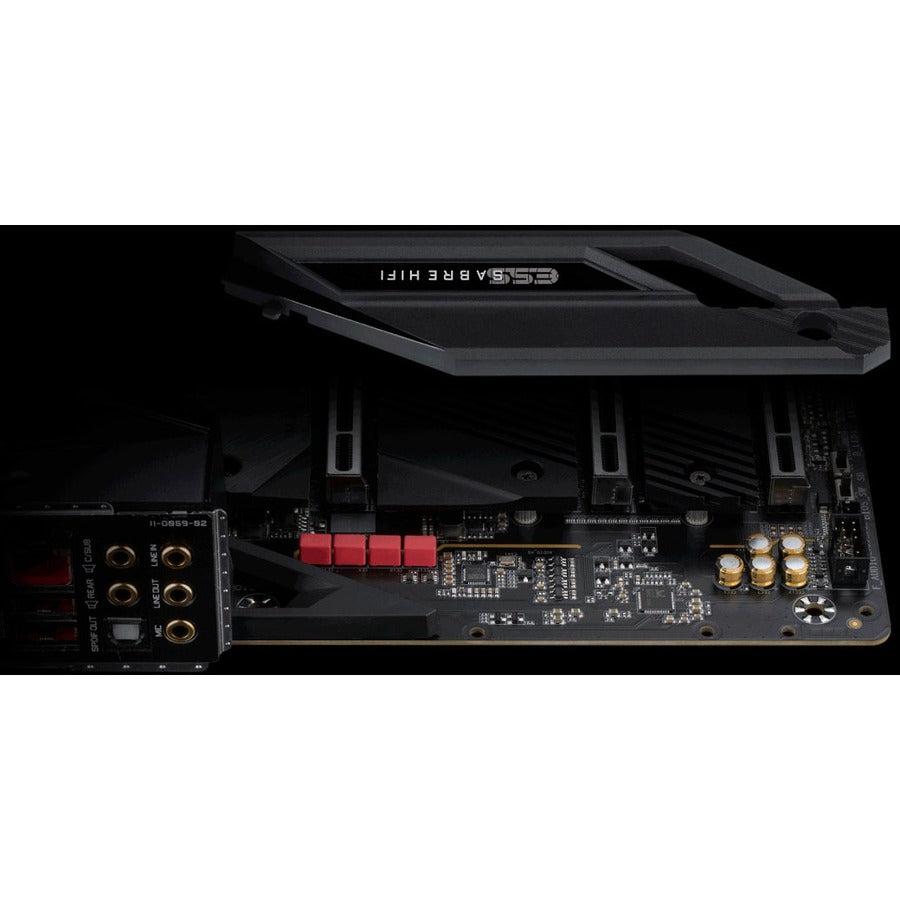

125dB SNR AMP-UP Audio with High-End ESS SABRE 9118 DAC
AQUANTIA 10GbE BASE-T LAN with cFosSpeed

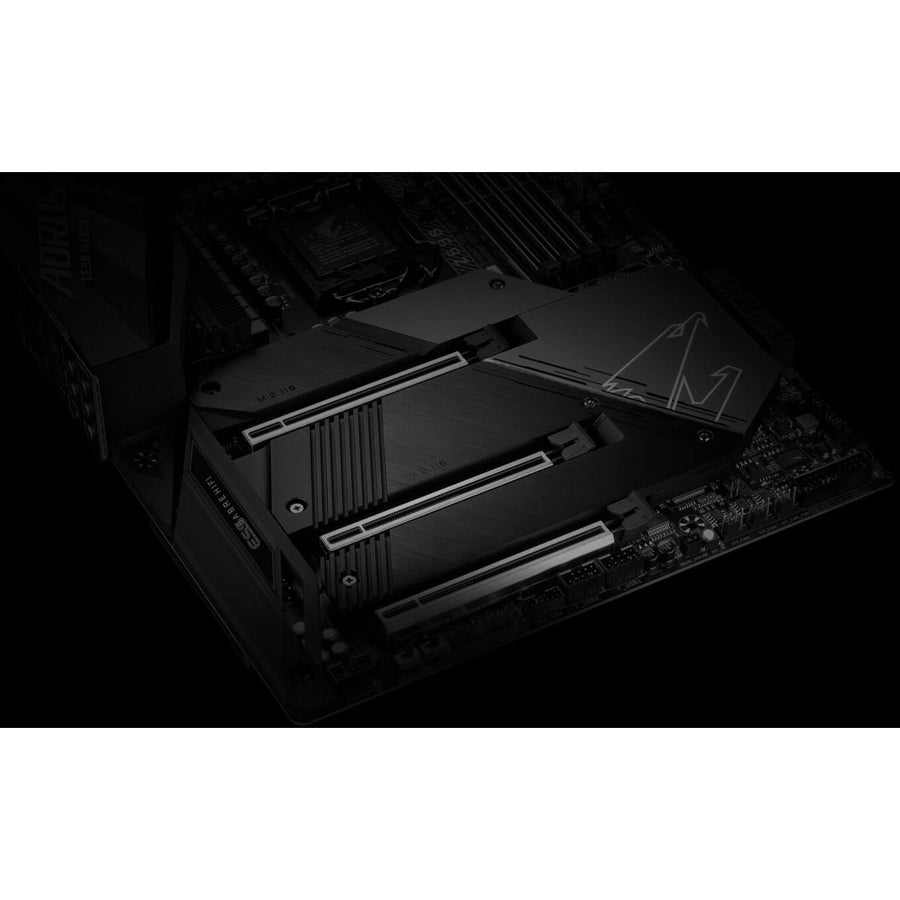

Triple Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guards II
RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design
Support Addressable LED & RGB LED Strips
Smart Fan 6 Features Multiple Temperature Sensors
Hybrid Fan Headers with FAN STOP and Noise Detection
Q-Flash Plus Update BIOS without Installing the CPU, Memory and GPU

**Model**
Brand	GIGABYTE
Model	Z590 AORUS MASTER

**Supported CPU**
CPU Socket Type	LGA 1200
CPU Type	Supports 11th / 10th Gen Intel Core processors Supports Intel Pentium / Celeron processors* * Limited to with 4MB Intel Smart Cache, Intel Celeron G5xx5 family.

**Chipsets**
Chipset	Intel Z590

Onboard Video
Onboard Video Chipset	Supported only by CPU with integrated graphic

**Memory**
Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR4 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MHz memory modules (11th Gen Intel Core i9 / i7 / i5 processors) DDR4 2933 / 2666 / 2400 / 2133 MHz memory modules (10th Gen Intel Core i9 / i7 processors) DDR4 2666 / 2400 / 2133 MHz memory modules (10th Gen Intel Core i5 / i3 / Pentium / Celeron processors)
Maximum Memory Supported	128GB
Channel Supported	Dual Channel

**Expansion Slots**
PCI Express 4.0 x16	2 x PCI Express 4.0 x16 * Actual support may vary by CPU.
PCI Express 3.0 x16	1 x PCI Express 3.0 x16 * Running at x4.

**Storage Devices**
SATA 6Gb/s	6 x SATA 6Gb/s
M.2	CPU: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)* Chipset: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2P_SB) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2M_SB) * Supported by 11th Generation processors only.
Intel Optane Ready	Yes
SATA RAID	0/1/5/10

**Onboard Audio**
Audio Chipset	Realtek ALC1220-VB * The front panel line out jack supports DSD audio.
Audio Channels	7.1 Channels

**Onboard LAN**
LAN Chipset	Aquantia 10GbE LAN chip
Max LAN Speed	10Gbps
Wireless LAN	Intel Wi-Fi 6E AX210
Bluetooth	Bluetooth 5.2

**Rear Panel Ports**

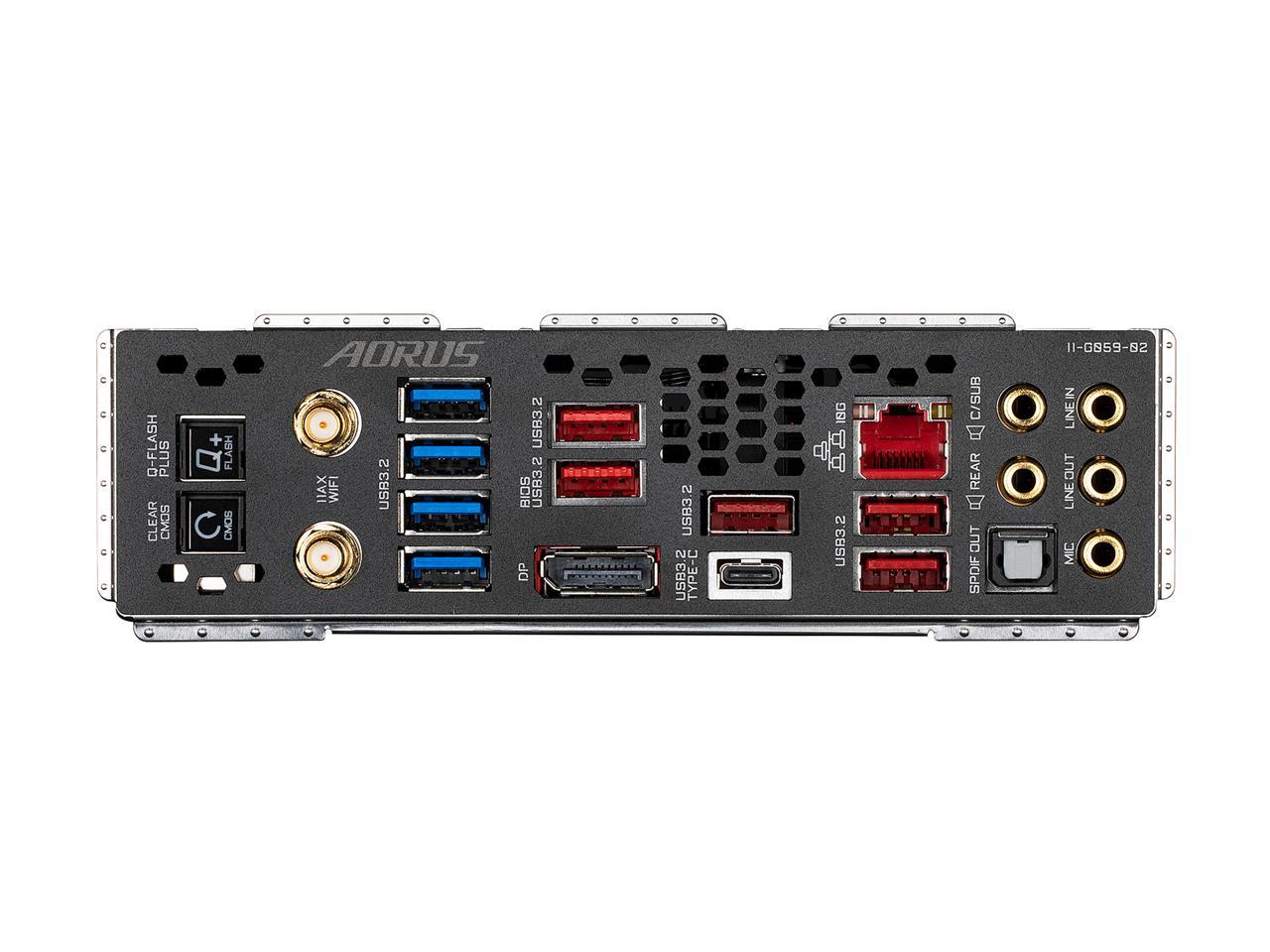

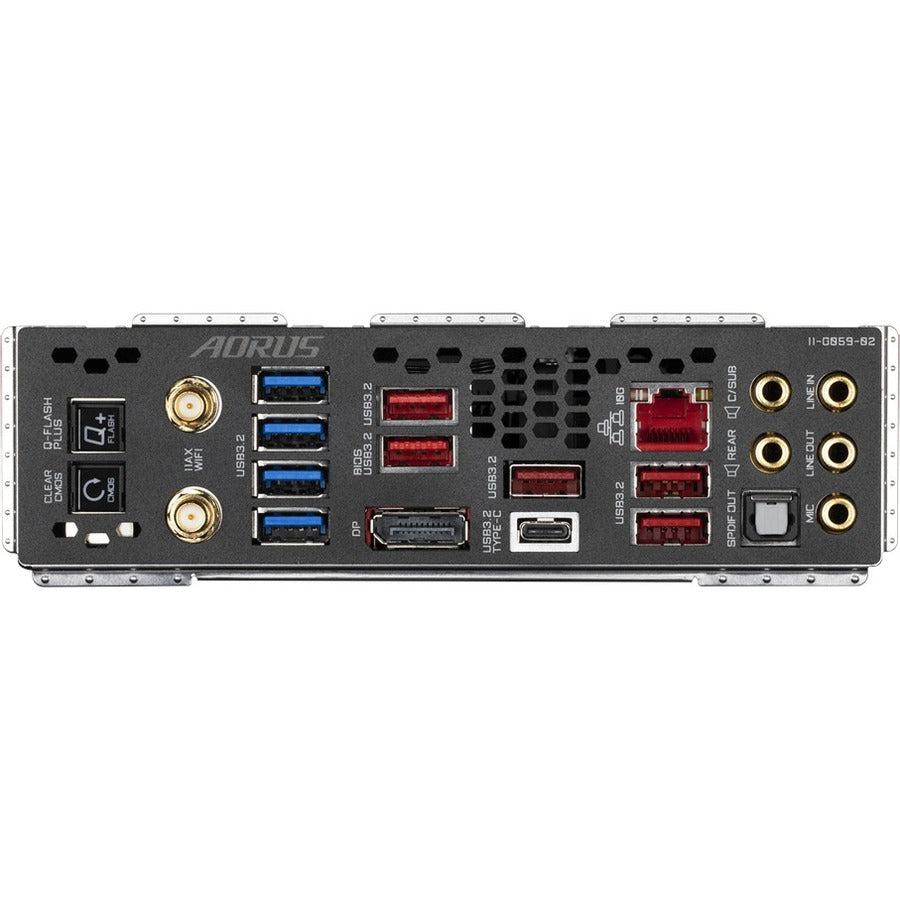

Back I/O Ports	1 x Q-Flash Plus button 1 x Clear CMOS button 2 x SMA antenna connectors (2T2R) 1 x DisplayPort 1 x USB Type-C port, with USB 3.2 Gen 2x2 support 5 x USB 3.2 Gen 2 Type-A ports (red) 4 x USB 3.2 Gen 1 ports 1 x RJ-45 port 1 x optical S/PDIF Out connector 5 x audio jacks

**Internal I/O Connectors**
Onboard USB	1 x USB Type-C header, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers
Other Connectors	1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 4 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x front panel header 1 x front panel audio header 1 x noise detection header 2 x Thunderbolt add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x power button 1 x reset button 2 x temperature sensor headers 1 x Clear CMOS jumper 2 x BIOS switches Voltage Measurement Points

**Physical Spec**
Form Factor	ATX
LED Lighting	RGB
Dimensions (W x L)	304.80 mm x 243.84 mm
Power Pin	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors

**Windows Compatibility**
Windows 11	Supported

**Features**
Features	Multi-Graphics Technology: Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies I/O Controller: iTE I/O Controller Chip H/W Monitoring: Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. Noise detection BIOS: 2 x 256 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features: Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install Bundled Software: Norton Internet Security (OEM version) cFosSpeed Operating System: Support for Windows 10 64-bit

General Information

Manufacturer	GIGABYTE Technology, Inc
Manufacturer Part Number	Z590 AORUS MASTER
Manufacturer Website Address	http://www.gigabyte.us
Brand Name	Aorus
Product Line	Ultra Durable
Product Model	Z590 AORUS MASTER
Product Name	Ultra Druable Z590 AORUS MASTER (rev. 1.0) Desktop Motherboard
Product Type	Desktop Motherboard
UPC	889523026472

Chipset

Chipset Manufacturer	Intel

Network & Communication

Wireless LAN Standard	IEEE 802.11 a/b/g/n/ac/ax
Bluetooth	Yes

Total Number of USB Ports	10
Number of USB 3.2 Gen 1 Ports	4

Width	12"
Depth	9.6"

Warranty

Limited Warranty	3 Year
