Gigabyte R281-Z94 Barebone System - 2U Rack-mountable - Socket SP3 - 2 x Processor Support
AMD EPYC™ Processors
The New x86 Option
AMD's return to the CPU segment delivers a whole new value proposition to the x86 world. Built on GIGABYTE's extensive design expertise across a range of chipset platforms, this AMD EPYC™ platform is already receiving acclaim for its high specification:
- Memory
- I/O
- Network connectivity
This platform is intended as an alternative for builders in the x86 space and packs a real punch in flexibility and expansion options.
CPU Key Features
-
Memory Optimization
Memory speed of up to 2666MHz (at 1DPC)
Total memory capacity of 4TB supported -
PCIe Lanes
Up to 128 lanes in both 1P and 2P offerings providing the highest expandability options of any x86 platform -
Cores / Power
CPU power is managed at the core level, meaning that power is allocated only for specific workload needs -
Security
Proprietary AMD security on chip
Comprehensive I/O
Both single- and dual-socket CPUs come equipped with 128x PCIe lanes, providing extensive I/O options. This is a huge improvement in I/O vs. incumbent x86 offerings.
Increased I/O allows for flexibility in extending your storage, networking or compute to a level previously unattainable with standard server motherboards.
In addition, the integrated nature of the processor - designed as a system-on-chip (SoC) - means that there is no need for a separate PCH and less additional switches needed for expansion lanes.
Dense, High Speed Storage Support
Onboard U.2 + M.2
GIGABYTE AMD EPYC™ platforms are designed to support U.2 and M.2 storage devices. Both use the NVMe protocol, taking advantage of the fast bandwidth of PCIe Gen3 x 4 lanes to deliver up to 32 Gb/s data transfer speeds, over 4 times the performance of SATA 3, giving you more flexibility to integrate some of the most dense and fastest storage devices on the market into your system.
Data Security
TPM 2.0 Module
GIGABYTE's EPYC™ platform is designed to support Trusted Platform Modules (TPM - discrete cryptographic on-board processors).
Carefully Selected Components
GIGABYTE's passive components are carefully selected to guarantee a stable operating environment and allow the processors and the memory to deliver their maximum performance. GIGABYTE's server motherboards are built with long lasting components for a high degree of reliability and durability.
Ease of Deployment and Management
GIGABYTE continues to be responsive to market needs and to create user-friendly solutions, including:

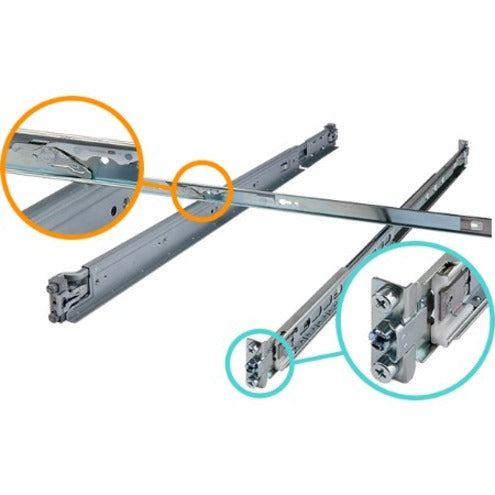

- Tool-less rail kit included as a default across all new server models
- Supplying multiple connector options and tools where appropriate

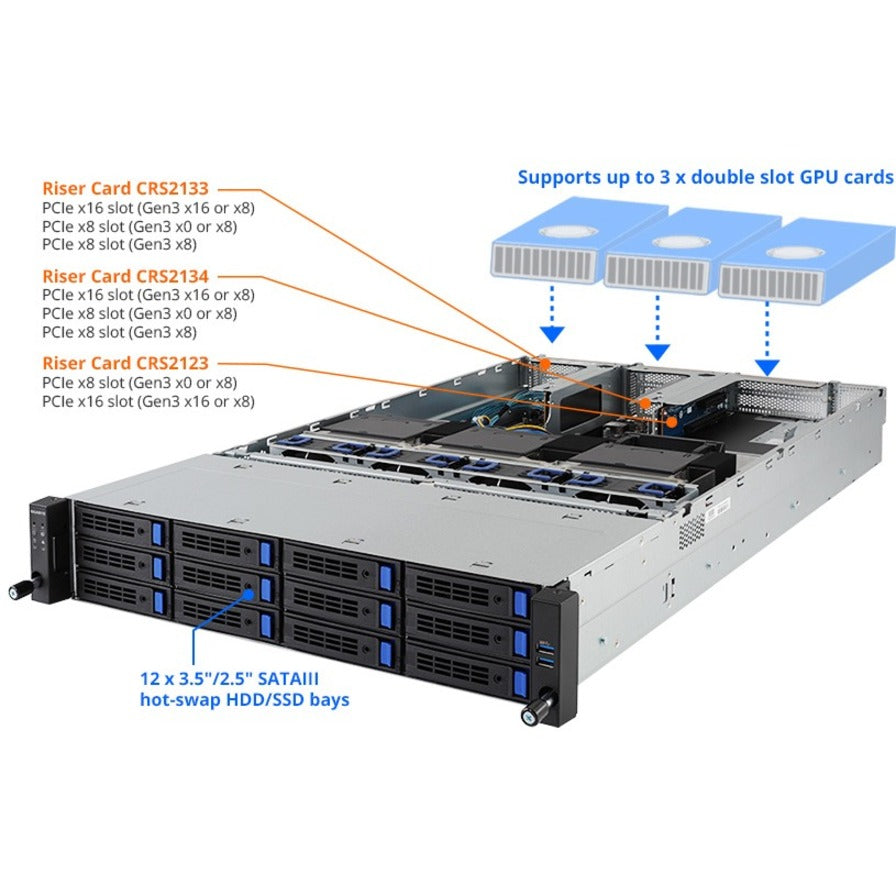

- Supports up to 3 x double slot GPU cards
- Dual AMD EPYC™ 7001 series processor family
- 8-Channel RDIMM/LRDIMM DDR4, 32 x DIMMs
- 2 x 1Gb/s BASE-T LAN ports (Intel® I350-AM2)
- 1 x Dedicated management port
- 12 x 3.5"/ 2.5" SATAIII hot-swappable HDD/SSD bays
- Ultra-Fast M.2 with PCIe Gen3 x4 interface

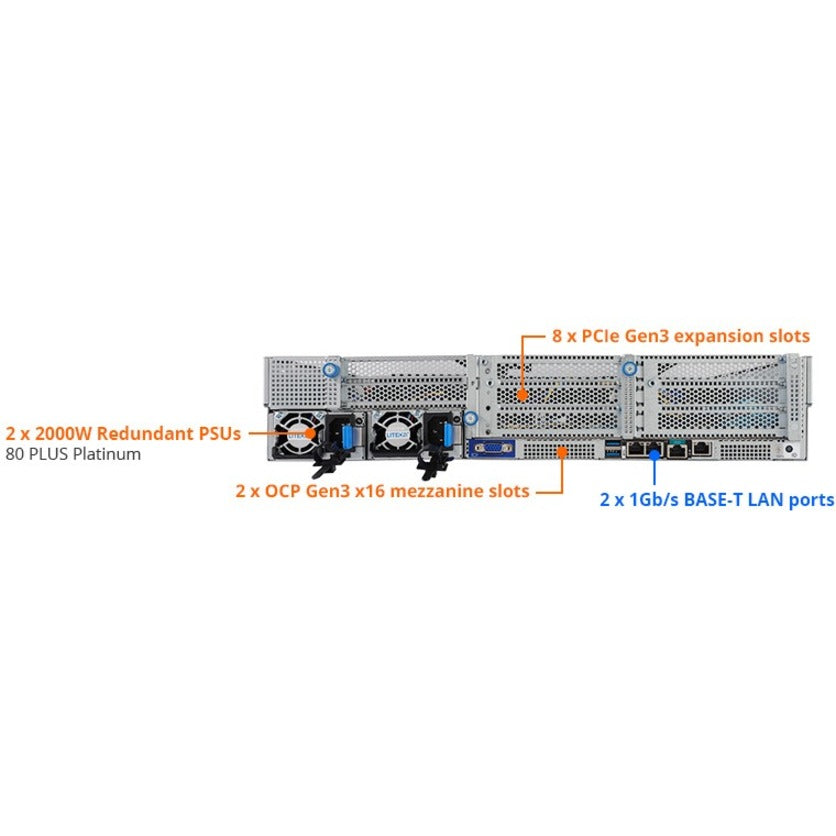

- 8 x PCIe Gen3 expansion slots
- Aspeed® AST2500 remote management controller
- 2000W 80 PLUS Platinum redundant PSU
Product Type: Barebone System
Environmentally Friendly: Yes
Environmental Certification: RoHS
Rack Height: 2U
Brand Name: Gigabyte
Form Factor: Rack-mountable
Manufacturer: GIGABYTE Technology, Inc
Product Model: R281-Z94
Product Name: AMD EPYC DP Server System - 2U 12-Bay
Manufacturer Part Number: R281-Z94
Manufacturer Website Address: http://www.gigabyte.us
Packaged Quantity: 1
Package Contents:
- AMD EPYC DP Server System - 2U 12-Bay
- 2 x CPU Heatsinks
- 1 x Rail Kit
Limited Warranty: 1 Year
Weight (Approximate): 48.50 lb
