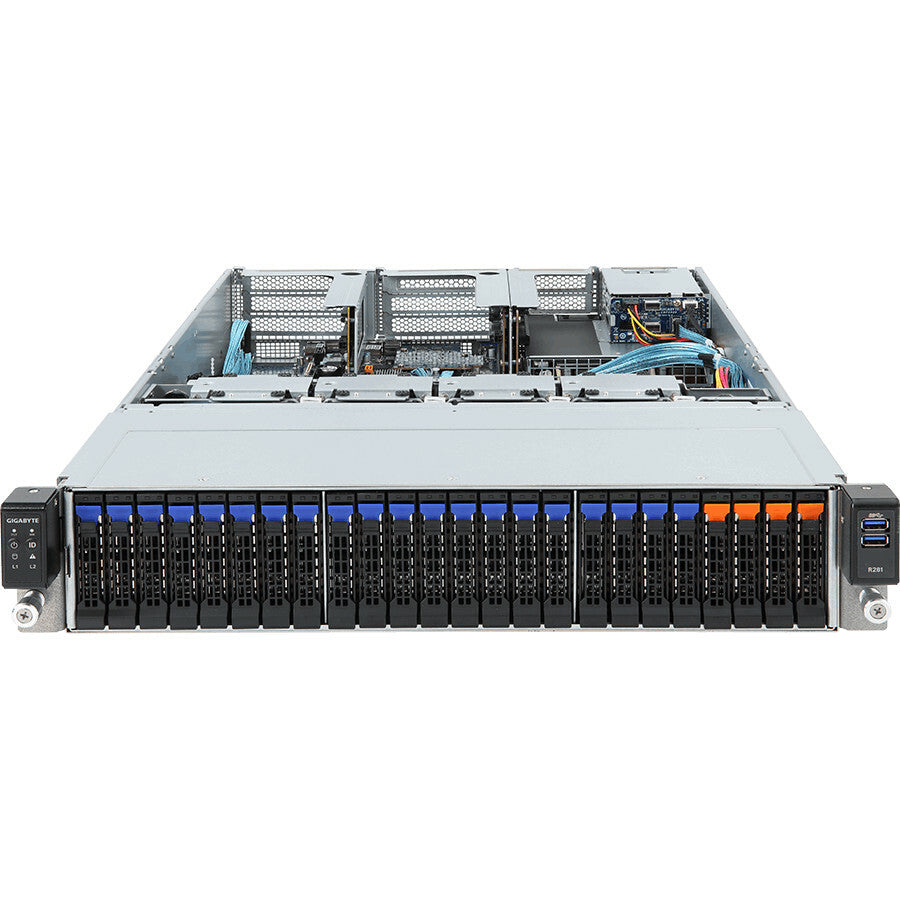

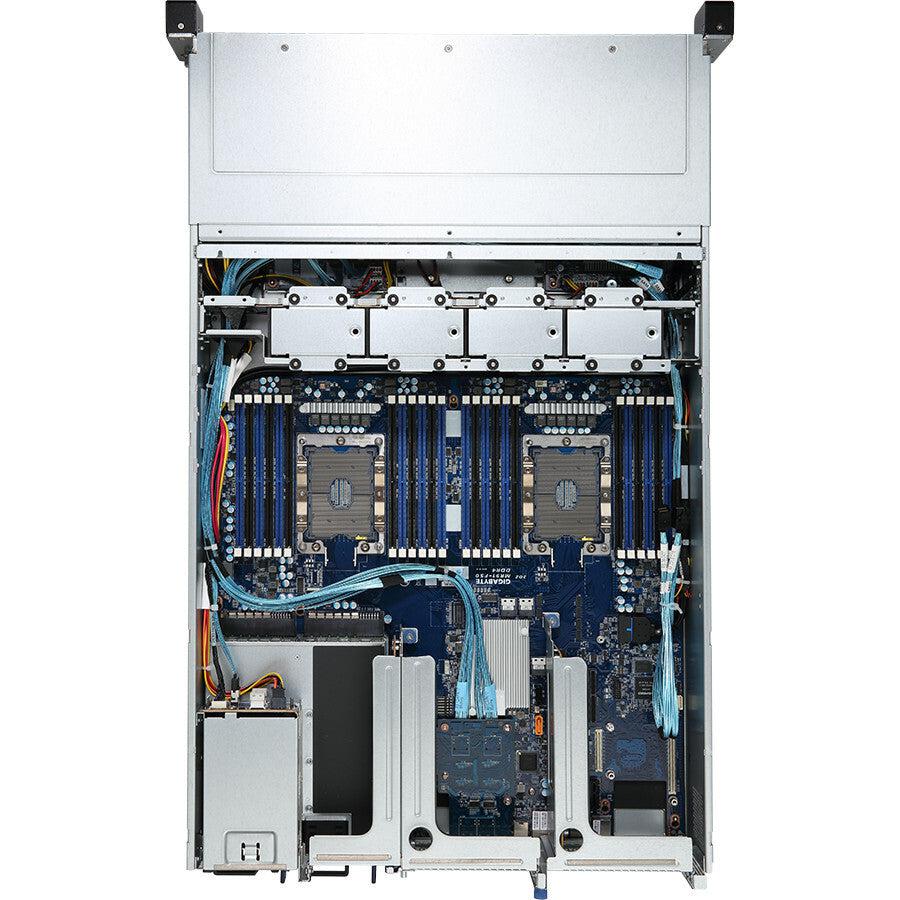

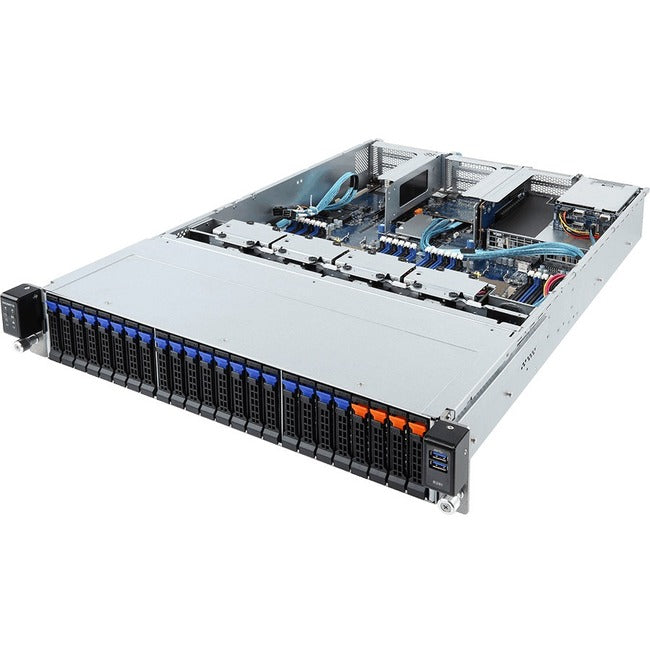

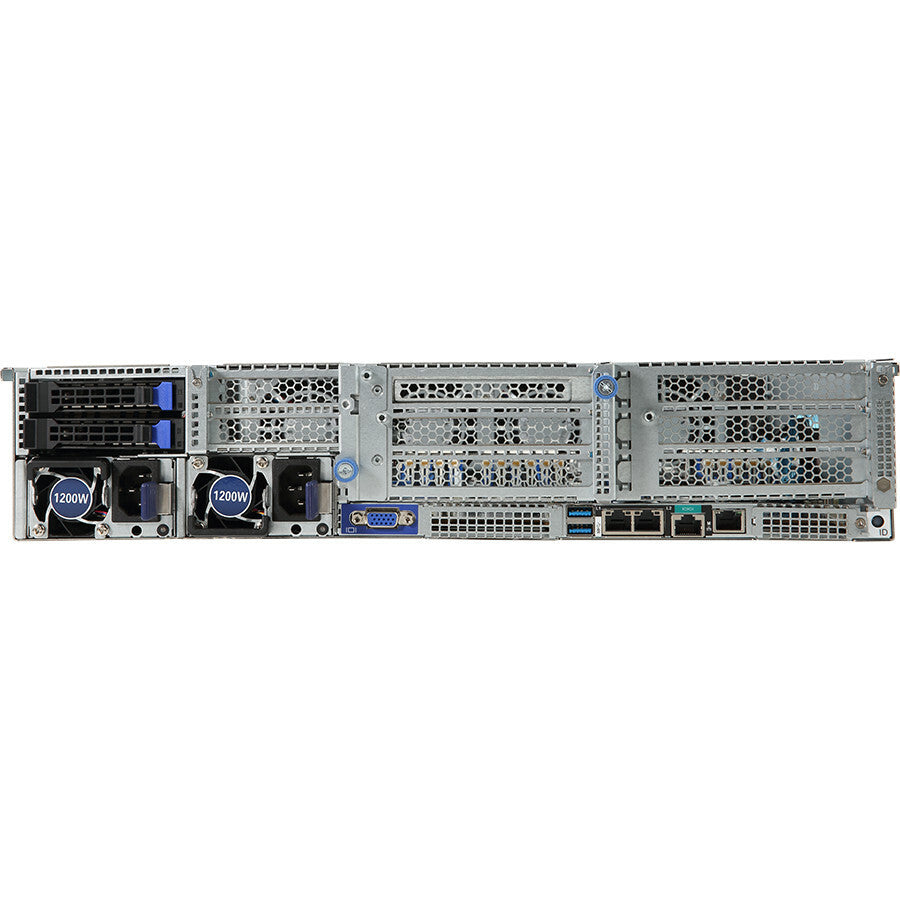

Gigabyte R281-N40 Barebone System - 2U Rack-Mountable - Socket P Lga-3647 - 2 X Processor Support

Gigabyte R281-N40 Barebone System - 2U Rack-mountable - Socket P LGA-3647 - 2 x Processor Support

• 2nd Gen. Intel® Xeon® Scalable and Intel® Xeon® Scalable Processors
• 6-Channel RDIMM/LRDIMM DDR4, 24 x DIMMs
• Supports Intel® Optane™ DC Persistent Memory
• Dual 1Gb/s LAN ports (Intel® I350-AM2)
• 1 x Dedicated management port
• 4 x 2.5" U.2, 22 x SATA/SAS hot-swappable HDD/SSD bays
• 8 x PCIe Gen3 expansion slots
• 1 x OCP Gen3 x16 mezzanine slot
• Aspeed® AST2500 remote management controller
• Dual 1200W 80 PLUS Platinum redundant power supply

2nd Generation Intel® Xeon® Scalable Family Ready

GIGABYTE's servers are fully ready to support the second generation of Intel® Xeon® Scalable Family processors, codenamed "Cascade Lake", which bring the following major enhancements:

•
  Intel® Optane™ DC Persistent Memory: Built-in support for this revolutionary new product based on Intel's 3D Xpoint technology
•
  Overall Performance: Higher CPU frequencies, improved turbo profiles vs. prior-gen Intel Xeon Scalable processors
•
  Increased DDR4 Memory Speed & Capacity: Up to 2933MHz (1 DIMM per channel on some SKUs), 16Gb based DIMM supported
•
  Intel Deep Learning Boost: Significantly accelerates inference performance for deep learning workloads optimized to use VNNI (Vector Neural Network Instructions)
•
  Security: Hardware mitigations for Meltdown / Spectre security vulnerabilities

Intel® Xeon® Scalable Family Processors

GIGABYTE's Intel® Xeon® Scalable Processor family servers are available in dual socket configurations, and are compatible with the full family of different SKUs (Bronze, Silver, Gold and Platinum) that are workload optimized to support different applications, from enterprise IT database, cloud and storage to the most high-demand HPC workloads.

Advanced features built into the silicon include:

•
  Intel® QAT: Speed up data compression and cryptography with integrated Intel QuickAssist Technology (QAT).
•
  Intel® AVX-512: Intel Advanced Vector Extension 512 instruction set architecture enables workload-optimized performance and throughput increases for advanced analytics, high performance computing (HPC) applications, and data compression.
•
  Intel® VROC: Intel Xeon Scalable Processors come with built-in support for Intel VROC (Virtual RAID on CPU). And GIGABYTE Intel Xeon Scalable NVMe SKU servers all ship with an Intel VROC module as standard.
•
  Intel® Omni-Path: Selected GIGABYTE servers support CPU SKUs with integrated Intel Omni-Path Fabric connection

Intel® Optane™ DC Persistent Memory Ready

GIGABYTE's second generation Intel® Xeon® Scalable family servers come ready to support Intel Optane DC Persistent Memory, a revolutionary new product that re-defines traditional memory & storage architectures by enabling a large persistent memory tier between DRAM and SSDs, that's higher capacity than DRAM and faster than SSDs, enabling the user to bring more data closer to the CPU for faster time for insight.

Optane DC Persistent Memory Modules ("DCPMM") integrate seamlessly into existing DDR4 DIMM slots, and use Intel's 3D Xpoint memory technology, which unlike DRAM retains data after power is removed. The modules will be available in capacities up to 512GB - a massive increase compared to the current maximum 128GB of industry-leading DDR4 memory sticks - and can be addressed by the OS or application either as memory (Memory Mode) or storage (Application Direct Mode).

• Perform computational tasks effectively accrediting the Xeon Platinum processor


• DDR4 SDRAM compatible slot - Allows the memory to operate at an effective bus speed while using minimal power, resulting in an optimal computer performance and improved memory heat dissipation


• Up to 10x faster than standard Ethernet connectivity and provides high-performance uplinks


• Can connect up to 5 USB peripherals


• With Serial ATA/600 interface get superb reliability and high-speed data transfer

Product Type: Barebone System
Environmentally Friendly: Yes
Environmental Certification: RoHS
Rack Height: 2U
Brand Name: Gigabyte
Form Factor: Rack-mountable
Manufacturer: GIGABYTE Technology, Inc
Product Model: R281-N40
Product Name: R281-N40 (rev. 300) Barebone System
Manufacturer Part Number: R281-N40
Manufacturer Website Address: http://www.gigabyte.us
Packaged Quantity: 1
Package Contents:

• R281-N40 (rev. 300) Barebone System
• 2 x CPU Heatsinks
• 1 x Rail Kit
• 1 x VROC Module
• 2 x Non-Fabric CPU Carrier
