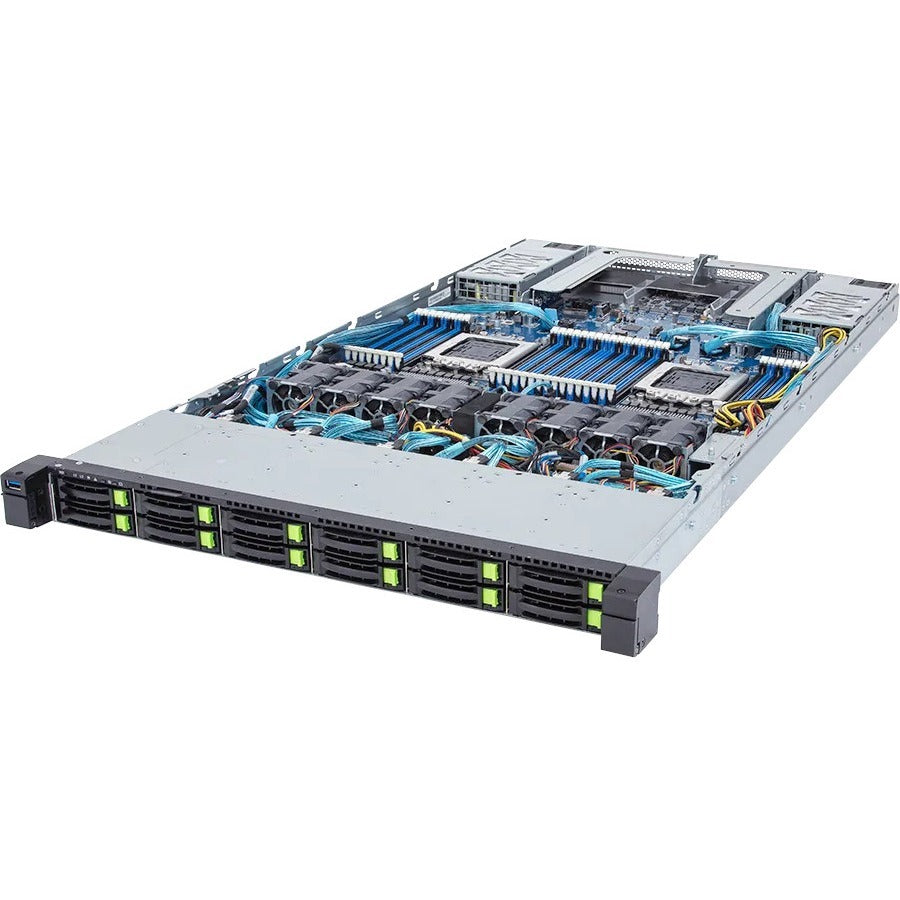

Gigabyte R182-P91 Barebone System - 2U Rack-mountable - Socket LGA-4926 - 2 x Processor Support
Ampere® Altra® Max Processor | Cloud Native Server Processors
Ampere's Altra® family of processors are designed to deliver on predictable performance, high scalability and power efficiency. Ampere's leadership on all these metrics deliver exceptional results and lower the TCO for Cloud Service Providers.
Why Ampere® Altra® Max based Server? | Performance Boost
Up to 80 /128 cores and 128 PCIe lanes demand data to be processed quickly and more jobs at the same time.
Architecture Efficiency
Designed for Cloud and Edge (cloud ecosystem native platform) and provides a high number of computing cores, faster throughput, and low power consumption.
Aggregate Powerhouse
Provides a management tool for cloud and edge to simplify management and improve efficiency.
Superhighway of Data
Utilizing the latest in PCIe 4.0 and 128 PCIe lanes allows faster throughput in GPUs, storage and networking.
Green Savings
Best in class performance/watt, Ampere® Altra® continues to increase value while driving down TCO.
Cooperation
GIGABYTE has developed with Arm systems for almost 10 years. Servers will be ready with fast TTM and product offerings.
Hardware Security | Optional TPM 2.0 Module
For hardware-based authentication, the passwords, encryption keys, and digital certificates are stored in a TPM module to prevent unwanted users from gaining access to your data. GIGABYTE TPM modules come in either a Serial Peripheral Interface or Low Pin Count bus.
Power Efficiency | Automatic Fan Speed Control
GIGABYTE servers are enabled with Automatic Fan Speed Control to achieve the best cooling and power efficiency. Individual fan speeds will be automatically adjusted according to temperature sensors strategically placed in the servers.
Cold Redundancy
To take advantage of the fact that a PSU will run at greater power efficiency with a higher load, GIGABYTE has introduced a power management feature called Cold Redundancy for servers with N+1 power supplies. When the total system load falls lower than 40%, the system will automatically place one PSU into standby mode, and results of 10% improvement in efficiency.
High Availability | Smart Ride Through (SmaRT)
To prevent server downtime and data loss as a result of loss of AC power, GIGABYTE implements SmaRT in all our server platforms. When such an event occurs, the system will throttle while maintaining availability and reducing power load. Capacitors within the power supply can supply power for 10-20ms, which is enough time to transition to a backup power source for continued operation.
- Dual Ampere® Altra® Max Processors
- 8-Channel RDIMM/LRDIMM DDR4, 32 x DIMMs
- Dual ROM Architecture supported
- 2 x 1Gb/s LAN ports (Intel® I350-AM2)
- 1 x Dedicated management port
- 12 x 2.5" NVMe hot-swappable SSD bays
- 1 x Ultra-Fast M.2 with PCIe Gen4 x4 interface
- 2 x PCIe Gen4 x16 expansion slots
- 2 x OCP 3.0 Gen4 x16 mezzanine slots
- 1300W 80 PLUS Platinum redundant power supply
Product Type: Barebone System
Environmentally Friendly: Yes
Environmental Certification: WEEE
Rack Height: 2U
Brand Name: Gigabyte
Form Factor: Rack-mountable
Manufacturer: GIGABYTE Technology, Inc
Product Model: R182-P91
Product Name: R182-P91 Barebone System
Manufacturer Part Number: R182-P91
Manufacturer Website Address: http://www.gigabyte.us
Packaged Quantity: 1
Package Contents:
- R182-P91 Barebone System
- 2 x CPU Heatsinks
- 1 x Rail Kit
Limited Warranty: 3 Year
