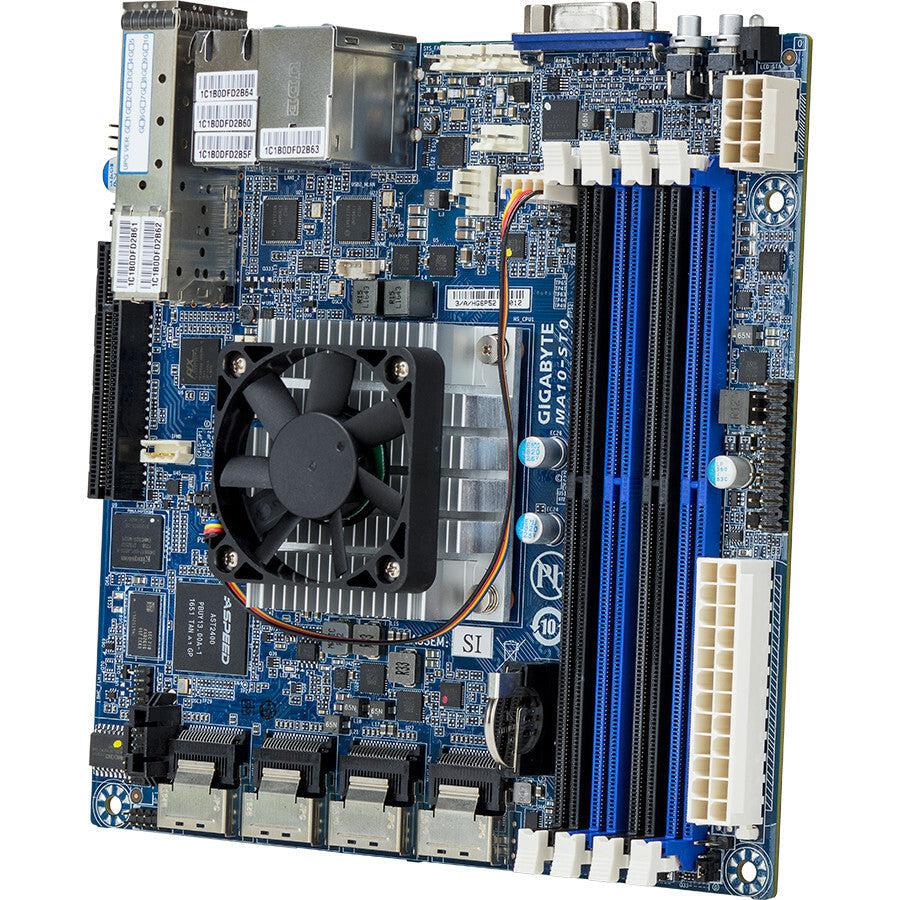

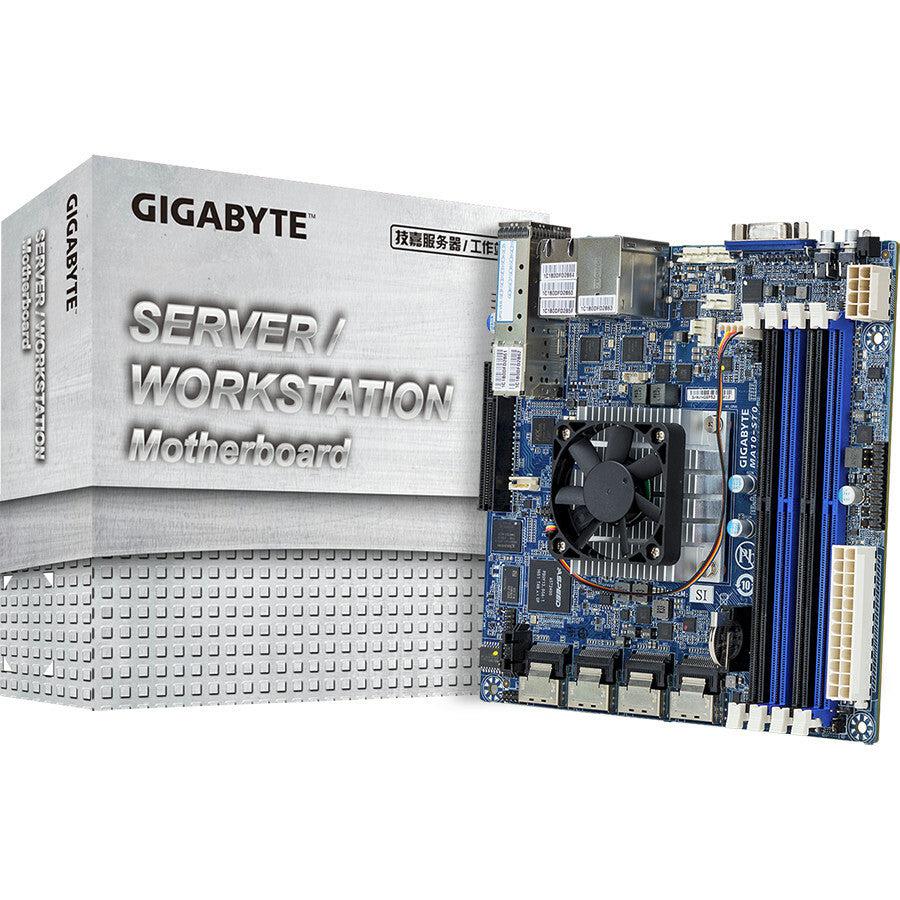

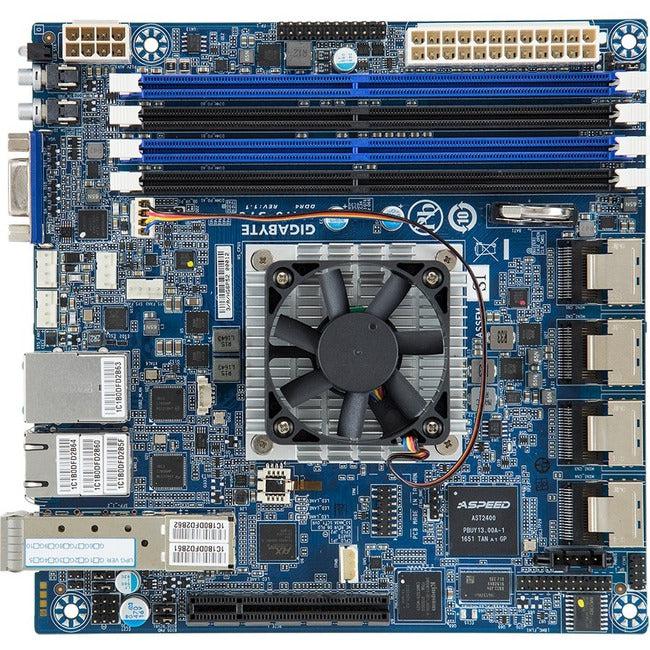

Gigabyte MA10-ST0 Server Motherboard - Intel Chipset - Socket BGA-1310 - Intel Optane Memory Ready - Mini ITX

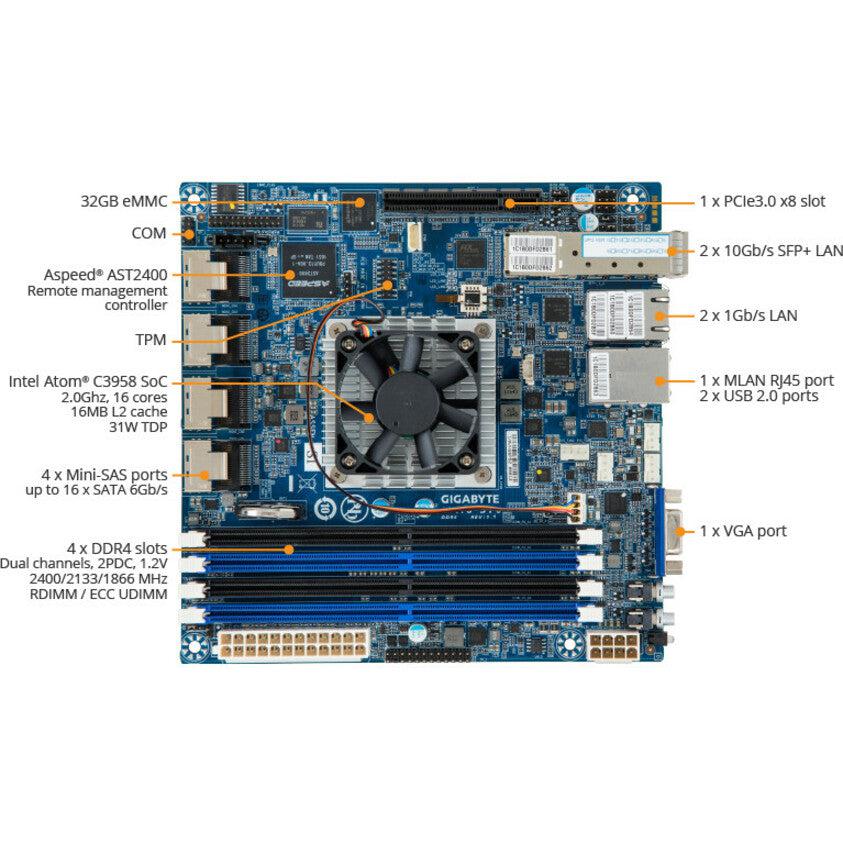

Intel® Atom™ C3958 SoC
- Intel® Atom™ C3958 SoC
- Intel® QuickAssist Technology (QAT)
- 32GB eMMC flash memory
- Dual Channel RDIMM/ECC UDIMM DDR4, 4 x DIMMs

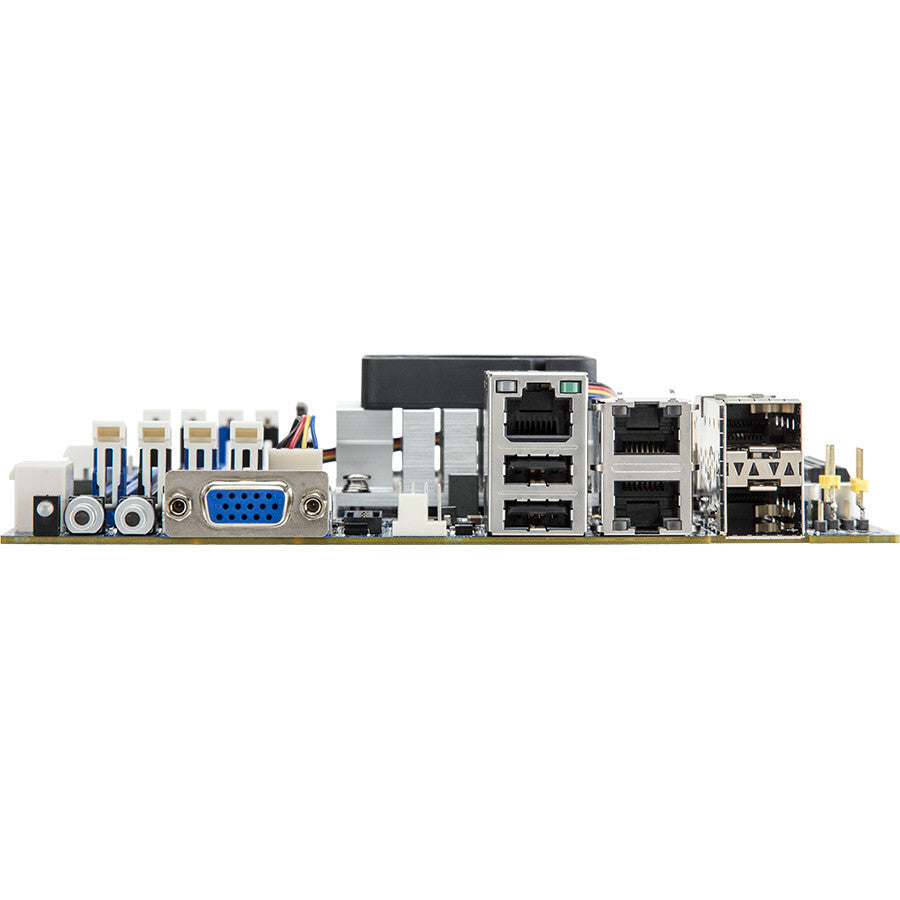

- 2 x 10Gb/s SFP+ and 2 x 1Gb/s LAN ports
- 1 x Dedicated management port
- 4 x Mini-SAS up to 16 x SATA 6Gb/s ports
- 1 x PCIe Gen3 x8 slot
- Aspeed® AST2400 remote management controller
Intel Atom® Processor C3000 Series
Storage Done Right
GIGABYTE and Intel bring value to the fore with this new entry level platform offering flexible storage options and requiring low power - reducing OPEX and CAPEX. Designed to support up to 16 SSDs or an 8 SSD and add-on card combination, this board offers great NAND for your buck! (or Optane)
GIGABYTE's precision design and engineering expertise, in combination with the Intel Atom series, enables these boards to meet the needs of SOHO and thin-edge applications, especially for media and general data storage.
Generation on Generation Improvement
Intel's new generation Atom platform is a single-chip SoC that offers extensive high-speed HSIO options and up to 16 cores at low power. With some of the highest power density (performance/watt) of Intel's Enterprise line up, this platform is ideal for lightweight, storage-heavy applications.
-
Extensive I/O
FFlexible I/O Adapter
PCIe/SATA/USB support -
Performance/Watt Leadership
SoC TDP of 31W -
Networking
2 x 10GbE Intel Ethernet
Up to 20Gbs full duplex encryption with Intel QAT
Performance Efficiency Leadership
This board packs a punch in performance for its size, value (CAPEX and OPEX) and power usage.
High Performance:Power Efficiency On A Compact Board
- 16 cores on single CPU
- TDP of 31W
- Supporting:
- Up to 512GB DDR4 (128GB per DIMM)
- 2 x 10GbE Intel Ethernet
- Up to 20Gbs full duplex encryption with Intel QAT
- 32GB eMMC to store the OS and free up SATA ports
High I/O Integration
Delivers comprehensive storage options on a compact board - the highest SATA support available in the market on this platform.
High Speed I/O Switch
- Allows automatic switching between I/O ports
- Options:

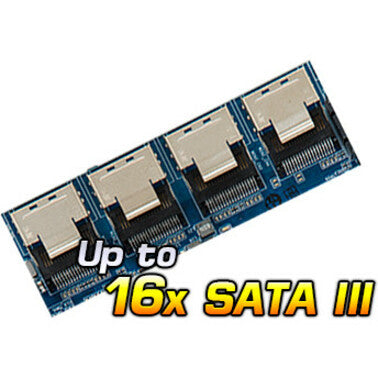

16 x SATA III (from 4 mini SAS connectors)
8 x SATA III (enable 2 mini SAS connectors) and a PCIe (Gen.3 x8) - Dual USB 2.0 support
TPM 2.0 Module
GIGABYTE's Denverton platform is designed to support Trusted Platform Modules (TPM - discrete cryptographic on-board processors).

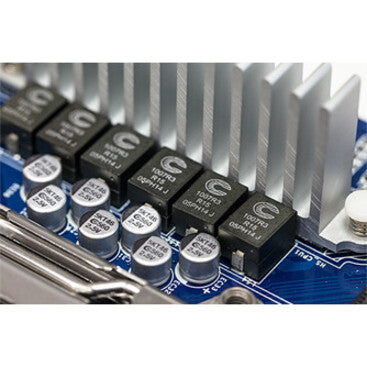

Carefully Selected Components
GIGABYTE's passive components are meticulously selected to guarantee a super stable operating environment and allow the processors and the memory to deliver their maximum performance.With some of the longest service lifetimes in the industry, our server motherboards are built with ultra long lasting components to attain the highest reliability levels.
GIGABYTE Server Management (GSM)
GIGABYTE Server Management (GSM) is GIGABYTE's remote server management platform. The GSM Package consists of a GSM Client, a browser-based user interface (or CLI if preferred) that enables administrators to remotely monitor and manage GSM Server (server level) and GSM Agent (rack level) modules, and are all IPMI and Redfish compliant. The GSM Client is also API enabled to allow administrators to streamline and automate workflows or integrate with third party applications.
- DDR4 SDRAM compatible slot - Install memory that synchronizes electrical and clock signals for an efficient data throughput
- Support ASPEED AST2400 controller that assure high-level performance and interconnectivity of datacenter applications
- Mini ITX form factor builds a perfect symmetry of hardware components needed in media server or NAS box
Product Type: Server Motherboard
Environmentally Friendly: Yes
Brand Name: Gigabyte
Form Factor: Mini ITX
Manufacturer: GIGABYTE Technology, Inc
Product Model: MA10-ST0
Product Name: MA10-ST0 (Rev. 1.1) Server Motherboard
Manufacturer Part Number: MA10-ST0
Manufacturer Website Address: http://www.gigabyte.us
Limited Warranty: 3 Year
