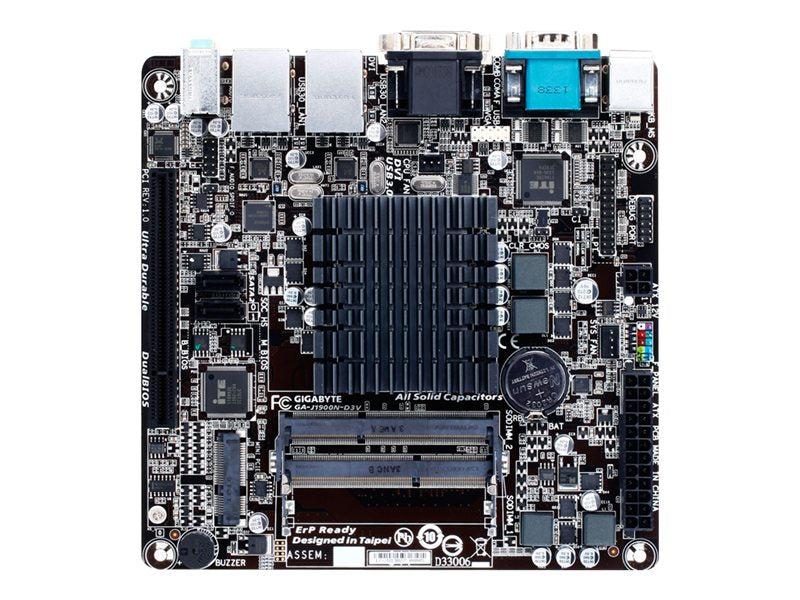

The Gigabyte J1900N Mini-ITX motherboard is a fully integrated PC motherboard featuring the Intel Celeron J1900 quad-core processor. Designed for compact, small form factor PC systems and devices, the Gigabyte J1900N is entirely fanless, making it ideal for always-on, mission critical systems, as well as noise-sensitive digital entertainment systems. Connectivity includes digital and analog display outputs via DVI-D and VGA ports, while a Mini PCI-E slot provides flexible Wi-Fi option and a PCI slot provides wide-range expansion card selections.
- Built-in Intel Celeron J1900 (2.0 GHz) quad-core processor
- Gigabyte Ultra Durable 4 Plus technology
- All solid capacitors with humidity protection new glass fabric PCB design
- Dual LAN with high ESD protection
- Gigabyte UEFI DualBIOS
- DVI-D, D-SUB ports on rear panel
- Ample USB 3.0 ports with Gigabyte 3x USB power
- Gigabyte On/Off Charge for USB devices
- Mini PCI-E expansion slot supports wireless networking cards
- PCI expansion slot supports legacy interface cards
-
Gigabyte Ultra Durable 4 Plus
Gigabyte Ultra Durable 4 Plus debuts on Gigabyte motherboards, with a range of features and component choices that provide record-breaking performance, cool and efficient operation and extended motherboard lifespan.
-
Ultra performance
Gigabyte uses all solid caps (capacitors) and low RDS (on) MOSFETs which are rated to work at higher temperatures to provide a longer lifespan.
-
Gigabyte UEFI DualBIOS
Gigabyte motherboards feature Gigabyte DualBIOS, an exclusive technology from Gigabyte that protects arguably one of your PC's most crucial components, the BIOS. Gigabyte DualBIOS means that your motherboard has both a 'Main BIOS' and a 'Backup BIOS', making users protected from BIOS failure due to virus attack, hardware malfunction, improper OC settings or power failure during the update process.
-
Humidity protection
Humidity can play havoc on a motherboard's circuitry. Gigabyte's Glass Fabric PCB design helps protect against electrical shorts due to humidity by reducing the gaps in spacing between PCB filaments.
-
Power failure protection
Gigabyte also uses anti-surge ICs to protect the motherboard against power surges.
-
Electrostatic protection
Gigabyte motherboards feature High Resistance ICs which help protect the motherboard against electrostatic discharge.
-
On/Off Charge technology
Gigabyte On/Off Charge technology allows you to charge your iPhone, iPad and iPod Touch regardless of whether your PC is on, in standby mode or even off.
-
LAN optimizer - intelligent optimization network management tool
Gigabyte LAN optimizer is designed to allow the user to manage different types of network traffic so that data streams such as HD media, web browsing or online gaming can be prioritized, taking precedence over large data downloads that tend to strangle overall network bandwidth.
Main Specifications
Product Description
Gigabyte GA-J1900N-D3V - 1.0 - motherboard - mini ITX - Intel Celeron J1900
Product Type
Motherboard - mini ITX
Processor
Intel Celeron J1900 / 2 GHz (Quad-Core)
RAM Supported
2 SO-DIMM slots - DDR3, DDR3L, non-ECC
Storage Ports
2 x SATA-300
USB / FireWire Ports
4 x USB 3.0 + (2 x USB 2.0 via headers)
Graphics
Intel HD Graphics
Audio
HD Audio (8-channel)
