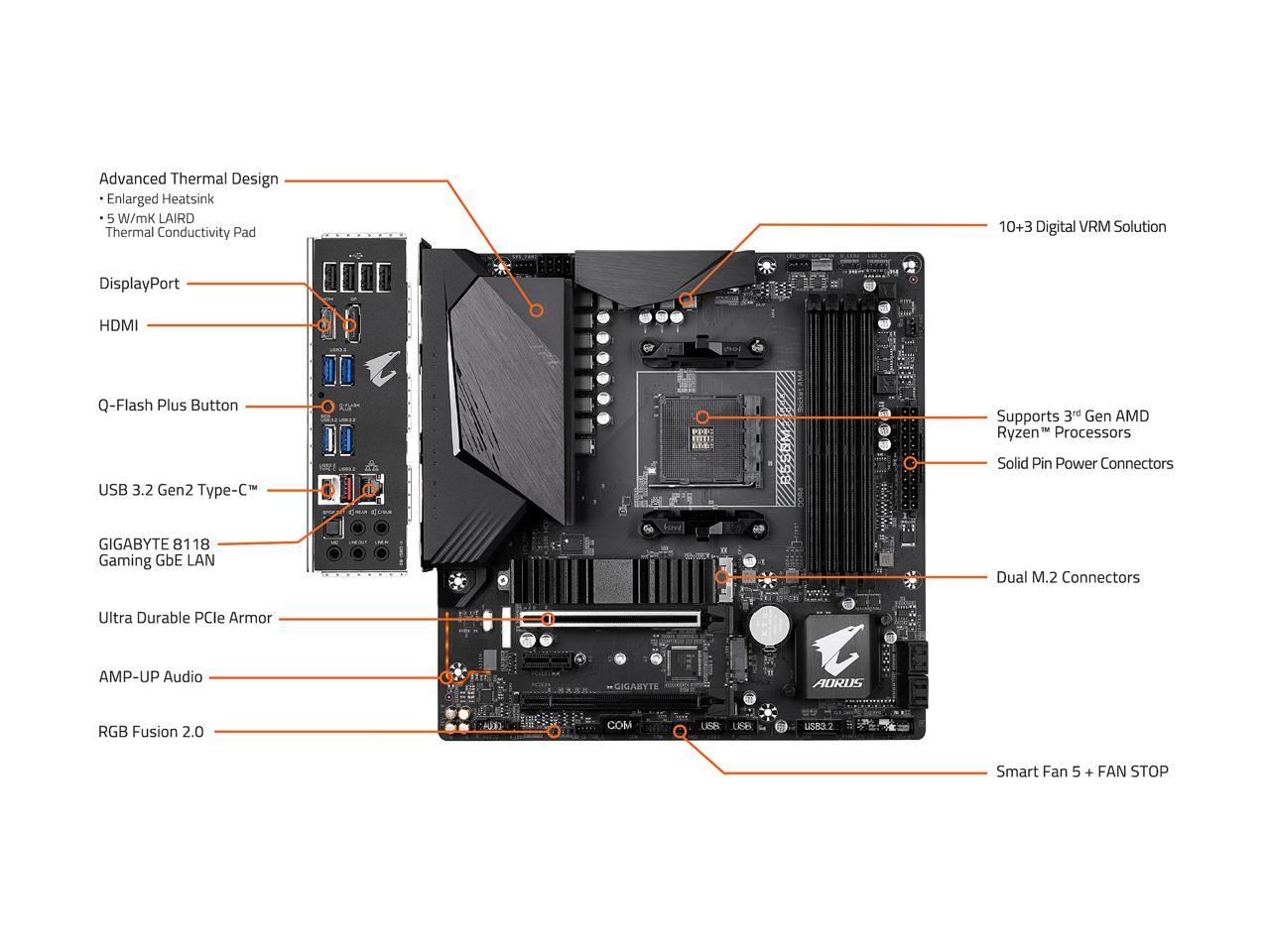

Description
- Support for Ryzen 5000 Series with BIOS UPDATE
- AMD B550
- AMD Socket AM4, support for: AMD Ryzen 5000 Series / 3rd Gen Ryzen and 3rd Gen Ryzen with Radeon Graphics Processors
- 3rd Gen AMD Ryzen Processors:
- Support for DDR4 4000(O.C.)/ 3600(O.C.)/ 3333(O.C.)/ 3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules
- New Generation AMD Ryzen with Radeon Graphics processors:
- Support for DDR4 4733(O.C.)/ 4600(O.C.)/ 4400(O.C.)/ 4000(O.C.)/ 3600(O.C.)/ 3333(O.C.)/ 3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules
- DisplayPort
- HDMI
- Q-Flash Plus Button
- USB 3.2 Gen2 Type-C
- GIGABYTE 8118 Gaming GbE LAN
-
Ultra Durable PCIe Armor
- PCIe 4.0 Slot
- Running 1 x16
-
AMP-UP Audio
- ALC 1200 Audio Codec
- Audio Noise Guard
- High-End Audio Capacitors
-
RGB FUSION 2.0
- Addressable LED Header*2
- RGB LED Header*3
-
10+3 Digital VRM Solution
- Premium Choke and Capacitor
-
Advanced Thermal Design
- Enlarged Heatsink
- 5 W/mK LAIRD Thermal Conductivity Pad
- Supports 3rd Gen AMD Ryzen Processors
-
Solid Pin Power Connectors
- 24 Pin ATX Power Connector
- 8 Pin CPU Power Connector
-
Dual M.2 Connectors
1. 22110 M.2 with Thermal Guard
- PCIe 4.0 M.2 Connector
- NVMe PCIe 4.0/3.0 x4 and SATA Mode (from CPU)
- NVMe PCIe 3.0 x4 and SATA Mode (from Chipset)
-
Smart Fan 5 + FAN STOP
- 5 Fan / Water Pump Connectors
- 6 Temperature Sensors
-
Thunderbolt Header
ULTIMATE POWER DESIGN
To fully support the latest 3rd Gen AMD Ryzen processors, B550 motherboards equip with the ultimate power solution which is true direct, digital and multiple phases. After countless experiments and testing, GIGABYTE presents the unbeatable B550 motherboards for enthusiast. No Compromise and never stop to achieve higher.
10+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
GIGABYTE AORUS series motherboards use a 10+3 phases pure digital PWM + Low RDS(on) MOSFETs design to support the 3rd Gen AMD Ryzen CPUs by offering incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.
Benefits of Low RDS(on) MOSFETs
- Optimized gate charge to minimize switching losses.
- Lower temperature, smaller size, better thermal characteristics.
UNPARALLELED PERFORMANCE
GIGABYTE realize that customer won't stop chasing a better computing performance. We take care of it and implement on products. Protective and optimized memory trace enhance the performance. Faster read and write are needed to save time and improve efficiency. We offer plenty of M.2 storage with thermal guards to ensure unthrottled read and write. In advance, adopting PCIe 4.0 ready components get the B550 motherboards easier to upgrade.
Memory Layout - Daisy Chain Design
With the optimized daisy-chain routing, the B550 motherboard provides a proven speed of DDR4-4000MHz and beyond with high density memory modules*. Optimized daisy-chained routing eliminates the stub effect, pushes the one DIMM per channel in dual channel interleaving mode to hit higher memory frequencies, providing professional gamers a denser and faster system memory experience.
*Performance may vary in circumstances. Please refer to the QVL list for detail support information.
Single 32GB Support
With populated 2 DIMMs per channel on GIGABYTE B550 motherboards, the maximum memory capacity support is 128GB. For users who always run out of memory capacity, they are able to enjoy more bandwidth now for memory-intensive application such as rendering and video editing.
-
PCIe 4.0 Slot
Reinforces PCIe 4.0 x16/x8/x4* bandwidth with lower impedance. -
M.2 PCIe 4.0 Slot
M.2 PCIe 4.0 x4 slot with lower impedance
Dual NVMe M.2 PCIe SSDs in RAID 0 Support
Performance with PCIe 4.0 x4 + PCIe 3.0 x4 NVMe PCIe SSDsB550 AORUS motherboards offer the industry's best compatibility in terms of NVMe storage for users who demand high capacity and seek the best performance. AORUS' unique design can be configured in RAID for record speeds of up to 6560 MB/s (Sequential Read), making AORUS the obvious choice for the ultimate PC.
ADVANCED THERMAL SOLUTION
Unthrottled performance is guaranteed by the advanced thermal solution which including Heatsinks and Thermal Guards. B550 motherboards are cool on MOSFETs and M.2 SSDs even on full loading. It provides lower temperatures for users.
- Pre-Installed IO Armor
- Enlarged MOSFET Heatsink
- Thermal Guard for M.2
AORUS M.2 Thermal Guard
GIGABYTE Ultra-Efficient M.2 Thermal Guard
With durability in mind, GIGABYTE provides a thermal solution for M.2 SSD devices. The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.
Thermal Throttling As Temperature Rises
Smart Fan 5
With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.
- 5 Fan / Water Pump Connectors
- 6 Temperature Sensors
- All Hybrid Fan Headers
- All Fan Pin Headers Upgraded to Hybrid Fan Headers
- Interoperable Fans and Sensors
- Intuitive UI for Fan Control
Hybrid Fan Pin Headers
Assume complete control over your liquid cooling setup! Smart Fan 5 receives up-to-the-second information on flow-rate and water-temperature through the Hybrid Fan Pin Headers or external thermistor sensors—giving you absolute mastery over your PC.- All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode.
New Smart Fan 5 Software
Choose from different modes, Quiet to Full Speed, to match your system usage preferences. For each fan or pump, you can use the intuitive fan curve to define trigger thresholds and corresponding fan speeds.
NEXT GENERATION CONNECTIVITY
A high-end product needs to be future-proof so your system stays up-to-date with the latest technology. B550 AORUS motherboards provide all next generation network and storage to keep you up to speed.EXCLUSIVE REALTEK 8118 GAMING LAN
A high-end product needs to be future-proof so your system stays up-to-date with the latest technology. B550 AORUS motherboards provide all next generation network and storage to keep you up to speed.High Speed Gigabit LAN with Automatic Bandwidth Allocation
Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features and the fastest and smoothest Internet experience.Program On Top Gets Highest Priority
Real-Time Network Monitoring
HDMI 2.1 for 4K / 60P / 21:9 / HDCP 2.3 Support
HDMI 2.1, which is backwards compatible with HDMI 2.0/ 1.4 and offering 48 Gb/s of bandwidth – twice times more than previous generation. This unlocks the potential for users to transfer multiple video streams, as well as a native cinematic 21:9 ratio (which most movies are shot in), Full HDR and HDCP 2.3 support, to offer the best visual experience for viewers.
Native USB 3.2 Gen2
AMD B550 chipset provides native USB 3.2 Gen2 ports with speeds up to 10Gbps. Available over the USB Type-A connector, the USB3.2 Gen2 is much improved with twice the bandwidth compared to its previous generation as well as backwards compatibility with USB2.0 and USB3.2 Gen1.
HI-FI AUDIO SYSTEM
For enthusiasts, sound quality is just as essential to the gaming experience. B550 motherboards are equipped with high quality audio components to provide a superb audio experience. The exclusive AORUS AMP-UP Audio technology makes for the ideal onboard sound solution for the most demanding audiophiles.
High-End Audio Capacitors
GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.
Audio Noise Guard
GIGABYTE motherboards feature an audio noise guard that essentially separates the board's sensitive analog audio components from potential noise pollution at the PCB level.
DEFINITIVE AESTHETICS
B550 motherboards feature RGB FUSION 2.0 and offer the option to control onboard, external light strips, and/or AORUS devices with RGB/ Addressable RGB LEDs to make your PC unique and stylish.
Multi-Zone Light Show Design
Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion 2.0 application, the user has complete control over the LEDs which surround the motherboard.
With an integrated intuitive user interface, the RGB Fusion 2.0 provides you a better solution for customizing the lighting effects across all supported devices. From motherboards, graphics cards to the peripheral products, you can personalize your gaming rig with your own style and show off your build by sharing the profiles. In addition, the new gaming mode makes the lighting effects interactive with selected games to bring you the most immersive gaming experience.
GIGABYTE RGB Fusion APP
Don't just make your PC shine, make it a work of art that friends will envy. With the GIGABYTE RGB Fusion mobile app users can watch as they control the lighting within their gaming PC. This gives users ease of access as they try and adjust colors and speeds for different modes, all this can be achieved away from the keyboard and monitor of their PC.
ULTRA DURABLE
GIGABYTE is reputable for its product durability and high standard of manufactured process. Needless to say, we use the best, high quality components on B550 motherboards and reinforce each part of components to be solid and durable.
Ultra Durable PCIe Armor
Industry Leading Ultra Durable PCIe Armor
The innovative one piece stainless steel shielding design from GIGABYTE reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards.
Solid Pin Power Connectors
B550 AORUS motherboards feature solid plated ATX 24pin & ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading.
Solid Pin Power connector advantages
- Larger contact area for electricity
- More metal quantity to sustain higher power and generated heat
- Ultra durable and longer lifespan
Q-Flash Plus
Update the BIOS easily without installing the CPU, memory and graphics card.
With GIGABYTE Q-Flash Plus, you don't need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you're good to go!
GIGABYTE BIOS & APP CENTER
Good software goes hand in hand with perfect hardware. B550 motherboards bundled several useful and intuitive software to help users to control every aspect of motherboard.
BIOS
New User Interface
All new EASY MODE shows important hardware information in one page including CPU clock, Memory, Storage, Fan.
My Favorites
Add constantly used items into the favorite menu for quick access.
Storage Information
Show all kinds of storage information including SATA, PCIE and M.2 interface.
Changelog
List all changes before saving and exiting bios. Quickly review overall settings modification.
Intuitive Load Line Curve
Clearly show each loadline calibration setting in an intuitive curve graph.
APP CENTER
GIGABYTE APP CENTER is a useful portal of all GIGABYTE MB utilities and drivers, you can choose any utility you want to install from APP CENTER and keep updated with the latest utilities and drivers version.
EasyTune
GIGABYTE's EasyTune is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.
@BIOS
The GIGABYTE @BIOS app allows you to update your system's BIOS from within Windows using a simple and slick graphical user interface. @BIOS can automatically download the latest version from the GIGABYTE servers or you can update your BIOS from a file on your computer. @BIOS also allows you to save your current BIOS to a file, recover your previous BIOS from an image and backup your BIOS to an image.
System Information Viewer
GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system's behavior; these are the possibilities of the System Information Viewer.
XSplit Gamecaster + Broadcaster: Cast Your Game Anytime, Anywhere
Now set up your stage and share the greatest gaming moments with XSplit Gamecaster + Broadcaster! Fully optimized social media integration is ready for real-time chats—keeping you notified yet focused in the game. It takes just one click to stream your gameplay to Twitch. Host your game like a pro!* Free 1 year XSplit Gamecaster + Broadcaster Premium License.
General Information
| UPC | 889523023143 |
|---|
