Description
- BIOS update might require for AMD Zen 3 Ryzen 5000 series CPU
- Supports AMD Ryzen 5000 series / 5000 G-Series / 3rd / 2nd / 1st Gen Processors
- Supports AMD 2nd / 1st Gen Ryzen with Radeon Vega Graphics Processors
- Supports AMD Athlon with Radeon Vega Graphics Processors
- Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
- Intel Ethernet LAN + Dual Band 802.11 ac WI-FI
- Dual PCIe Gen3 M.2 NVMe with Dual Thermal Guards
- ALC1220-VB Enhanced Audio with WIMA Capacitors
- RGB FUSION with Digital LED & RGB LED Headers
- Smart Fan 5 with FAN STOP
- USB 3.1 Gen 2 with USB Type-C & Type-A
- Integrated I/O Shield of Ultra Durable Design
- CEC 2019 Ready
AMD introduces the latest Ryzen 2000 series processors to provide the computing power for gaming need. GIGABYTE's 400-series motherboards perfectly fit the latest AMD Ryzen 2000 series processors' computing performance with more features and more control. Users can enjoy the benefits brought by AMD Ryzen 2000 series processors.
AMD StoreMI technology
GIGABYTE 400-series maximize your PC's potential with AMD StoreMI technology. StoreMI accelerates traditional storage devices to reduce boot times and enhance the overall user experience. This easy-to-use utility combines the speed of SSDs with the high capacity of HDDs into a single drive, enhances the read/write speeds of the device to match that of SSDs, bolsters data performance for incredible value, and transforms the everyday PC to a performance driven system.
The benefits of AMD StoreMI:
- Making the PC experience fast, smooth and easy
- Optimizing computer responsiveness from system boot to application launch
- Offering SSD performance with HDD capacity at an affordable cost
- Quickly accessing key files by automatically learning users' computing behaviors

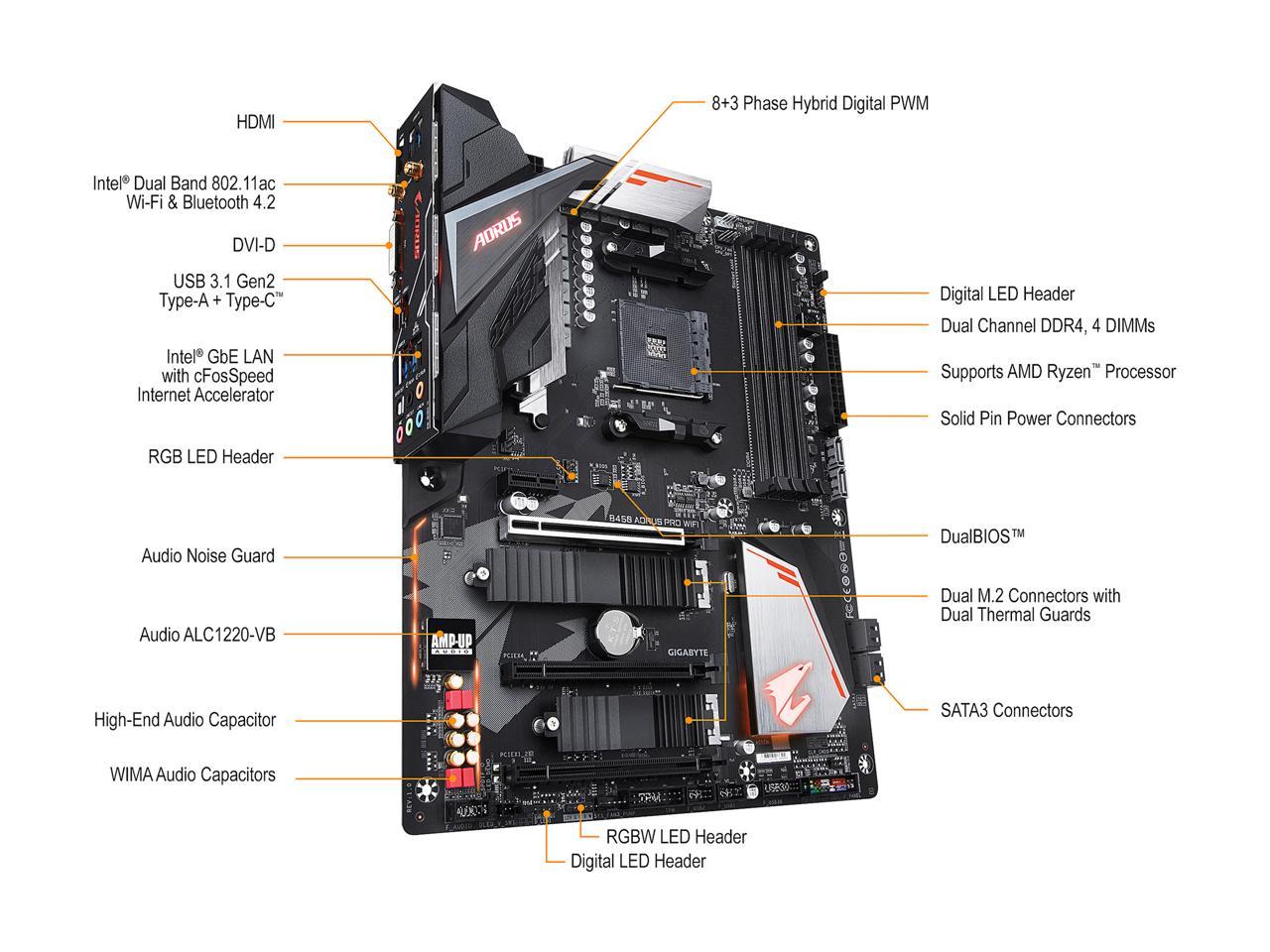

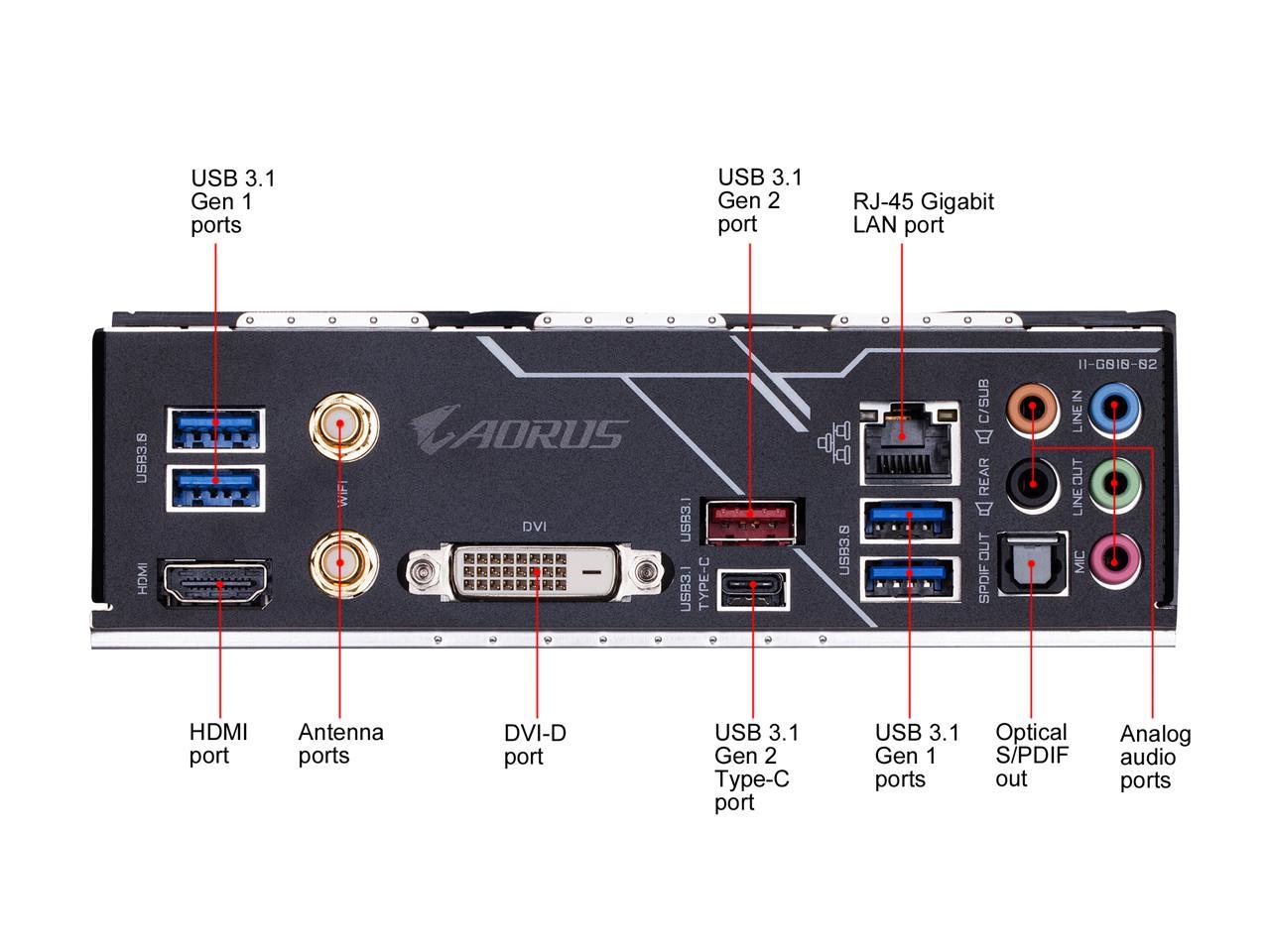

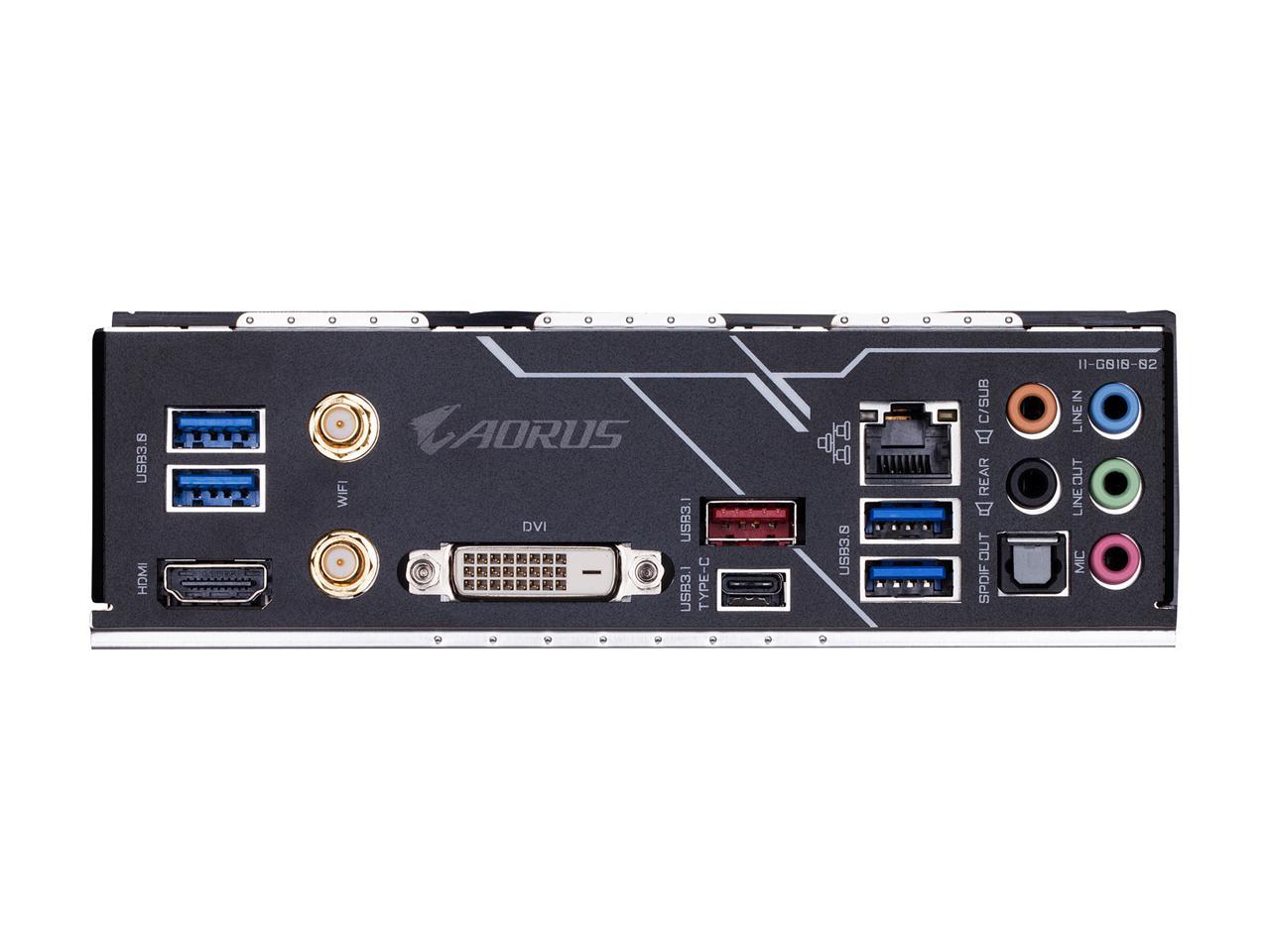

- HDMI
- Intel Dual Band 802.11ac WIFI & BT 4.2
- DVI-D
- USB 3.1 Gen2 Type-A + Type-C
- Intel GbE LAN with cFosSpeed Internet Accelerator
- RGB LED Header
- Audio Noise Guard
- Audio ALC1220-VB
- High-End Audio Capacitors
- WIMA Audio Capacitors
- Digital LED Header
- RGBW LED Header
- SATA3 Connectors
- Dual M.2 Connectors with Dual Thermal Guards
- DualBIOS
- Solid Pin Power Connectors
- Supports AMD Ryzen Series Processors
- Digital LED Header
- Dual Channel DDR4, 4 DIMMs
- 8+3 Phase Hybrid Digital PWM
8+3 Hybrid Digital Power Design
Optimized for the 2nd Gen AMD Ryzen CPUs
Intersil Digital PWM + Lower RDS(on) MOSFETs
AORUS 400-series motherboards use a 8+3 phase PWM + Lower RDS(on) MOSFETs design to support the 2nd Gen AMD Ryzen processors by offering incredible precision in developing power of the motherboard's most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.
Benefits of Lower RDS(on) MOSFETs
- Optimized gate charge to minimize switching losses.
- Lower temperature, smaller size, better thermal characteristics.
Dual NVMe M.2 PCIe SSDs in RAID
Extreme Performance with PCI-E x4 NVMe PCIe SSDs
With Dual M.2s available on the AORUS X470 motherboards, configuring RAID Arrays has never been simpler.
AORUS M.2 Thermal Guard
GIGABYTE Ultra-Efficient M.2 Thermal Guard
With durability in mind, GIGABYTE provides a thermal solution for M.2 drives. The M.2 Thermal Guard prevents throttling and bottlenecks from M.2 devices as it helps to reduce and dissipate heat before it becomes an issue.
Immersive VR Gaming Experience GA-AX370-Gaming
- VR requires more performance than Full HD graphics for a steady 90FPS or greater.
- Only Gaming PCs can provide the best VR experience.
Recommended configuration for VR Gaming PC
- Graphics Card: NVIDIA GTX 1050 / AMD R9 290 or greater, Compatible HDMI 1.4 video output
- CPU: AMD Ryzen 7 series processor
- Motherboard: GIGABYTE AMD X470 / B450 motherboards
- Memory: 8GB RAM or greater
- USB Ports: 3x USB 3.0 ports plus 1x USB 2.0 port or greater
- OS: Windows 10 64-bit or newer
To create a seamless VR experience AORUS Motherboards offer the best features to make your virtual reality feel like your actual reality. With technologies such as NVMe support via M.2 or U.2 and a one piece metal shielding to brace for heavier discrete graphics cards it's obvious that AORUS has the tools you need to start your journey in VR. To set the mood AORUS Motherboards include RGB Fusion to put you in the center of action. simpler.
Faster and Better Coverage with Intel Dual Band 802.11ac WIFI + BT 4.2 Module
The onboard 802.11ac WIFI module from Intel supports Dual Band and up to 433 Mbps, 3x faster WIFI speed than 802.11n and also support BLUETOOTH 4.2.
Native USB 3.1 Gen2
AMD 400-series chipset provides native USB 3.1 Gen2 ports with speeds up to 10Gbps. 2x faster than USB 3.1 Gen 1 along with backwards compatibility with existing USB devices.
Connecting the Future - USB Type-C:
- The World's Next Universal Connector
- Reversible USB Type-C with USB 3.1 Gen 2
Intel GbE LAN with cFosSpeed Internet Accelerator Networking
Intel GbE LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.
ALC1220-VB Immersive Gaming ViBes
All New Realtek High-End HD Audio Codec
ALC1220 120dB(A) SNR HD Audio with Smart Headphone Amp automatically detects impedance of your head-worn audio device, preventing issues such as low volume and distortion.New VB series audio controller stream your voice to the world vibrantly with both front/rear microphone SNR up to 110/114dB(A).
No More Confusion
During In-Game Voice Chat
Microphone input with higher front dynamic range allows gamers to hear more clearly. No more misunderstandings, no more confusing GO! GO! GO! as NO! NO! NO!During In-Game Voice Chat
High-End WIMA & Audio Capacitors
The AORUS motherboards boast a combination of Hi-Fi grade WIMA FKP2 capacitors and high-end Chemicon audio capacitors. While the high-end audio capacitors are suited for high-grade audio equipment, using state of the art technology to provide rich sound in the bass and clearer high frequencies, the WIMA FKP2 capacitors are being used widely in premium grade Hi-Fi systems. The addition of this to the exclusive AOURS AMP-UP Audio technology makes for the ideal onboard sound solution for the most demanding audiophiles.
RGB Fusion with Digital LEDs Support
With AORUS Motherboards, RGB Fusion is even better with Digital LEDs.* RGB Fusion offers users the option to control onboard RGB and external RGBW / Digital LED light strips for their PC. Already feature filled with colors and patterns, RGB Fusion on AORUS Motherboards are now upgraded with Digital LED support. With external digital LED strips*, where each LED is digitally addressable, users can experience even more patterns, styles, and illuminations.
AORUS Gaming Motherboards will support either 5v or 12v digital LED lighting strips and up to 300 LED lights. RGB Fusion with Digital LEDs comes with 9 new patterns and various speed settings with more to come.
AORUS Gaming Motherboards will support either 5v or 12v digital LED lighting strips and up to 300 LED lights. RGB Fusion with Digital LEDs comes with 9 new patterns and various speed settings with more to come.
Multi-Zone Light Show Design
Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion application, the user has complete control over the LEDs which surround the motherboard.
Basic
Advanced
Supports RGBW & UV Light Strips
Independently Programmable Onboard Pin Header for RGBW/UV LED Strips
Not bright enough? You can install standard 12V external RGB, RGBW or RGB/UV light strips on the RGBW pin header and control its color from the RGB Fusion software. Using a RGBW light strip with a dedicated white LED, users will experience brighter and more vibrant shades of colors.
RGB Fusion (Advanced mode)
With the all new RGB Fusion software, users have access to different preset LED lighting configurations with choice of colors. You can even set the LEDs to synchronize with your favorite music or have them change colors to indicate the CPU temperature. For true lighting experts there is an Advanced Mode, which can be fully customized by individual area with its own effects and color transitions, along with specific duration and transition times. along with specific duration and transition times.along with specific duration and transition times.Synchronize with RGB FUSION READY Peripherals
With a dazzling array of products supported, RGB Fusion is the software that brings it all together, letting your accessories synchronize to the same beat.
-
Independent Control
Customized different color for different section of board -
Synchronize with RBG FUSION READY Peripheral
With a dazzling array of products supported, RBG Fusion is the software that brings it all together, letting your accessories synchronize to the same beat. Customize all your LEDs how you like-have them match, dazzie and impress. -
Fully Customizable
Adjust lighting animation with color stops, color duration, trnsition period, and color effects. -
Lighting Profile
Save, export and import profiles to quickly change effects based on your preference and to share with others.
GIGABYTE RGB Fusion APP
Don't just make your PC shine, make it a work of art that friends will envy. With the GIGABYTE RGB Fusion mobile app users can watch as they control the lighting within their gaming PC. This gives users ease of access as they try and adjust colors and speeds for different modes, all this can be achieved away from the keyboard and monitor of their PC.
Smart Fan 5
With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.
- 5 Fan Pin Headers
- 6 Temperature Sensors
- All Fan Pin Headers Upgraded to Hybrid Fan Headers
- Supports High Current Fans up to 24W(2AX12V) with Over-Current Protection
- Intuitive UI for Fan Control
Achieve fan silence. With Fan Stop map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature—all of it can be customized to your liking.
Hybrid Fan Pin Headers
Assume complete control over your liquid cooling setup! Smart Fan 5 receives up-to-the-second information on flow-rate through the Hybrid Fan Pin Headers—giving you absolute mastery over your PC.All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode.
New Smart Fan 5 Software
Choose from different modes, Quiet to Full Speed, to match your system usage scenario. For each fan or pump, you can use the intuitive fan curve to define trigger thresholds and corresponding fan speeds.
Interoperable Sensors and Fans
Each fan can be customized to operate at different speeds according to any defined temperature source input (except the CPU fan).
Fan Curve
Customize fan curves based on specific temperatures with the intuitive graphical UI.
Integrated I/O Shield Armor
Durable Design And Easy Installation
With an integrated I/O shield, building a GIGABYTE Ultra Durable PC is even easier and convenient. Users can expect excellent durability with the durable design of the pre-installed I/O shield.
Solid Pin Power Connectors
Make Good Connection and Significantly Lower the Wires Capacity
AORUS 400-series motherboards feature solid plated ATX 24pin & ATX 12V 8pin power connectors for offering stable power supply while CPU overloading.
Solid Pin Power connector advantages
- Larger contact area for electricity
- More metal quantity to sustain higher power and generated heat
- Ultra durable and longer lifespan
GIGABYTE Patented Double Locking Bracket
START SULFURIZATION PROTECTION
Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.
Diagnostic LEDs
Hardware Troubleshooting at a Glance
Onboard LEDs controlled by the system BIOS indicate if a malfunction is occurring, allowing users to quickly diagnose which major component (CPU/DDR/VGA/HDD) is malfunctioning so they may take action promptly.
GIGABYTE Patented DualBIOS Design
GIGABYTE Ultra Durable motherboards feature GIGABYTE DualBIOS, an exclusive technology from GIGABYTE that protects arguably one of your PC's most crucial components, the BIOS. GIGABYTE DualBIOS means that your motherboard has both a 'Main BIOS' and a 'Backup BIOS', protecting users from BIOS failure due to virus, hardware malfunction, improper OC settings or power failure during the update process.
Easy to Install "G Connector" Design
The tiny cables of the front panel connectors can be hard to manipulate as space is restricted and indicators being tiny. With the G Connector, you can connect all the FP cables at once, simplifying the process of building your next PC and saving you some frustrations.
GIGABYTE BIOS & Applications
Refreshed BIOS
The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.
GIGABYTE APP Center
The GIGABYTE APP Center gives you easy access to a wealth of GIGABYTE apps that help you get the most from your GIGABYTE motherboard. Using a simple, unified user interface, GIGABYTE APP Center allows you to easily launch all GIGABYTE apps installed on your system, check related updates online, and download the latest apps, drivers, and BIOS.
3D OSD
3D OSD automatically detects and displays your system information during games, allowing you to easily get a hold of your system information without switching between screens.TriDef SmartCam | Custom Stream Modding
To facilitate being the full streaming solution each AORUS motherboard includes TriDef SmartCam software, you are now able to remove backgrounds without the hassle of using a green screen. Through the SmartCam application you can now apply live filters, and fully control your background, not only while streaming, but also through other video applications such as Skype. *Free 1 month TriDef SmartCam License.
- Enjoy 14-days FREE seamless connection to any game server in the world
- Experience up to 60% overall connection improvement
- Receive FREE unlimited access to PC Gaming Launchpad, supporting over 800 MMO games
- Monitor your Game Ping and Connection Statistics continuously
XSplit Gamecaster + Broadcaster: Cast Your Game Anytime, Anywhere
Now set up your stage and share the greatest gaming moments with XSplit Gamecaster + Broadcaster! Fully optimized social media integration is ready for real-time chats—keeping you notified yet focused in the game. It takes just one click to stream your gameplay to Twitch. Host your game like a pro! *Free 14 days XSplit Gamecaster + Broadcaster Premium License.
CEC 2019 Ready
Save the power as easy as one click
CEC Requirement : PC power consumption must be under a certain level when it's in off mode, idle mode, stand-by mode. With high power efficiency hardware components and fine tuned BIOS, GIGABYTE motherboards can achieve lower power consumption under idle mode and fully comply with new CEC 2019 (California Energy Commission) power consumption requirement.
4K Ultra HD Support
4K resolution is the next technological milestone in high-definition content delivery, utilizing approximately 4,000 pixels on the horizontal axis, more than four times today's standard HD pixel density. GIGABYTE motherboards provide native 4K support with integrated Intel HD Graphics via HDMI.HDMI - The Next Generation Multimedia Interface
HDMI is a High-Definition Multimedia Interface which provides up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMI is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content.General Information
| Manufacturer | GIGABYTE Technology, Inc |
|---|---|
| Manufacturer Part Number | B450 AORUS PRO WIFI |
| Manufacturer Website Address | http://www.gigabyte.us |
| Brand Name | Aorus |
| Product Line | Ultra Durable |
| Product Series | 400 |
| Product Model | B450 AORUS PRO WIFI |

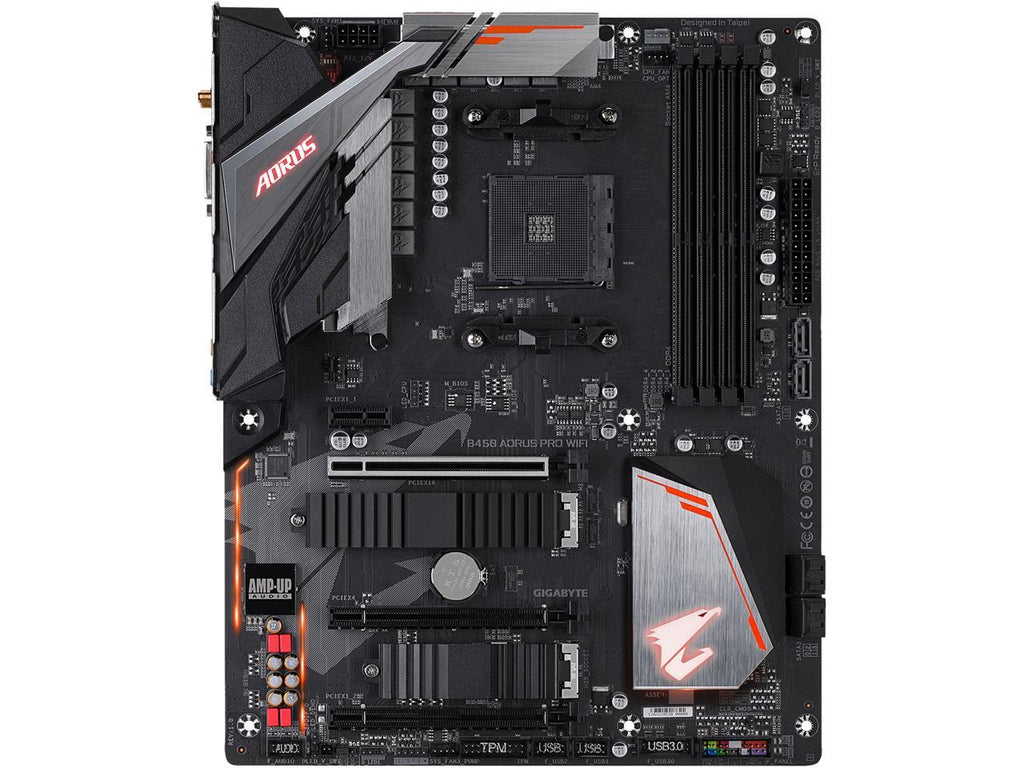

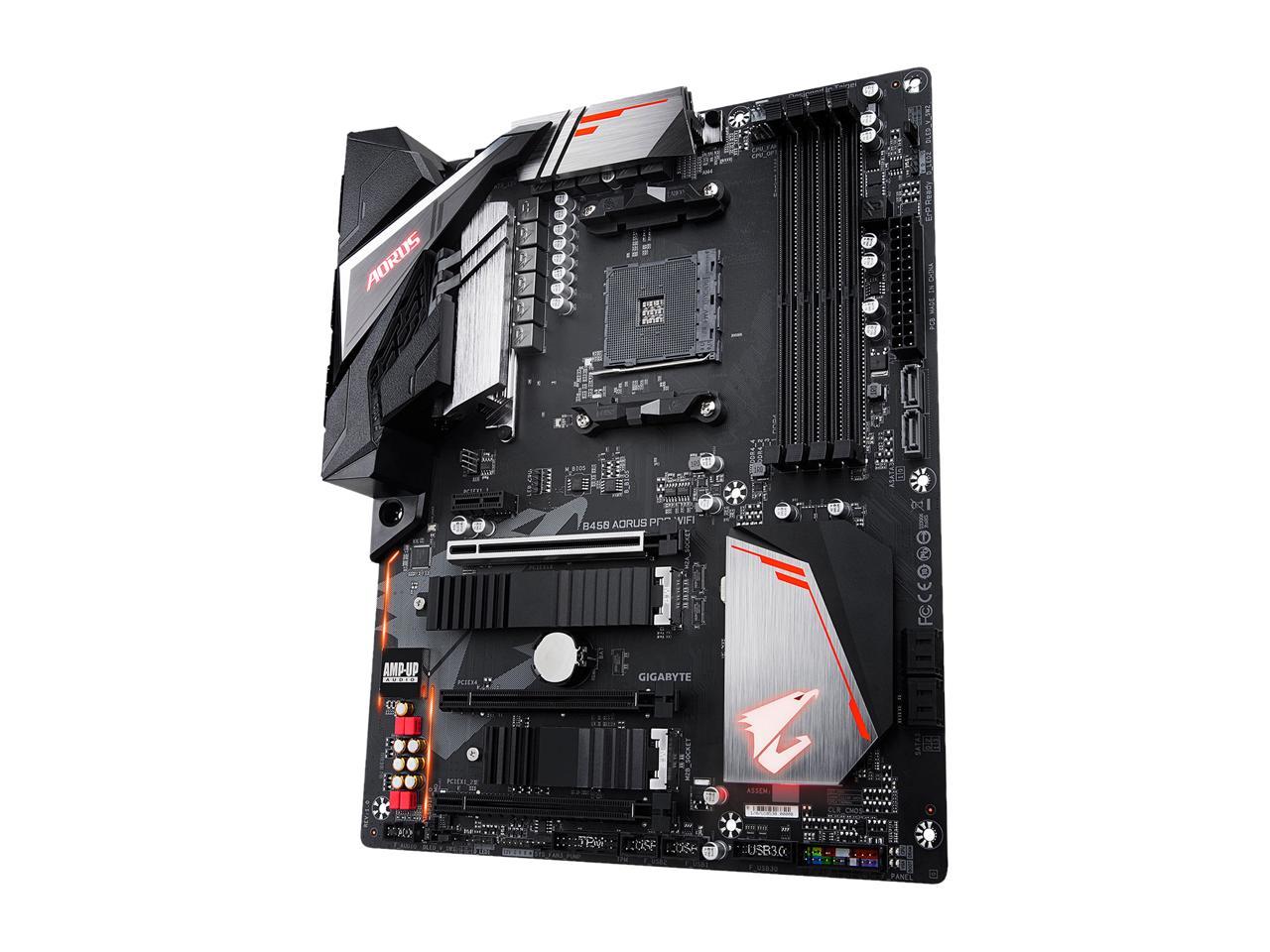

| Product Name | Ultra Durable B450 AORUS PRO WIFI (Rev. 1.0) Desktop Motherboard |
| Product Type | Desktop Motherboard |
| UPC | 889523014349 |
| Chipset Manufacturer | AMD |
|---|
| Bluetooth | Yes |
|---|
| HDMI | Yes |
|---|---|
| Total Number of USB Ports | 6 |

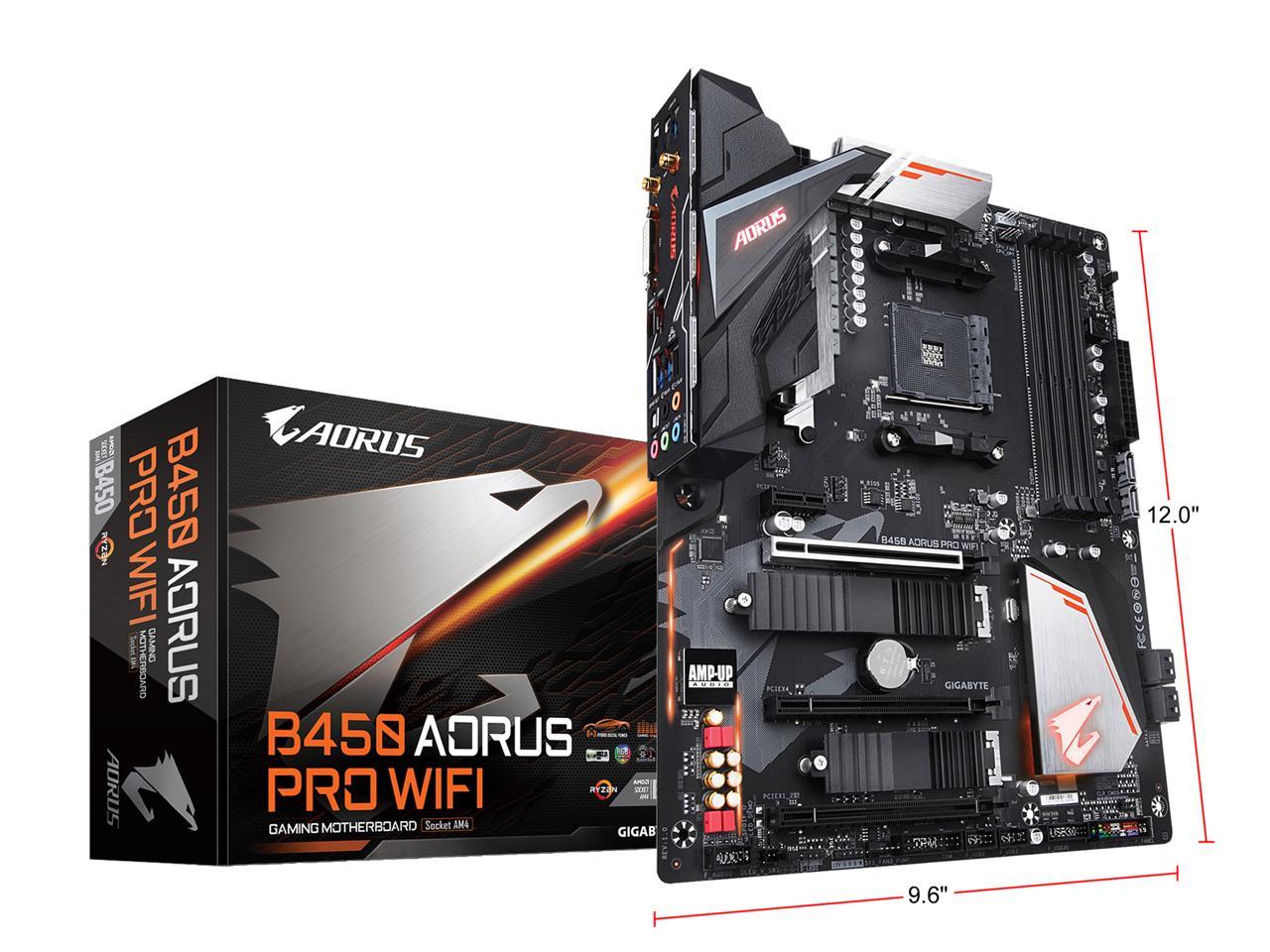

| Width | 12" |
|---|---|
| Depth | 9.6" |
| Package Contents |
|
|---|---|
| Environmentally Friendly | Yes |
| Limited Warranty | 3 Year |
|---|
