Description
- Supports 9th and 8th Gen Intel Core Processors
- Dual Channel Non-ECC Unbuffered DDR4
- New Hybrid Digital PWM Design
- High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
- Ultra-Fast M.2 with PCIe Gen3 X4 & SATA interface
- RGB FUSION supports RGB LED strips in 7 colors
- GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
- CEC 2019 Ready, Save the Power as Easy as One Click
- Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
- Anti-Sulfur Resistors Design
- Ultra Durable 15KV Surge LAN Protection
- Intel Optane Memory Ready
- GIGABYTE UEFI DualBIOS

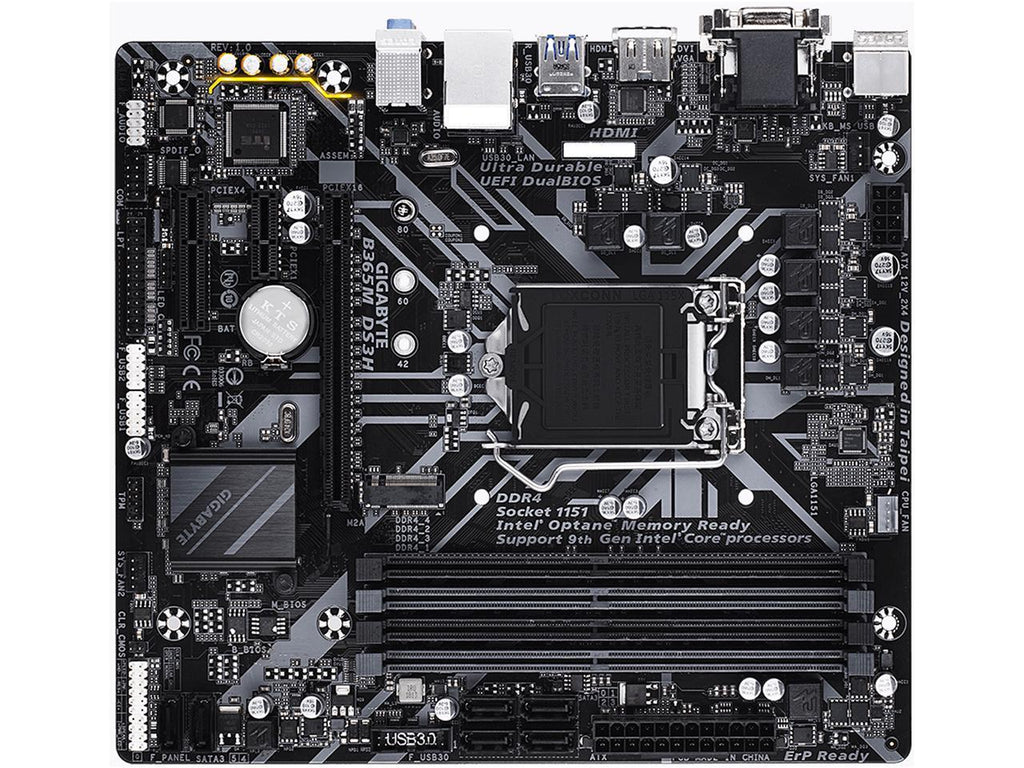

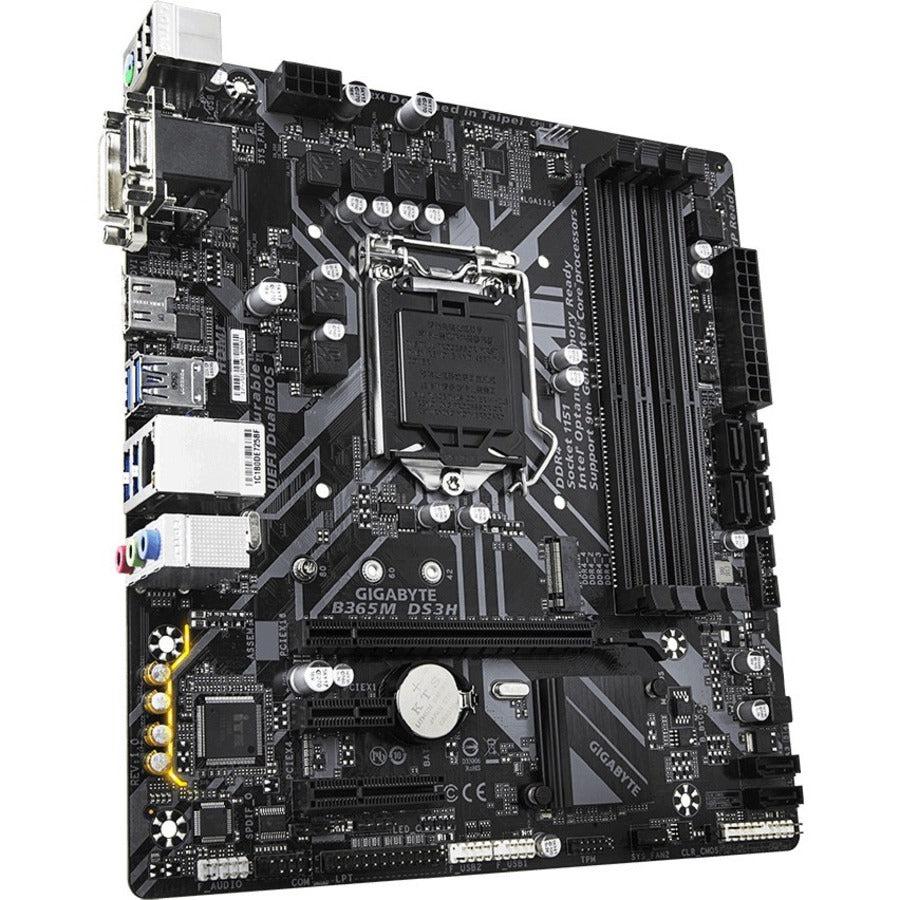

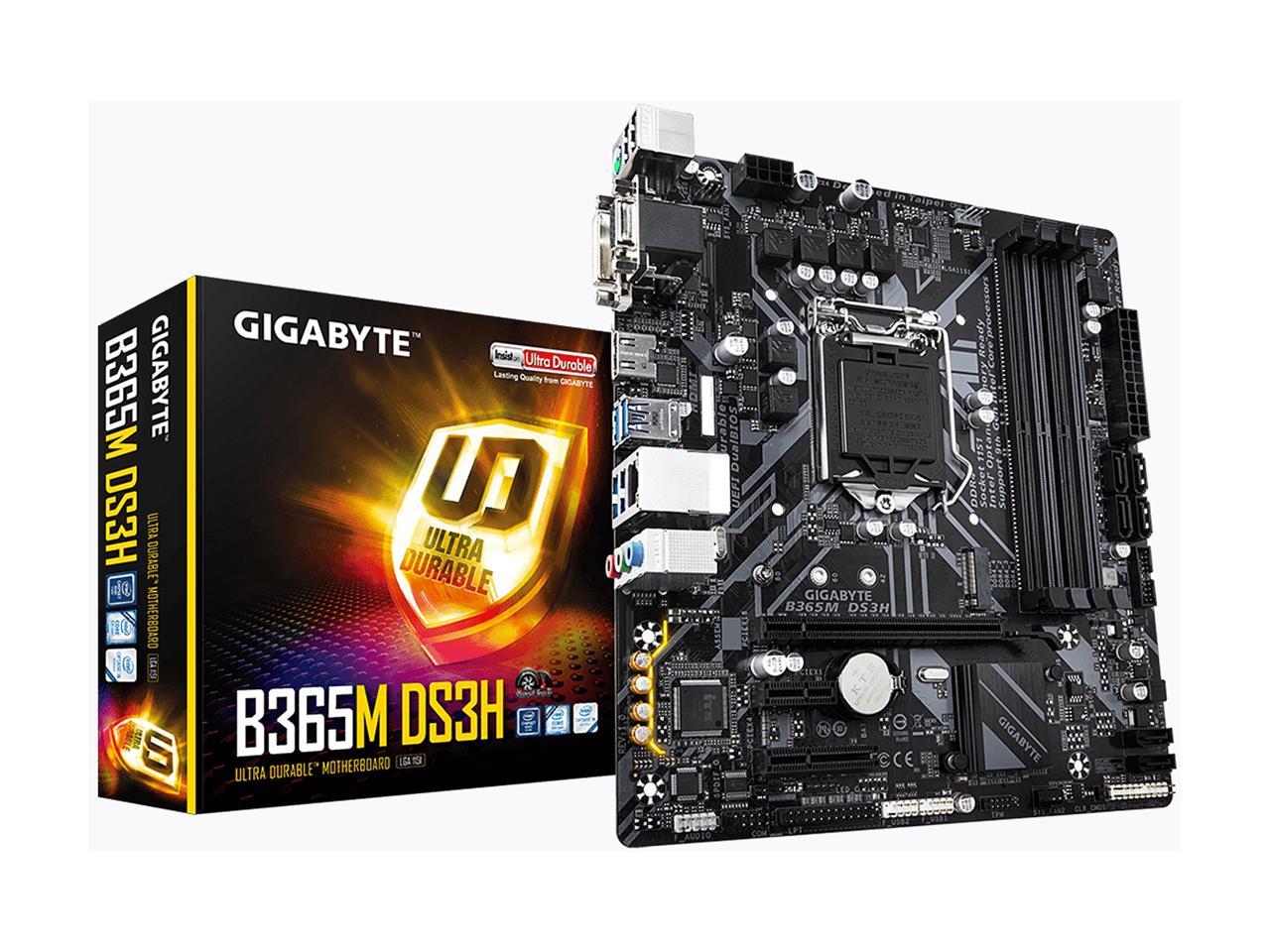

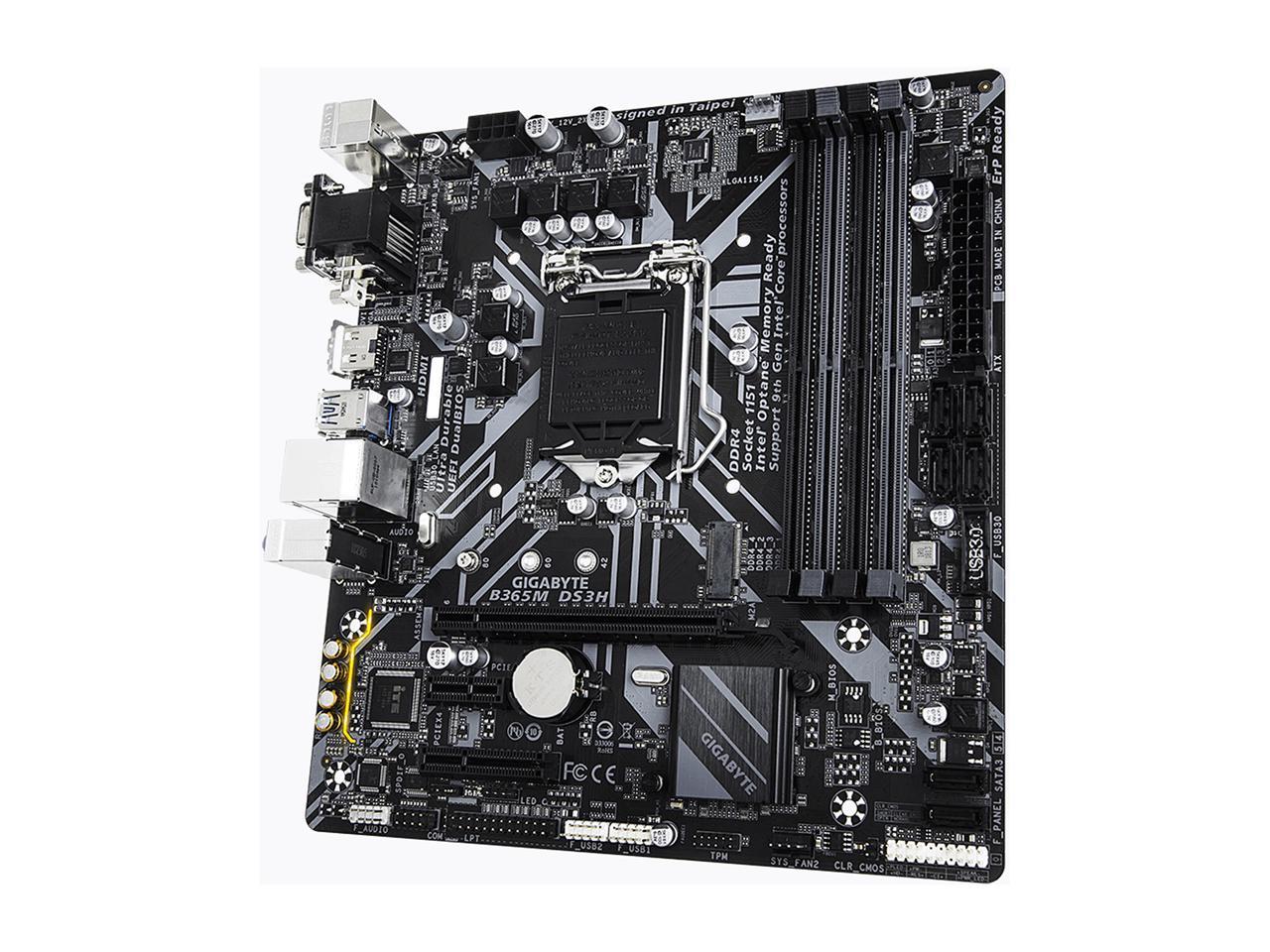

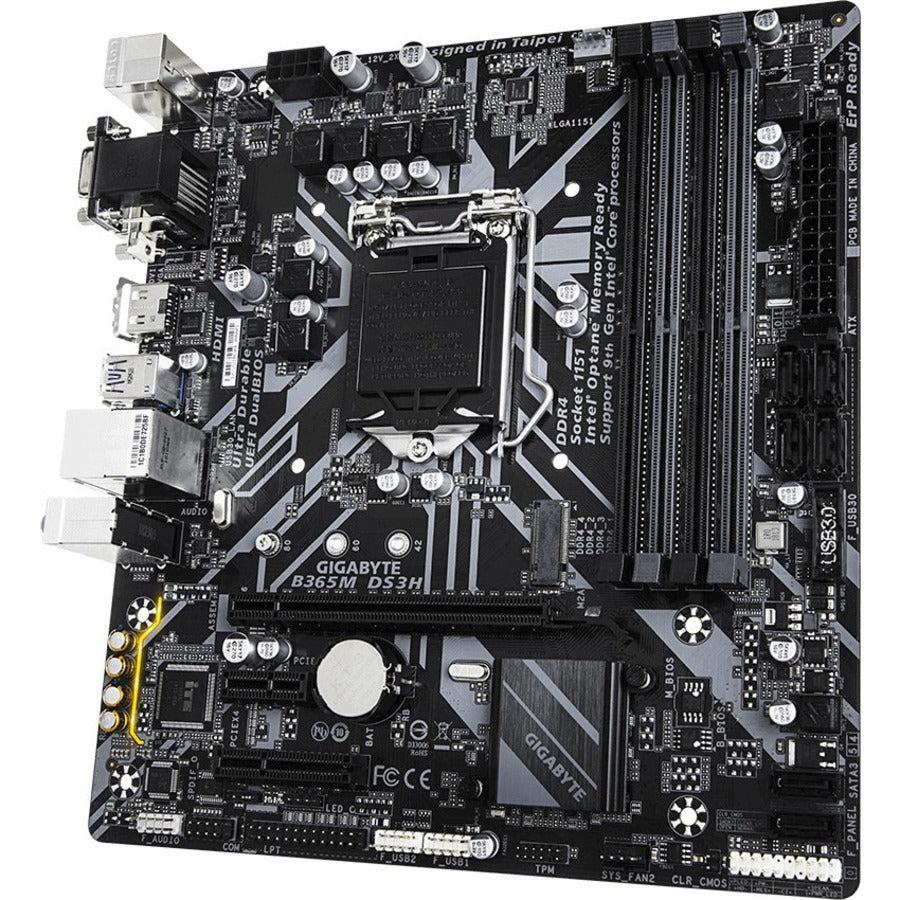

The GIGABYTE B365M DS3H motherboard provides a cornerstone for your next gaming powerhouse based on the 9th and 8th Gen Intel Core Processors. It has an onboard M.2 slot for installing ultra-fast NVMe PCIe SSD or Intel Optane Memory. Realtek 8118 LAN optimizes network traffic for lag-free gameplay. You can flexibly add your choice of fans or pumps via the hybrid fan headers, which automatically detect PWM/Voltage mode. And with the RGB header, you can also add digital RGB light strips and use RGB Fusion 2.0 software to customize RGB lighting.
Exclusive Realtek 8118 Gaming LAN
High Speed Gigabit LAN with Automatic Bandwidth Allocation
Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features and the fastest and smoothest Internet experience.
NVMe PCIe Gen3 x4 2280 M.2 Connector (Up to 32 Gb/s)
GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system's potential.
Performance Fueled by Optane
The H370/B365/B360 Platform supports Intel's latest Optane technology. Optane fuels storage performance by acting as a cache drive giving users a significant boost compared to traditional mechanical drives.
Smart Fan 5
With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.
Fan Stop
Achieve fan silence. With Fan Stop map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature—all of it can be customized to your liking.
Hybrid Fan Pin Headers
Assume complete control over your liquid cooling setup! Smart Fan 5 receives up-to-the-second information on flow-rate through the Hybrid Fan Pin Headers—giving you absolute mastery over your PC. All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode.
High-End Audio Capacitors
GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.
Audio Noise Guard
GIGABYTE motherboards feature an audio noise guard that essentially separates the board's sensitive analog audio components from potential noise pollution at the PCB level. LED trace path lighting Illuminates to show the separation of the PCB layers.
Supports RGB Light Strips in 7 Colors
Personalize your next PC rig to your liking by selecting the color of your choice to illuminate the external RGB light strip. A total of 7 colors are available to make your system appearance unique!
* LED strips not included. Lighting effects may vary by model.
RGB Fusion (Advanced mode)
RGB Calibration
Different light strips sometimes have different RGB pin definitions. RGB Fusion software can relocate each pin location for the best compatibility.
Lighting Profile
Save, export and import profiles to quickly change effects based on you preference and to share with others.
GIGABYTE RGB Fusion APP
Don't just make your PC shine. Make it a work of art that friends will envy. With the GIGABYTE RGB Fusion mobile app users can watch as they control the lighting within their gaming PC. This gives users ease of access as they try and adjust colors and speeds for different modes, all this can be achieved away from the keyboard and monitor of their PC.
GIGABYTE Patented Double Locking Bracket
GIGABYTE Patented DualBIOS Design
GIGABYTE Ultra Durable motherboards feature GIGABYTE DualBIOS, an exclusive technology from GIGABYTE that protects arguably one of your PC's most crucial components, the BIOS. GIGABYTE DualBIOS means that your motherboard has both a 'Main BIOS' and a 'Backup BIOS', protecting users from BIOS failure due to virus, hardware malfunction, improper OC settings or power failure during the update process.
Start Sulfurization Protection
Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.
CEC 2019 Ready
Save the power as easy as one click
CEC Requirement: PC power consumption must be under a certain level when it's in off mode, idle mode, and stand-by mode. With high power efficiency hardware components and fine tuned BIOS, GIGABYTE motherboards can achieve lower power consumption under idle mode and fully comply with new CEC 2019 (California Energy Commission) power consumption requirement.
Refreshed BIOS
The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.
GIGABYTE APP Center
The GIGABYTE APP Center gives you easy access to a wealth of GIGABYTE apps that help you get the most from your GIGABYTE motherboard. Using a simple, unified user interface, GIGABYTE APP Center allows you to easily launch all GIGABYTE apps installed on your system, check related updates online, and download the latest apps, drivers, and BIOS.
3D OSD
3D OSD automatically detects and displays your system information during games, allowing you to easily get a hold of your system information without switching between screens.
XSplit Gamecaster + Broadcaster: Cast Your Game Anytime, Anywhere
Now set up your stage and share the greatest gaming moments with XSplit Gamecaster + Broadcaster! Fully optimized social media integration is ready for real-time chats—keeping you notified yet focused in the game. It takes just one click to stream your gameplay to Twitch. Host your game like a pro!
General Information
| Manufacturer | GIGABYTE Technology, Inc |
|---|---|
| Manufacturer Part Number | B365M DS3H |
| Manufacturer Website Address | http://www.gigabyte.us |
| Brand Name | Gigabyte |
| Product Line | Ultra Durable |
| Product Model | B365M DS3H |
| Product Name | Ultra Durable B365M DS3H (Rev. 1.0) Desktop Motherboard |
| Product Type | Desktop Motherboard |
| UPC | 889523017203 |
| Chipset Manufacturer | Intel |
|---|
| HDMI | Yes |
|---|---|
| Total Number of USB Ports | 6 |

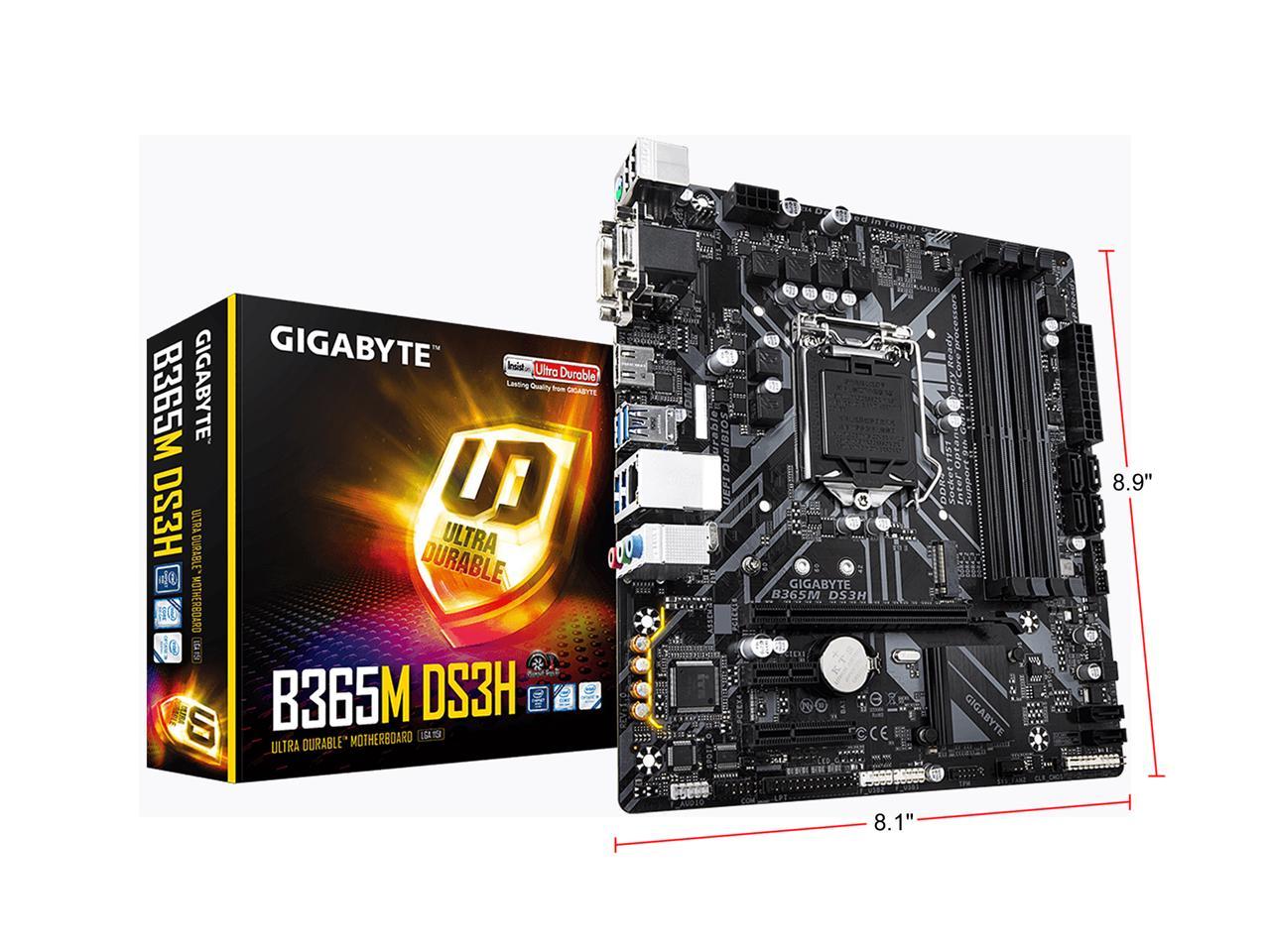

| Width | 8.9" |
|---|---|
| Depth | 8.1" |
| Package Contents |
|
|---|---|
| Environmentally Friendly | Yes |
| Limited Warranty | 3 Year |
|---|
