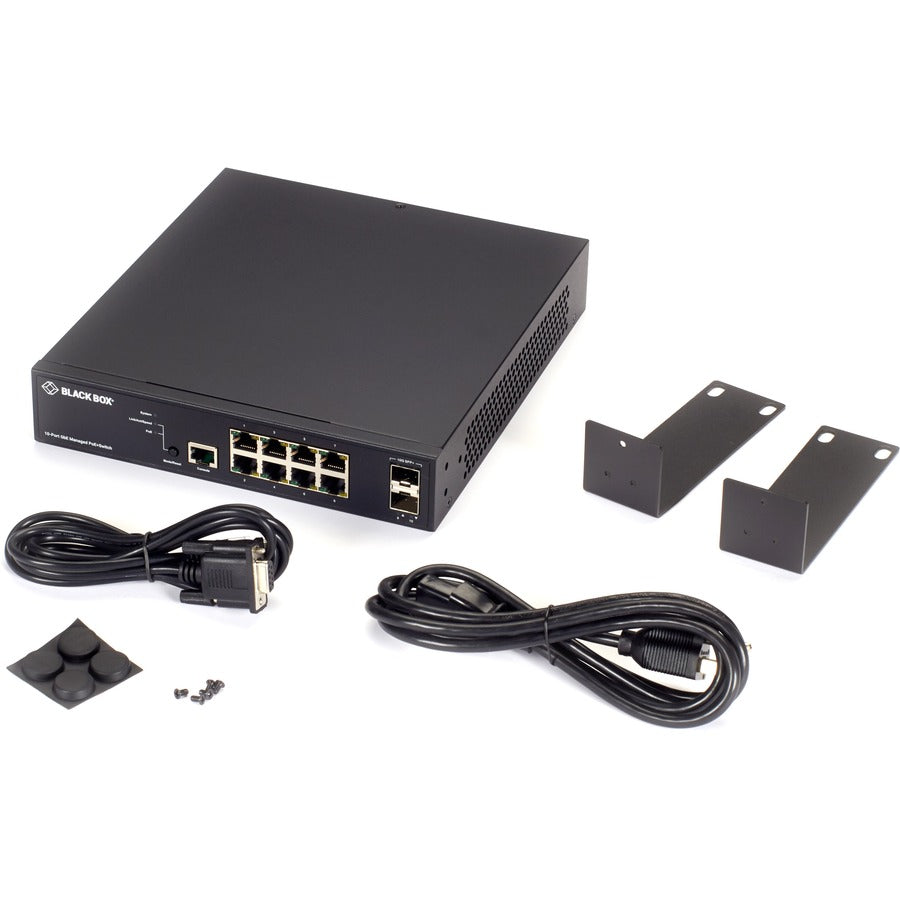

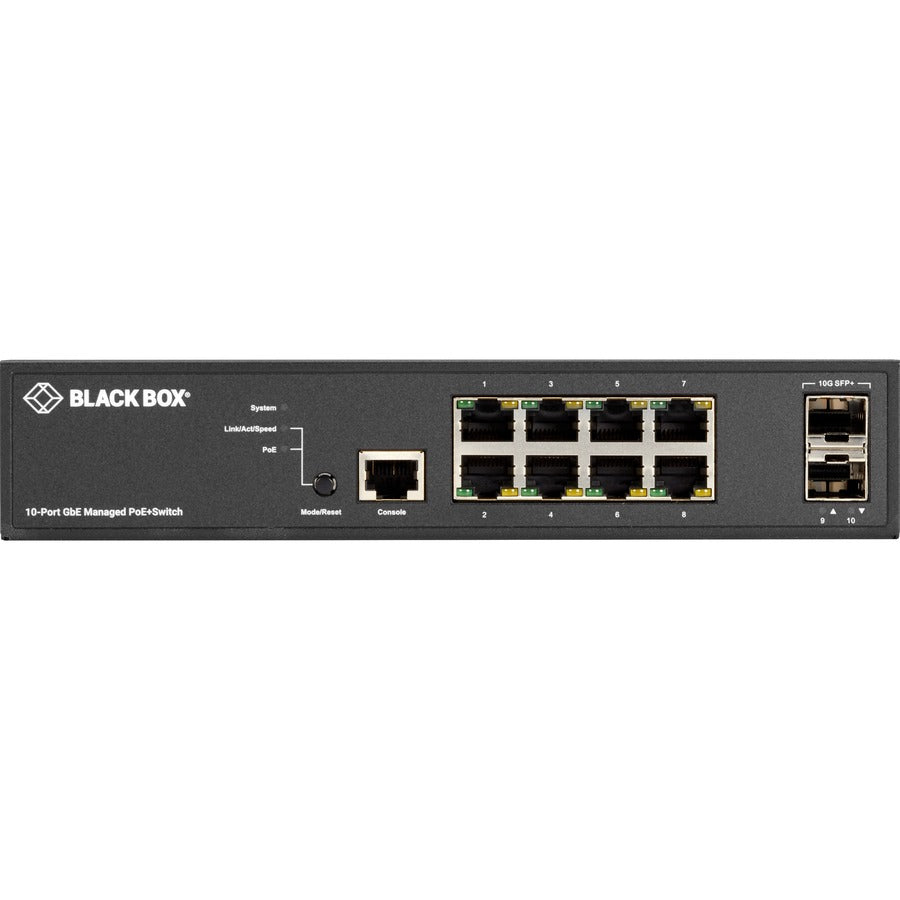

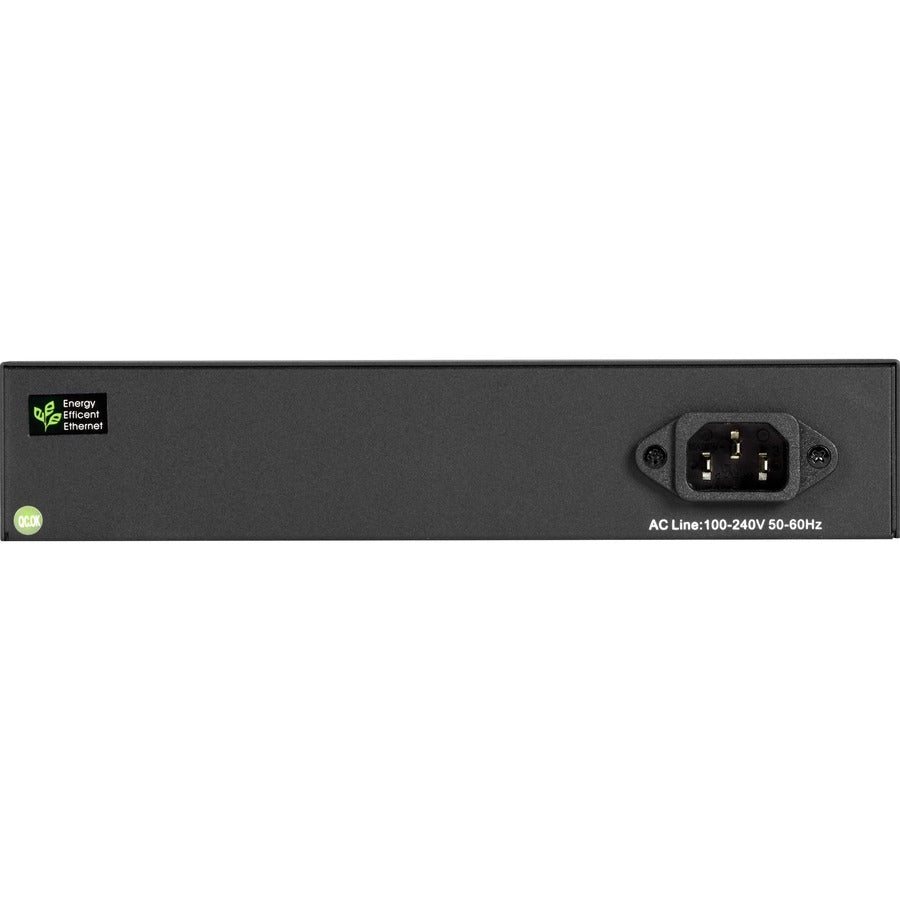

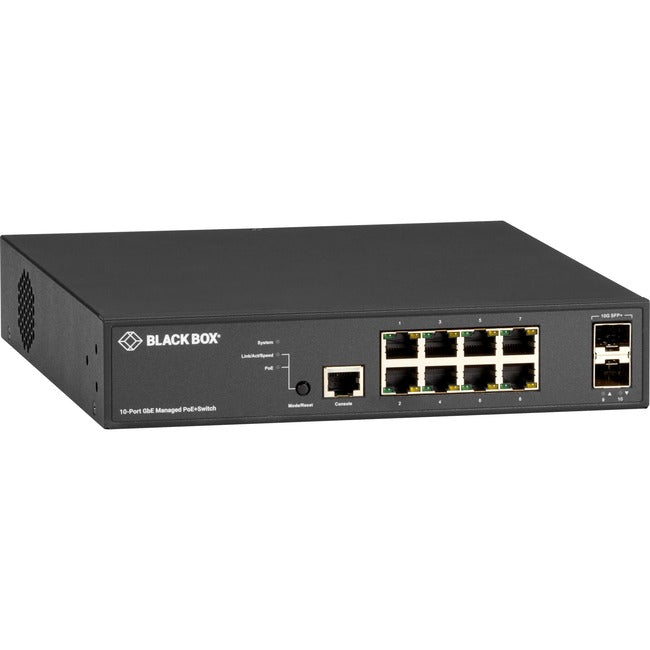

This Gigabit Ethernet Managed PoE Switch is perfect for enterprise network administrators and IT professionals who need reliable, high-performance network infrastructure with integrated power delivery. The LPB3000 Series delivers exceptional value for organizations requiring centralized network management and PoE+ capability in a single, robust solution.
-
10 Port PoE Switch capability providing comprehensive connectivity for large enterprise environments
-
Managed Power Distribution with intelligent PoE+ allocation up to 30W per port for powered devices
-
Enterprise-grade Ethernet Switches with Layer 2+ management features and VLAN support
-
Server Rack Network Switch design optimized for data center deployment and rack mounting
Key Features
-
Advanced PoE+ Management with intelligent power allocation and monitoring
-
Gigabit Ethernet Performance delivering full-duplex 1000 Mbps on all ports
-
Layer 2+ Switching with comprehensive VLAN and QoS capabilities
-
Enterprise Security Features including port security and access control
-
SNMP Management Support for centralized network monitoring and configuration
-
Redundant Power Options ensuring maximum uptime and reliability
Technical Specifications
| Model Series |
LPB3000 Series |
| Switch Type |
Managed Gigabit Ethernet PoE+ Switch |
| Port Configuration |
10 Gigabit Ethernet ports with PoE+ |
| Data Transfer Rate |
1000 Mbps (1 Gigabit) full-duplex per port |
| PoE+ Power Budget |
Up to 130W total power delivery |
| Power per Port |
30W maximum per PoE+ port |
| MAC Address Table |
16K entries |
| VLAN Support |
4094 VLANs with 802.1Q tagging |
| Management Interface |
Web GUI, CLI, SNMP v1/v2c/v3 |
| Mounting |
1U rack-mountable with included brackets |
| Operating Temperature |
0°C to 50°C (32°F to 122°F) |
Target Applications & Use Cases
The LPB3000 Series Gigabit Ethernet Managed PoE Switch is engineered for demanding enterprise environments requiring centralized power and data delivery:
-
IP Security Camera Systems - Power and connect up to 8 PoE+ cameras with centralized management
-
Wireless Access Point Deployment - Support high-density Wi-Fi 6 access points with 30W PoE+ power delivery
-
VoIP Phone Systems - Enterprise telephony infrastructure with Quality of Service (QoS) prioritization
-
Building Automation - IoT devices, sensors, and control systems with integrated power management
-
Data Center Edge Switching - High-performance access layer switching with enterprise management features
Frequently Asked Questions
Q: What is the maximum PoE+ power budget for the LPB3000 Series switch?
A: The LPB3000 Series provides up to 130W total PoE+ power distribution, delivering up to 30W per port to support high-power devices like Wi-Fi 6 access points and PTZ security cameras.
Q: Can this switch handle enterprise-grade network segmentation and security?
A: Yes, it supports 4094 VLANs with 802.1Q tagging, port-based access control, and comprehensive network security features required for enterprise deployments.
Q: What management options are available for the LPB3000 Series?
A: The switch offers multiple management interfaces including an intuitive web GUI, command-line interface (CLI), and SNMP management support for integration with enterprise network management systems.
Gigabit Ethernet Managed PoE Switch for enterprise networks. Advanced PoE+ power distribution with Layer 2+ switching and SNMP management for reliable network infrastructure.
