Geist Switched Unit Level Monitoring MNS5MGB1-24PH68-3TL21A0A10-S-A - Power distribution unit (rack-mountable) - AC 120/208 V - 8.6 kW - RS-232, USB, Ethernet 10/100/1000 - input: NEMA L21-30P - output connectors: 24 (4 x IEC 60320 C19, 18 x IEC 60320 C13) - 0U - 10 ft cord - black powder coat - TAA Compliant
-
Comprehensive connectivity
Equipped with a variety of interfaces including Fast Ethernet, RS-232, USB, and sensor inputs, this power distribution unit ensures seamless integration and management capabilities for modern data centers.
-
Advanced environmental adaptability
Designed to operate efficiently in temperatures up to 60°C, this unit ensures reliability and performance in demanding environmental conditions.
-
Robust power distribution
Featuring 24 output connectors, including 18 x power IEC 60320 C13 and 6 x power IEC 60320 C19, alongside a total power provision of 8.6 kW, this unit meets the high-capacity needs of enterprise-level power distribution.
-
Enhanced safety features
With circuit breaker protection and compliance with multiple safety standards including C-UL, FCC Part 15 A, RoHS, UL, and UL 62368-1, this power distribution unit prioritizes safety alongside performance.
-
Intelligent remote management
Supports a wide range of remote management protocols such as DHCP, HTTP/S, IPv4/6, SNMP, SSH, and more, enabling comprehensive and secure remote monitoring and control.

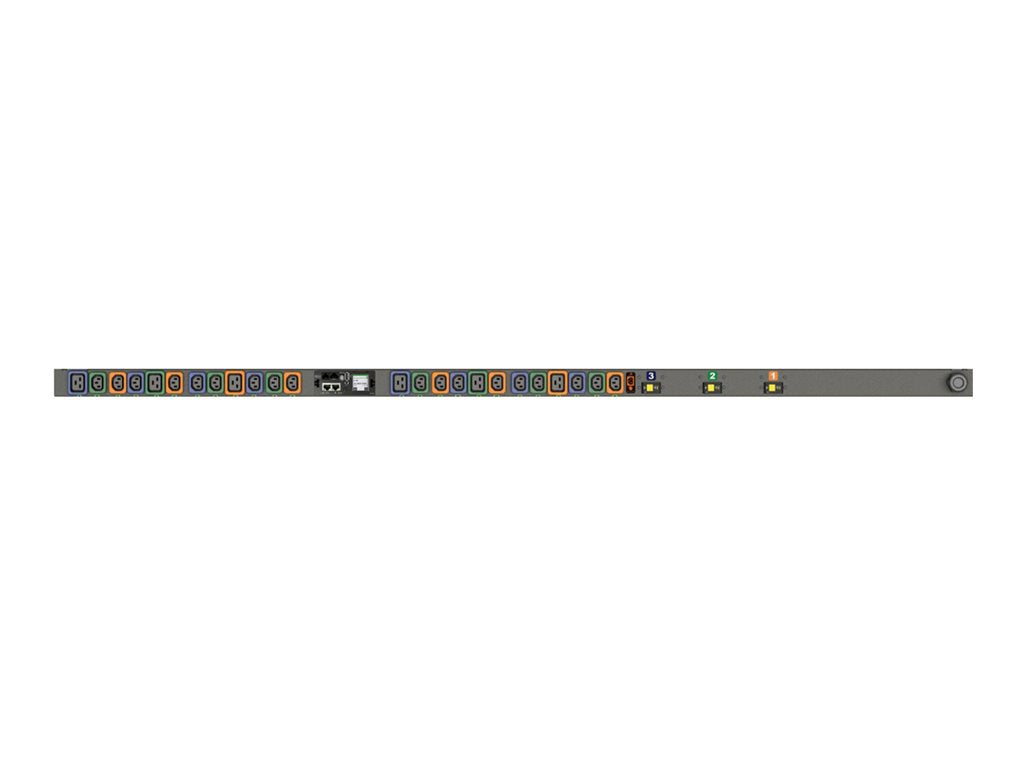

The Vertiv Geist Switched RPDU VP5N30A0 is a 30A, 120V/208V WYE, 0U, vertical rack power distribution unit with input power monitoring and outlet level switching. It has (18) U-Lock C13 and (6) U-Lock C19 receptacles and a NEMA L21-30P plug providing 8.6kW of power capacity. This device allows you to remotely turn off receptacles to avoid accidental overloads and power cycle equipment to reboot unresponsive critical IT equipment. It is integrated with the Vertiv Geist Next-Generation IMD which displays power data via its 128x128 high-visibility LCD. It has an internal sensor that intelligently adjusts the orientation based on horizontal or vertical installation. This includes a redundant power-sharing port that connects two IMDs in the rack and provides backup power in case of power loss. Enhanced security with a secure boot is added to the device to help ensure data and operations are protected. The units are UL-listed, TAA-compliant, RoHS certified, and individually tested for functionality and reliability.
- Switched Rack PDU allows remote rebooting of outlets to power cycle unresponsive IT equipment
- VP5N30A0 is a rack mount PDU with 18 U-Lock C13 and 6 U-Lock C19 receptacles and a NEMA L21-30P plug
- Vertiv Geist Next-Generation IMD has a 128x128 high-contrast LCD for monitoring data
- Helps ensure that data and operations are protected with the enhanced security features
- Vertiv Geist rPDUs are individually tested, UL-Listed, TAA-Compliant, and RoHS certified
