Geist Switched Unit Level Monitoring EC MNS5M1R6-12CF18-3TL6A0H10-S - Power distribution unit (rack-mountable) - AC 208 V - 4.9 kW - Ethernet 10/100/1000, RS-232, USB - input: NEMA L6-30P - output connectors: 12 (IEC 60320 C13/C19) - 1U - 19 - 10 ft cord - black powder coat - TAA Compliant"
-
Efficient power monitoring
The integrated power monitoring feature allows for real-time tracking of power consumption and load management, ensuring efficient use of resources.
-
Robust environmental standards
Compliant with RoHS, FCC Part 15 A, and various other standards, this unit meets strict regulatory requirements, promoting safe usage in critical applications.
-
Versatile connectivity options
Equipped with interfaces including USB, Ethernet, and RS-232, it supports diverse connectivity needs for management and monitoring.
-
User-friendly interface
The touch screen LCD display simplifies interactions with the unit, providing essential information and control at a glance.
-
Easy installation and operation
The included rack mounting kit makes installation straightforward while features like a hard reboot button enhance operational efficiency.
The Vertiv Geist Switched RPDU VP5N31A1 is a 30A, 208V, 1U, horizontal rack power distribution unit with input power monitoring and outlet level switching. It has (12) Combination C13/C19 receptacles and a NEMA L6-30P plug providing 4.9kW of power capacity. This device allows you to remotely turn off receptacles to avoid accidental overloads and power cycle equipment to reboot unresponsive critical IT equipment. It is integrated with the Vertiv Geist Next-Generation IMD which displays power data via its 128x128 high-visibility LCD. It has an internal sensor that intelligently adjusts the orientation based on horizontal or vertical installation. This includes a redundant power-sharing port that connects two IMDs in the rack and provides backup power in case of power loss. Enhanced security with a secure boot is added to the device to help ensure data and operations are protected.The units are UL-listed, TAA-compliant, RoHS certified, and individually tested for functionality and reliability.
- Switched Rack PDU allows remote rebooting of outlets to power cycle unresponsive IT equipment
- VP5N31A1 is a 30A, 208V, rack PDU with (12) Combination C13/C19 receptacles and a NEMA L6-30P plug

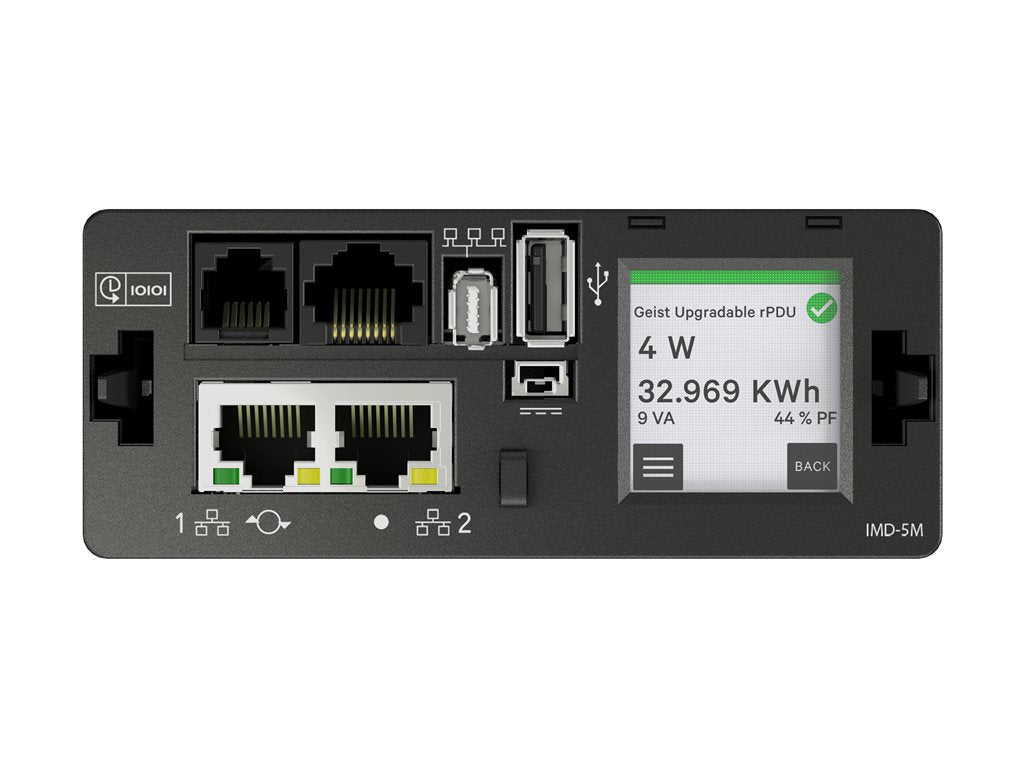

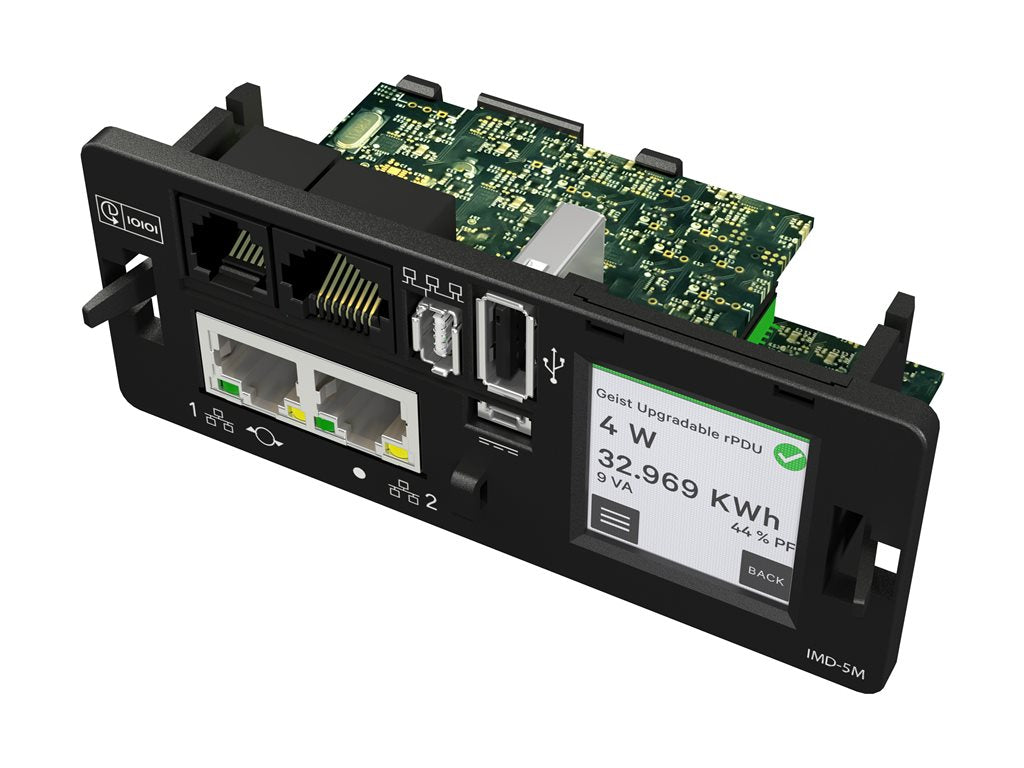

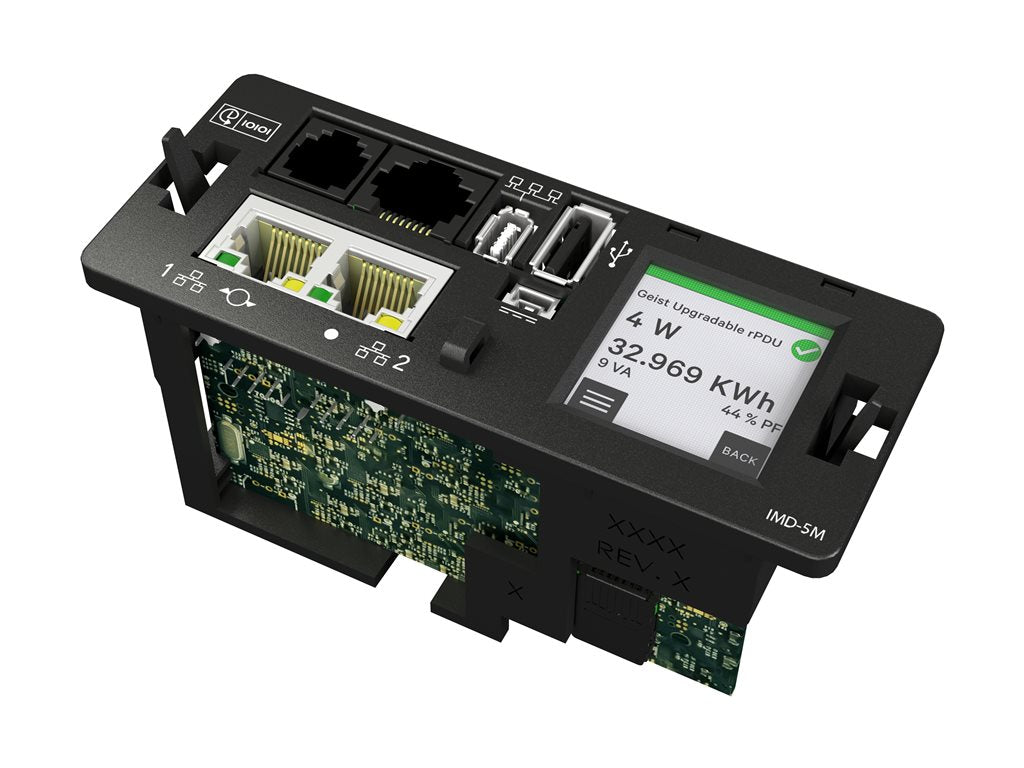

- Vertiv Geist Next-Generation IMD has a 128x128 high-contrast LCD for monitoring data
- Helps ensure that data and operations are protected with the enhanced security features
- Vertiv Geist rPDUs are individually tested, UL-Listed, TAA-Compliant, and RoHS certified
