Geist Switched Outlet Level Monitoring DUU5M4W1-30PHB7-2S02A9K00-S-A - Power distribution unit - AC 240/415 V - 22 kW - 3-phase / 1-phase - Ethernet 10/100/1000, USB, RS-232 - input: universal inlet - output connectors: 30 (18 x IEC 60320 C13, 12 x IEC 60320 C19) - 0U - black powder coat - TAA Compliant
-
Robust connectivity options
The unit offers multiple output connectors including 18 x power IEC 60320 C13 and 12 x power IEC 60320 C19, allowing for flexible connectivity for various devices.
-
Enhanced remote management capabilities
Supports a range of remote management protocols such as HTTP, HTTPS, and SSH, enabling users to monitor and manage power usage efficiently.
-
Integrated circuit protection
Features multiple circuit breakers providing essential protection against overloads, ensuring safe operation of connected devices.
-
User-friendly interface
The LED display provides real-time power usage information and alerts, making it easier to monitor and assess power distribution.
-
Compliance with international standards
Meets various compliance standards including RoHS and FCC Part 15 A, ensuring safe operation across different regulatory environments.
The Vertiv Geist VP7UV0A0 is a vertical rack power distribution unit with a universal input that supports common AC power configurations. It has (18) U-Lock C13 outlets and (12) U-Lock C19 receptacles providing 22kW of power capacity. This unit can accommodate input power ranging from 32A-63A and 208V-415V in both single phase and three phase configurations. It helps simplify the rPDU procurement process since users can use a single model to work with different power sources. It is integrated with the Vertiv Geist Next Generation Interchangeable Monitoring Device (IMD). It has a 128x128 high-contrast LCD that displays the power usage. It features enhanced security with a secure boot that helps protect data and operations. It also has a redundant power-sharing port that connects two IMDs in the rack and provides backup power in case of power loss. The units are Dual Listed (UL/CE), TAA-Compliant, and individually tested for functionality and reliability.
- VP7UV0A0 UPDU accommodates 32A-63A and 208V-415V of power in both 1Phase and 3Phase configurations
- The U-Lock outlets help lessen the risk of downtime caused by accidental cord disconnection

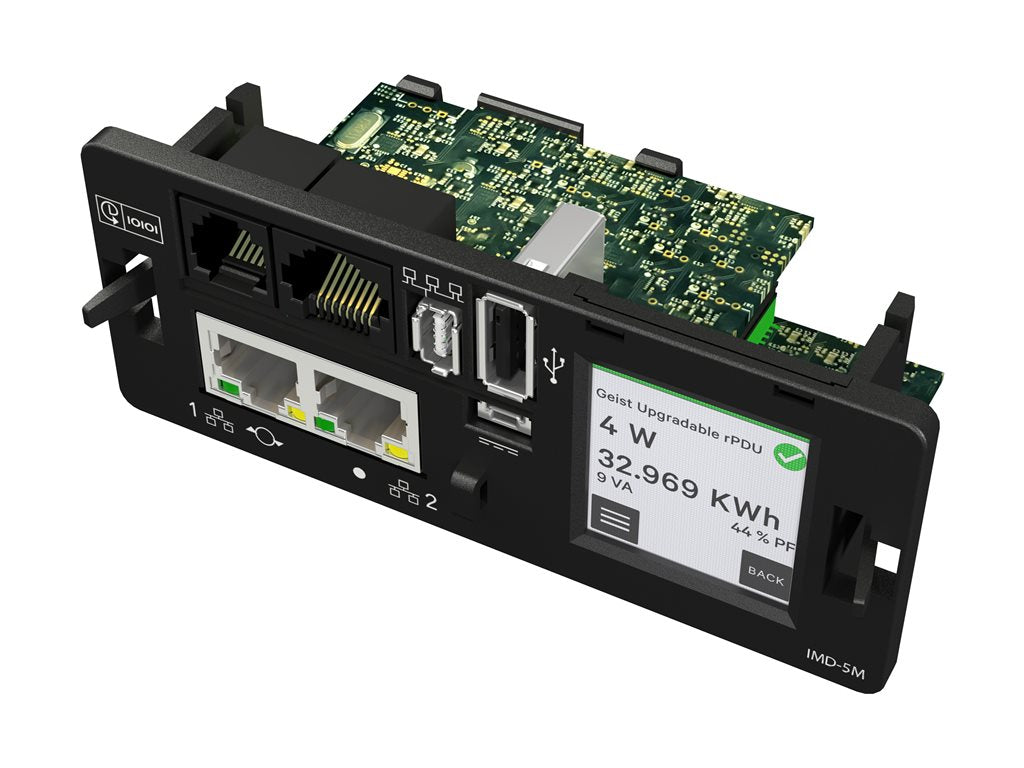

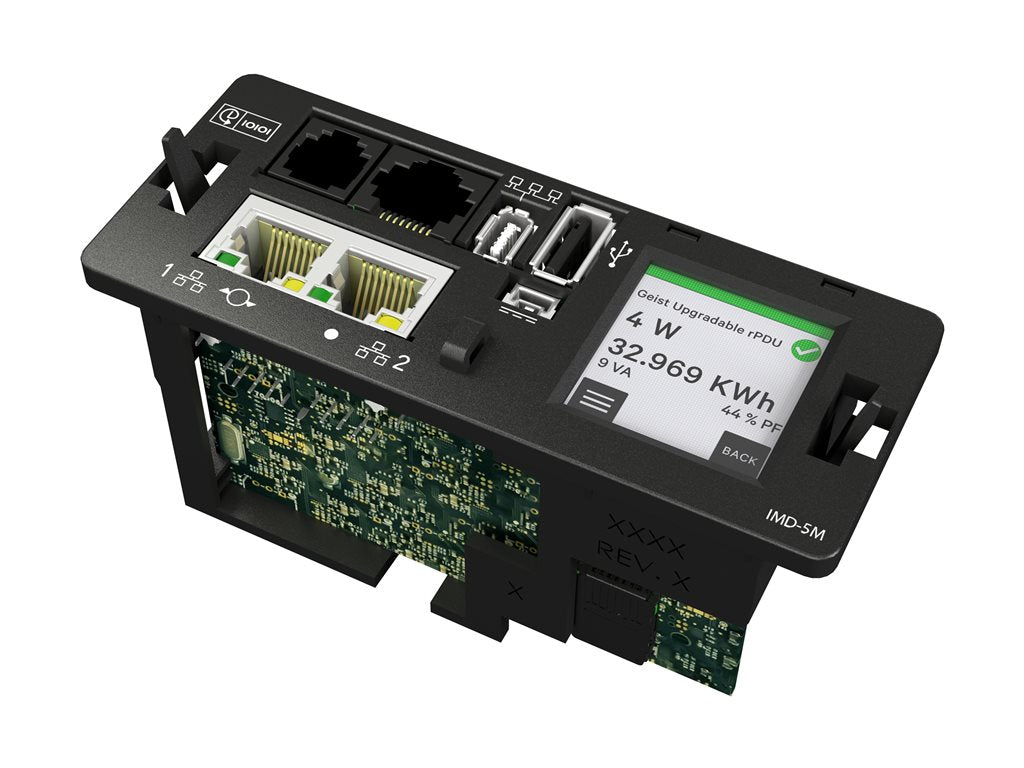

- Vertiv Geist Next-Generation IMD has a 128x128 high-contrast LCD for monitoring data
- Helps ensure that data and operations are protected with the enhanced security features
- Vertiv Geist rPDUs are individually tested, Dual Listed (UL/CE), TAA-Compliant, and RoHS certified
