Geist Rack Transfer Switch Outlet Level Monitoring AUU5M1R5-06CF17-2C20C20A900-D - Power distribution unit (rack-mountable) - AC 120/208/230 V - 3.6 kW - Ethernet 10/100/1000, RS-232, USB - input: IEC 60320 C20 - output connectors: 6 (IEC 60320 C13/C19) - 1U - 19 - 10 ft cord - black powder coat"
-
Reliable power capacity
The device supports a power capacity of 3.6 kW and accommodates input voltages ranging from AC 100 to 240 V, providing flexibility across varying power setups.
-
Versatile connectivity options
With 6 output connectors of type IEC 60320 C13/C19, the unit allows for multiple connections to various devices, making it adaptable for different configurations.
-
Advanced remote management capabilities
Supports various remote management protocols such as SNMP, HTTP, and SSH, enabling users to efficiently monitor and control power distribution from any location.
-
Monitoring features for safety
The LED display along with monitored and phase monitoring capabilities provides users with critical information on power usage and potential issues, ensuring the system’s reliability.
-
Compliance with safety standards
The unit is compliant with several regulations, including RoHS and UL/IEC standards, ensuring it operates safely in various environments and meets industry requirements.

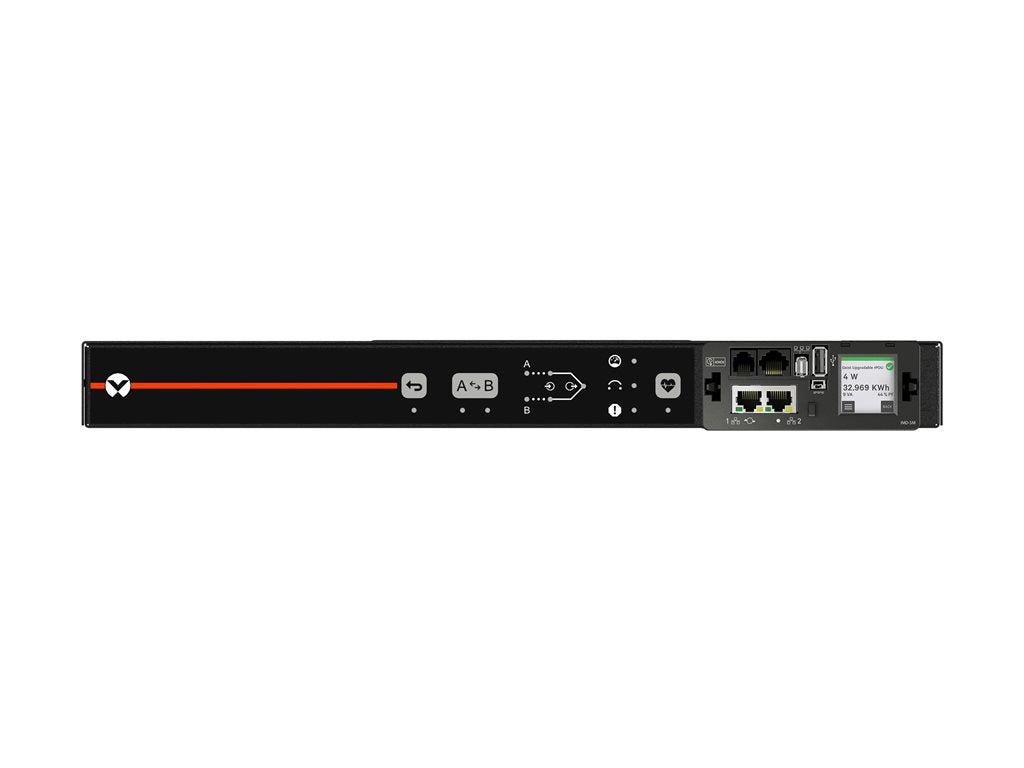

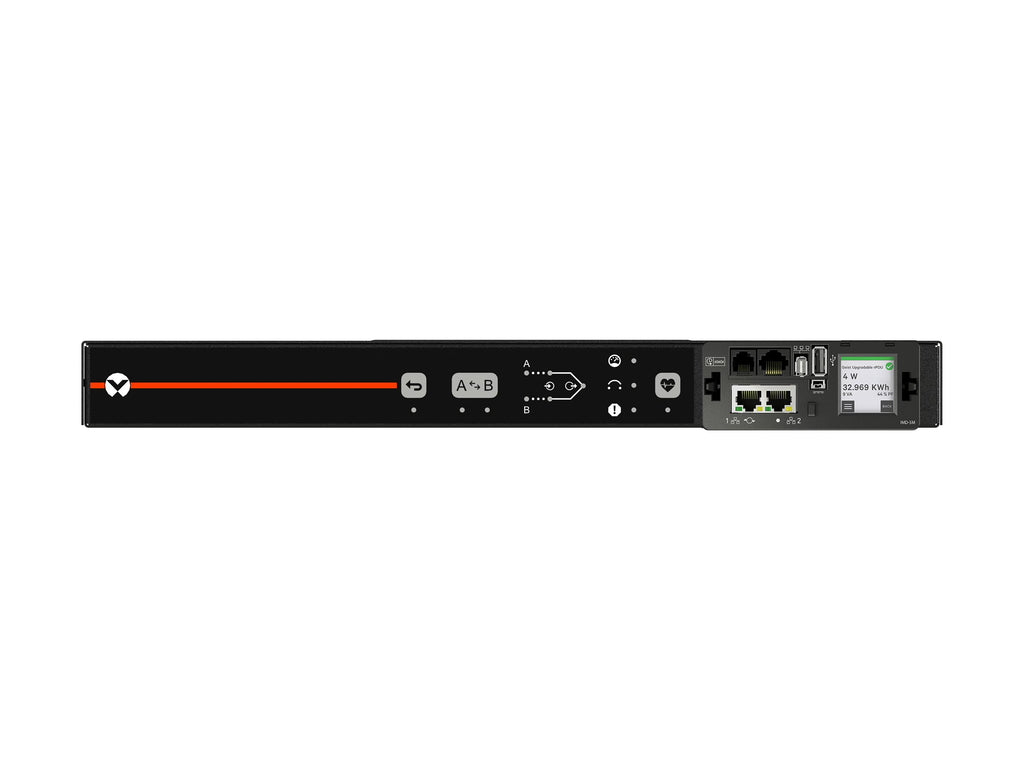

The Vertiv Geist Rack Transfer Switch VA7U21A0 is a 16A/20A, 100V-240V, single-phase unit level monitored rPDU with (6) combination C13/C19 outlets and (2) C20 inlets that provide 1.9kW/3.3kW/3.6kW power capacity. This unit provides backup power to single-corded devices and helps ensure continuity in the event of power loss. It quickly detects power loss on the main source and automatically switches to the secondary source within less than 4 to 8 milliseconds. It is integrated with the Vertiv Geist Next-Generation IMD which displays power data via its 128x128 high-visibility LCD. It has an internal sensor that intelligently adjusts the orientation based on horizontal or vertical installation. This includes a redundant power-sharing port that connects two IMDs in the rack and provides backup power in case of power loss. Enhanced security with a secure boot is added to the device to help ensure data and operations are protected. The units are CE-marked, comply with IEC 60950-1, RoHS-certified, and are individually tested for functionality and reliability.
- Provides a power capacity of 3.6 kW for efficient power distribution
- Includes 6 output connectors for versatile equipment connectivity
- Features advanced remote management protocols for monitoring and control
- Equipped with LED display for real-time power usage information
- Compliant with multiple safety standards to ensure operational reliability
