Geist Monitored Unit Level MN05M4W1-44MB19-3TL21A0B10-S - Power distribution unit - AC 120/208 V - 8.6 kW - 3-phase - Ethernet 10/100/1000, USB, RS-232 - input: NEMA L21-30P - output connectors: 44 (36 x IEC 60320 C13, 6 x IEC 60320 C19, 2 x NEMA 5-20R) - black powder coat - TAA Compliant
-
Efficient power distribution
The power distribution unit provides a range of output connectors including 36 x power IEC 60320 C13 and 2 x power NEMA 5-20R, ensuring compatibility with multiple devices and enhancing operational flexibility.
-
Advanced monitoring capabilities
Equipped with features such as circuit/breaker current monitoring and an internal RMS voltage sensor, this unit allows users to monitor and manage power usage effectively.
-
Comprehensive compliance
Meets a variety of compliance standards including SightGain and C-UL, ensuring adherence to safety and environmental regulations.
-
Robust remote management options
With support for remote management through protocols like DHCP, NTP, and SMTP, users can manage the unit and its performance from virtually anywhere.
-
Intuitive control features
Features such as an IP reset button, hard reboot button, and breaker/switch combination provide users with simple and effective control over the power distribution process.

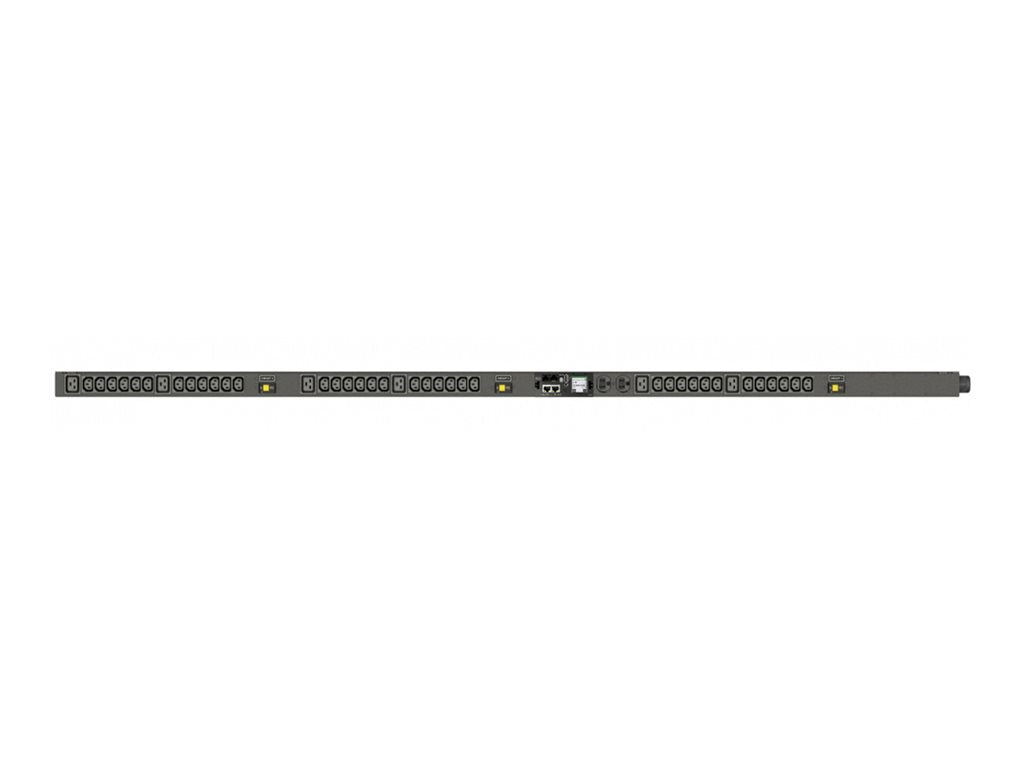

The Vertiv Geist Monitored Rack PDU VP4N30AR is a 30A, 120V/208V WYE, 0U, vertical rack power distribution unit with input power monitoring. It has (36) IEC C13, (6) IEC C19, and (2) NEMA 5-20R receptacles and NEMA L21-30P plug providing 8.6kW of power capacity. This device offers quick access to critical power usage information down to the device level to evaluate energy usage trends and maximize uptime. It is integrated with the Vertiv Geist Next-Generation IMD which displays power data via its 128x128 high-visibility LCD. It has an internal sensor that intelligently adjusts the orientation based on horizontal or vertical installation. This includes a redundant power-sharing port that connects two IMDs in the rack and provides backup power in case of power loss. Enhanced security with a secure boot is added to the device to help ensure data and operations are protected. The units are UL-listed, TAA-compliant, RoHS certified, and individually tested for functionality and reliability.
- The Monitored RPDU provides access to power usage data so you can see trends and maximize uptime
- VP4N30AR is a vertical rack mount PDU with (36) IEC C13, (6) IEC C19, and (2) NEMA 5-20R receptacles
- Vertiv Geist Next-Generation IMD has a 128x128 high-contrast LCD for monitoring data
- Helps ensure that data and operations are protected with the enhanced security features
- Vertiv Geist rPDUs are individually tested, UL-Listed, TAA-Compliant, and RoHS certified
