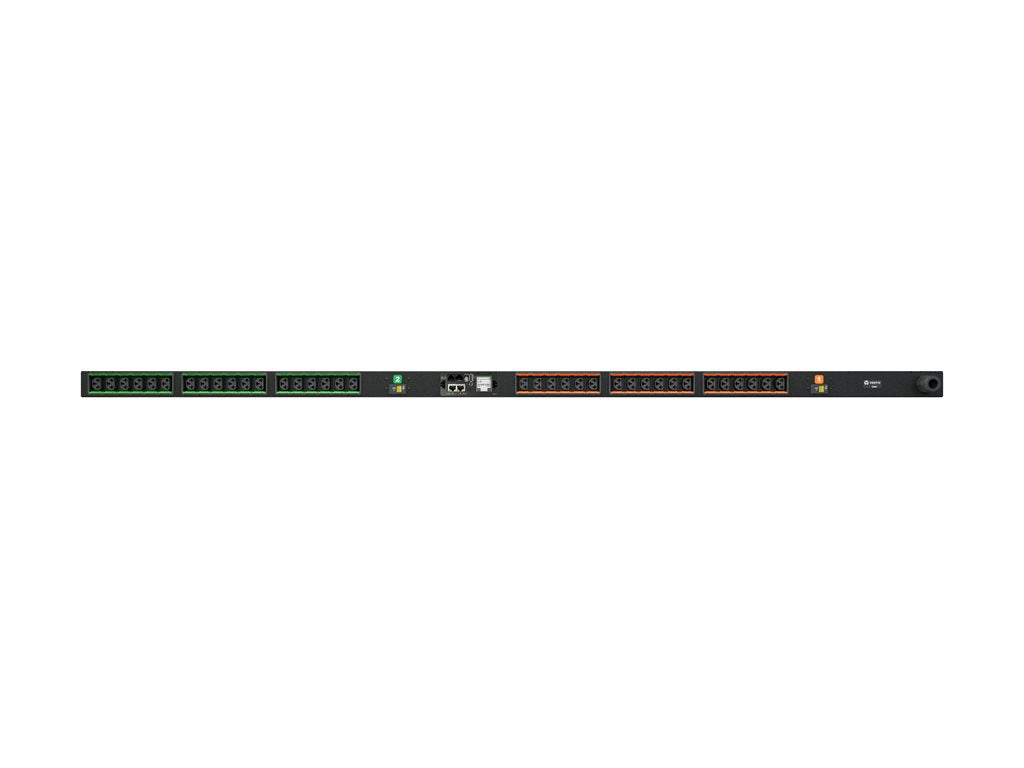

Geist Monitored Unit Level MN05M4B1-36CF18-3TL6A0A10-S - Power distribution unit - AC 200 - 240 V - 4.9 kW - Ethernet 10/100/1000, USB, RS-232 - input: NEMA L6-30P - output connectors: 36 (IEC 60320 C13/C19) - black powder coat - TAA Compliant
-
Versatile connectivity options
The power distribution unit offers a variety of remote management interfaces including RS-232, USB, and Ethernet, making it easy to integrate into existing systems.
-
Efficient power management
Equipped with circuit protection and monitoring features, this unit ensures the safety and effectiveness of power distribution within the operational environment.
-
Enhanced monitoring capabilities
The built-in LED display and current monitoring features provide users with critical information about power usage and circuit status.
-
Robust compliance standards
This unit meets multiple compliance standards such as UL and FCC, ensuring adherence to industry safety and environmental requirements.
The Vertiv Geist Monitored RPDU VP4N30AM is a 30A, 208V, single-phase upgradeable rack power distribution unit with input power monitoring. It has 36 Combination C13/C19 outlets, and a NEMA L6-30P plug providing 4.9kW of power capacity. The Combination C13/C19 Outlets accommodate C14 and C20 plugs interchangeably. The high retention outlets reduce the risk of downtime from accidental disconnections and are also P-Lock compatible. This unit offers remote power monitoring and environmental sensors to remotely manage the rPDU through any web browser or serial communication. It is integrated with the Vertiv Geist Next-Generation IMD which displays power data via its 128x128 high-visibility LCD. It has an internal sensor that intelligently adjusts the orientation based on horizontal or vertical installation. This includes a redundant power-sharing port that connects two IMDs in the rack and provides backup power in case of power loss. Enhanced security with a secure boot is added to the device to help ensure data and operations are protected. The units are UL-listed, TAA-compliant, RoHS certified, and individually tested for functionality and reliability.
- The Monitored RPDU provides access to power usage data so you can see trends and maximize uptime
- VP4N30AM is a vertical rack mount PDU with 36 Combination C13/C19 outlets and a NEMA L6-30P plug
- Vertiv Geist Next-Generation IMD has a 128x128 high-contrast LCD for monitoring data
- Helps ensure that data and operations are protected with the enhanced security features
- Vertiv Geist rPDUs are individually tested, UL-Listed, TAA-Compliant, and RoHS certified
