Geist Monitored Outlet Level MNR5MGW1-24PBB8-6PS15D0A10-S-A - Power distribution unit - AC 208 V - 17.2 kW - 3-phase delta - Ethernet 10/100/1000, USB, RS-232 - input: IEC 60309 3P+E - output connectors: 24 (12 x IEC 60320 C13, 12 x IEC 60320 C19) - 0U - black powder coat - TAA Compliant
-
Reliable power delivery
The power distribution unit provides a robust output of 17.2 kW and supports a maximum electric current of 60 A, ensuring reliable power delivery to connected devices.
-
Effective management capabilities
Featuring a variety of remote management protocols including SNMP, SSH, and HTTP, the unit allows users to monitor and manage power distribution effectively.
-
Enhanced safety features
Equipped with circuit protection through magnetic breakers and a circuit breaker for enhanced safety, the unit minimizes electrical risks during operation.
-
Clear visibility of status
The integrated LED display provides clear visibility of operational status, allowing users to quickly assess performance at a glance.
-
Compliance with standards
This unit meets various regulatory standards, including UL, RoHS, and FCC Part 15 A, ensuring adherence to safety and environmental requirements.

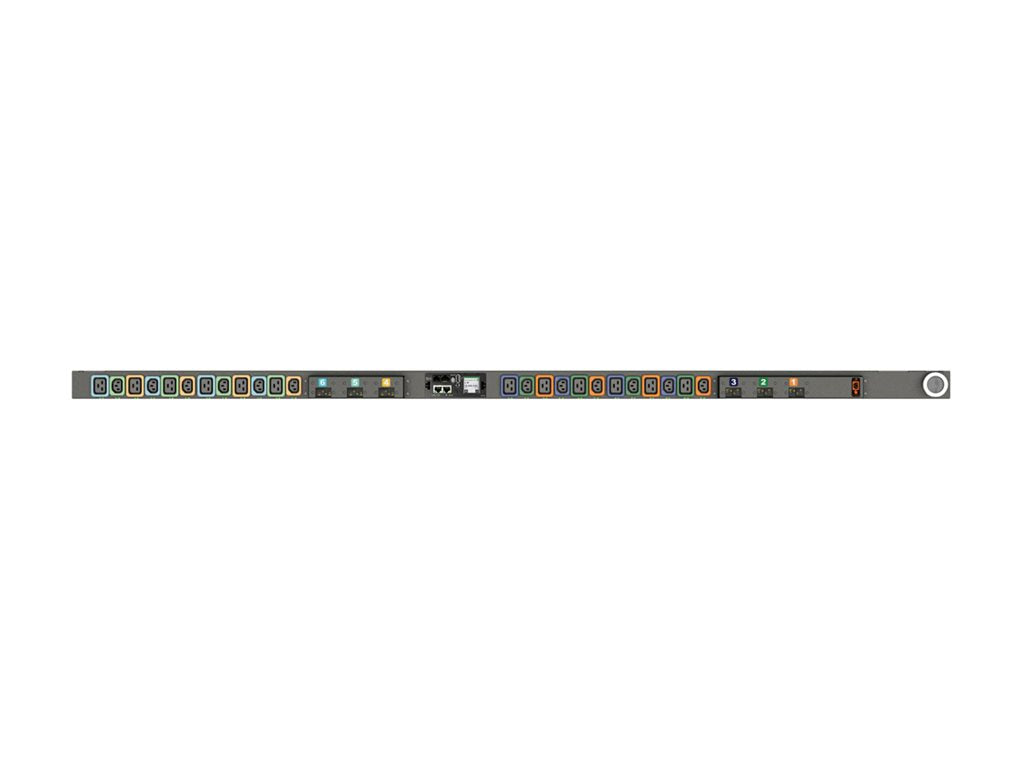

The Vertiv Geist Monitored Rack PDU VP6N60A1 is a 60A, 208V DELTA, 0U, vertical rack power distribution unit with input and outlet level power monitoring. It has 12 U-Lock C13 and 12 U-Lock C19 receptacles and a 3P+E IP67 plug providing 17.2kW of power capacity. This device offers quick access to critical power usage information down to the device level to evaluate energy usage trends and maximize uptime. It is integrated with the Vertiv Geist Next-Generation IMD which displays power data via its 128x128 high-visibility LCD. It has an internal sensor that intelligently adjusts the orientation based on horizontal or vertical installation. This includes a redundant power-sharing port that connects two IMDs in the rack and provides backup power in case of power loss. Enhanced security with a secure boot is added to the device to help ensure data and operations are protected. The units are UL-listed, TAA-compliant, RoHS-certified, and individually tested for functionality and reliability.
- The Monitored RPDU provides access to power usage data so you can see trends and maximize uptime
- VP6N60A1 is a rack mount PDU with (12) Locking C13 & (12) Locking C19 outlets and 3P+E (IP67) plug
- Vertiv Geist Next-Generation IMD has a 128x128 high-contrast LCD for monitoring data
- Helps ensure that data and operations are protected with the enhanced security features
- Vertiv Geist rPDUs are individually tested, UL-Listed, TAA-Compliant, and RoHS certified
